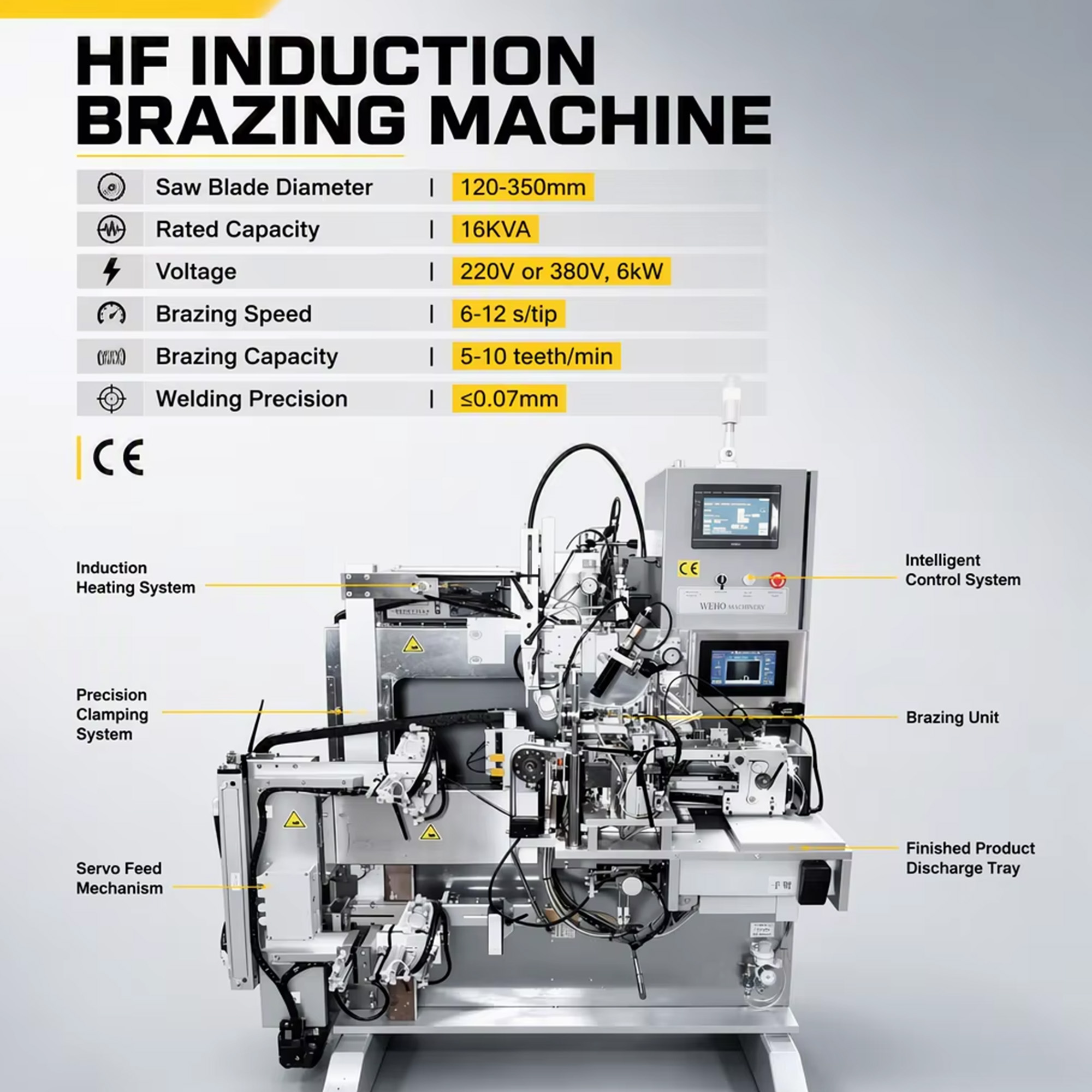

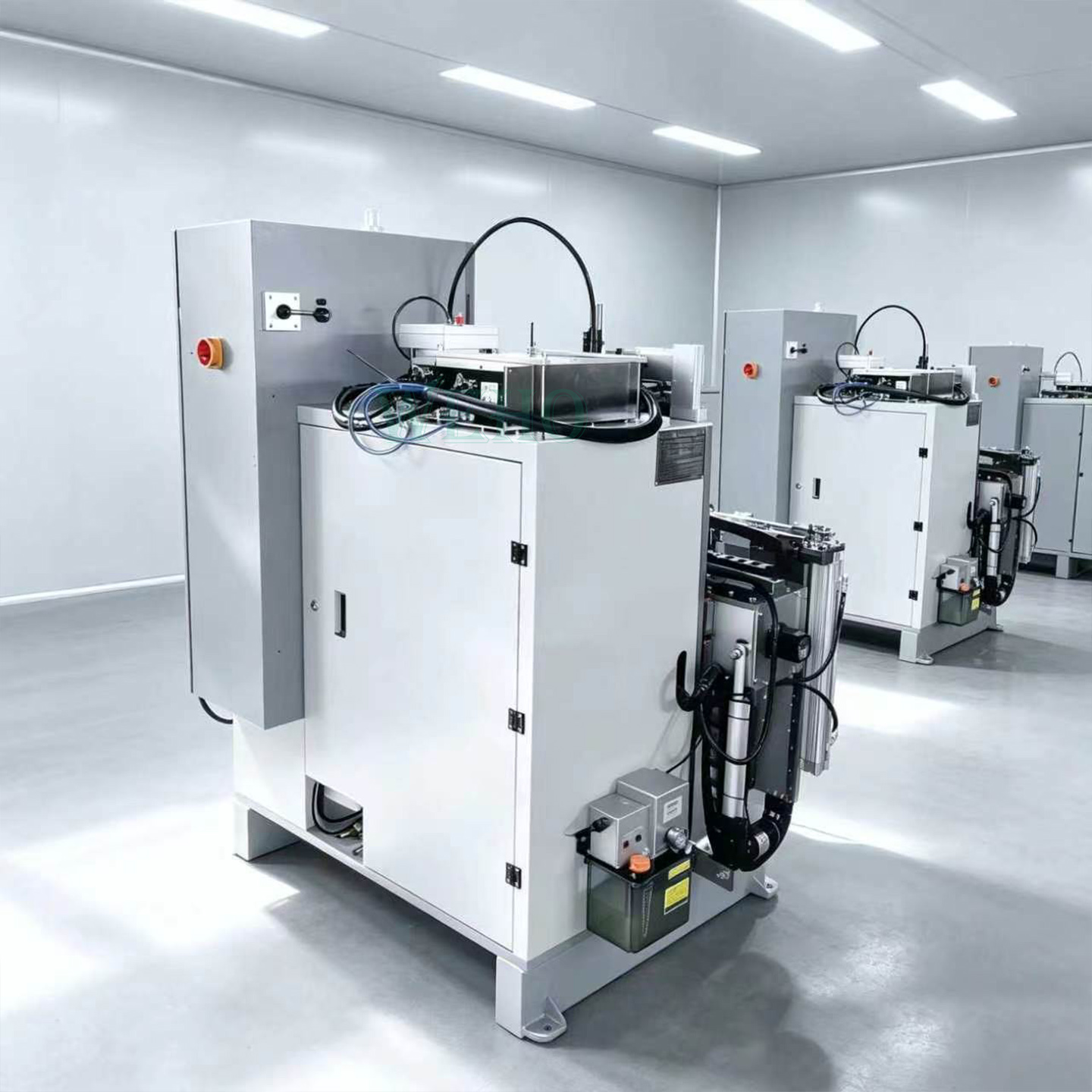

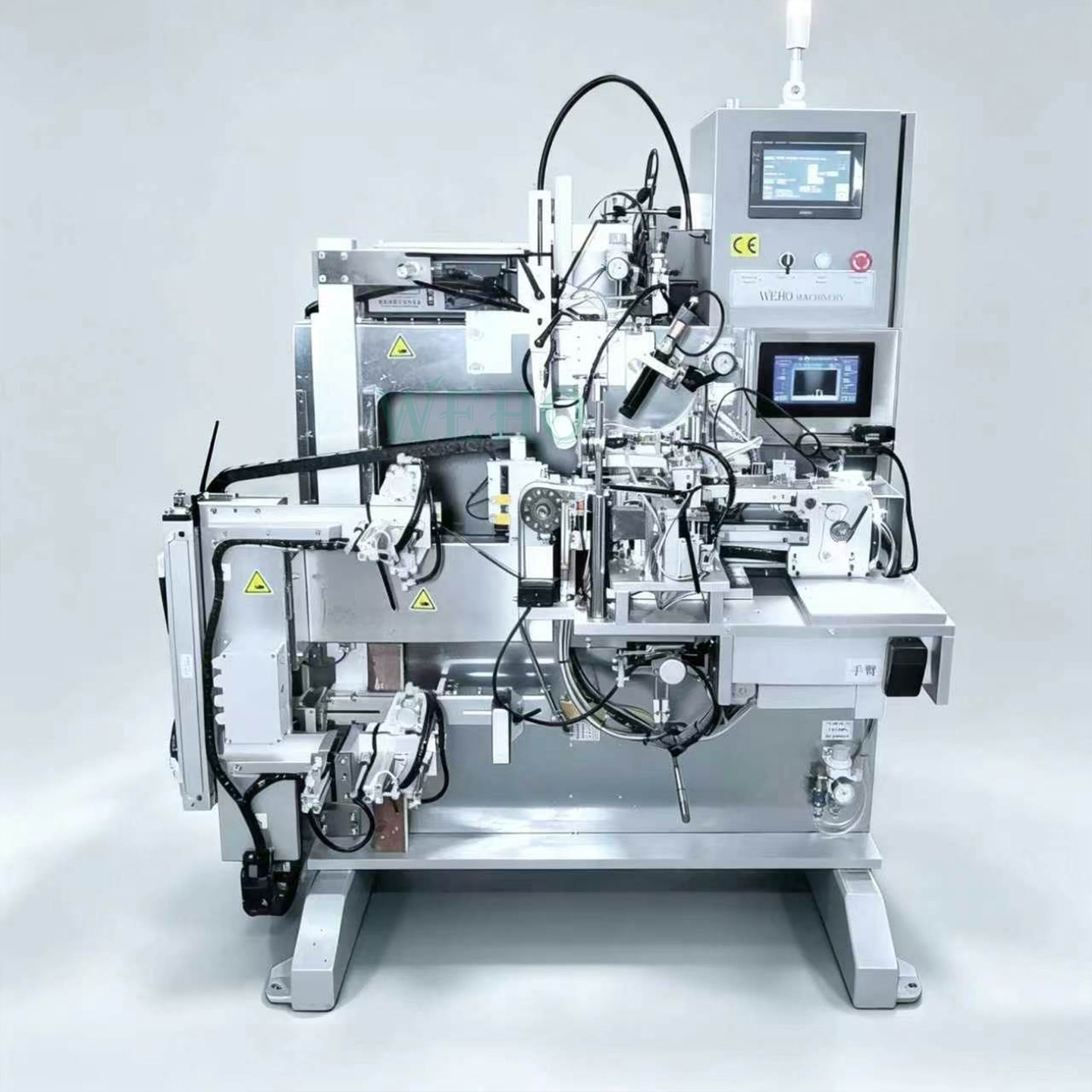

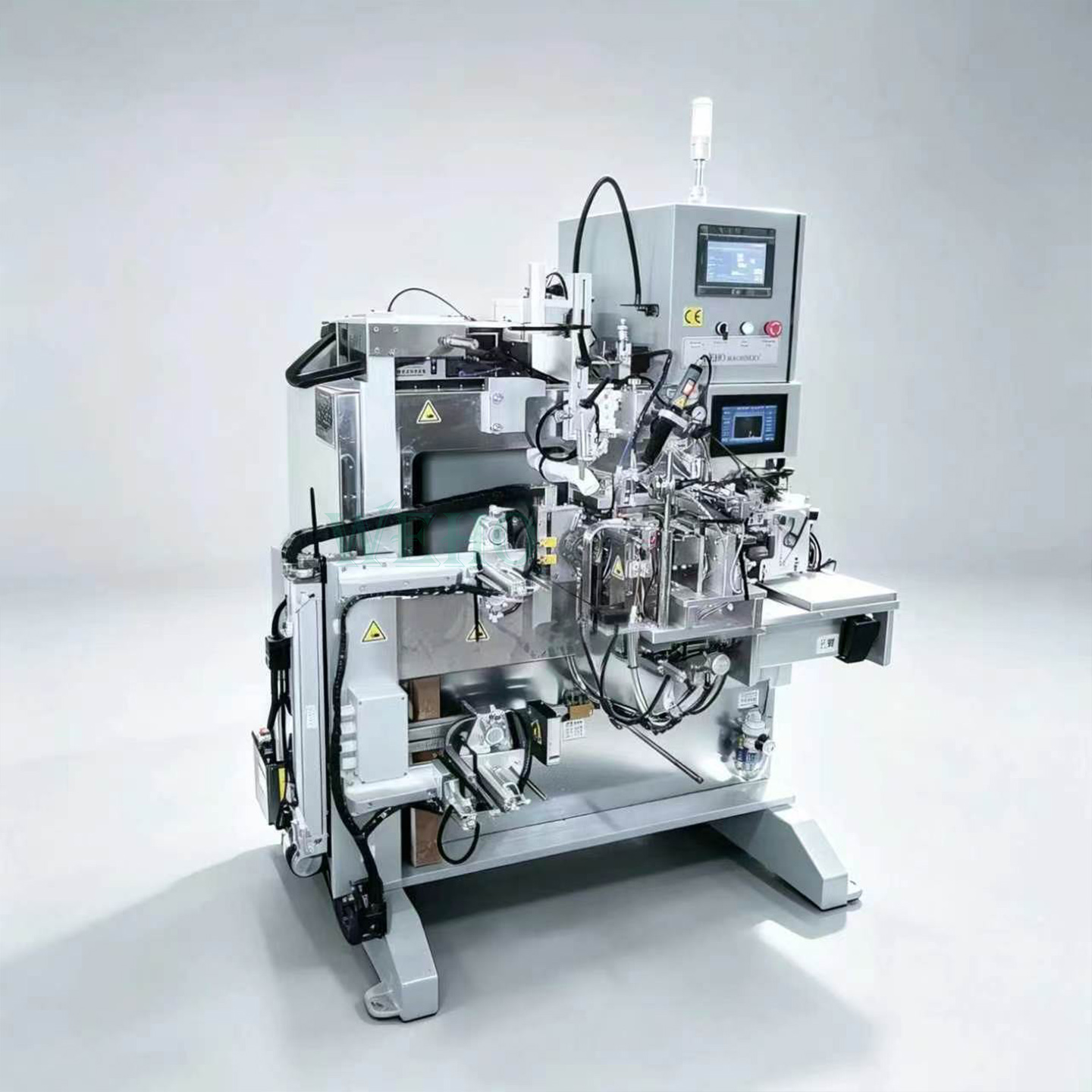

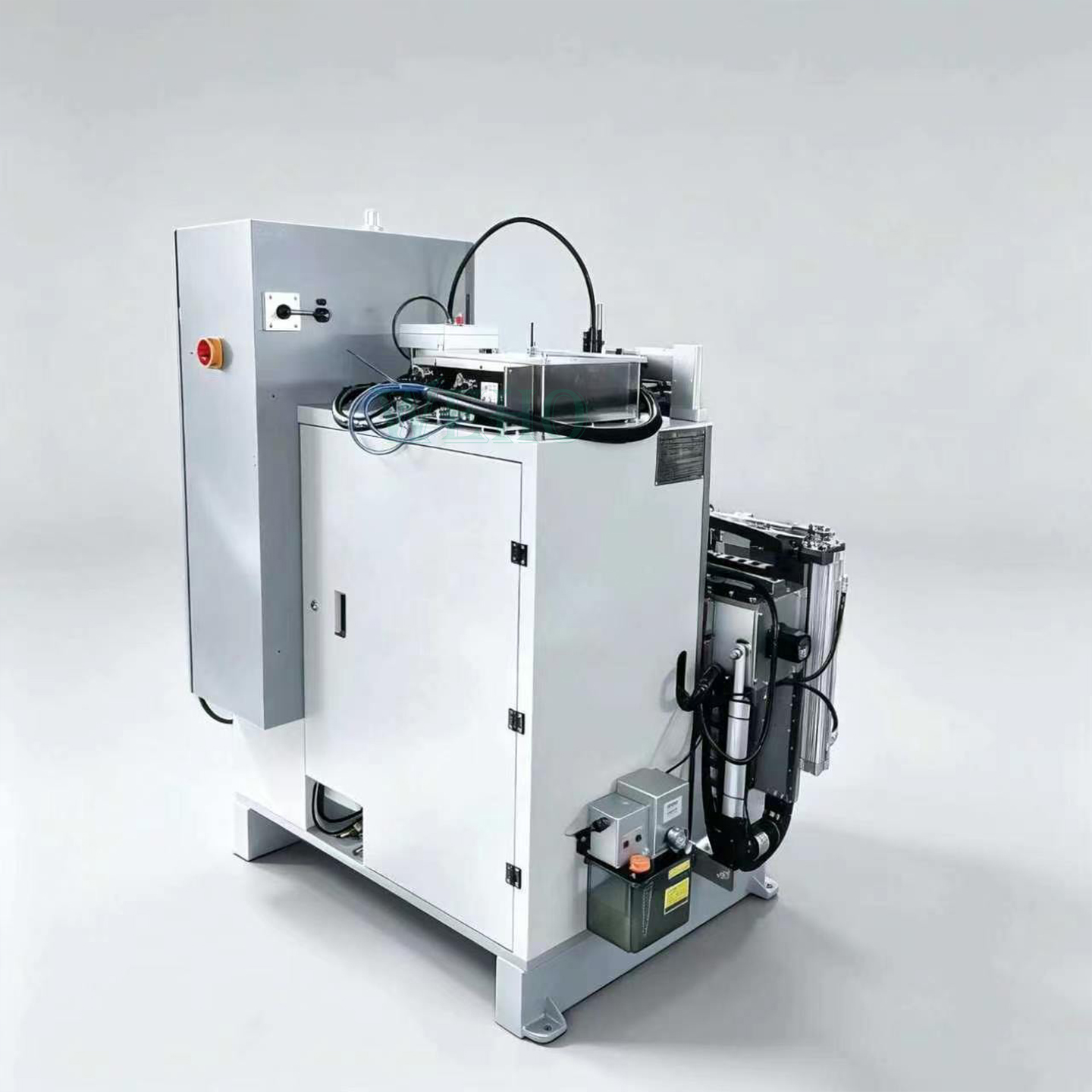

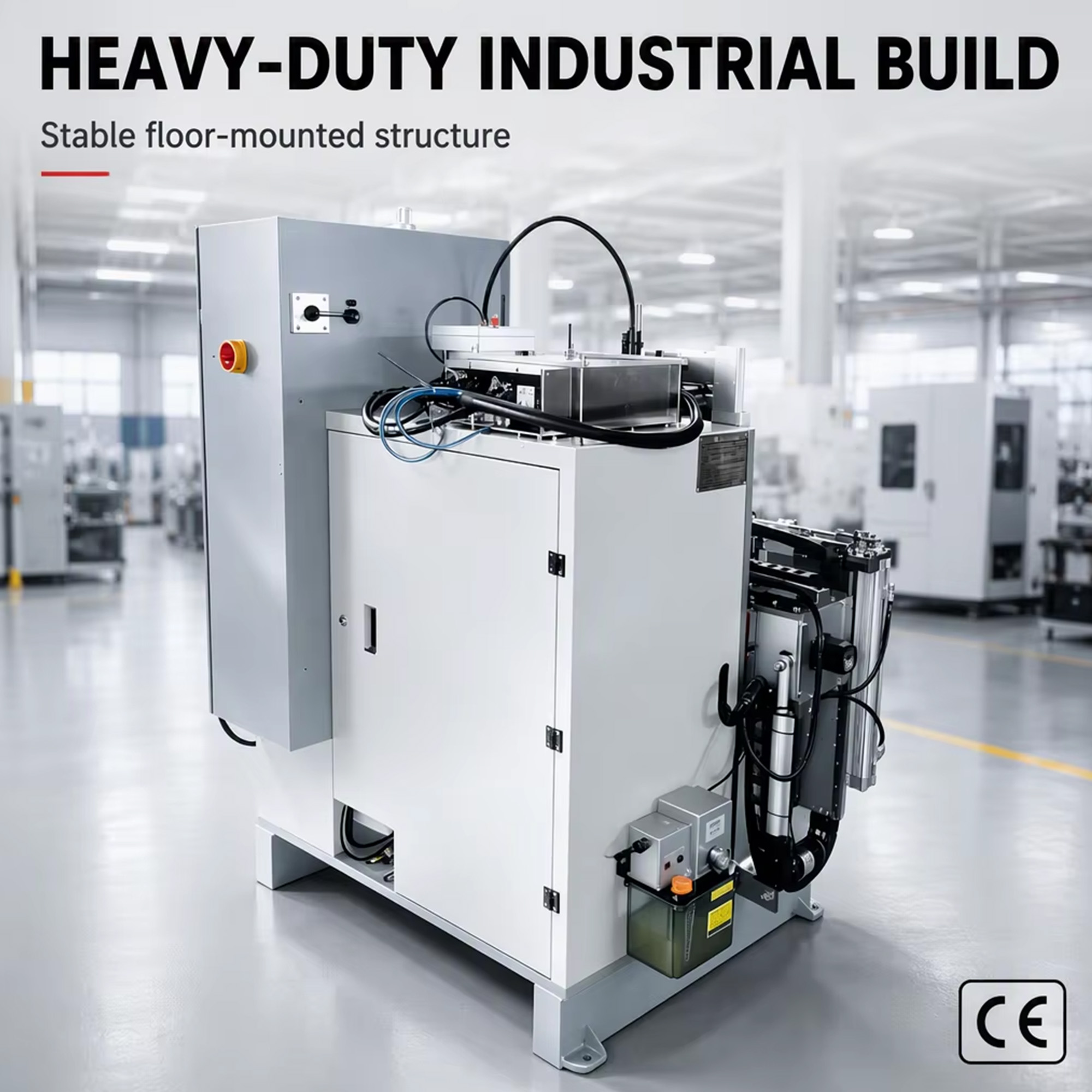

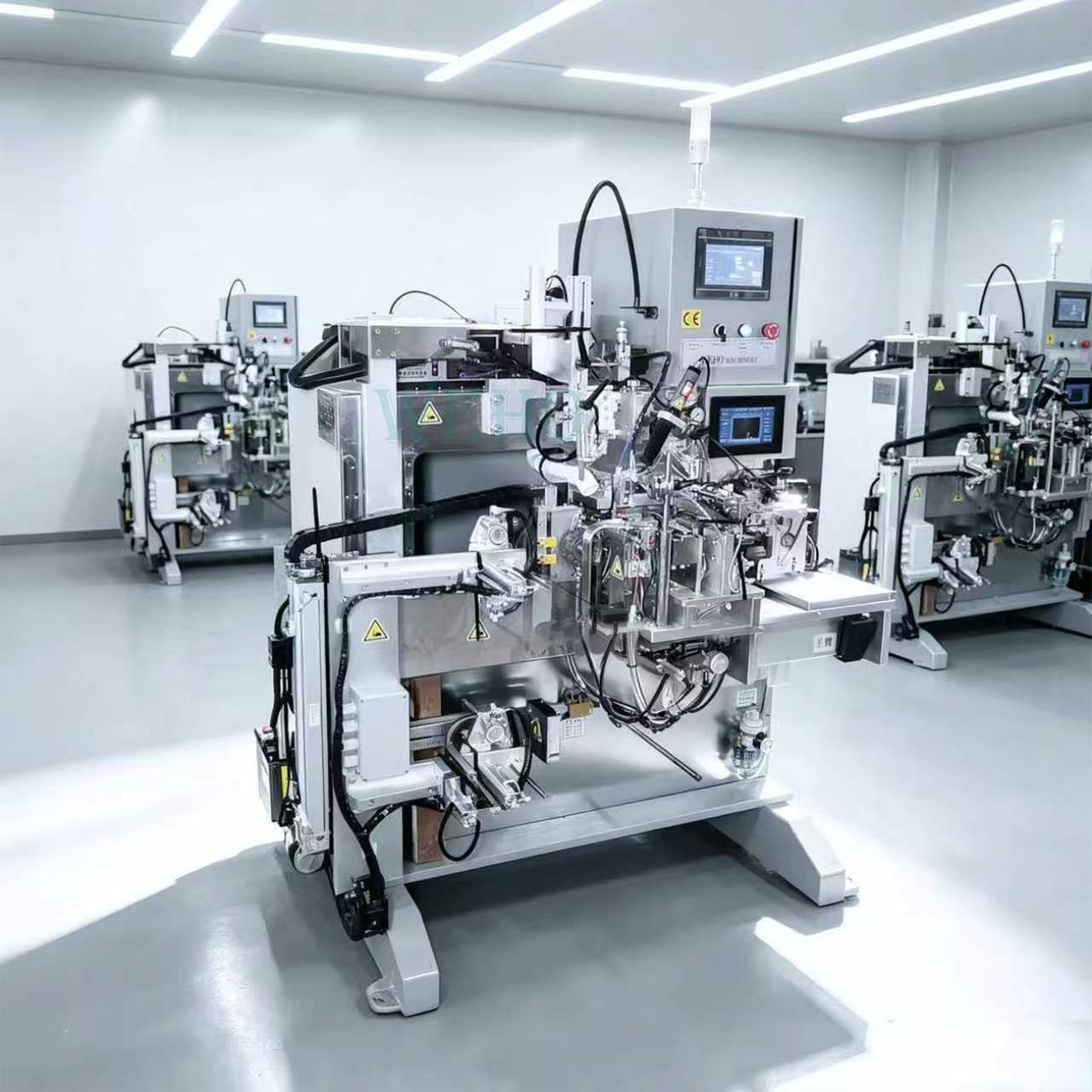

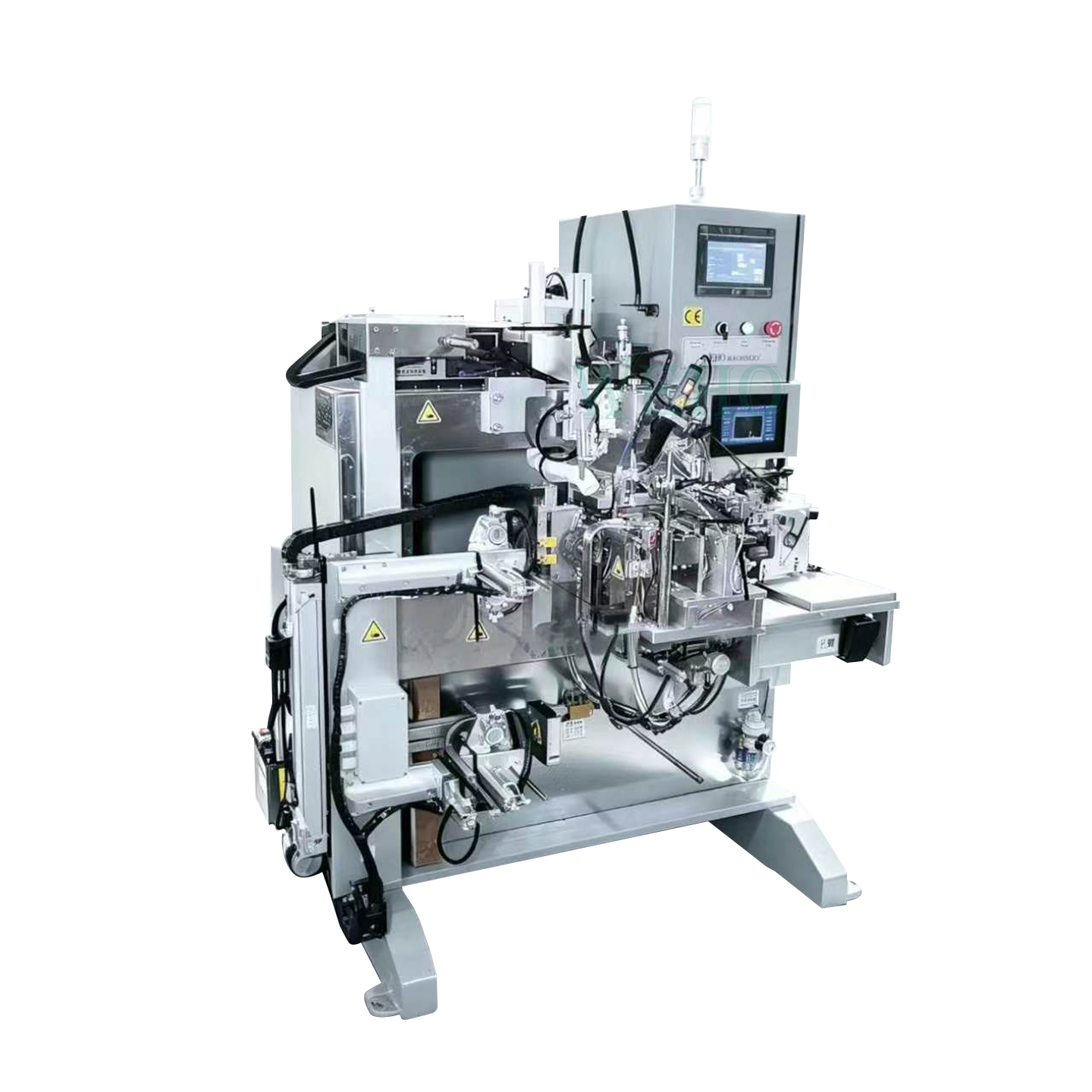

Robot Loader Carbide Tips Brazing Machine for TCT Saw Blades HF Induction Saw Blade Welder 12" CE
Model: MZ036R
Saw bade diameter: 100~350mm
Thickness of welded steel plate: 1.0mm~5mm
Hook angle: -5°~+25°
Brazing speed: 6-12 s/tip
Welding alloy width: 1.5mm~6mm
Welding alloy thickness: 1.5~3.0 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Our TCT saw blade brazing machine adopts high-frequency induction heating technology for precise brazing of tungsten carbide tipped saw blades. With CE certification, the equipment meets international safety standards and delivers stable, reliable performance for saw blade manufacturing and repair. It supports 12-inch saw blade processing, ideal for mass production or refurbishment of carbide saw blades.
Achieves precise heating and welding of TCT saw blades, forming solid brazed joints and greatly improving the service life and durability of saw blades.
Firmly bonds carbide tips onto the saw blade substrate. Optimized brazing quality enhances cutting efficiency and extends blade working life.
We provide 2 optional packaging ways for ocean shipment: Film / Wooden box
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
What is this machine used for?

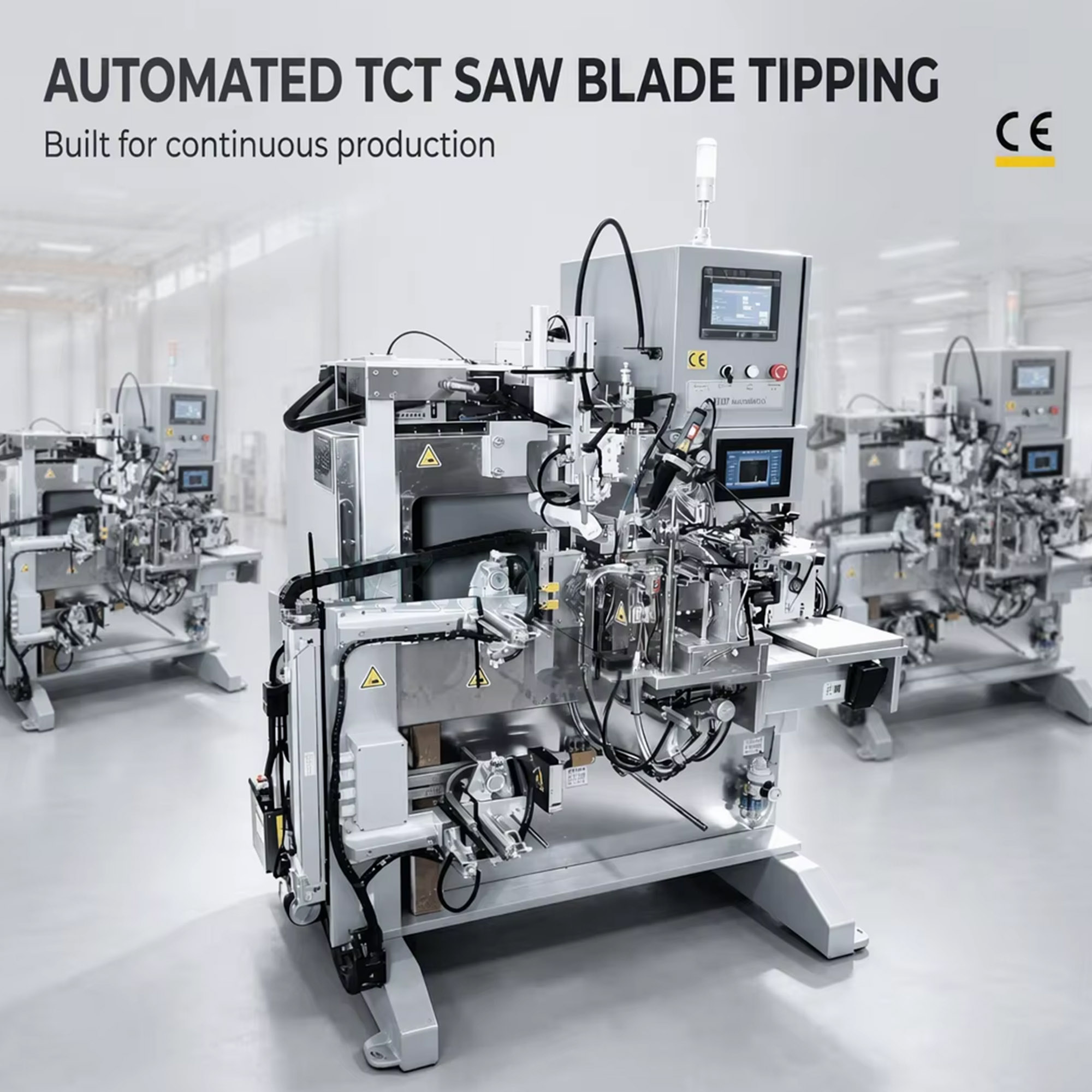

It is an HF induction brazing machine with robot loader, specially for brazing carbide tips onto TCT circular saw blades, widely used in saw blade factory mass production.
What is the advantage of robot loading compared with manual feeding?
Automatic robot feeding reduces labor cost, ensures consistent brazing position, improves yield rate and production efficiency, and avoids operator burns.
Does it adopt high frequency induction heating?

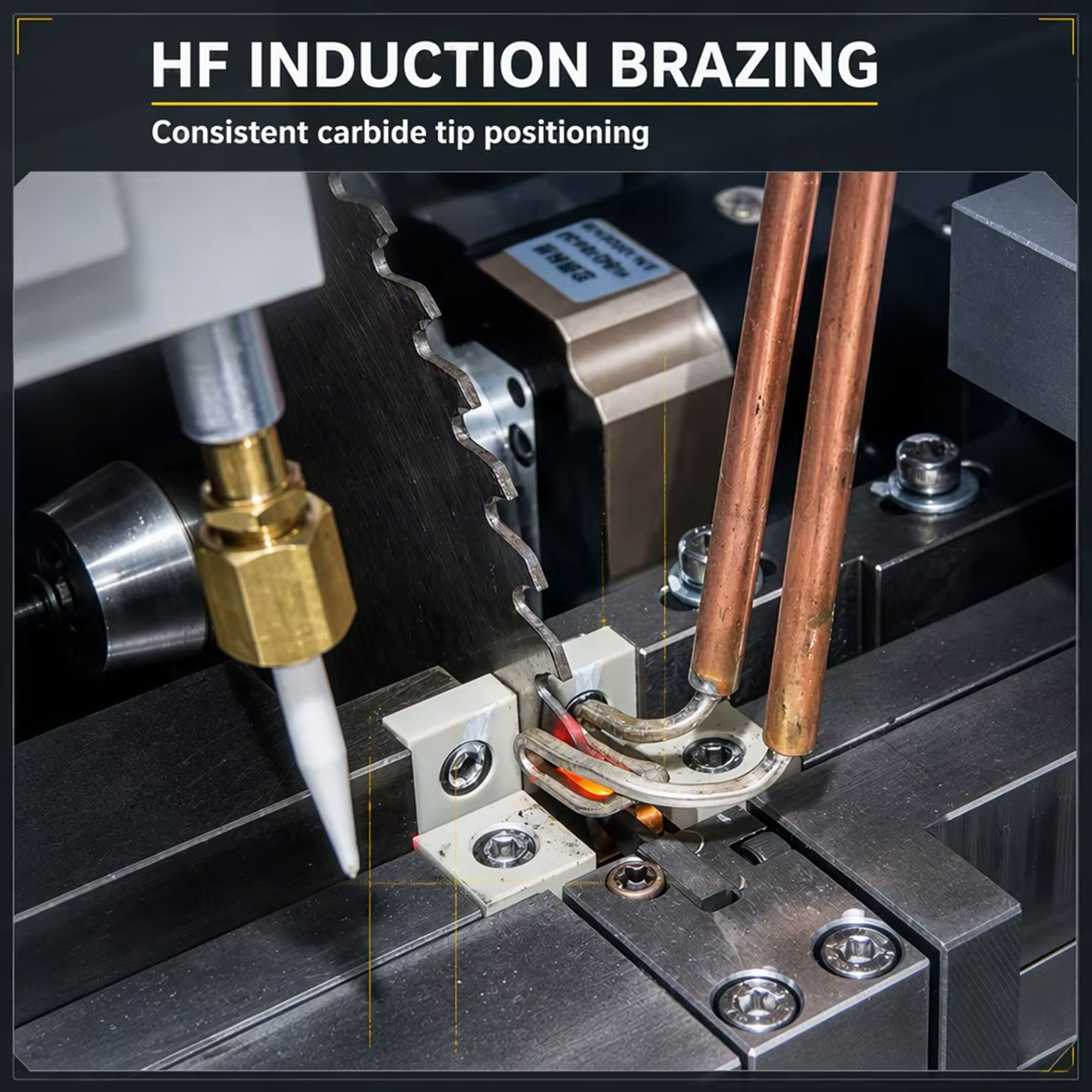

Yes. HF induction heating offers fast heating, small heat affected zone, which protects saw blade substrate.
Can we adjust brazing temperature and time?

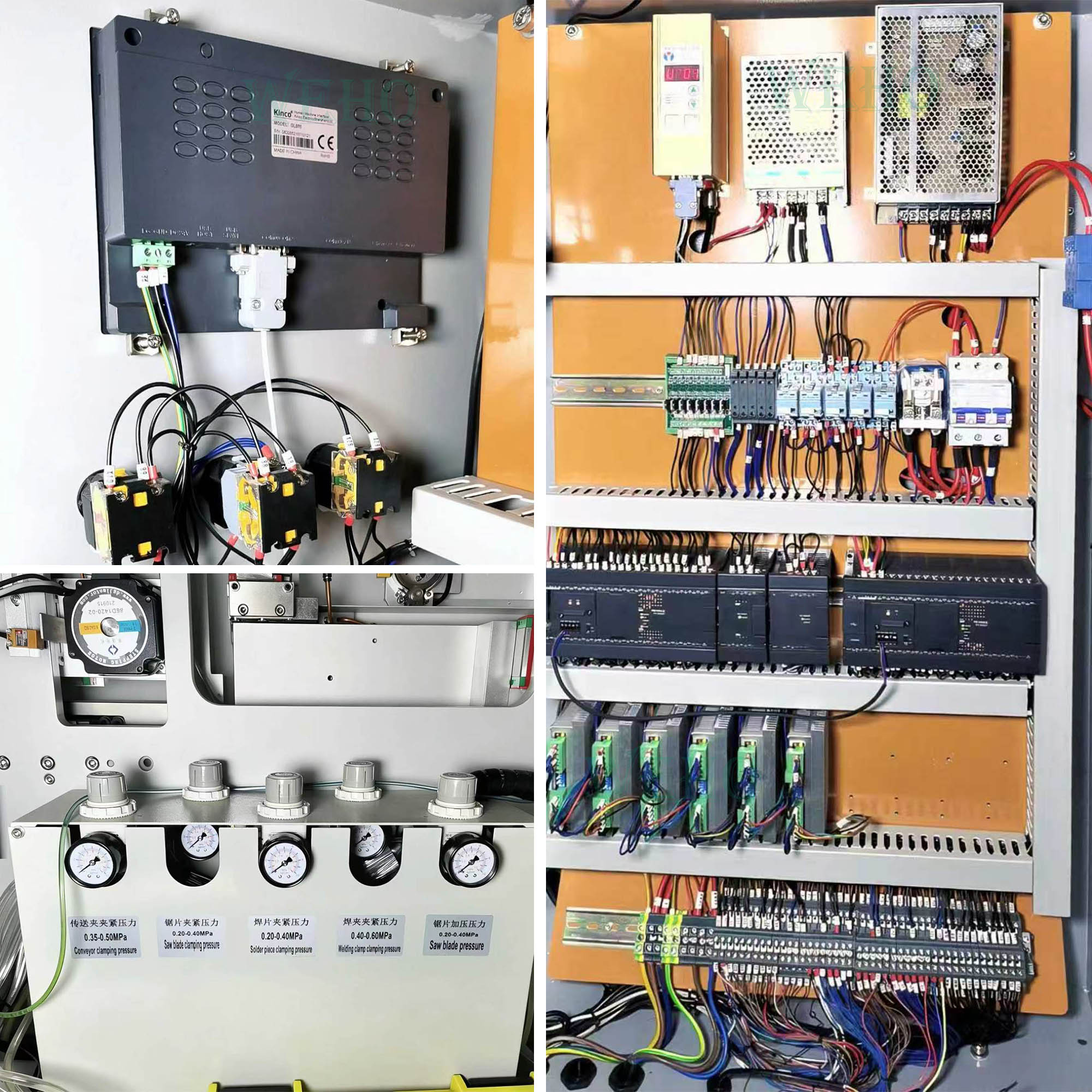

Yes. Temperature, heating time and feeding speed are adjustable on control panel for different carbide tips and saw blades.
Can one worker operate multiple machines?
Yes, thanks to automatic robot loading. One operator can manage several machines at the same time.
How to buy？
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate？
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty？
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts. After buying, technical supporting contact 008613326792205
