Six--row heavry duty multi spindle boring drilling machine | Heavry Duty Boring Machine
Six--row heavry duty multi spindle boring drilling machine | Heavry Duty Boring Machine

Six--row heavry duty multi spindle boring drilling machine | Heavry Duty Boring Machine


Model:MWZ6AL
Max. Drilling Dia.:Max.=35mm(single) D=13mm(Multi)
Max. Drilling Depth:H Max.=60mm
Total Number of Spindles:21*6=126
Weight (KG):3200 KG
Power (kW):9


Details
Spare Parts
Inquiry

Used for drilling wood, flakeboard, medium density fiberboard and so on.
1.The imported original drill row, famous and superior original electric appliance.
2. The machine tool elements choose the superior steel materials. They have been heat-treated with high intensity and eternal non-deformation.
3. The kinetic components choose the high-grade anti-wear materials with fine durability.
4. Size positioning, prompt; accurate and convenient operation.
Model MWZ6AL
Max. Drilling Dia. Max.=35mm D=13mm
Max. Drilling Depth H Max.=60mm
Installation Dia.of Drill Bit Shaft 10mm
Max. Center Distance Between Holes L max.x B Max.=2600mm x 640mm
Total Power 9kw
Spindle Speed 2840rpm
Total Number of Spindles 21x6=126
Overall Dimension 4350x2500x1650mm
Weight 3200kg
Packing size 4430x1300x1920mm
Multi spindles boring machine for carpenter furniture
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.

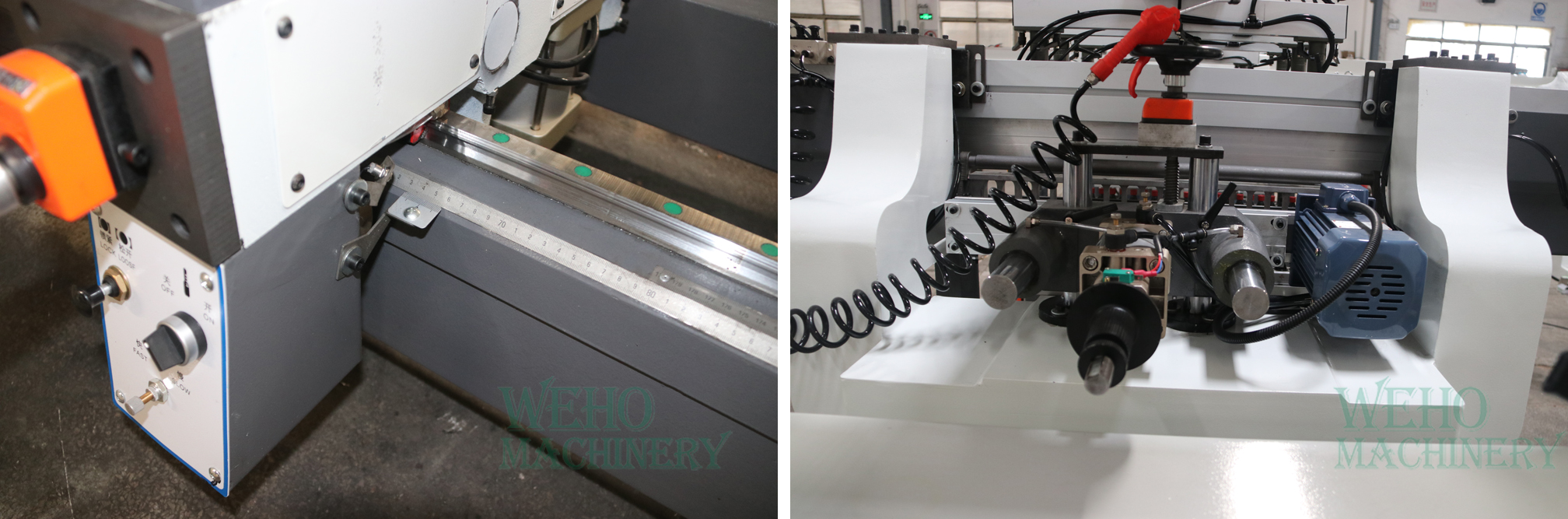

Name:  Boring units  Name: Cylinder press material
Brand: China WEHO Brand: China WEHO
 There are 21 pcs boring bits, suitable for wood capenter furniture holes drilling.                                                              Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Name: position adjusting device Name: sides boring units
Brand: China WEHO Brand: China WEHO
Losen this switch to move the boring heads.       there are 21 pcs bits for horizotal holes drilling.





















Spindles Boring Machine
Heavry Duty Boring Machine
[]
