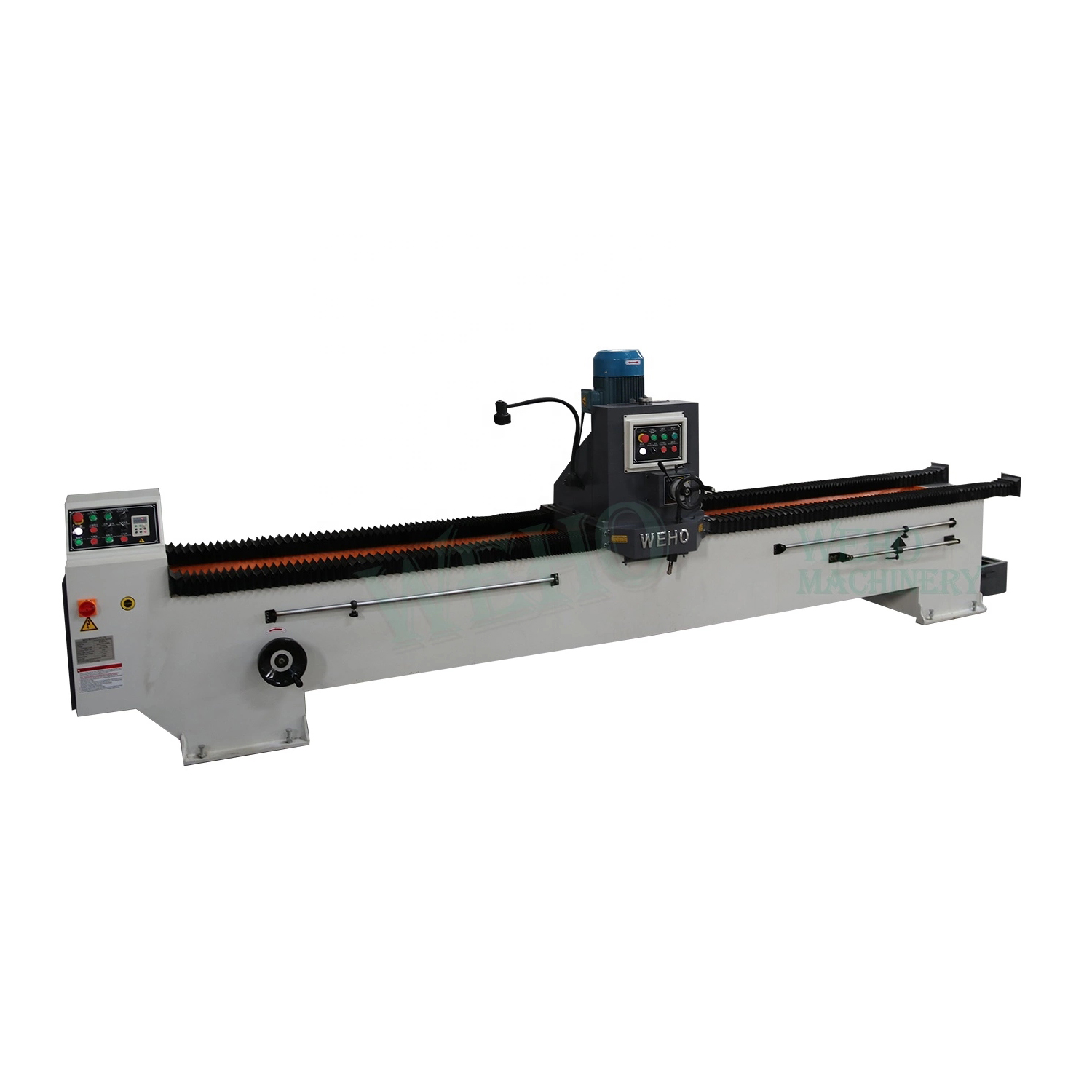

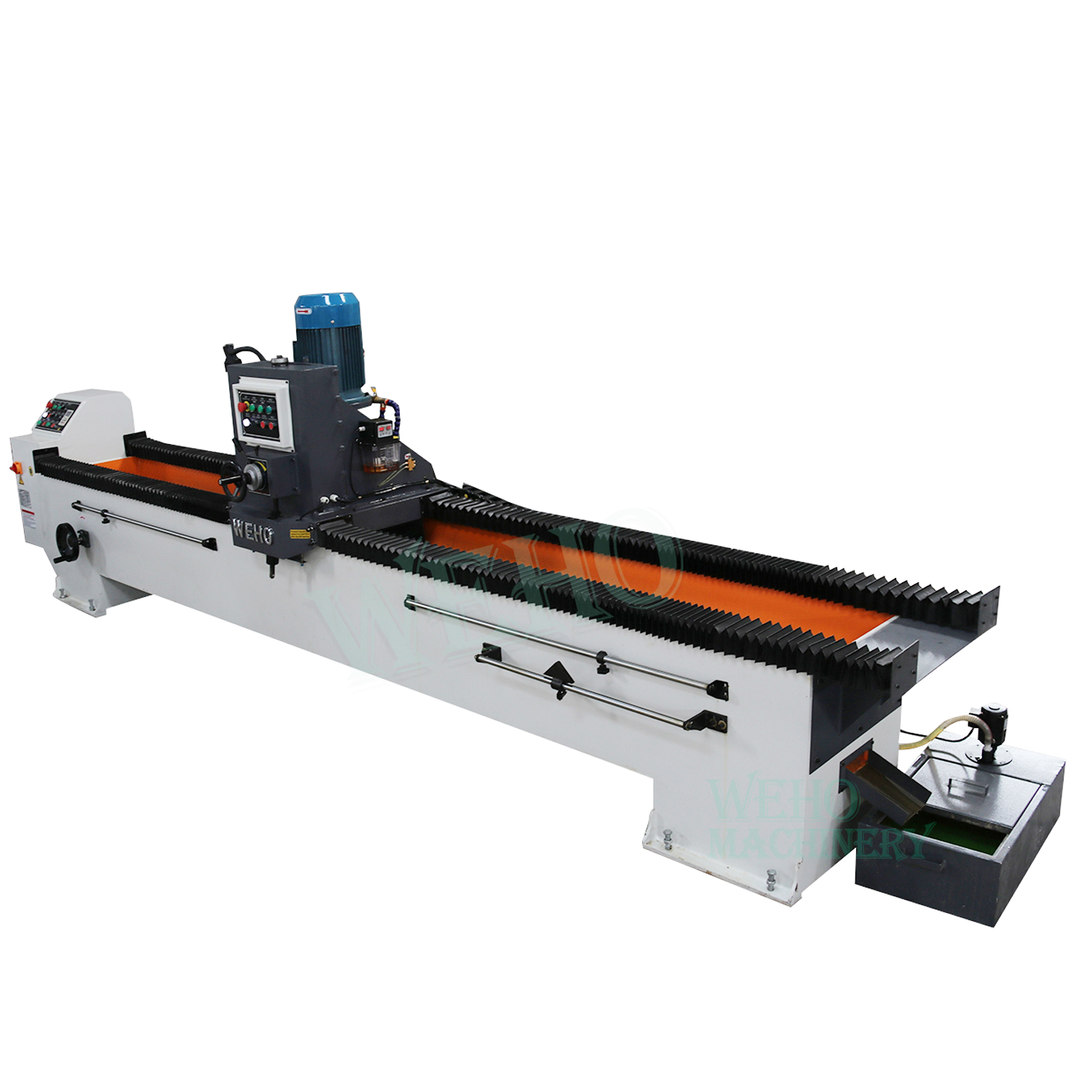

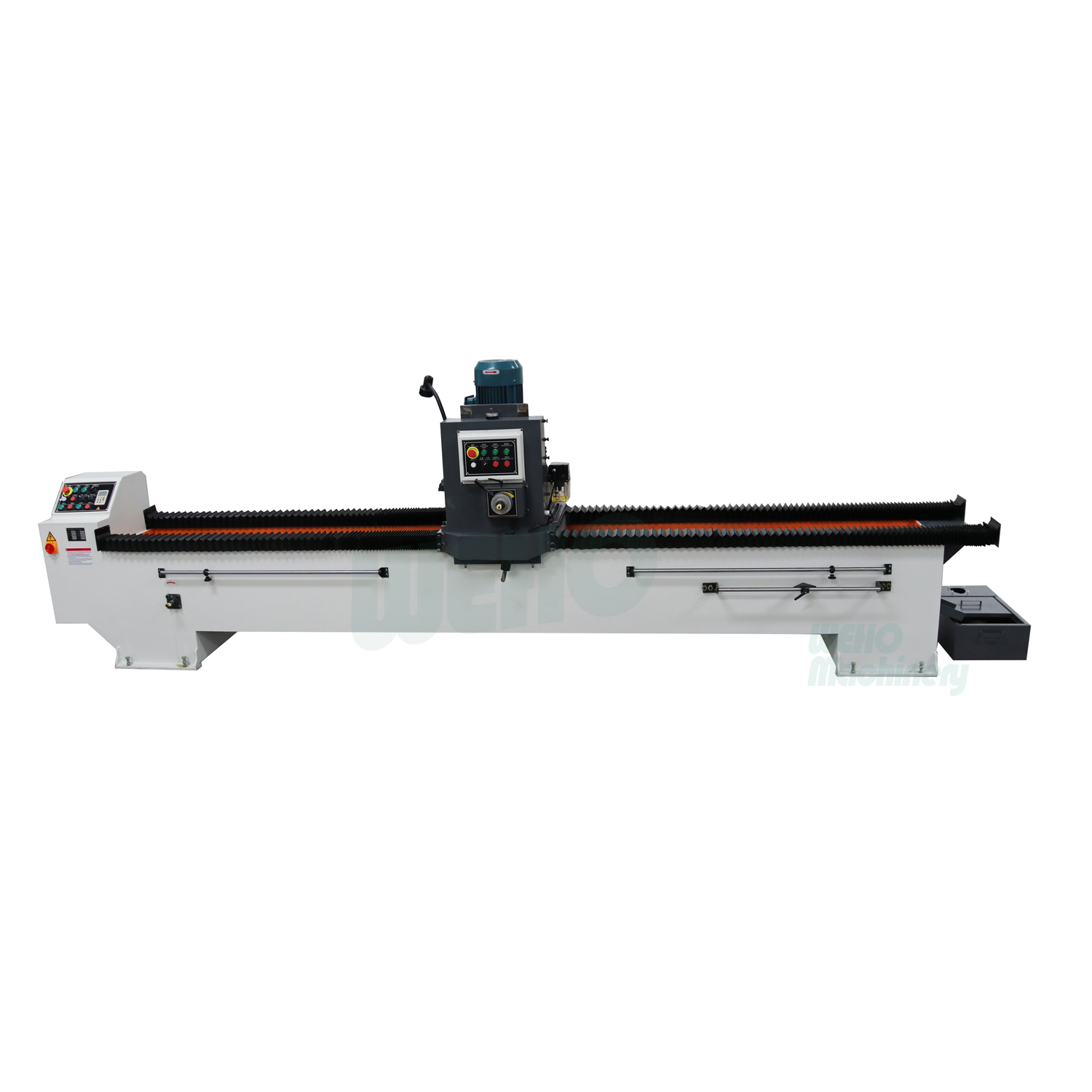

Straight Knife edge grinding wood chipper blades knife sharpening machine
Straight Knife edge grinding wood chipper blades knife sharpening machine

Straight Knife edge grinding wood chipper blades knife sharpening machine


 Model:MF2530AB
Max. Grinding Diameter:300mm
Max. Grinding Length:3100mm
Grinding wheel dimension:205*115*145mm
Weight (KG):2200
Power (kW):7.5kw




Details
Spare Parts
Inquiry
Available with grinding lengths ranging from 1500 mm to 3100 mm, or longer for special grinding purposes.Grinding wheel quick up and down approach, and slow down approach.
Model MF2530AB
Precision 0.01-0.02mm
Max. grinding length 3100mm
Grinding wheel dimension 205*115*145mm
Cutter rest adjustable angle 0-90°
Wheel horizontal moving speed 0-60Hz
Wheel head rotation speed 1440r/min
Main electric motor power 7.5kw
Feeding electric motor power 0.75kw
Water pump power 90w
Working table size 3100*200mm
Max. distance of wheel head horizontal lifting   200mm
Overall size 4900x1100x1600mm
Weight 2200kg


Suitable for a broad range of industrial straight knives, such as crusher knife blade, chipper knives, granulator blades, veneer knives, guillotine blades and paper knives. Rotating magnetic chuck from 0 to 90 (Polarity 20 mm)

Grinding motor 7.5 kW (7HP).Variable carriage speed from 1 to 30 m/min with carriage run adjustment.
China factory manufacture Straight Guillotine knife paper cutting blade sharpening machine
Automatic grinding wheel downfeed.
Programmable work cycles: roughing, finishing, spark-out;Separate coolant collection tank fitted with 90W motor pump.
It features a heavy-duty reinforced machine base which gives the maximum stability. PLC controls the carriage movement during the various stages of the working cycle.
35mm Linear guide rail made in Taiwan Hiwin, with sliding block , the grinding head moves more stable and precise.Mass production for the heavy duty knife grinding machines.
