Straight single line rip circular saw pneumatic cross cutting machine for woodworking | Sliding Circular Saw
Model:MJ274
Saw shaft speed:3180rpm
Rotary shaft power:5.5kw
working desk size:690mm*655mm
Saw blade size:diameter455mm*30mm*3.4mm
Table height from the ground:880mm
Saw shaft speed:3180rpm
Rotary shaft power:5.5kw
working desk size:690mm*655mm
Saw blade size:diameter455mm*30mm*3.4mm
Table height from the ground:880mm
Details
Spare Parts
Inquiry

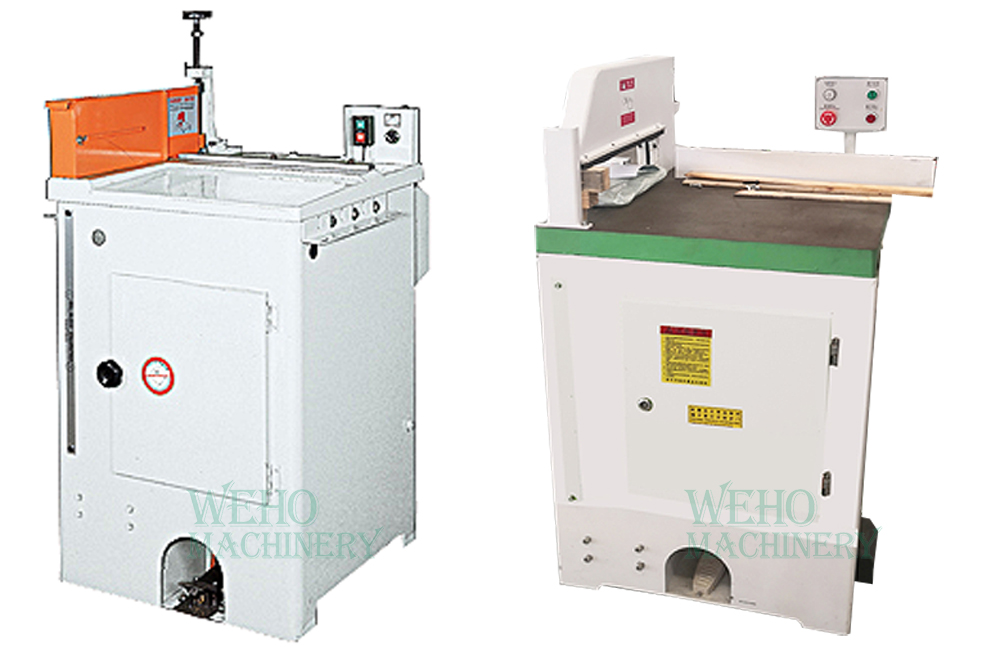

Single circular sharight line cut rip saw machine for woodworking
Pneumatic Wood timber Cross Cutting machine circular saw, suited for wooden ,plastic board, aluminium and other similar materials cutting off.
Produce name
|
Rip cut circular saw
|
Model
|
MJ274
|
Saw shaft speed
|
3180rpm
|
Rotary shaft power
|
5.5kw
|
Saw blade size
|
Φ455mm×Φ30mm×3.4mm
|
working desk size
|
690mm×655mm
|
Table height from the ground
|
880mm
|
working pressure
|
0.6Mpa
|
Dimensions
|
3655×820×1280mm
|
net weight
|
405kg
|

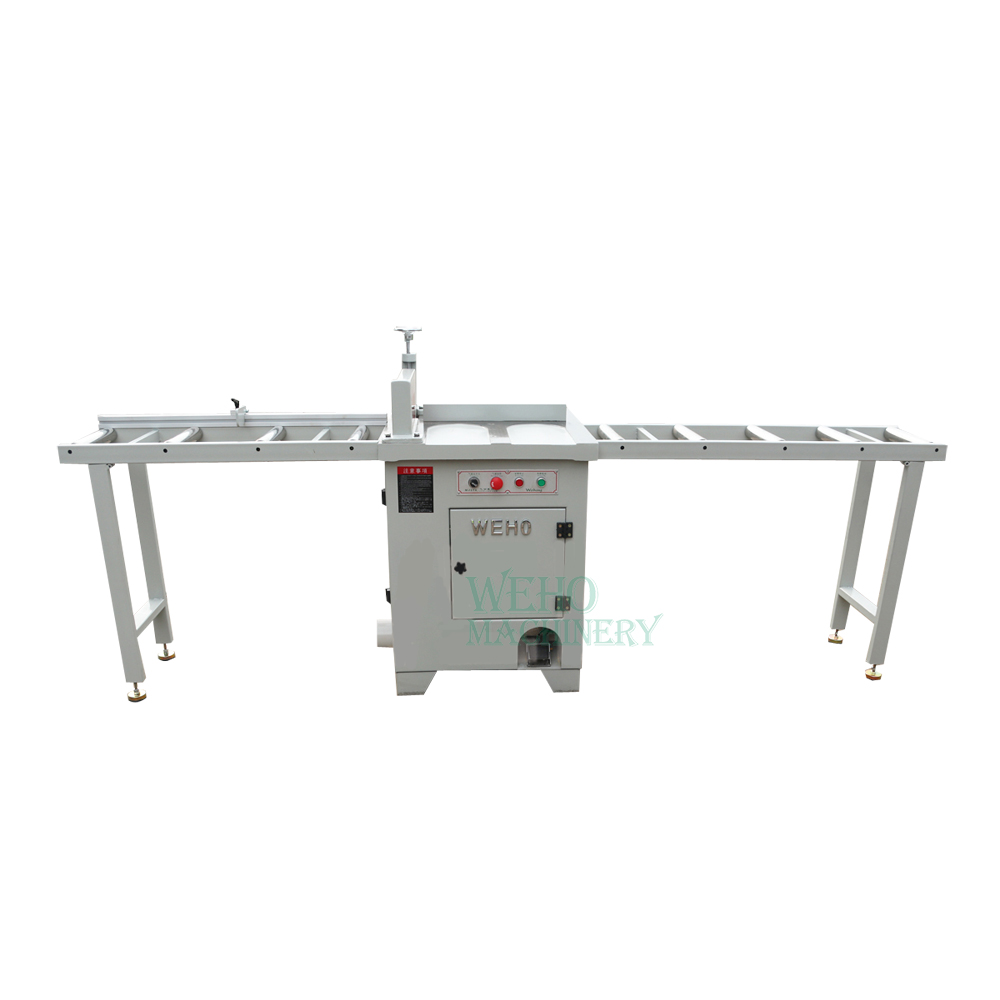

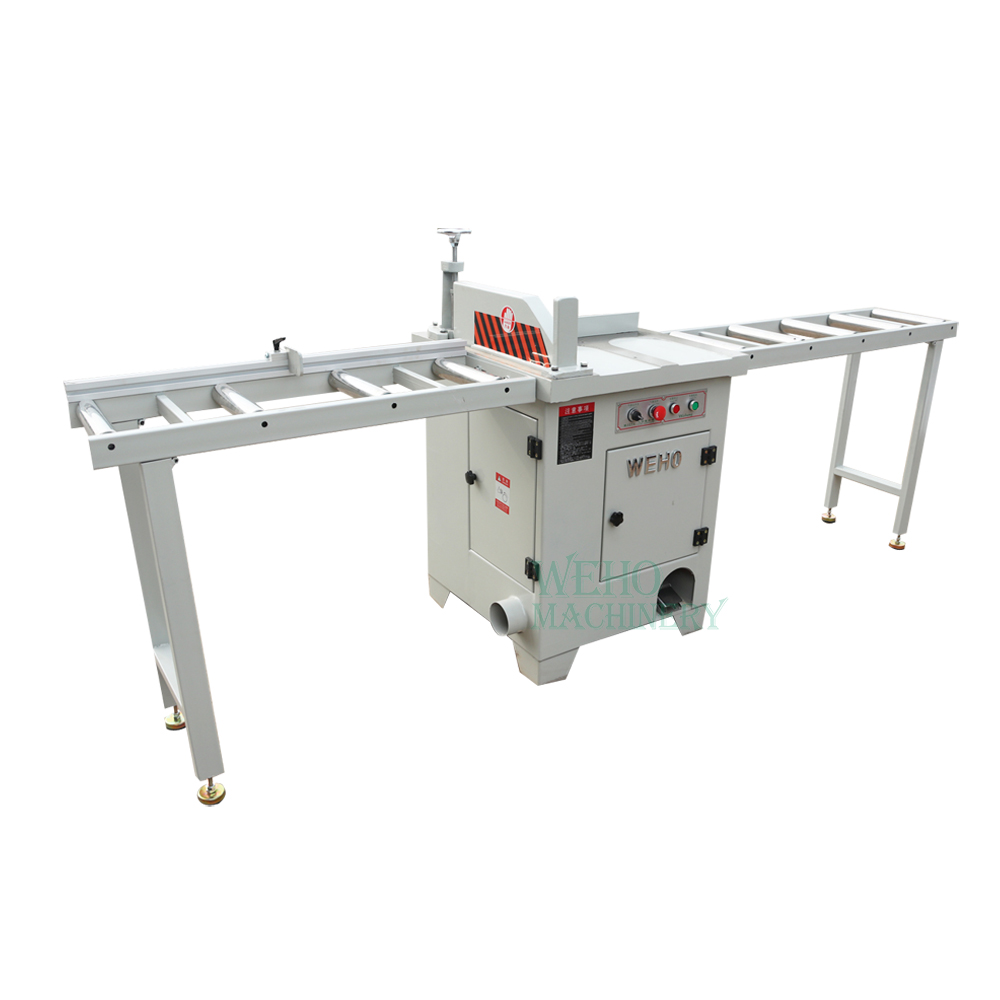

Fast cutting rate, Cycle speeds are adjustable for wood cut off saw machine. Motion cycles are pneumatically operated, and conveniently controlled by a foot switch. Easy belt tension is adjustment or replacement. In-feed and out-feed roller conveyors are standard for cut off saw .
Quick-adjust head clamp. 4" dust collection port. Large side access door for quick easy blade changes. Precision ground and balanced chrome steel alloy arbor. Blade guard clamp holds the piece securely in place during the cut.
Available in Right Hand & Left Hand configuration Powerful 7.5HP main motor Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine Fast cutting rate.Material clamp is easily adjusted for workpiece thickness variation.
Quick-adjust head clamp. 4" dust collection port. Large side access door for quick easy blade changes. Precision ground and balanced chrome steel alloy arbor. Blade guard clamp holds the piece securely in place during the cut.
Available in Right Hand & Left Hand configuration Powerful 7.5HP main motor Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine Fast cutting rate.Material clamp is easily adjusted for workpiece thickness variation.
STANDARD EQUIPMENT – Pneumatic blade feed. – Two-handed safety starting system. – Variable blade feed speed. – TCT saw blade Ø 350 mm. – Working table of 1.2 mt. left from the blade. – Working table of 1.2 mt. right from the blade.
Heavy-duty steel cabinet is built with precision for extra stability and designed for maximum safety.Easy operation, the cutting cycle is controlled by twin buttons or a foot switch (included).The saw blade runs inside the frame for safe operation.
