tenon cutter and mortise machine for wood tenoner
tenon cutter and mortise machine for wood tenoner

tenon cutter and mortise machine for wood tenoner


Model:MDK3113B
Production rate:
10-16 pcs/min
Main Spindle Speed:9000r/min
Tenon depth:10-45mm
Total Power:5.5kw
Weight (KG):1200 KG


Details
Spare Parts
Inquiry

This model is high speed tenon machine, operation is very easy and humanity, machine is able to produce a wide variety of square tenon, rectangular tenon, oval tenon, round tenon, including other tenons with various shapes from programmable controller and editing programs.
Name
Parameter
Spindle speed
7500R.P.M
Spindle motor
3KW
X-axis travel (Right table)
180mm
X-axis travel (Left table)
200mm
Y—axis travel
180mm
Production rate
10-16 pcs/min
Max. Processing Dimensions of Square Tenon
170x80mm
Max. Processing Width of Horizontal Round Tenon
430/170mm
Max. Processing Width of Vertical Round Tenon
80mm
Max. Processing Diameter of Round Tenon
80mm

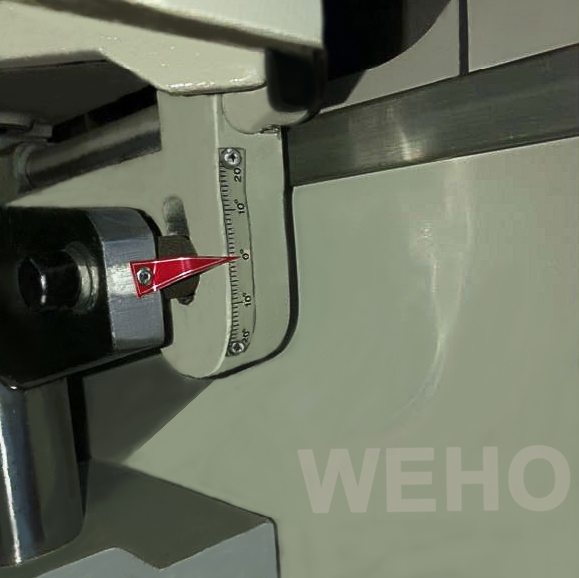

Tenoner Mortiser CNC mortise and tenon machine is designed with movable table to save time, and speed is variable adjustment. Miter gauge provided on the table allows for cutting level tenon.

10.2 inch touch screen, interface is simple and convenient to operate. Separate compensation for left table and right table, make left, right processing conformed.Working precision is ±0.1m.Separate compensation for X, Y axis, remove tolerance from cutter and spindle distance, improve processing precision. Each tenon keep 20 groups data


Drive system: Ball screw transmission,high precision and more durable in use
Control system:Servo system drive, high precision.
Operation: Easy to adjust tenon size and shap. Number control tenon processing.
Program-controlled tenoning machine on which various windows and frames in all wood sizes and wood heights can be made without changing or adjustment times wood tenon machine.
The mortise tenon machine with twin table operation for sequenced production. Suitable for all types of tenons with round or square ends.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
