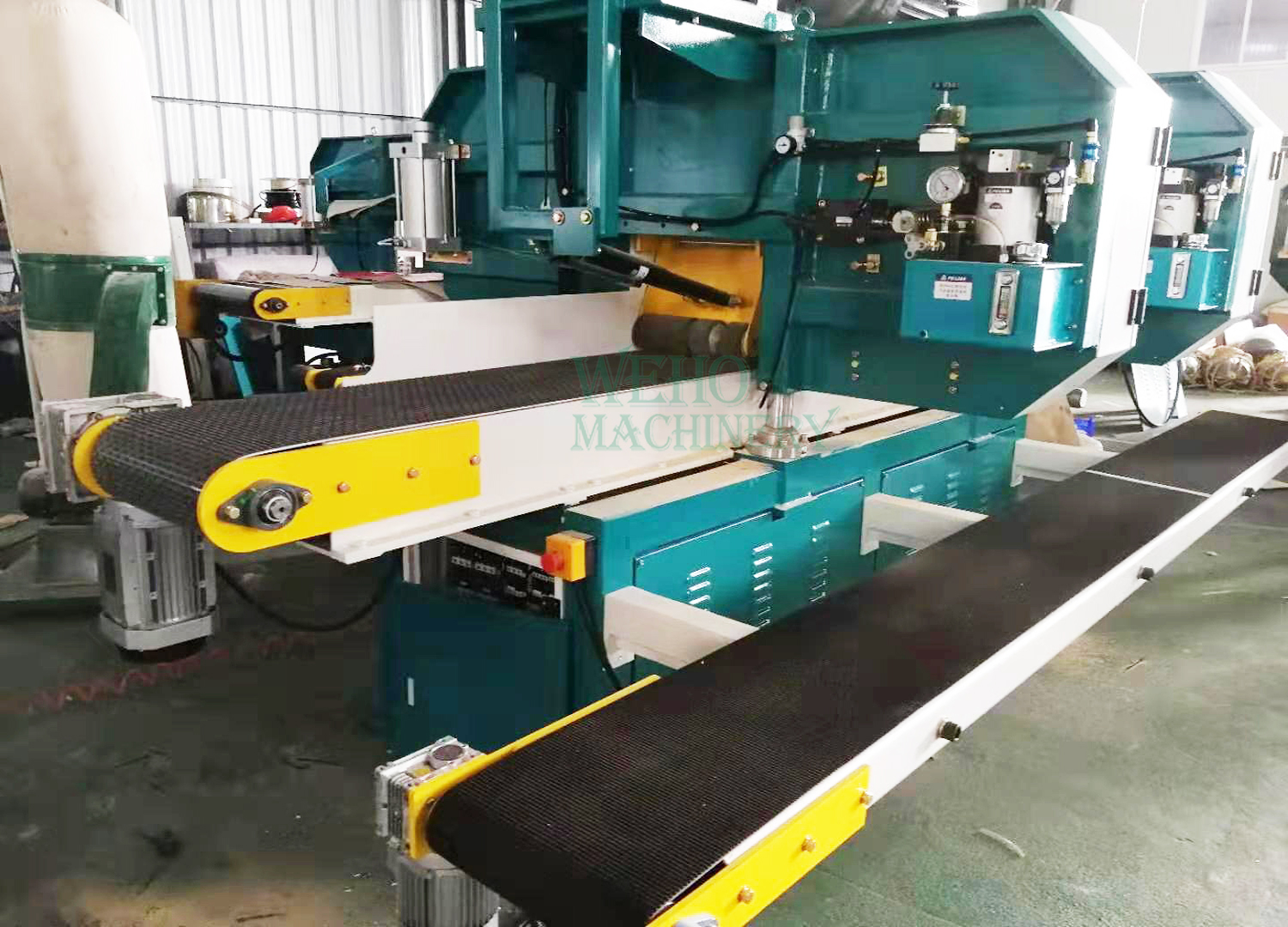

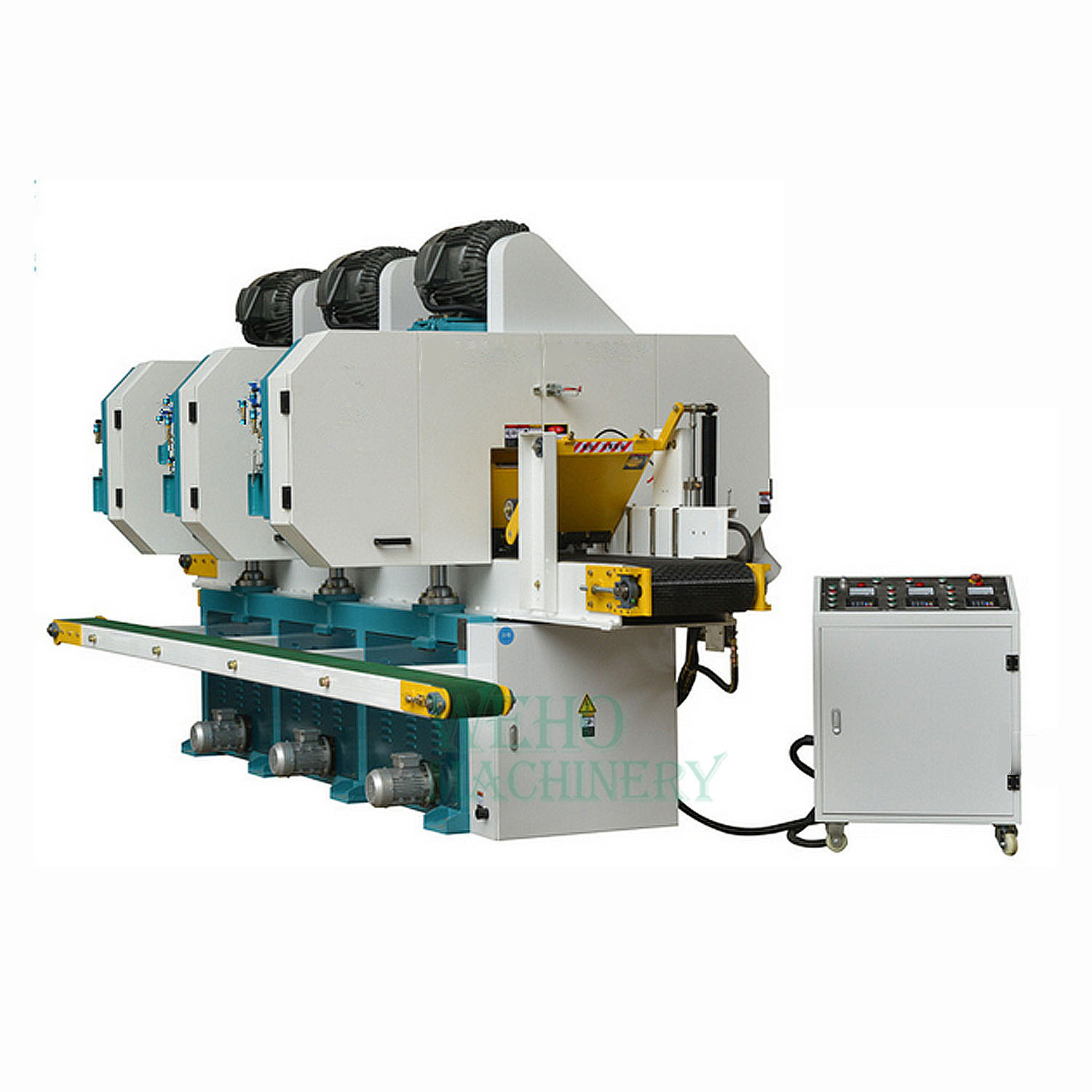

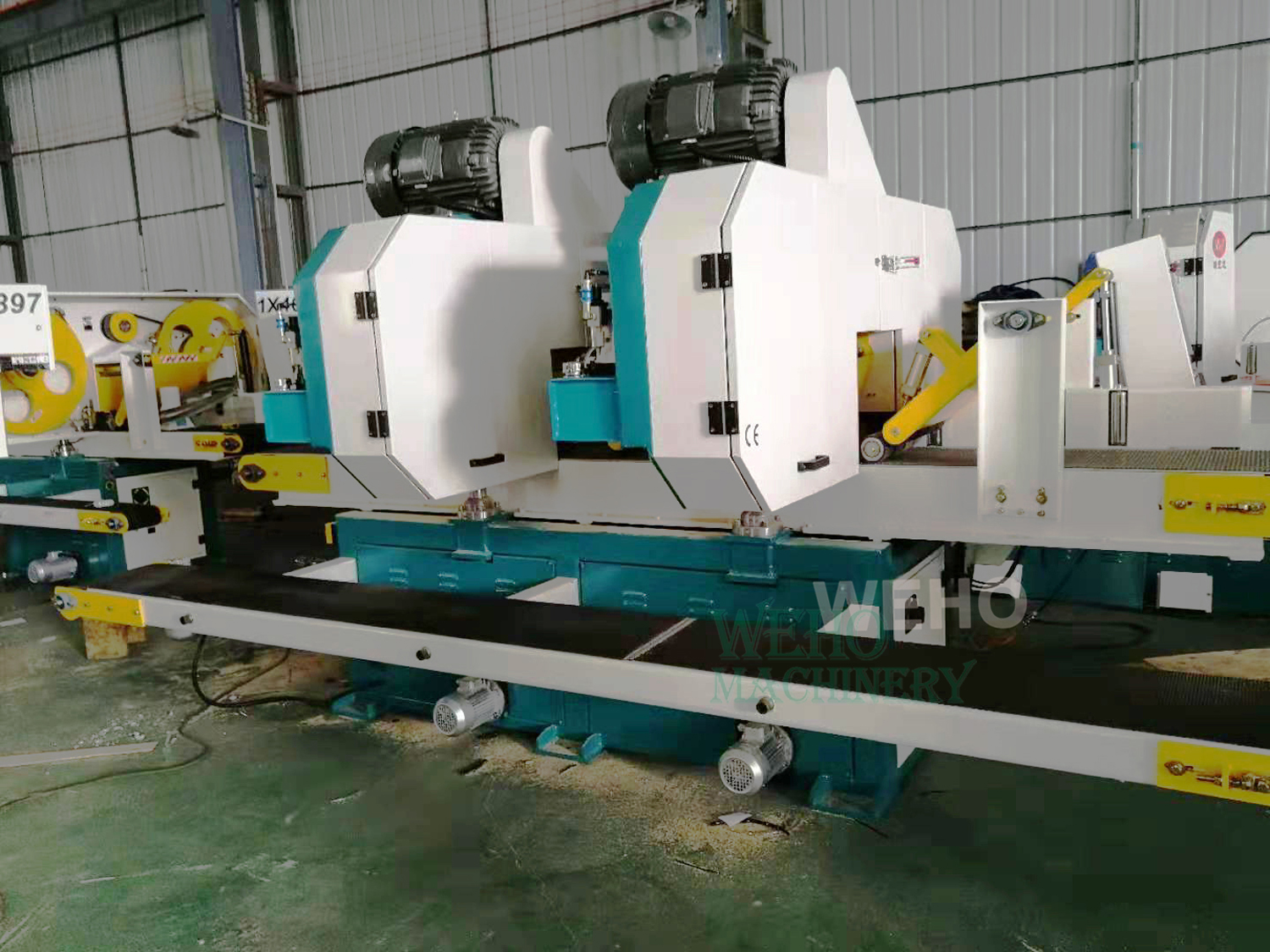

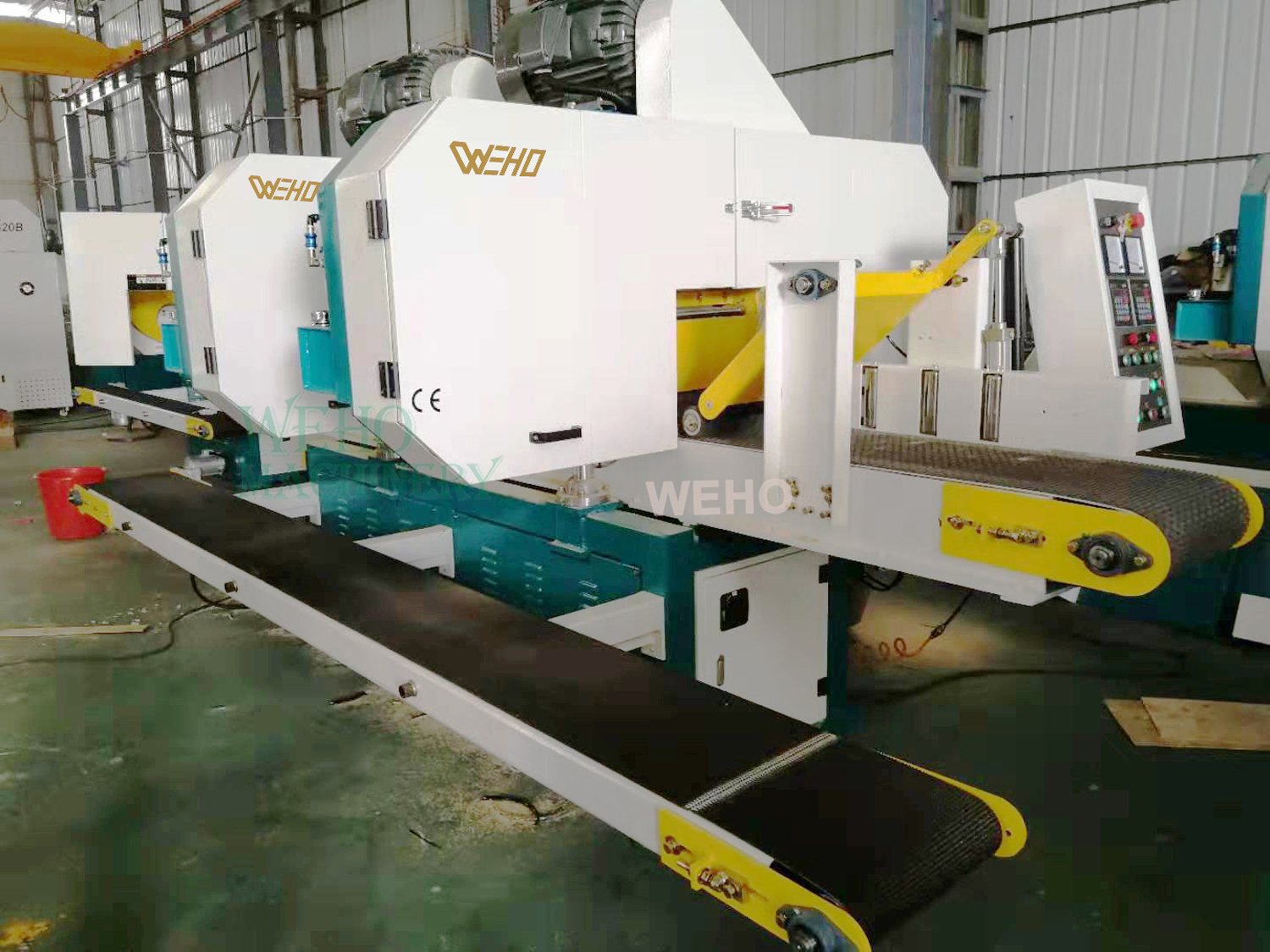

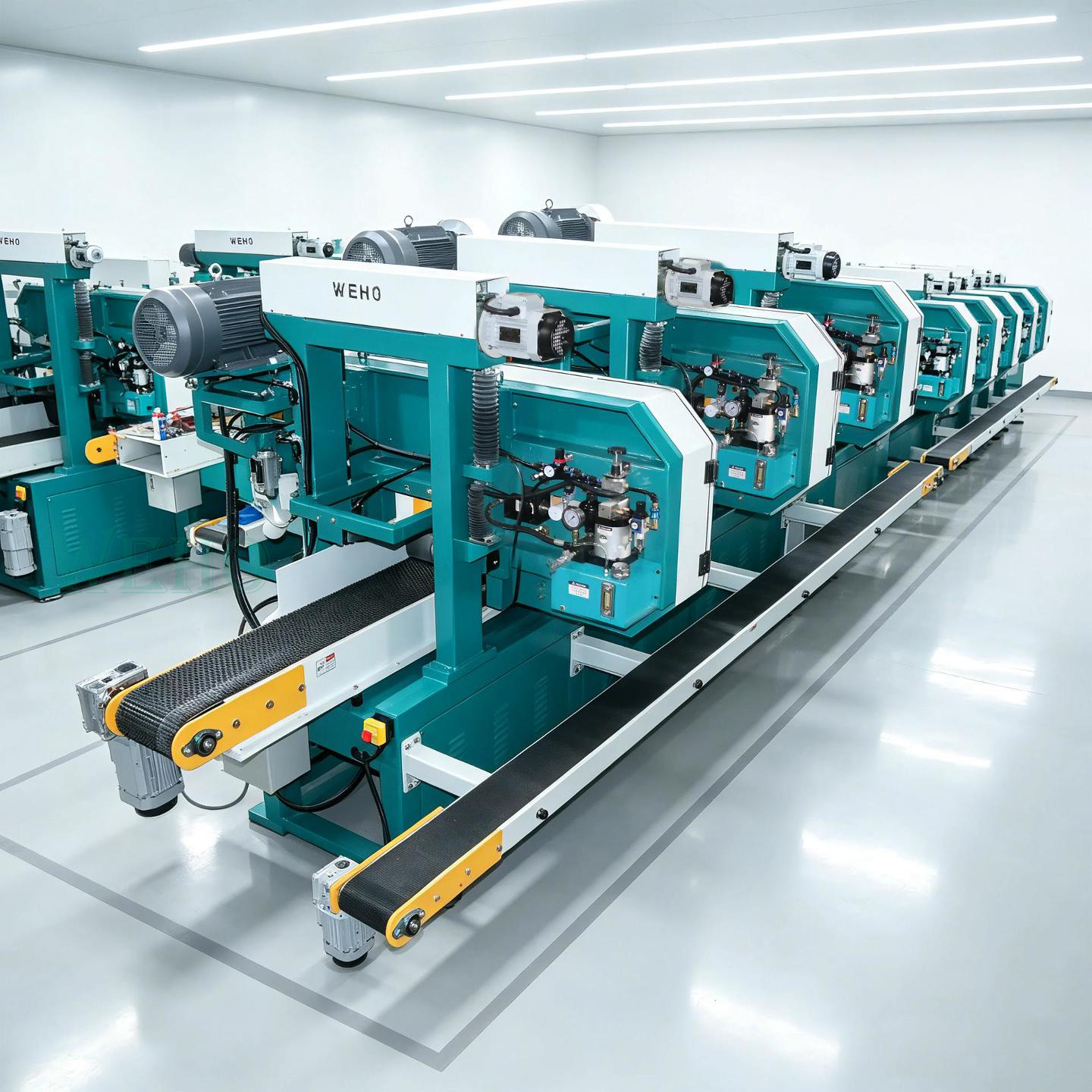

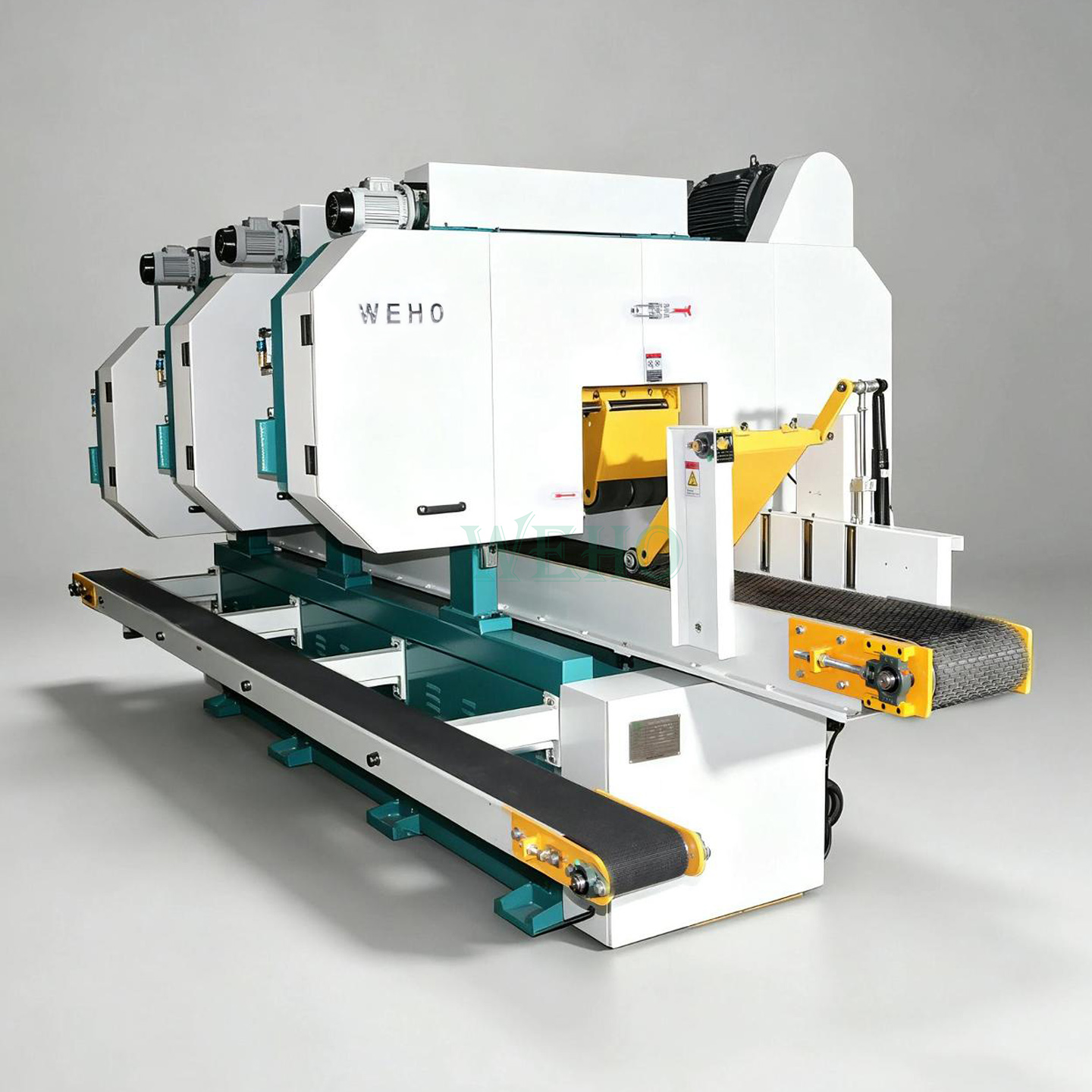

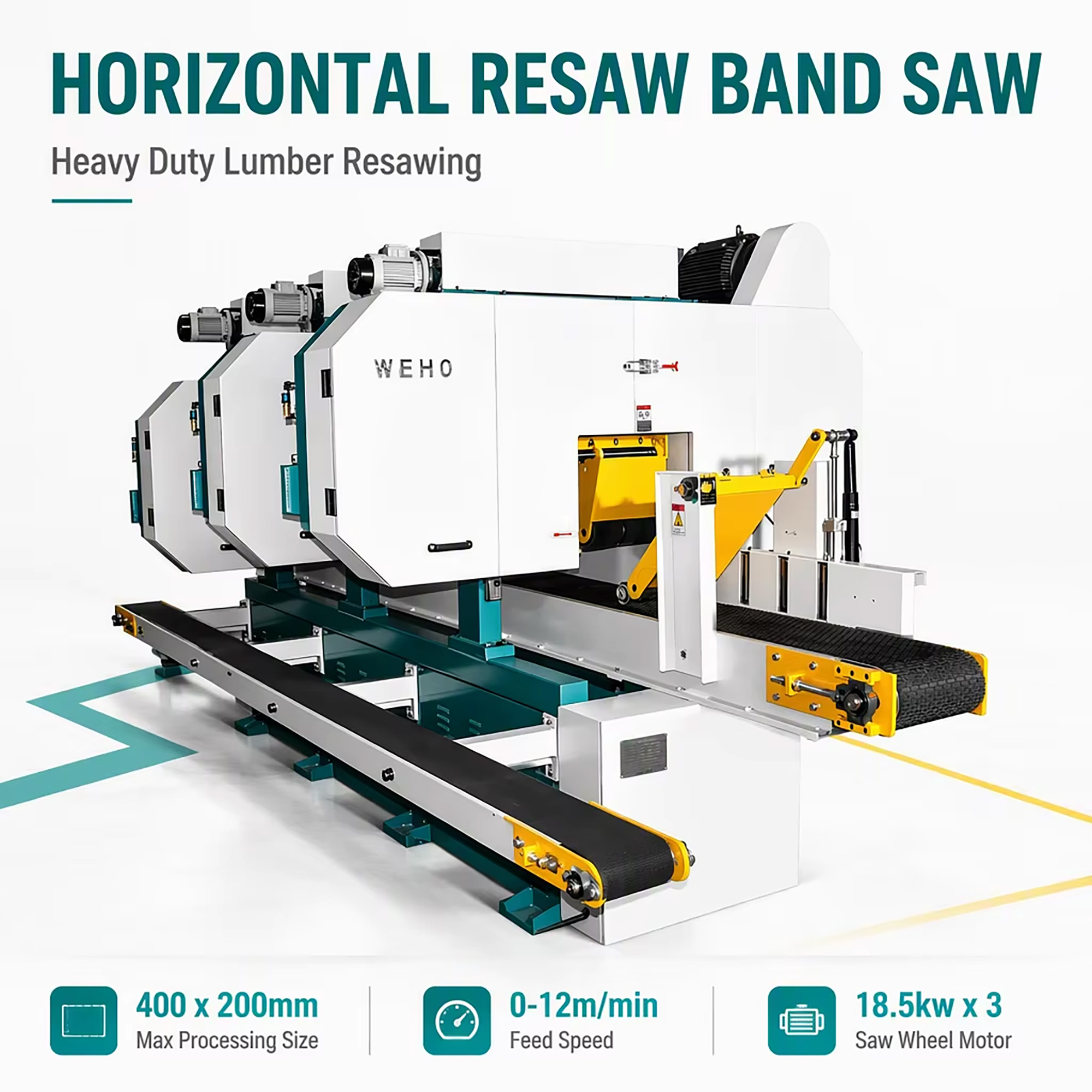

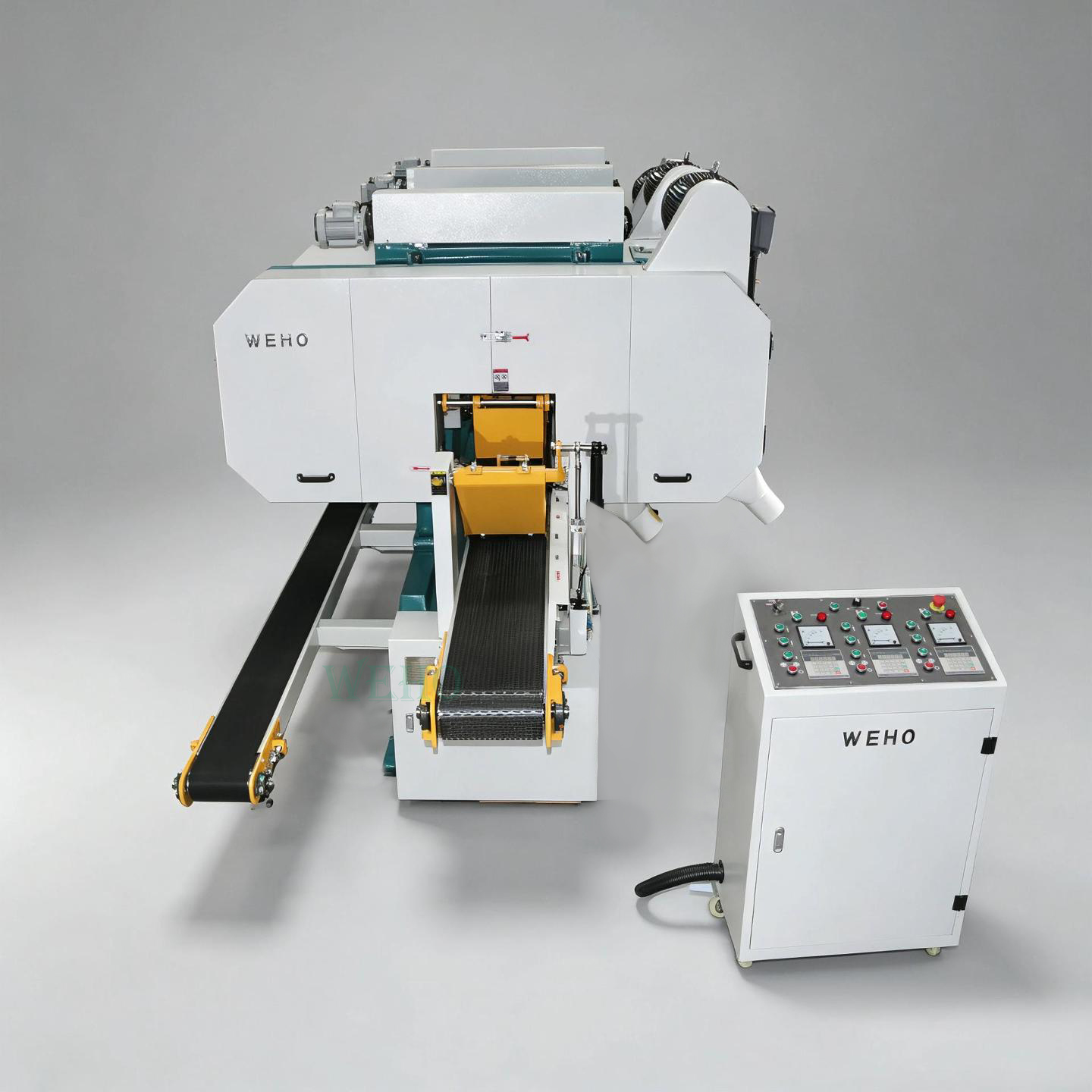

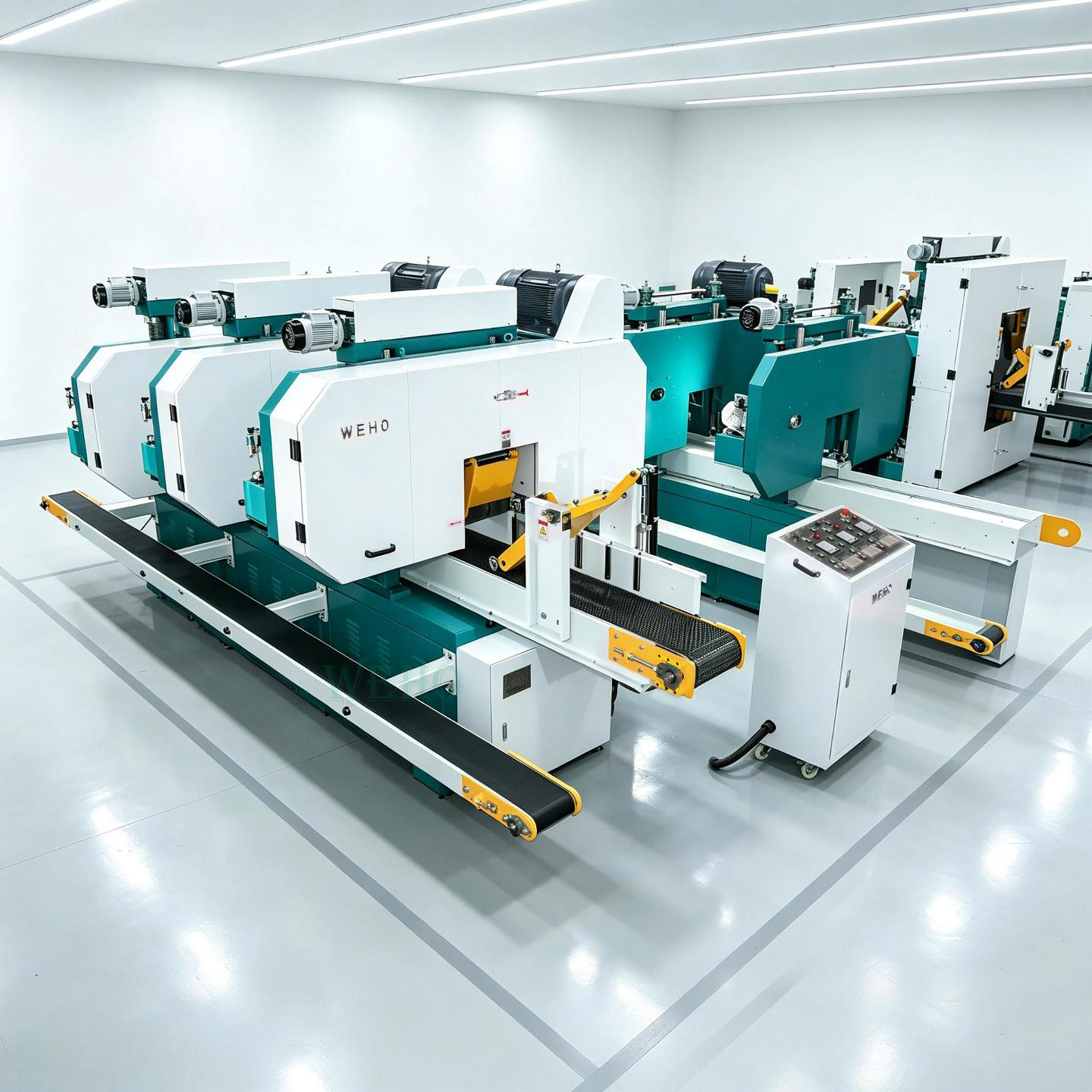

Three heads wood horizontal band saw machine manufacturers for wood cutting
Modle: MJ71B-400X3
Max working size: 400 x 200 mm
Distance from band saw blade to worktable: 3-60mm
Conveyer belt width: 385mm
Diameter of saw wheel: 711 mm
Feeding speed: 0 ~ 12m / min
Saw wheel motor: 18.5kw x 3
Feeding motor: 2.2kw
Return motor: 0.55kw
- Efficient Wood Splitting: Quickly resaws lumber into boards for splicing and timber work.
- Robust Design: Built for heavy-duty use in woodworking workshops.
- Multiple Cutting Options: Accommodates various thicknesses and lengths of wood.
- Compact Size: Easy to maneuver in tight spaces for precision cuts.
- Durable Construction: Long-lasting performance for consistent cutting results.
| Modle | MJ71B-400X3 |
| Max working size | 400 × 200 mm |
| Distance from band saw blade to worktable | 3-60mm |
| Conveyer belt width | 385mm |
| Diameter of saw wheel | 711 mm |
| Feeding speed | 0 ~ 12m / min |
| Saw wheel motor | 18.5kw × 3 |
| Feeding motor | 2.2kw |
| Return motor | 0.55kw |
| The diameter of dust collecting pipe | 102mm × 4 |
| Saw blade size | 4572 × 27 × 0.9mm |
| Sawing | 1.4-1.6mm |
| Overall dimension | 4900 × 2250 × 2000mm |
| Net weight | 3800kg |

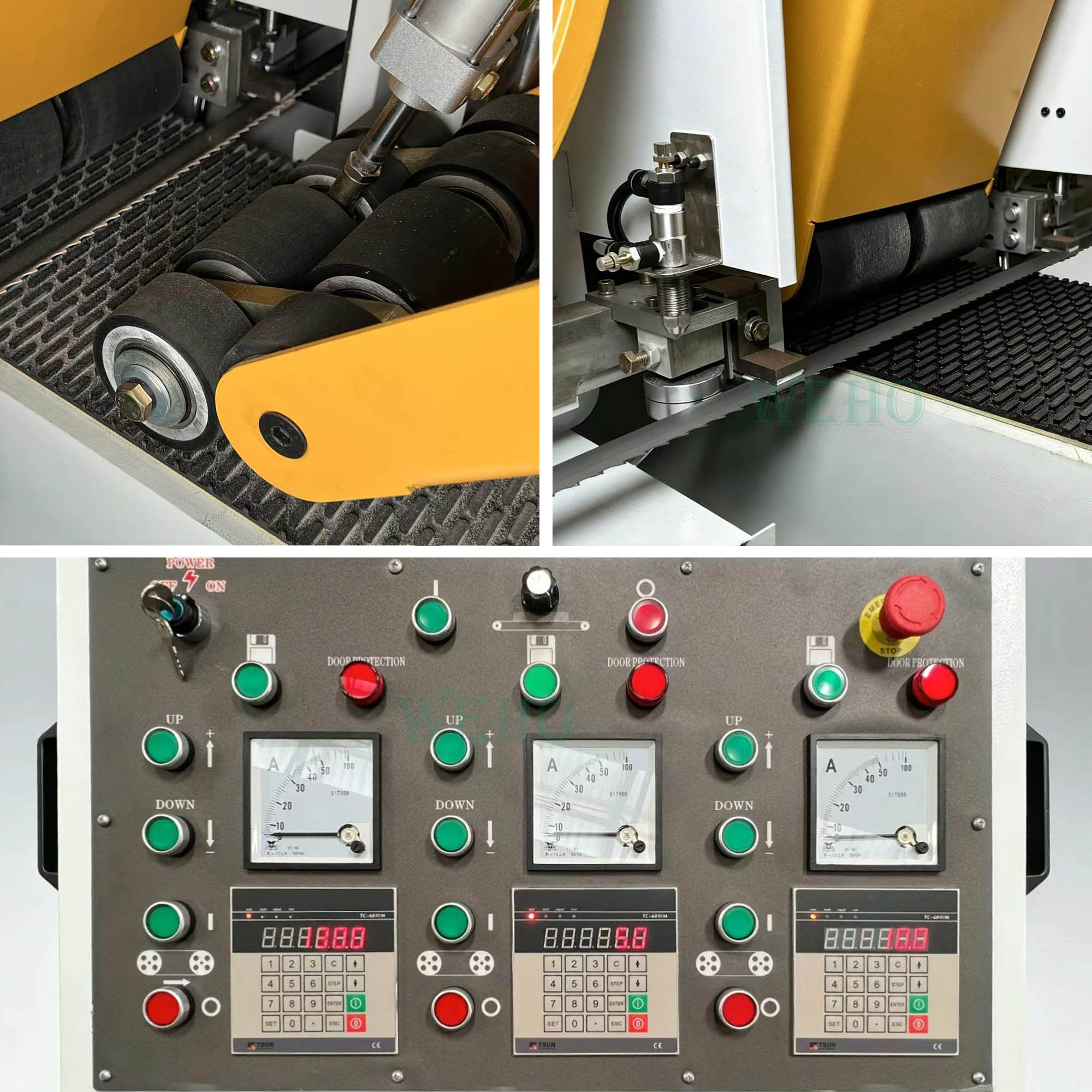

Built to the exacting standards demanded by today's professionals, features state-of-the-art systems such as digital controls,precision blade tensioning with gauge, and a variable-speed conveyor drive system.

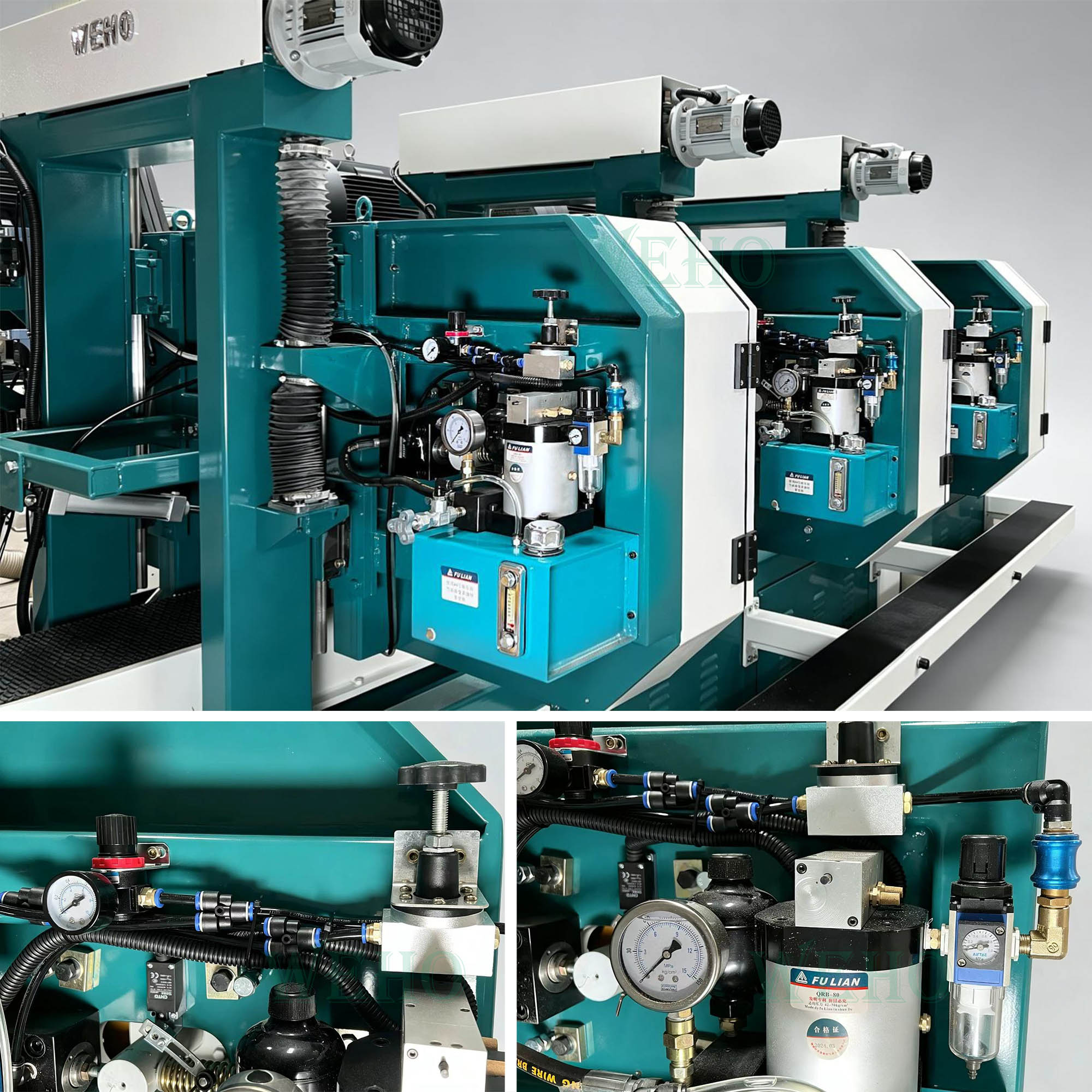

Automatic tensioning: The Rexroh rails are fitted with a tensioning system to make the saw blade more durable.

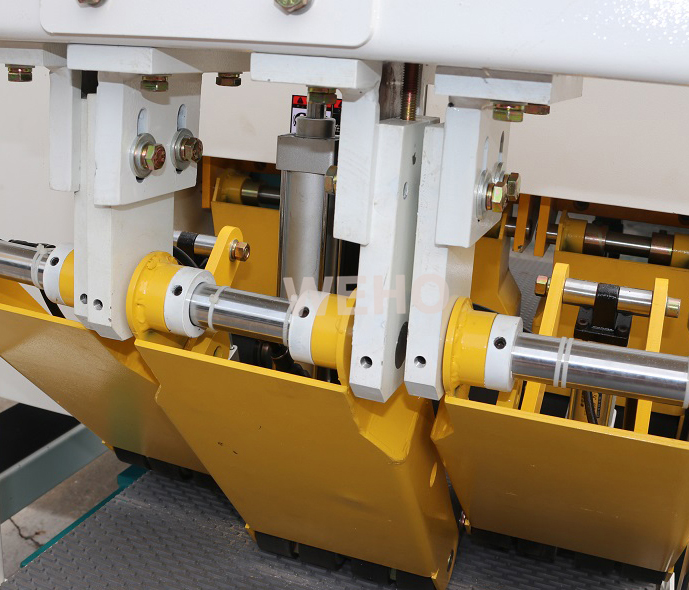

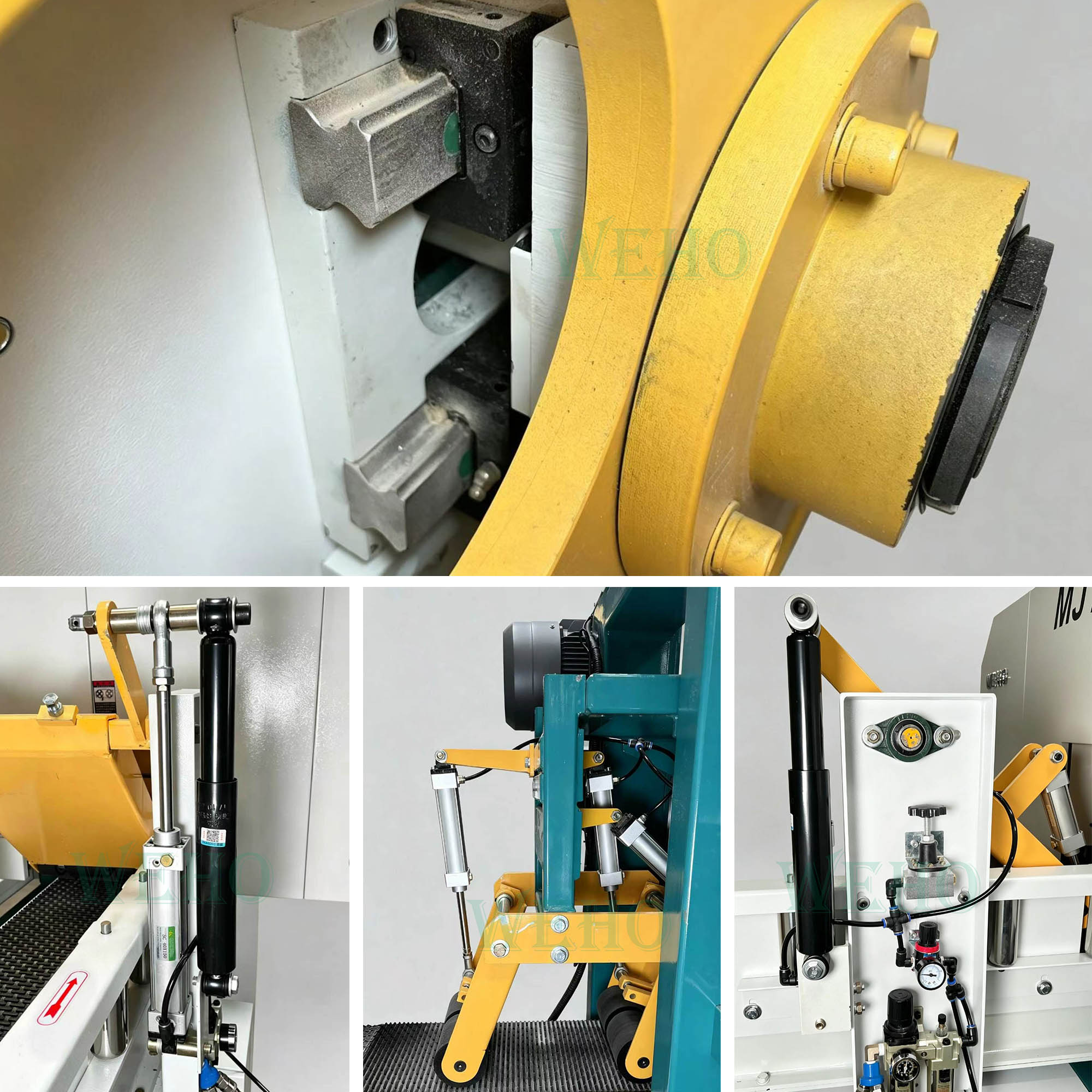

Wear-resistant ceramic saw clamp to protect the saw blade for efficient heat dissipation and better sawing surface quality.
The sawing wheel has advanced processing technology, good stability, wear resistance, and the saw blade is not easy to break. UsesJapan imported NSK6200VV and NSK32013 bearing to ensure smooth rotation of the saw wheel.Zhengtai,SIMENS, LG and other imported electrical components: the electrical box is durable and not easy to damage.
A strong power,3-phase motor rounds out this machine for unsurpassed power to handle your biggest resaw operations.
"Dock" delivery or flatbed truck arrangements are necessary for this item.
We provide 2 optional packaging ways for ocean shipment: Film / Wooden box
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
Weho Machinery Group Established in 2003, has rapidly grown in both size and production volume from its original factory located in Foshan. Weho is at the forefront of wood machines manufacturing inChina, and has facilities, resources and capabilities to fulfill customers' requirements in quality, speed and service. Weho's strong technical background has set the foundation of our emphasis on continuous technological innovation and breakthrough..... Our policy is "to design and manufacture products with the mostdependable performance, ease of operation and competitive prices for our customers".

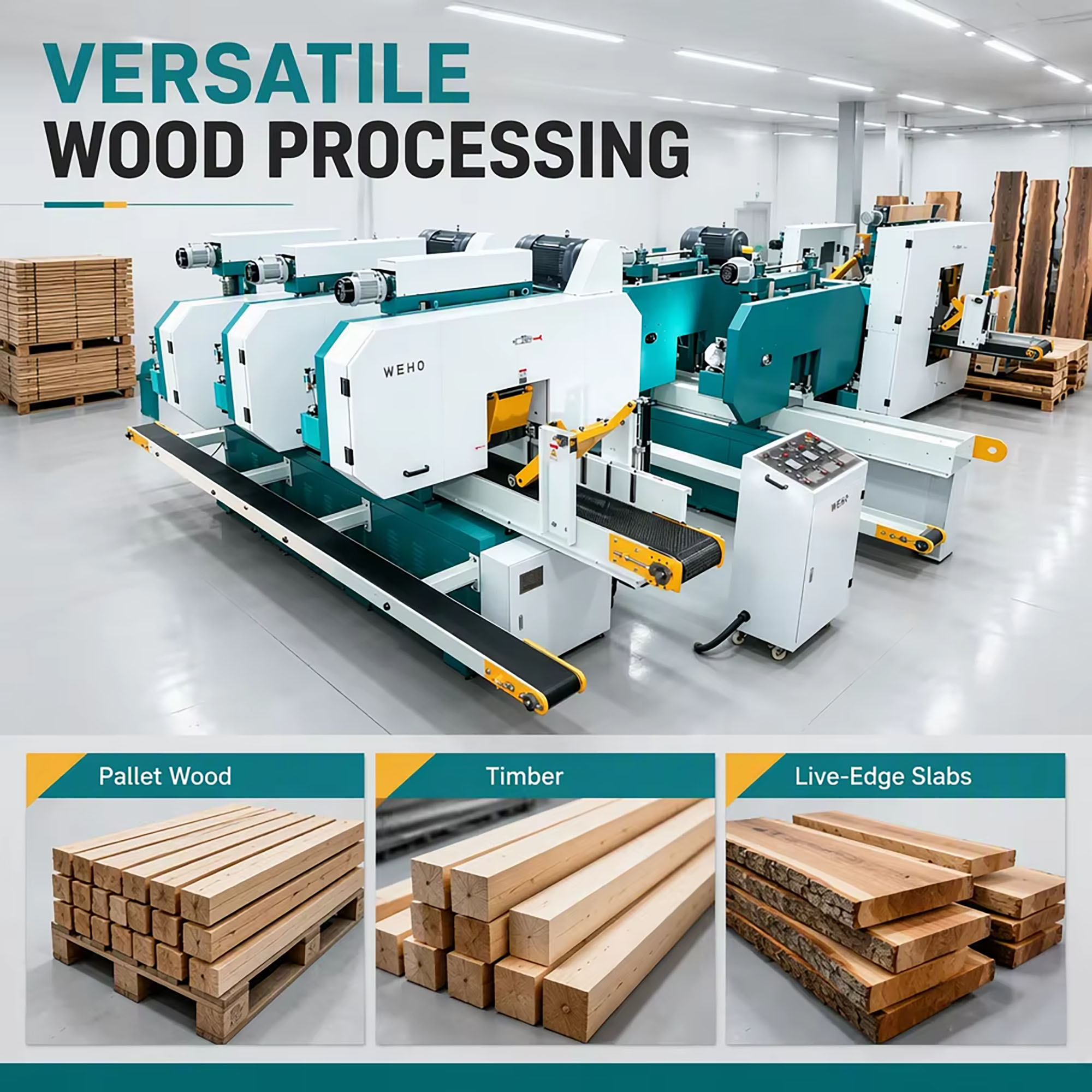

What material can this horizontal resaw cut?
It works for solid wood, hardwood, softwood, lumber, timber. Suitable for sawing and splitting boards, making thin veneer blanks.
How many cutting heads does this machine support?

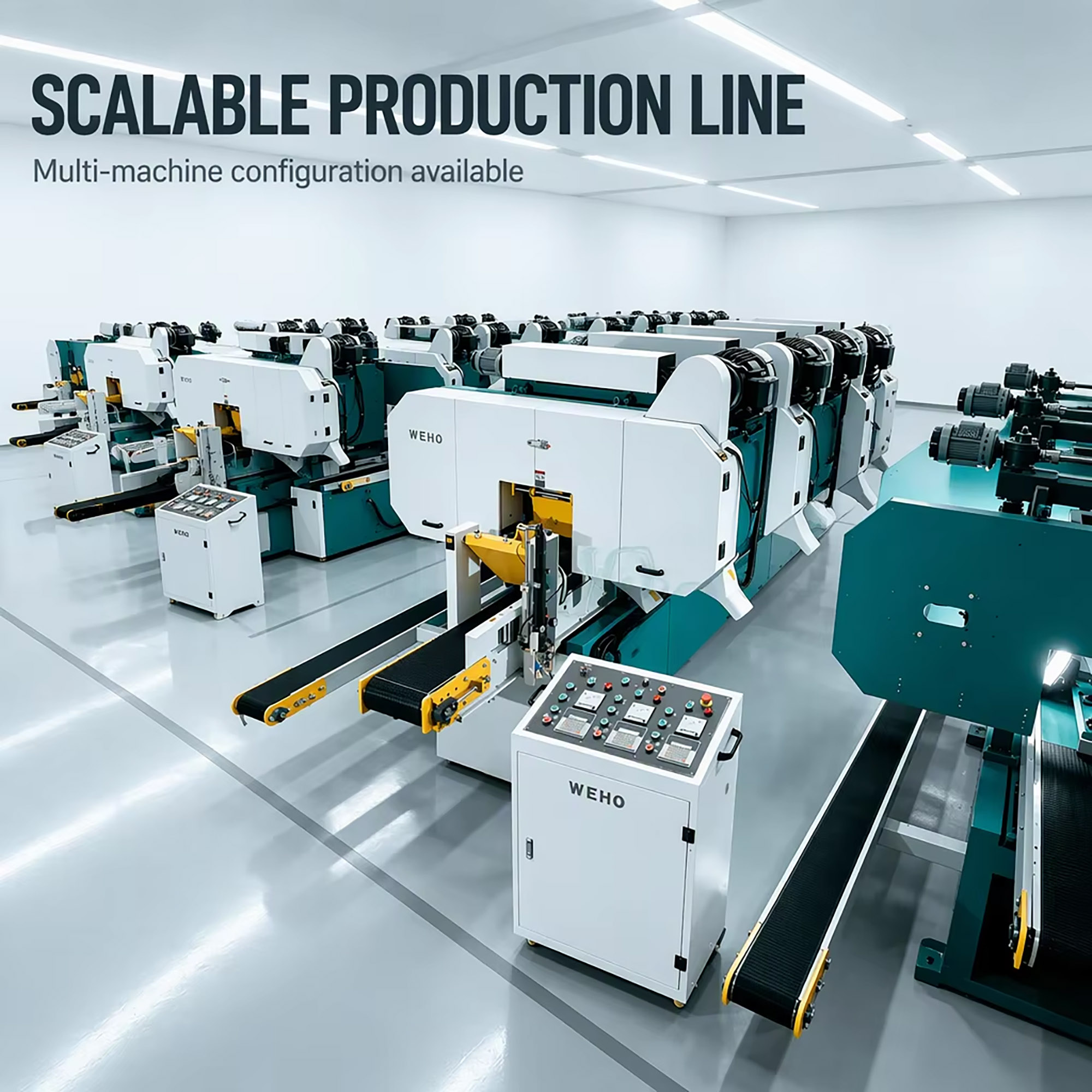

Configurable with 1‑4 saw heads. Multi‑head model can finish multiple cuts in one feeding pass.

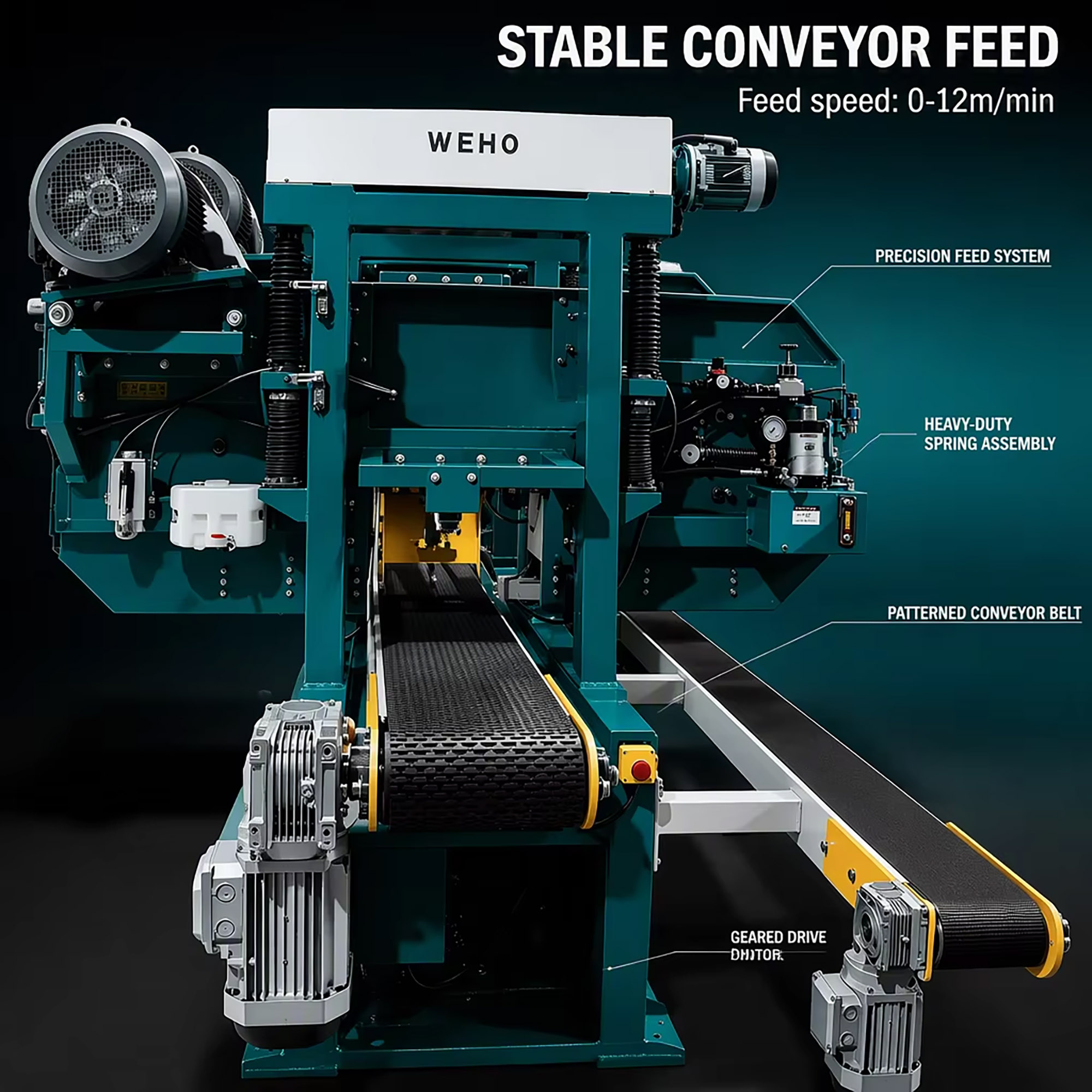

What is the feeding system?
Rubber conveyor belt feeding, stable feeding, less material bouncing.
Is it suitable for mass‑production furniture factory?
Yes, continuous feeding, high throughput, reduce labor cost for lumber splitting work.
Can this machine do resaw splicing work?
Exactly, it is widely used for resawing timber for finger‑joint and splicing production line.
How to buy？
1. Contact WEHO sales and provide your requirents to get best solutions.
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate？
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty？
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts. After buying, technical supporting contact 008613326792205
