Three-row automatic wood panel furniture multi drilling machine manufacturer
Three-row automatic wood panel furniture multi drilling machine manufacturer

Three-row automatic wood panel furniture multi drilling machine manufacturer


Model:MWZ3L
Max. Drilling Dia.:Max.=35mm(single) D=13mm(Multi)
Max. Drilling Depth:H Max.=60mm
Total Number of Spindles:21*3=63
Weight (KG):1700 KG
Power (kW):4.5


Details
Spare Parts
Inquiry

Used for drilling wood, flakeboard, medium density fiberboard and so on.
1.The imported original drill row, famous and superior original electric appliance.
2. The machine tool elements choose the superior steel materials. They have been heat-treated with high intensity and eternal non-deformation.
3. The kinetic components choose the high-grade anti-wear materials with fine durability.
4. Size positioning, prompt; accurate and convenient operation.
Model Z3L
Max. Drilling Dia. Max.=35mm(single) D=13mm(Multi)
Max. Drilling Depth H Max.=60mm
Installation Dia.of Drill Bit Shaft 10mm
Max. Center Distance Between Holes L max.x B Max.=2500mm x 640mm
Total Power 4.5kw
Spindle Speed 2840rpm
Total Number of Spindles 21x3=63
Overall Dimension 3750x2500x1560mm
Weight 1700kg
Packing size 3830x1300x1750mm

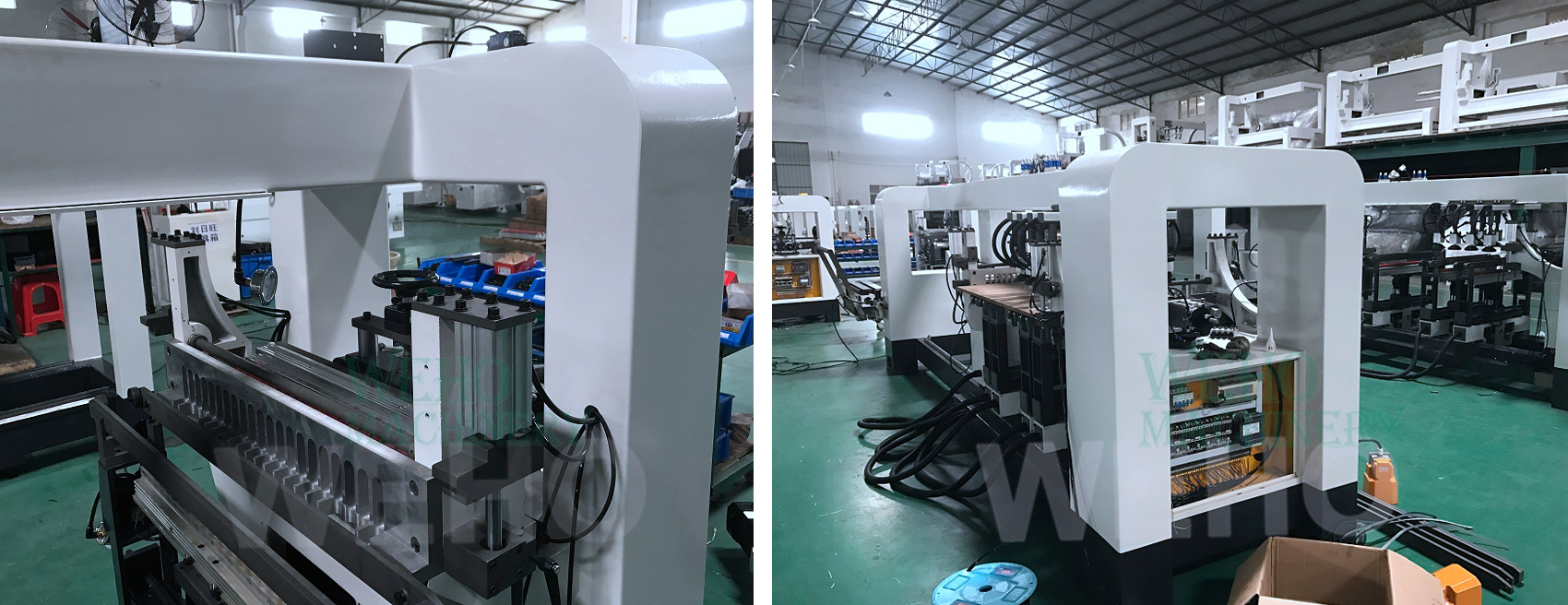

Multi spindles boring machine for carpenter furniture
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
Name:  Boring units  Name: Cylinder press material
Brand: China WEHO Brand: China WEHO
 There are 21 pcs boring bits, suitable for wood capenter furniture holes drilling.                                                              Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Name: position adjusting device Name: sides boring units
Brand: China WEHO Brand: China WEHO
Losen this switch to move the boring heads.       there are 21 pcs bits for horizotal holes drilling.




















Spindles Boring Machine
Multi Drilling Machine
[]
