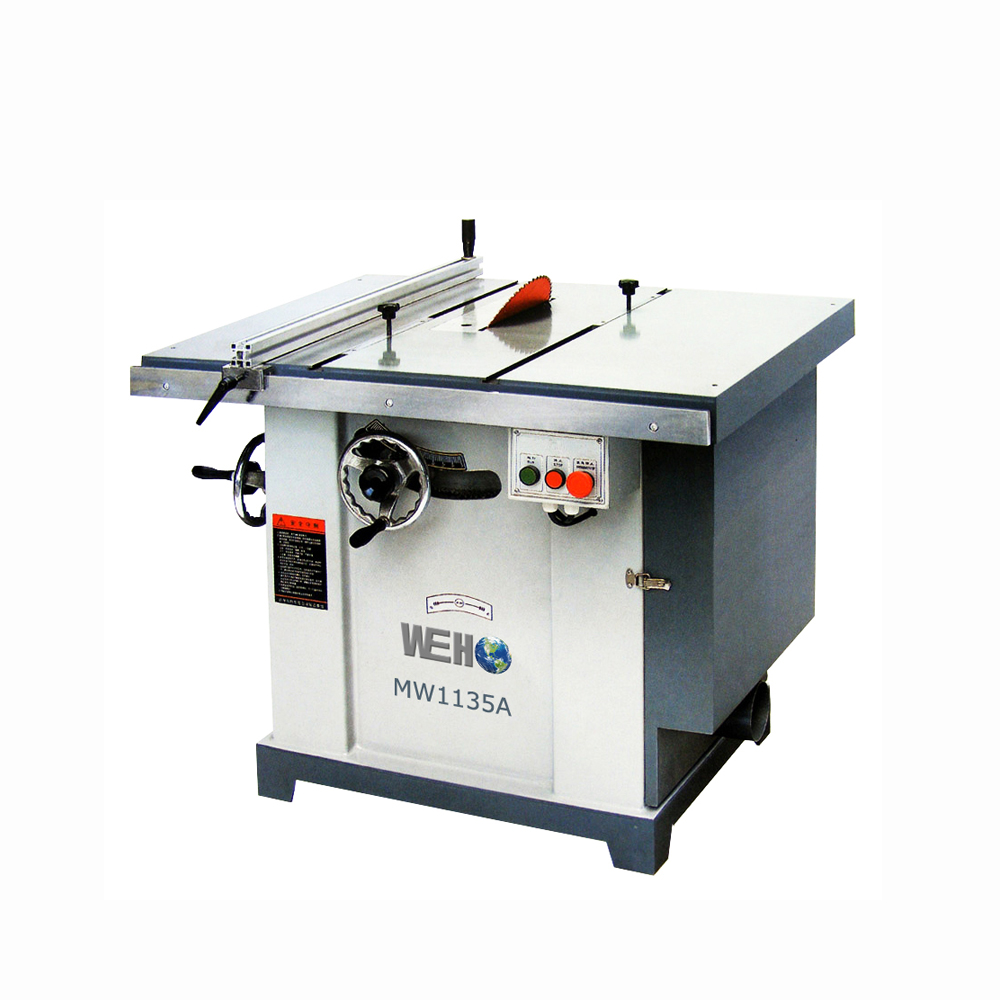

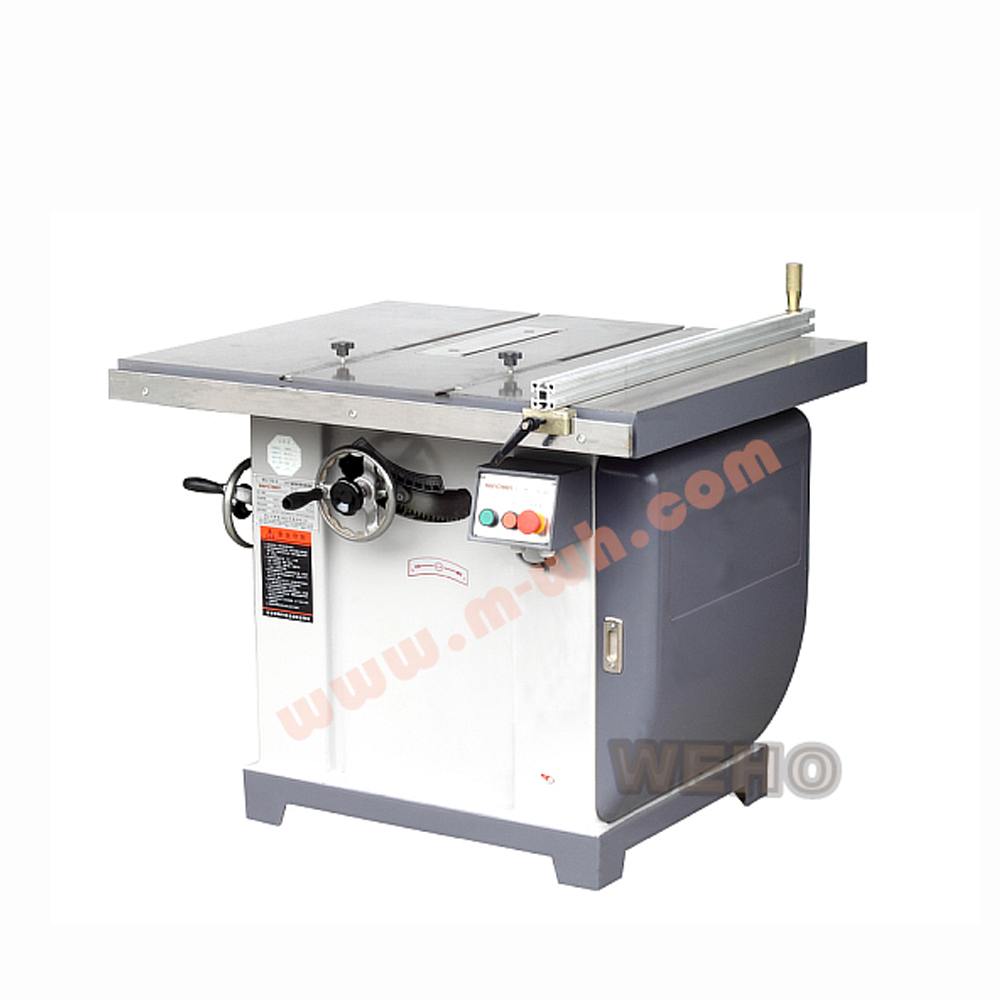

Tilting arbor sliding circular table panel saw for wood cutting
Tilting arbor sliding circular table panel saw for wood cutting

Tilting arbor sliding circular table panel saw for wood cutting


Model:MW1135
Max Saw blade diameter:355mm
Max working thickness:70mm(45degree)/100mm(90degree)
Main shaft diameter:25.4mm
Main shaft rotation:3500r/min




Details
Spare Parts
Inquiry

High quality reinforced steel cabinet fo greater stability.High-quality cast-iron table and extensions, precision machined and polished to perfection.2 miter gauge T-slots & deluxe cast-iron miter gauge.Slotted, heavy-duty steel blade guard and splitter & heavy-duty, precision-made aluminum table insert.Magnetic switch with overload protection.Matching triple V-belt drive, on balanced cast-iron pulleys for smooth vibration-free running.Arbor mounted on heavy-duty, permanently lubricated, sealed ball bearings.

Product name Table Saw Woodworking Machine
Model MW1135
Total power 3kw
Main shaft rotation 3500r/min
Max Saw blade diameter 355mm
Main shaft diameter 25.4mm
Max working thickness 70mm(45degree)/100mm(90degree)
Working table size 1000*780mm










Table Panel Saw

[]
