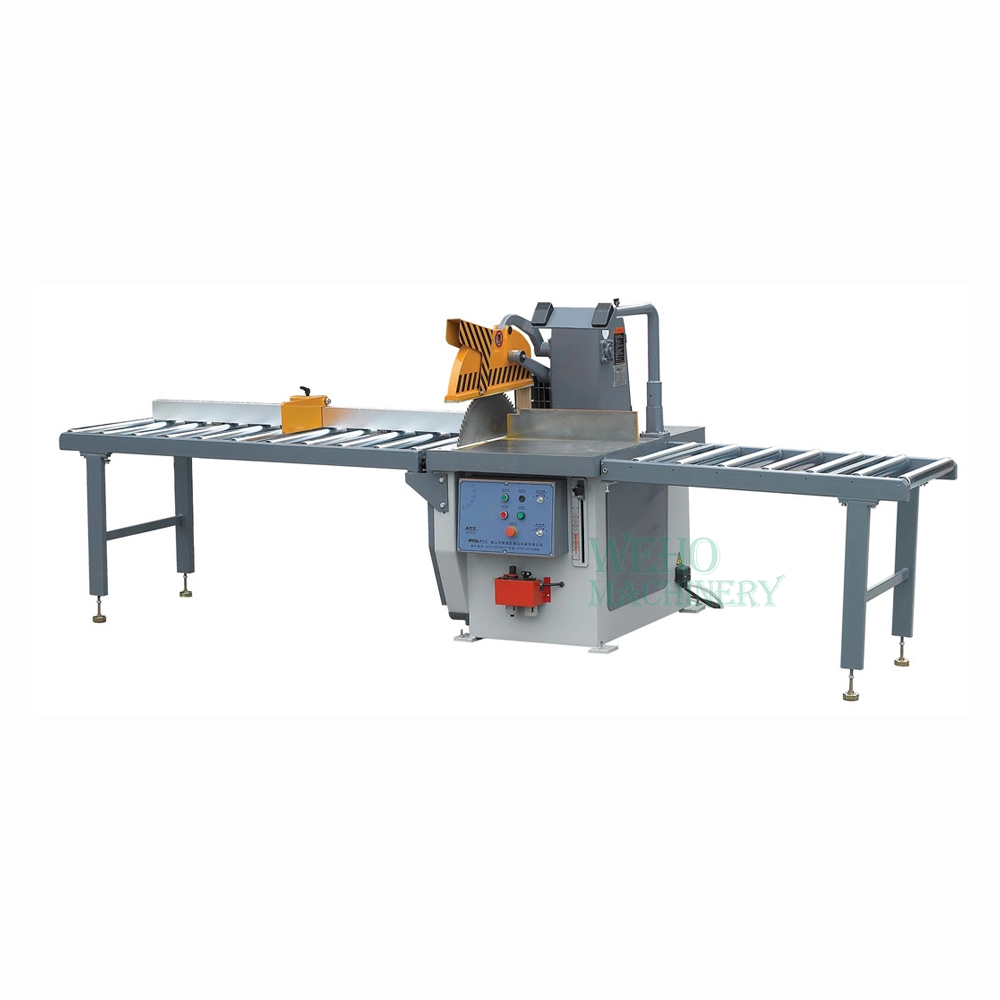

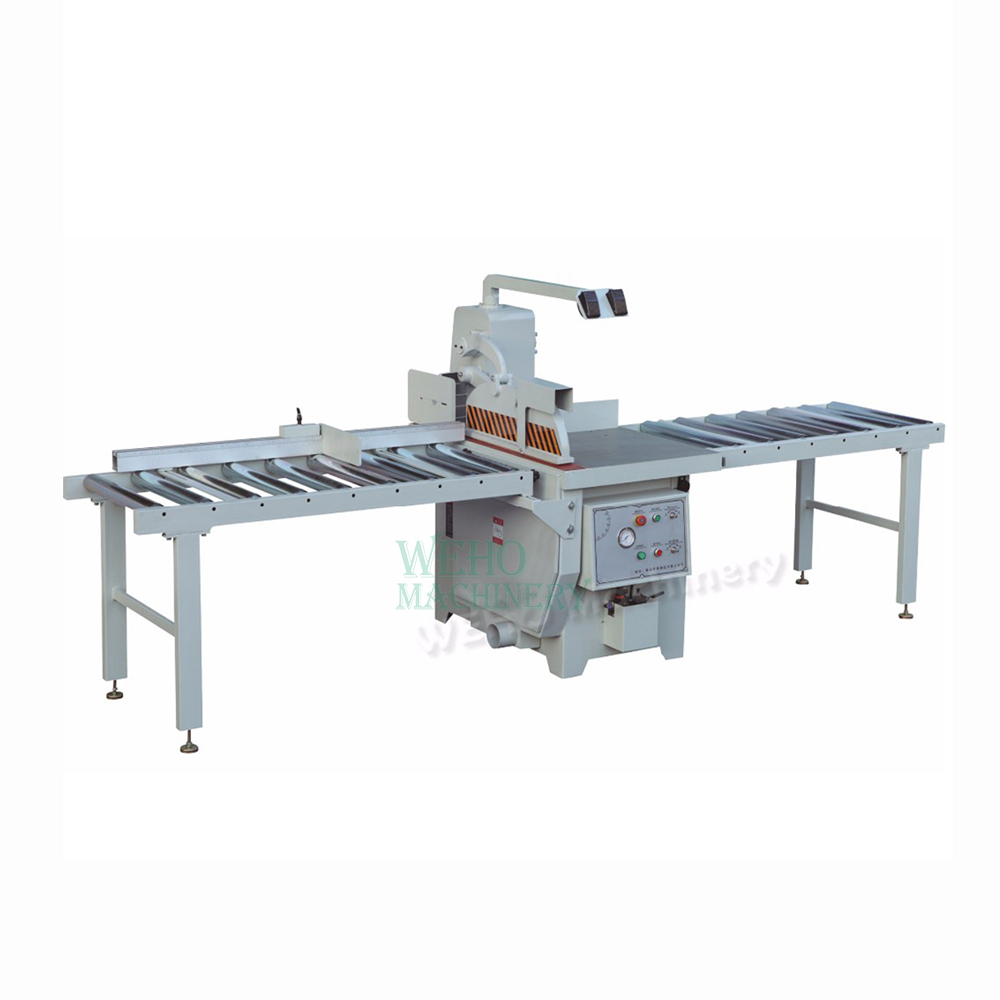

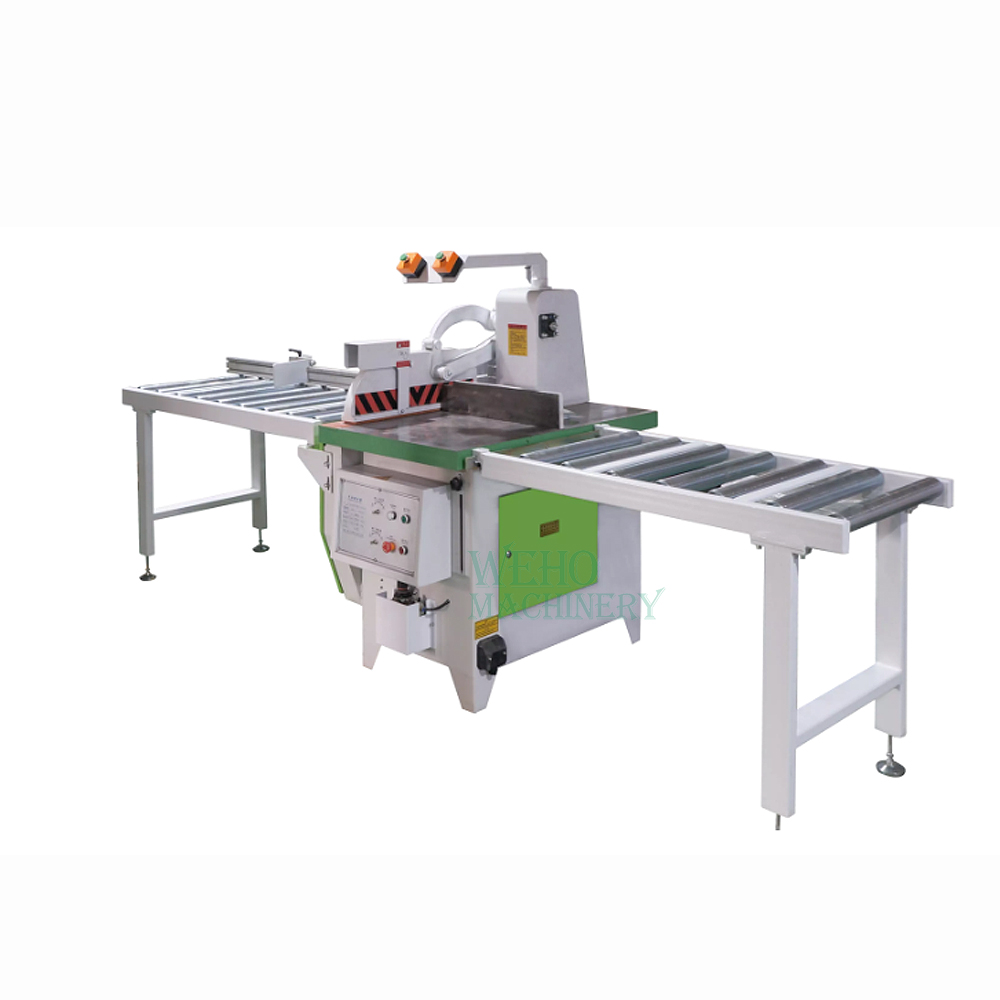

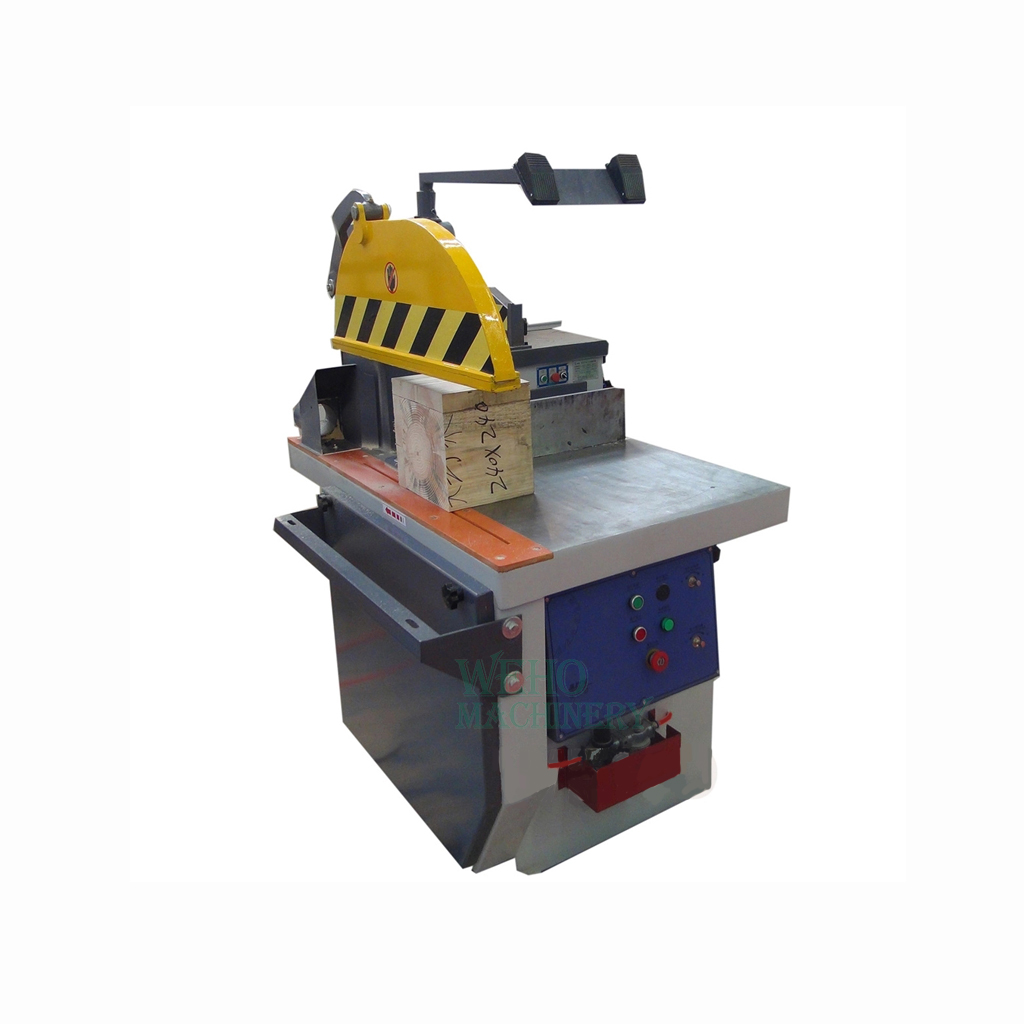

Timber crosscut sawing circular cut off saw machine for wood
Timber crosscut sawing circular cut off saw machine for wood

Timber crosscut sawing circular cut off saw machine for wood


Model:MWJ476
Cutting power:5.5/7.5Kw
Max cutting Width:500x40mm
Max cutting thickness:200x200mm
Saw blade diameter:400mm
Spindle rotation speed:1850rpm


Details
Spare Parts
Inquiry

1. Suited for wooden, plastic board and other un-metal materials cutting off.
2. Heavy-duty steel cabinet is built with precision for extra stability and designed for maximum safety.
3. Easy operation, the cutting cycle is controlled by twin buttons or a foot switch (included).
4. The saw blade runs inside the frame for safe operation. Quick-adjust head clamp.
5. 4" dust collection port.

SPECIFICATIONS FOR  Circular saw for wood cross cutting 6 inch cut off saw


Engine
Cutting power Kw 5.5/7.5
Max cutting Width mm 500x40
Max cutting thickness mm 200x200


Main performance parameters
Saw blade diameter mm 400mm
Spindle rotation speed rpm 1850
Pneumatic control by Foot switch


Machine size
Machine size mm 4250x1150x1650
Machine Weight KG 400
Supporting roller mm 40000


Main Features
1)Large side access door for quick easy blade changes.
2)Precision ground and balanced chrome steel alloy arbor.
3)Blade guard clamp holds the piece securely in place during the cut.
4)Fast cutting rate, Cycle speeds are adjustable for wood cut off saw machine.
5)Motion cycles are pneumatically operated, and conveniently controlled by a foot switch.
6)Easy belt tension is adjustment or replacement.
7) In-feed and out-feed roller conveyors are optional for circular Cross cut off saw machine.

 This roller with ruler can put and feed work pieces lightly.

Circular saw blade install in the frame, safety and easy to change.


We produce many type cut off saw, have manual, automatic and cnc circular cutting off saw.Cutting size calculated by working width and thickness same time.


Circular Cut Off Saw Machine
[]
