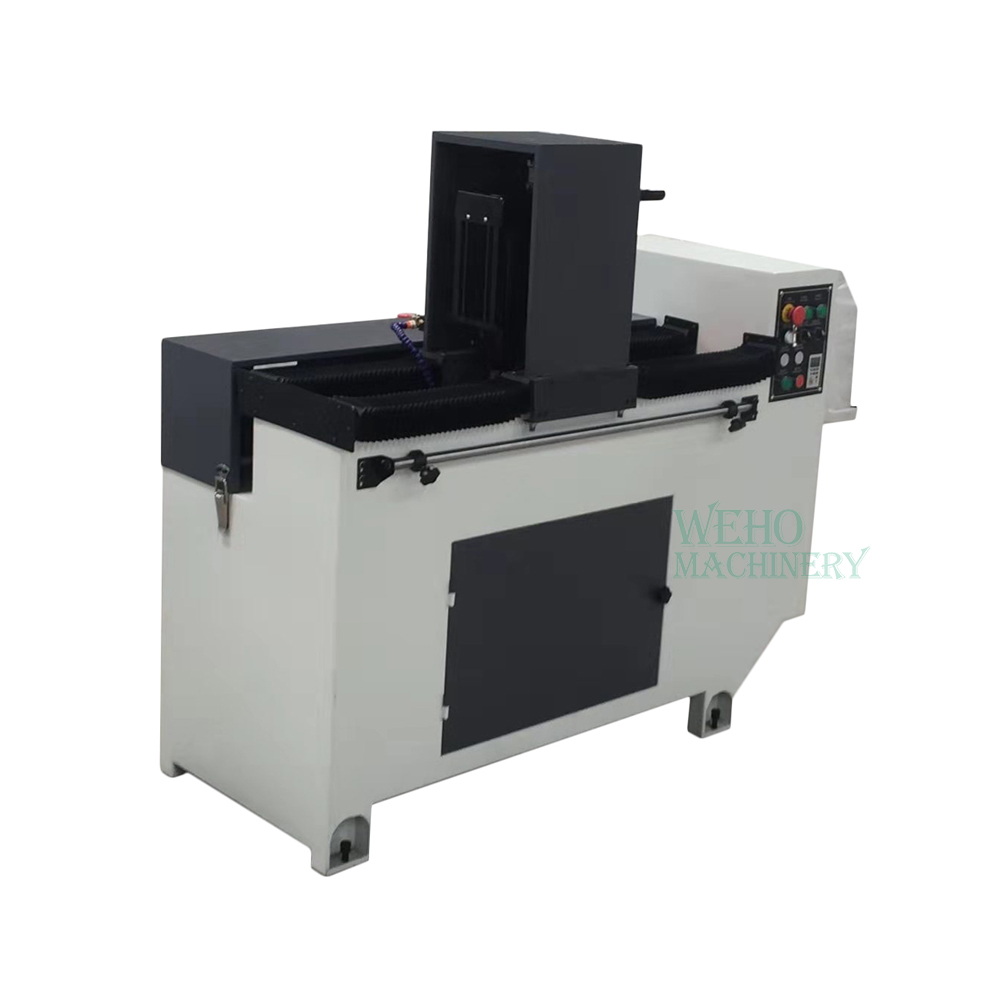

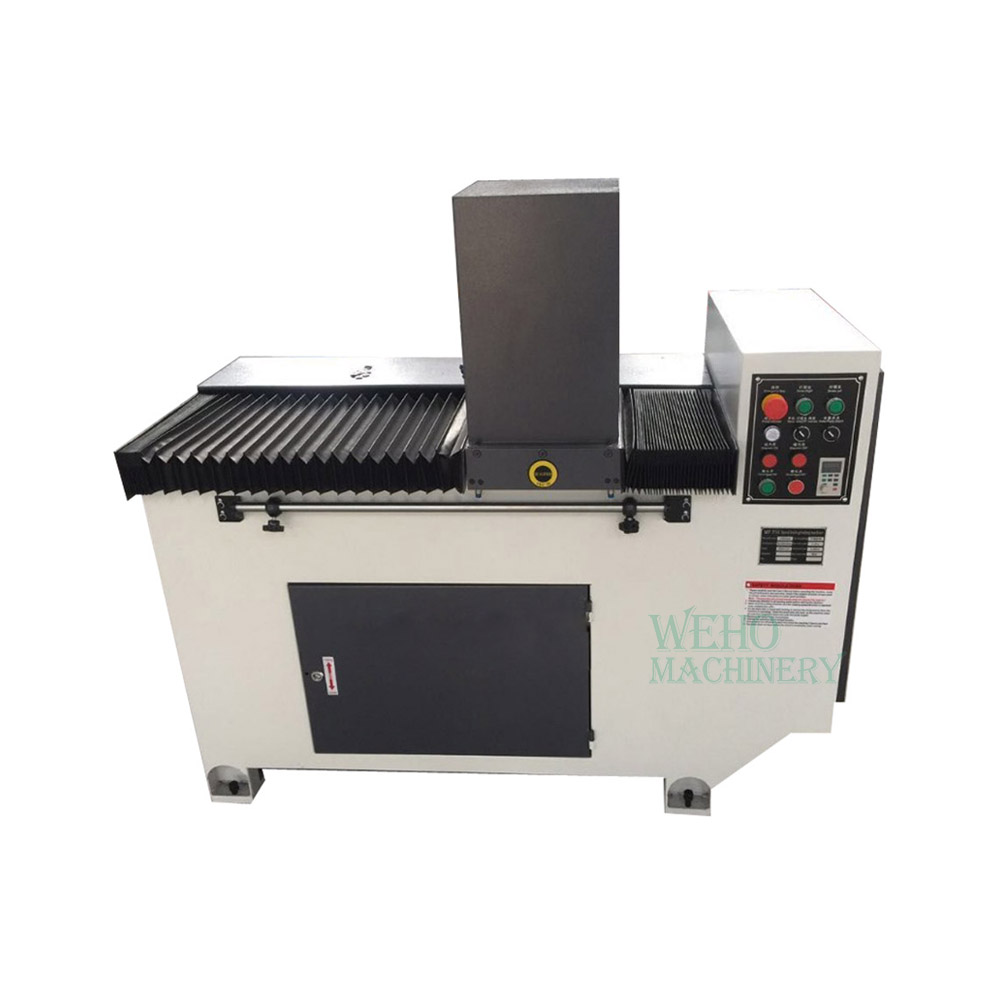

Tungsten replaceable carbide insert knife blade cutter sharpening grinding machine for thickness planer cutter | Blade Grinding Machine
Tungsten replaceable carbide insert knife blade cutter sharpening grinding machine for thickness planer cutter | Blade Grinding Machine

Tungsten replaceable carbide insert knife blade cutter sharpening grinding machine for thickness planer cutter | Blade Grinding Machine


Model:MF400A
Grinding length capacity:100*500mm
Grinding wheel dimension:125*32*5mm or Diamond
Weight (KG):600
Power (kW):2.2


Details
Spare Parts
Inquiry

Lapping can increase the productivity of shaped knives up to 30%
Powerful permanent magnet, you can easily position the tools on the table to be ground on the front side: no brackets or other special supports are needed.
SPECIFICATIONS FOR replaceable carbide inserts grinding machine
Model
MF400A
Grinding length capacity
100*500mm
Grinding wheel dimension:
125*32*5mm Diamond grinding wheel
Wheel horizontal moving speed :
0-60Hz
Installing blades Qty
150pcs(15*15*2.5)
Main electric motor power :
2.2kw
Stroke motor power:
0.2kw
Water pump power :
40w
Overall size
1400*800*1600mm

Main Features
1) EASY TO USE: A fully automatic machine for grinding and lapping carbide
2) PROFESSIONAL: Micrometric descent of the grinding wheel. Lapped surface roughness: 0.01 µ LITTLE BUT GREAT
3) PRODUCTIVE: It can solve little and big problems by grinding and lapping.
4) It mounts diamond wheels of different grains for different work requirements.
5) powerful permanent magnet table.
Replaceable carbide inserts grinding Mahine
The down feed of the grinding wheel is  adjuastable from a minimum of mm 0,005 to a maximum of mm 0,01 for passage.The grinding heads progresses slowly and the grinding wheels is supported by an effective cooling system.
Imported powerful magnetic table, hold small pieces stablely. High quality grinding motor provide strong power.High quality linear guide rail, ensure grinding work steady without vibration, get mirror state of blade.


Hard Metal Grinding Lapping Machine for carbide inserts replaceable blades.Dust proof cover ensure clean of magnetic table, keep precise grinding.



WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
