Universal tool cutter grinder machine crosscut saw end profile mill sharpening grinding for shaper moulder milling blade
Universal tool cutter grinder machine crosscut saw end profile mill sharpening grinding for shaper moulder milling blade

Universal tool cutter grinder machine crosscut saw end profile mill sharpening grinding for shaper moulder milling blade


Model:MF223
Tool post swing dia.:355mm
Tool post travel.:300mm
Grinding length:250mm
Grinding wheel size (dia*bore):Φ32 XΦ 205mm

Weight:370kg
Power(W):5.5kw


Details
Spare Parts
Inquiry

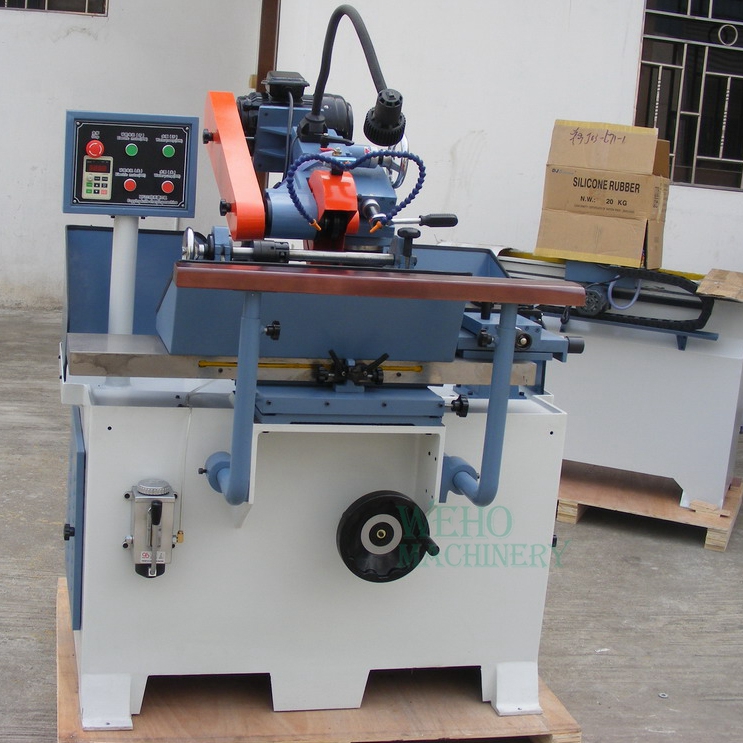

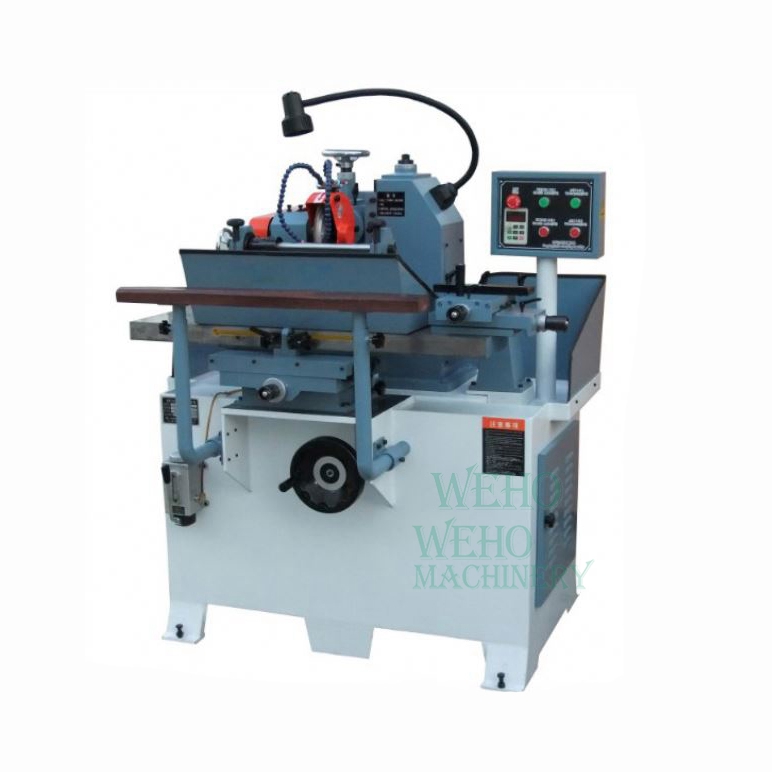

Knife Grinding Machine is the most important machine for plywood industry.It can grind every form of cutters by using a template such as molding blade, carve blade, milling blade, planer knife blade etc. It’s a fast, convenient and easy controlled grinding machine.It must have to dress the wheel during grinding.

Product Name

Profile milling cutter Knife Grinding Machine for shaper moulder milling blade produce

Model

MF223

Grinding capacity

Tool post swing dia.

355mm

Tool post travel.

300mm

Grinding length

250mm

Grinding wheel size (dia*bore)

Φ32 XΦ 205mm

Grinding wheel adjustable angle

± 45°

Speed of grinding wheel

4500r-10000r (variable speed)

Motor

Grinding wheel

2.2KW

Cooling system

40W

Electric system

PLC board

Working light

24v- 20w

Machine size

900*1160*1420mm

Package size

980*1220*1500mm

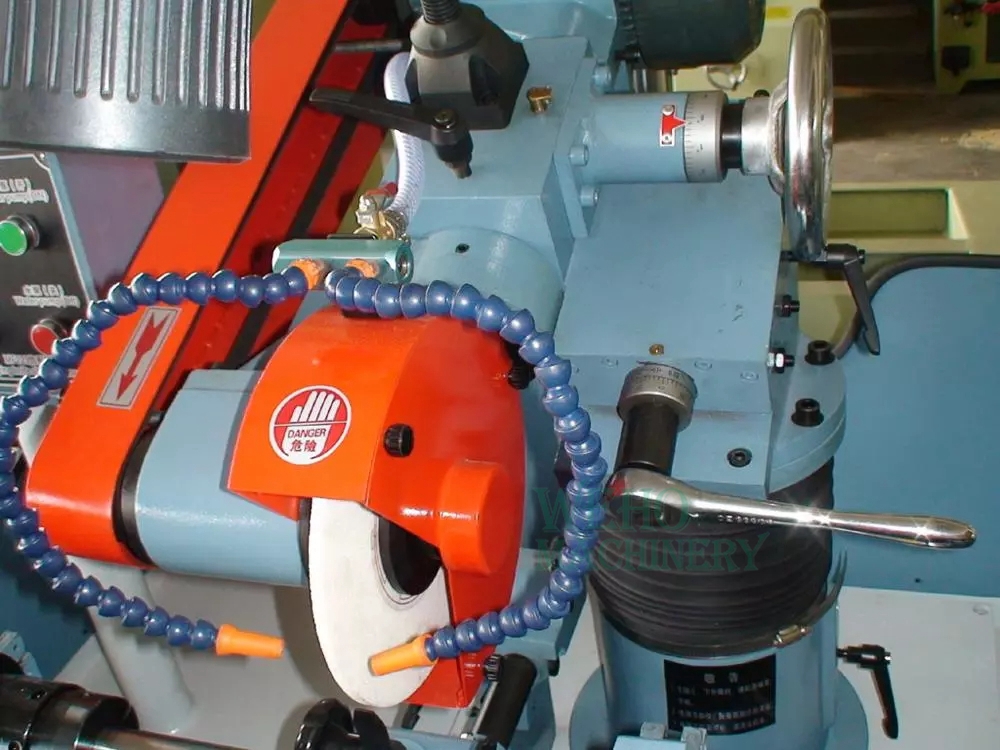

The machine has high-quality wheel dresser device.No matter how many times it dresses the wheel during grinding, the tool dimension and shape maintain the same. It’s a fast, convenient and easy controlled grinding machine. Grinding wheel speed can reach to 10000R.P.M.You don’t need change wheel for coarse and fine grinding working.

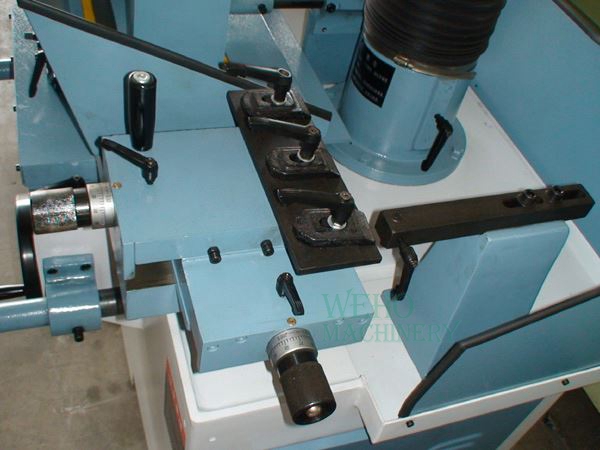

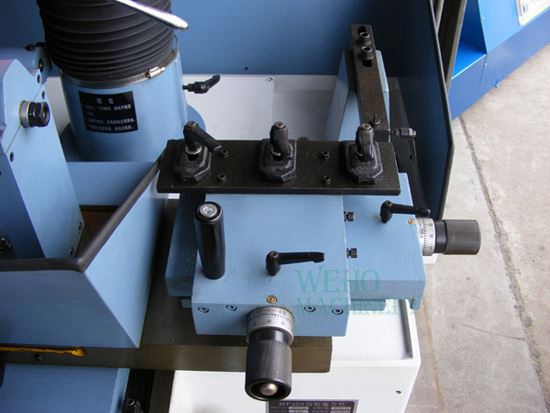

This is a high challenging machine. This milling cutter grinding machine adopt high precise linea guide rail, work table cross movement lightly with high precision. Work table back-front, left-right are moved with accuracy +/- 0.002mm Grinding wheel head has micro-adjustable and accurate.

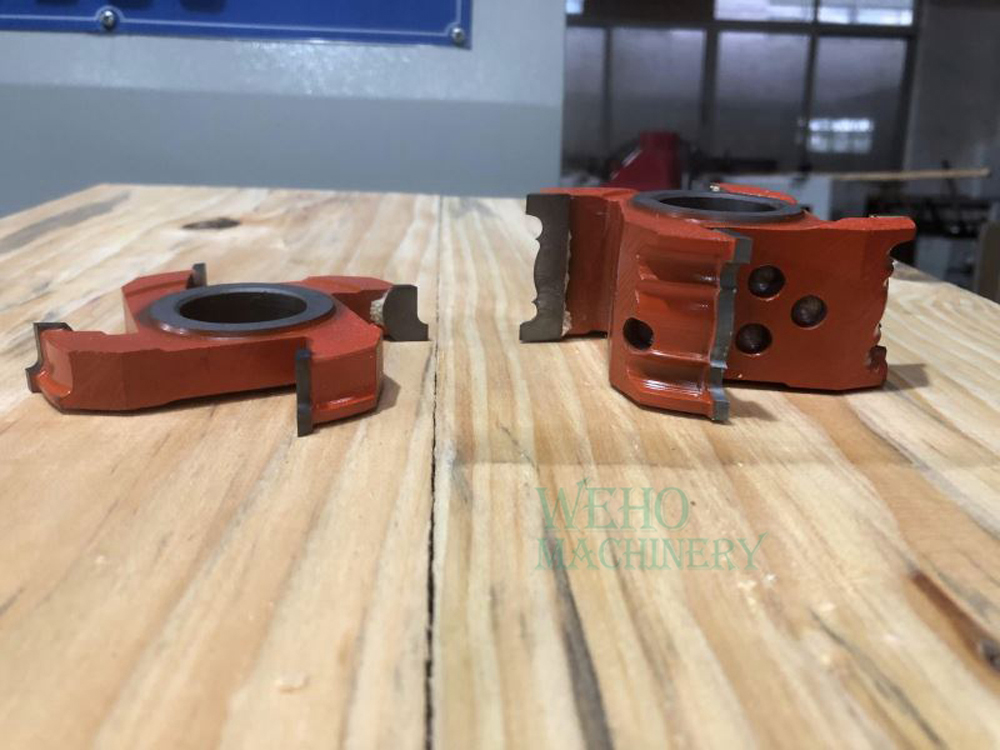

  Knife edge angle is adjustable, grinding center is never changed no matter what the angle is.Profile Knife Grinding Machine is suitable for TCT cutter and carbide knives.
 WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
