Uv drying six-lamp light paint curing for glass/gypsum board/MDF/veneer/furniture
Uv drying six-lamp light paint curing for glass/gypsum board/MDF/veneer/furniture

Uv drying six-lamp light paint curing for glass/gypsum board/MDF/veneer/furniture


Working width:1300mm
Working thickness:3-80mm
Minimum length:300mm
Feeding speed:0-20m/min
Dimension(L*W*H):3000*1800*2100mm
Feeding power:0.75kw
Power:11kw
Weight (KG):1200


Details
Spare Parts
Inquiry
Widely used to dry flat articles which are coated by Uv coagulated paint.The inside of the lamp house module enjoys good aeration, which prolongs the working life of UV lamps, transducers and capacitor Uv drying six-lamp machine.
Model
600
900
1300
Processing length range (max, min)
Min300mm
Min300mm
Min300mm
Processing width range (max, min)
Max600mm
Max900mm
Max1300mm
Machining thickness range (max, min)
3-80mm
3-80mm
3-80mm
Feeding speed
0-20m/min
0-20m/min
0-20m/min
Feeding power
0.4kw
0.75kw
0.75kw
Lugs power
5kw
8kw
11kw
Temperature range
60-120°
60-120°
60-120°
Package size
3000*1100*2100mm
3000*1400*2100mm
3000*1800*2000mm
The Uv six-light paint curing machine widely used to dry flat articles which are coated by UV coagulated paint.

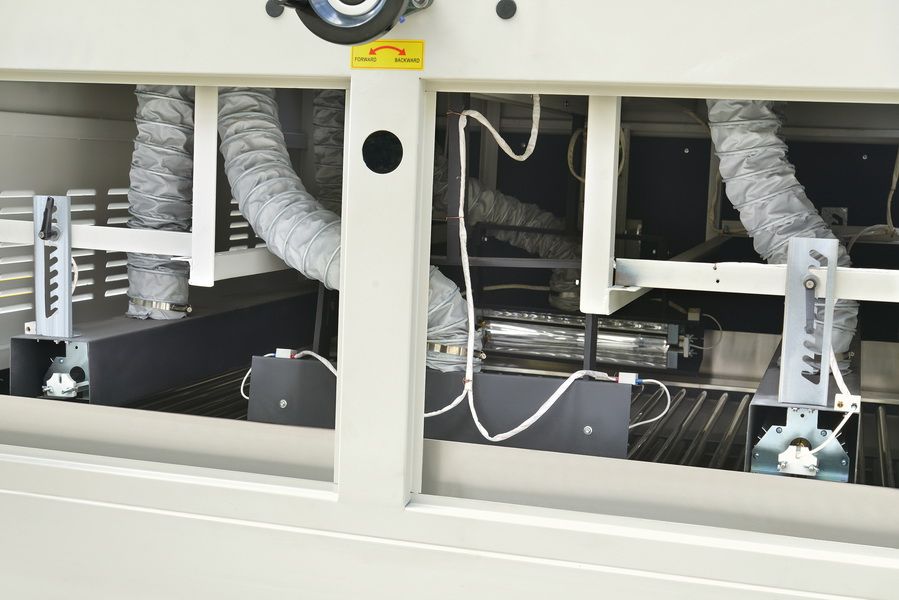

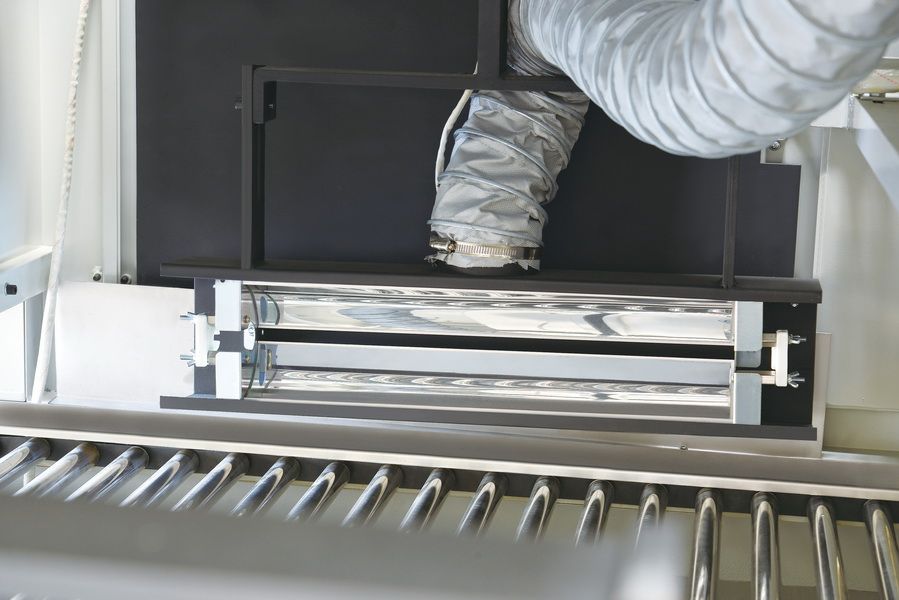

The inside of the lamp house module enjoys good aeration, which prolongs the working life of UV lamps, transducers and capacitor.

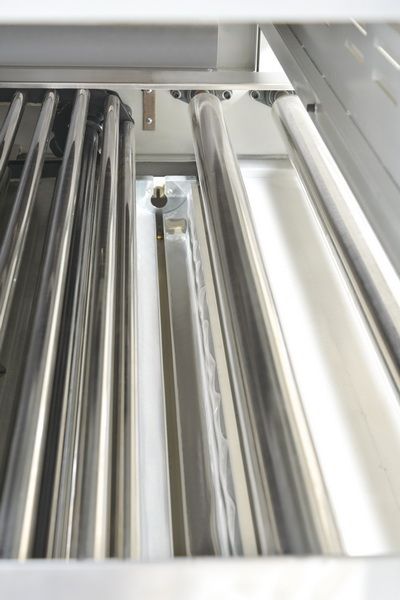

The Uv drying six-lamp light paint curing well-designed structure of conveyor prolongs the life of the belt and ensures the brightness of the painted workpieces.Imported gallium lamps can be selected to dry solid UV curing paints.Optional Distribution of Electronic Power Supply.
Service life 15000 ~ 20000 H.Expand the range of printing materials.Light up instantly without preheating.Simple structure and easy operation.No pollution, no ozone, no mercury and no sound. Intelligent adjustment,adjustable power.











WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can designand manufacture most of wood processing machines.Our goal is to exceed customer expectations. We’re machine factory, but service is our business.

Uv Drying Six-Lamp Light Paint Curing
[]
