UV roller coater machine for wood furniture cabinet MDF melamine panel
UV roller coater machine for wood furniture cabinet MDF melamine panel

UV roller coater machine for wood furniture cabinet MDF melamine panel


Working width:600mm 1000mm 1300mm
Coating thickness:3-80mm
Coating Roller diameter:250mm
Weight (KG):1200 KG
Power (kW):7.5


Details
Spare Parts
Inquiry

Production line is flexible use, such as hotel furniture, office furniture, wood doors, furniture, cabinets, wall boards, stair boards, wood floors, panel furniture, solid wood composite floor, handicrafts, bamboo curtain, calcium silicate board, glass magnesium board, cement fiber board, PVC gusset plate, wooden door, marble, color steel plate, metal, ceramic tile, plastic, etc.
uv roller coating machine for wood 600 900 1300
Coating  Length Min300mm Min300mm Min300mm
Coating width Max 600mm Max  600mm Max 600mm
Coating Thickness 5-80mm 5-80mm 5-80mm
Feeding speed 0-20m/min 0-20m/min 0-20m/min
Feeding power 0.75kw 1.5kw 1.5kw
Coating roller power 0.75kw 1.5kw 1.5kw
Coating roller material and Dia Rubber,Silicon,Laser,PU,Sponge    Dia 250
Plastic roller power 0.75kw 1.5kw 1.5kw
Plastic roller qty 1 1 1
Machine install power 2.25+3kw 3+3kw 3+3kw
Machine weight 1000kg 1200kg 1400kw
Packing size 1000*2050*1750mm 1000*2450*1750mm 1000*2750*1750mm


It is suitable for UV, High gloss mirror effect, waterborne coatings, PU, NC paints. The coatings can be recovered quickly without waste.UV roller coater machine for wood furniture cabinet MDF melamine panel

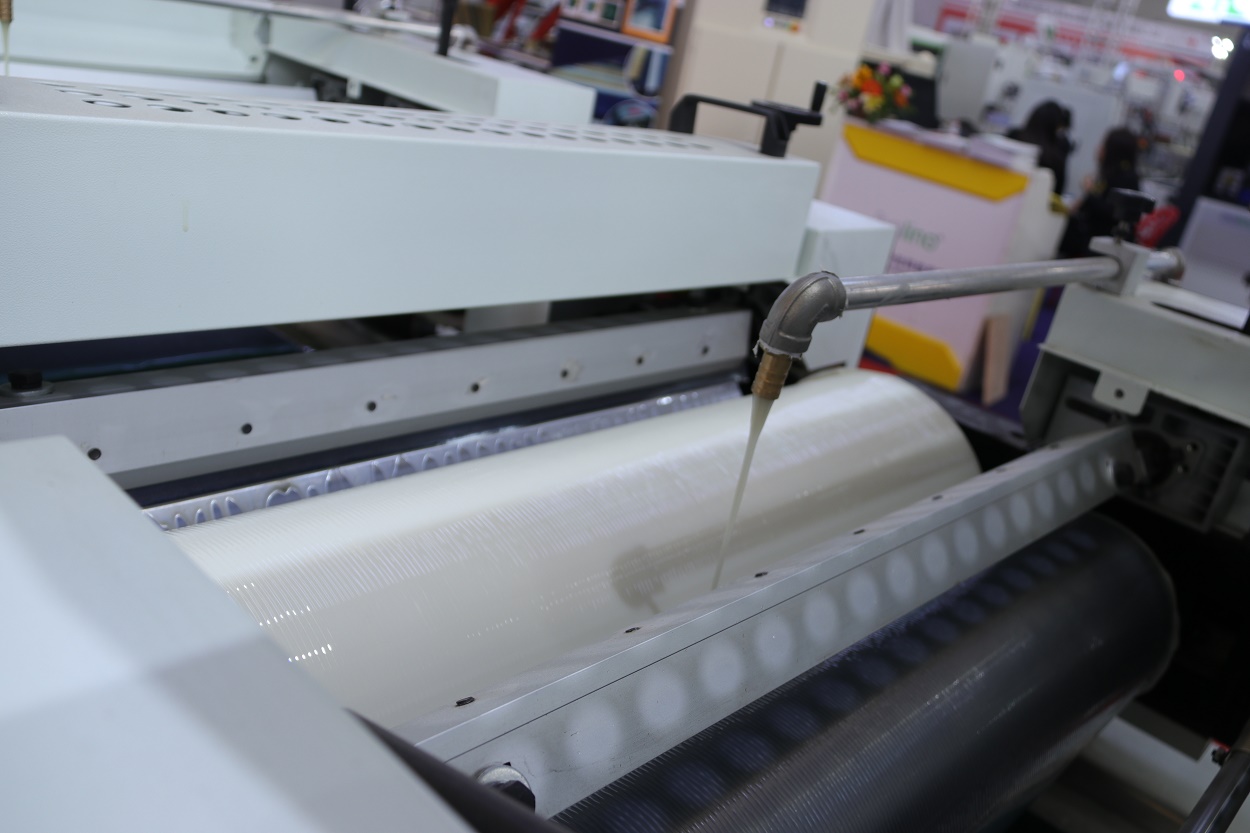

The smooth roller adopts with diameter 150mm, the surface of which is chrome-plated, and  outer circle is precisely processed by a CNC grinder.The paint coating by this machine has smooth surface, good fullness and no color difference.
UV roller coater machine for wood furniture cabinet MDF melamine panel  UV roller coater machine for wood furniture cabinet MDF melamine panelThe coating roller is easy to disassemble and assemble, height adopts a counting meter, which is clearly visible;The paint roller,coating roller is made of imported materials from Japan, which is solvent resistant and has good ink effect; roller surface is precision-machined by CNC.UV roller coater machine for wood furniture cabinet MDF melamine panel

UV roller coater can save 48.8% of the paint compared with the traditional spraying, and time-saving, labor-saving, high efficiency, environmental protection.Surface processed by this machine is smooth, fullness is good, no pile of paint, the effect of spray coating is almost the same, but the thickness of the paint is greatly reduced;Equipped with imported oil and gas pump, the paint can be recycled through the oil tank, almost no waste;Equipped with imported material strong and tough scraper, adjusted by reducer, with high accuracy.The conveyor belt is a 3mm non-slip belt, which is solvent-resistant, prevents layer formation, and is equipped with an anti-deflection device. UV roller coater machine for wood furniture cabinet MDF melamine panel
Advantage:

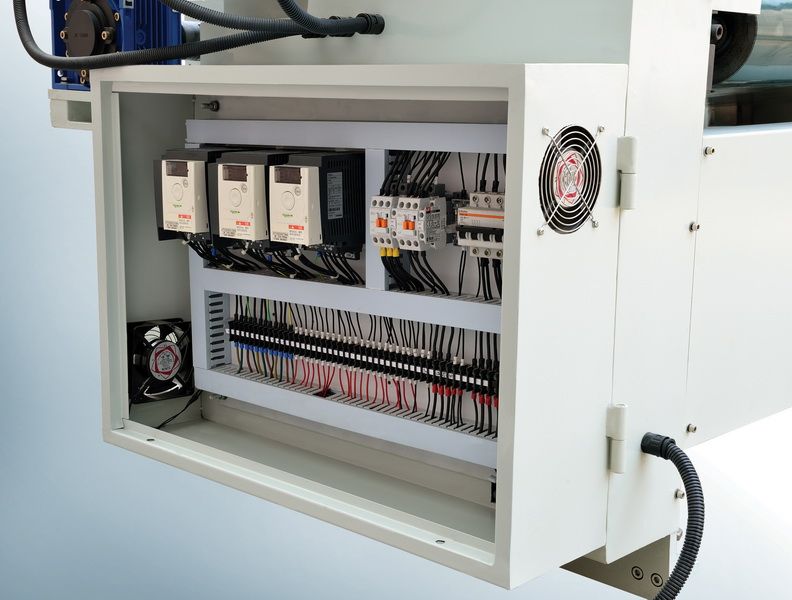

Smooth roller and rubber roller is controlled by independent inverter and reducer, with high precision

Bearing seal structure to prevent paint penetration

The movement of the smooth roller and the working platform is adjusted by an independent screw elevator, which has high stability.

roller coater for melamine adopts casting design, quick release rubber wheel seat, convenient and quick to change the roller.

The oven has an open box structure, which is convenient for flushing and cleaning, and has good sealing.

According to different paint process requirements, the corresponding number of coating wheels can be made

Customers can choose a touch screen humanized operation interface.

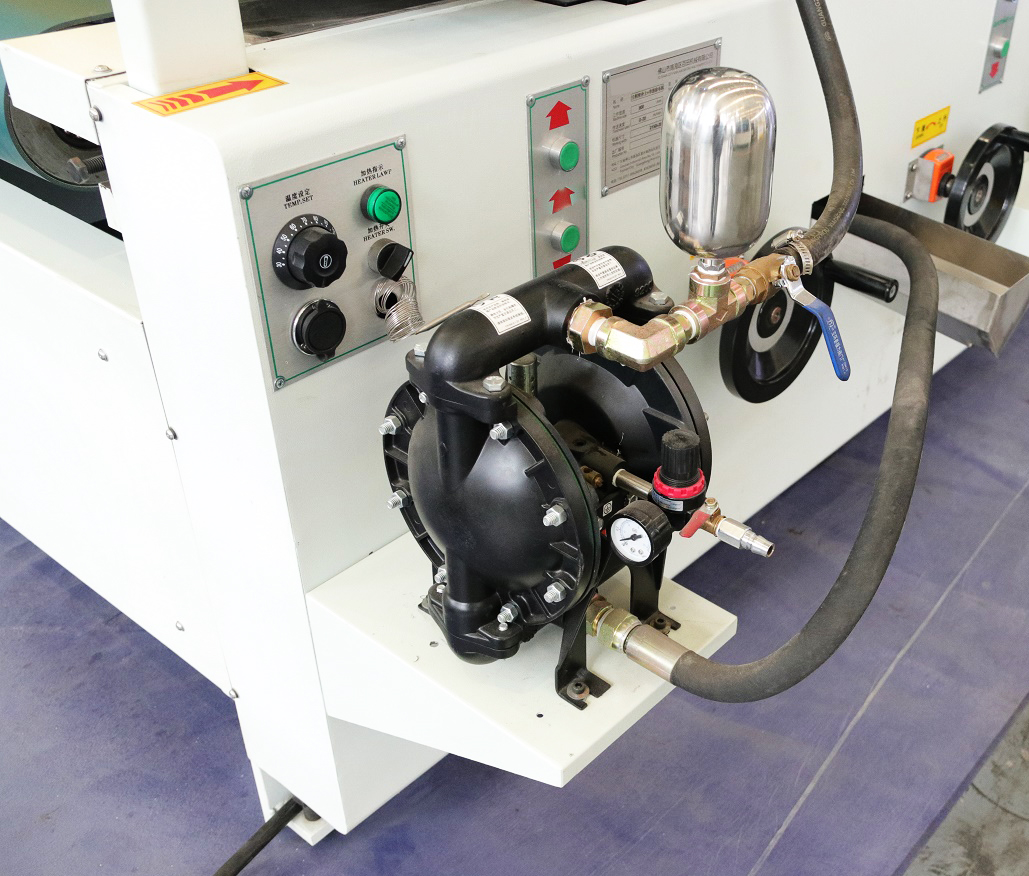

The whole machine is equipped with a diaphragm pump and a 20L round heating oil tank. 

It can be combined with conveyor, UV curing machine, sanding machine, dust removal machine, etc. to combine UV coating line.

UV roller coater machine for wood furniture cabinet MDF melamine panel


UV roller coater machine for wood furniture cabinet MDF melamine panel

UV roller coater machine for wood furniture cabinet MDF melamine panel

UV roller coater machine for wood furniture cabinet MDF melamine panel

UV roller coater machine for wood furniture cabinet MDF melamine panel WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
UV roller coater machine for wood furniture cabinet MDF melamine panel
