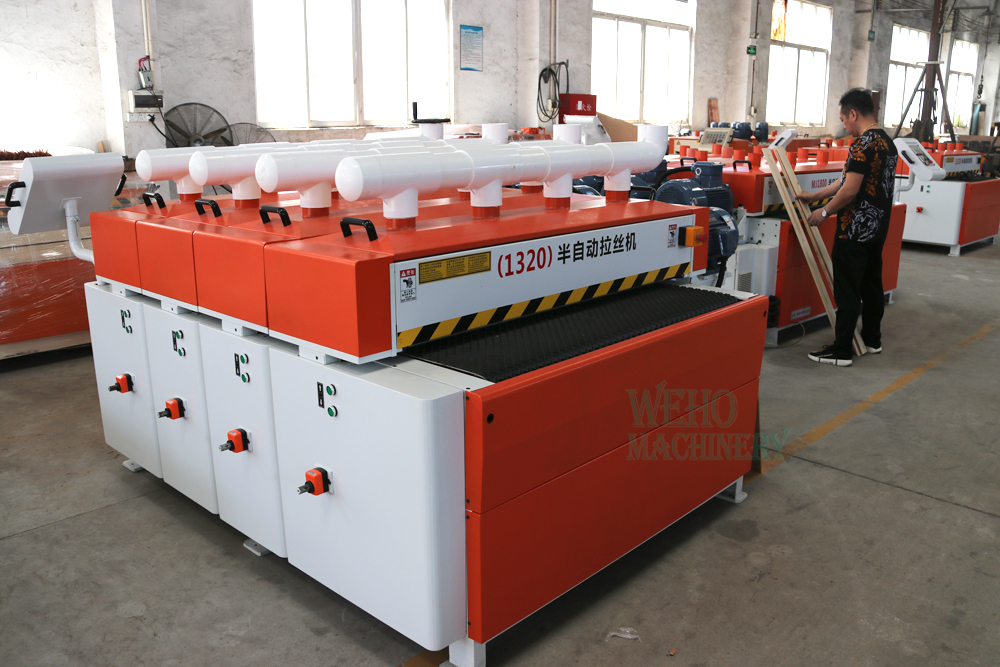

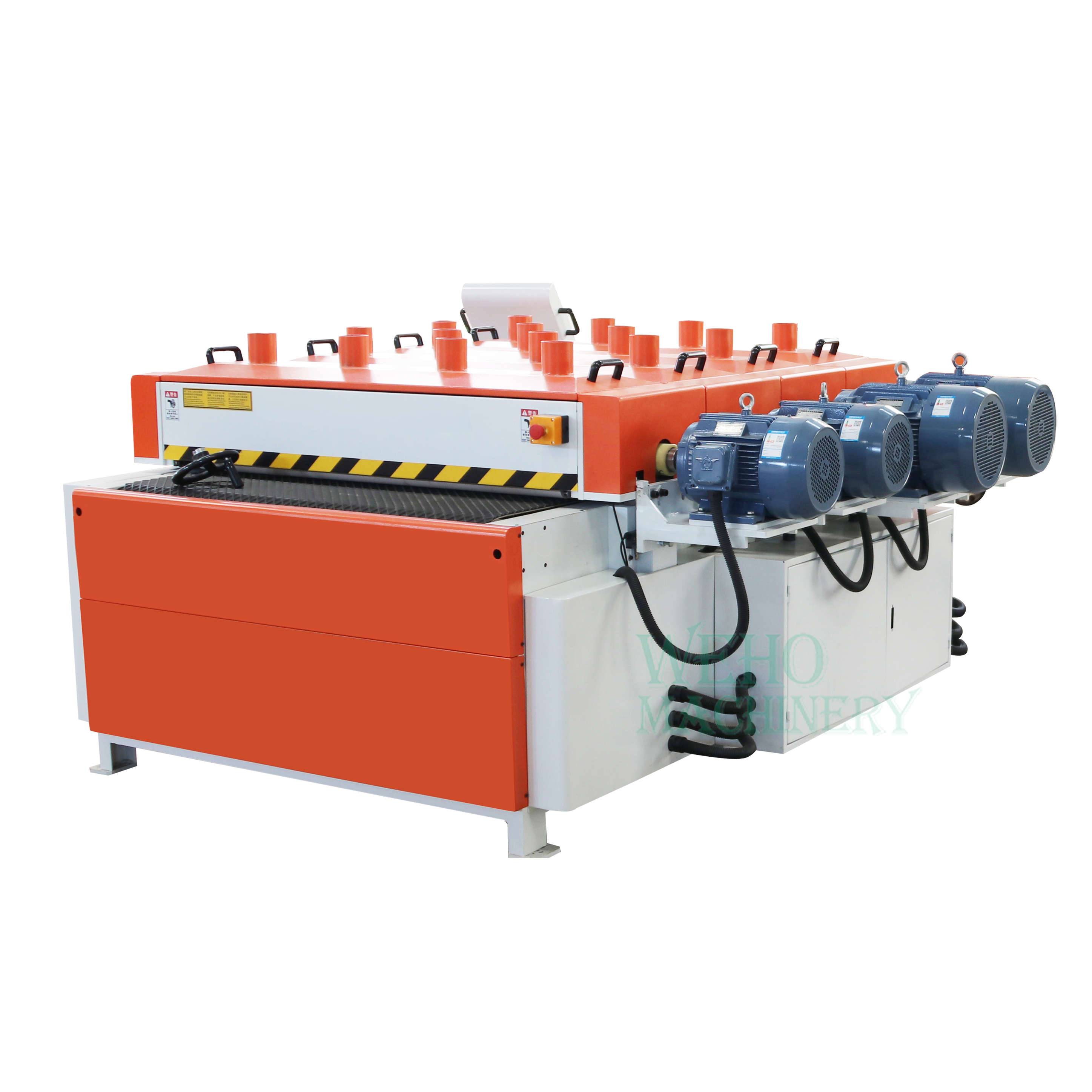

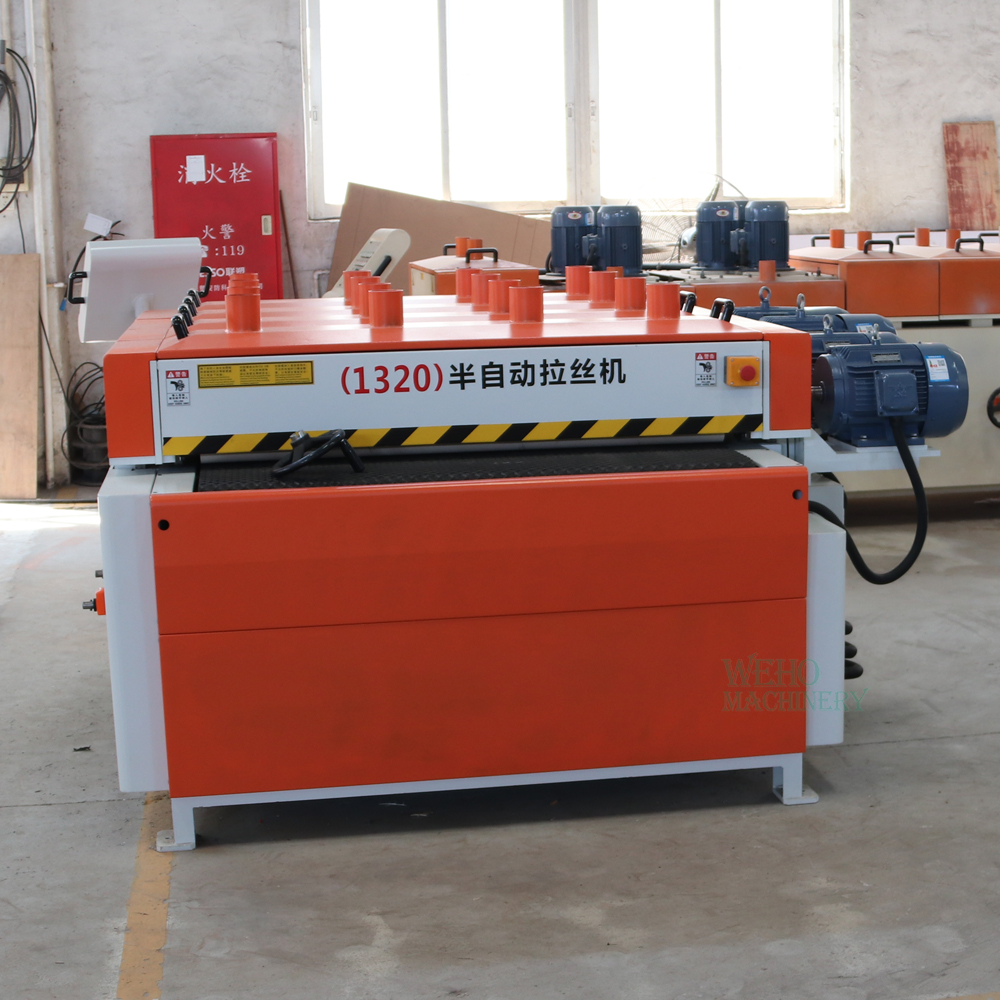

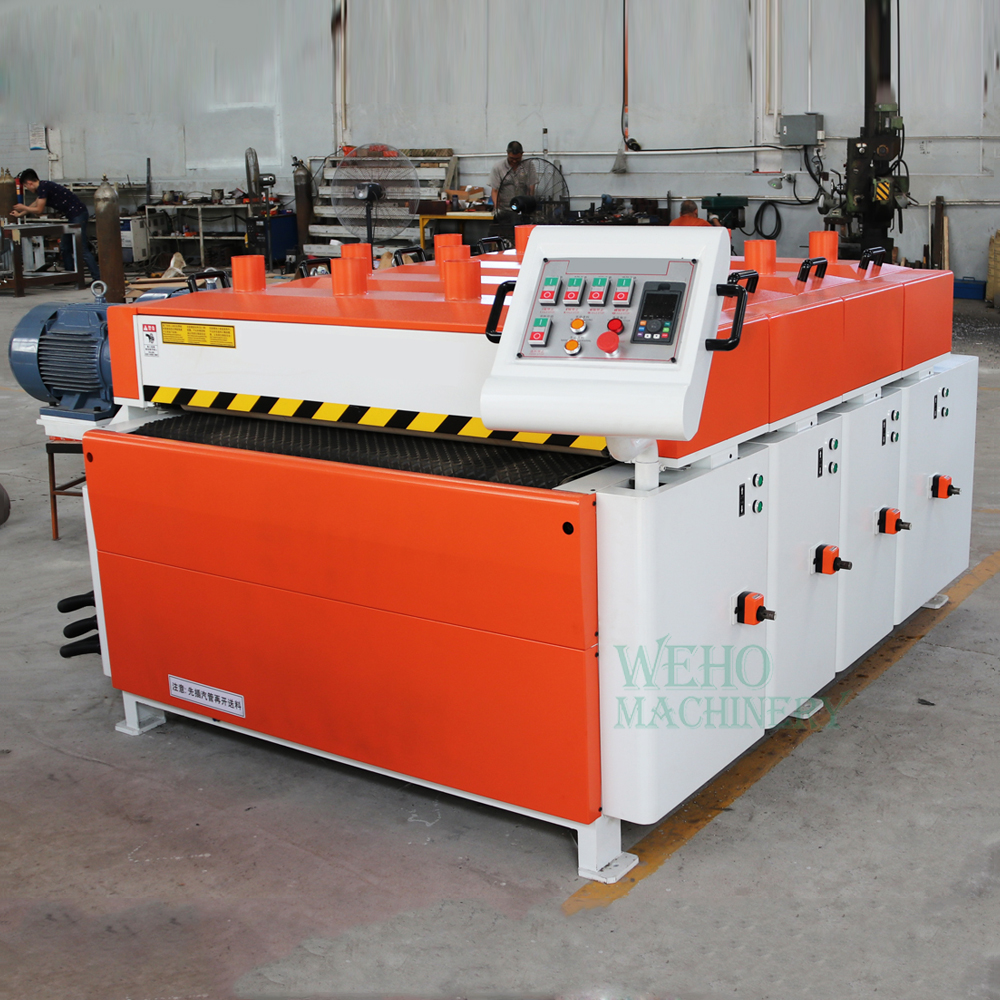

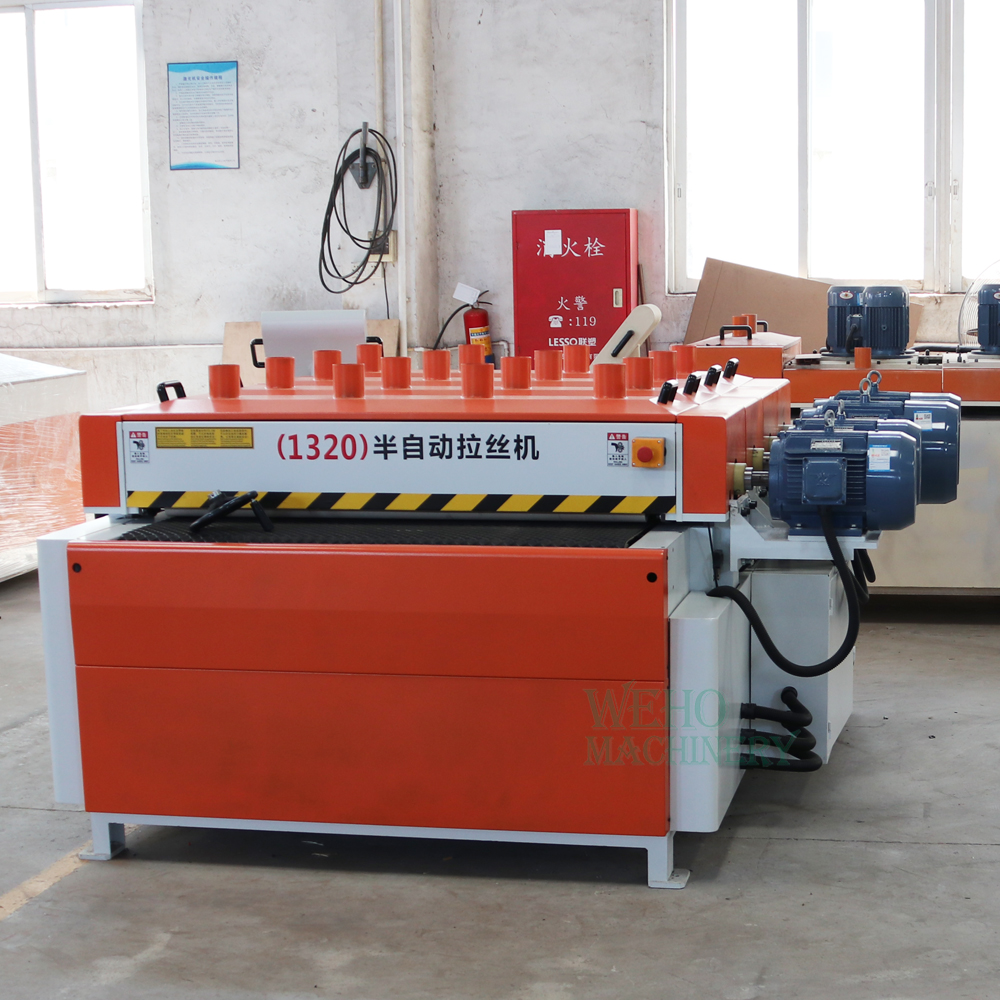

Wire brushing machine with steel and nylon brushes for solid wood grain highlighting
Drawing roller diameter:200mm
Weight (KG):800 kg
Wire Brush-Master/Denibber,Heavy duty machine for deep, medium and light wire brushing effects.Base on different wood material and requirements, manufacture different wood brushing machine.

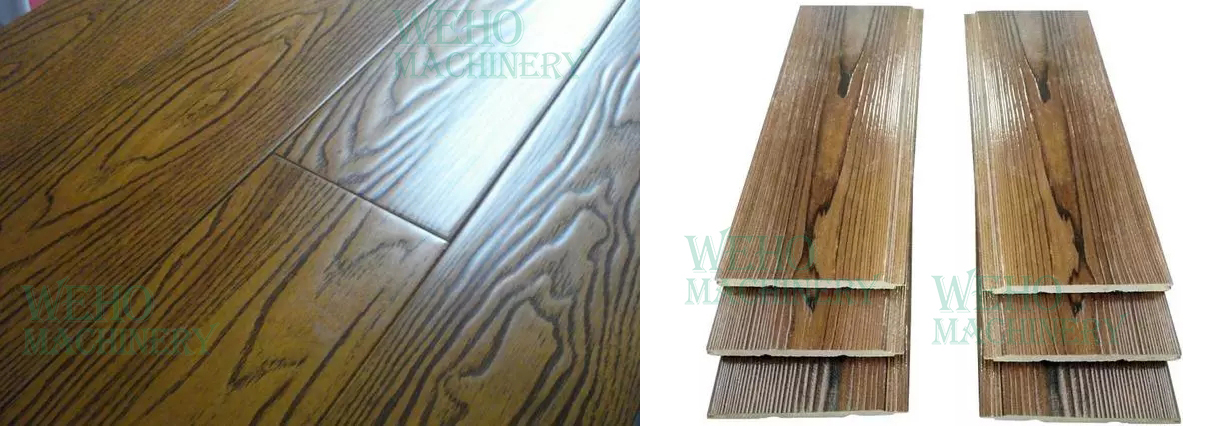

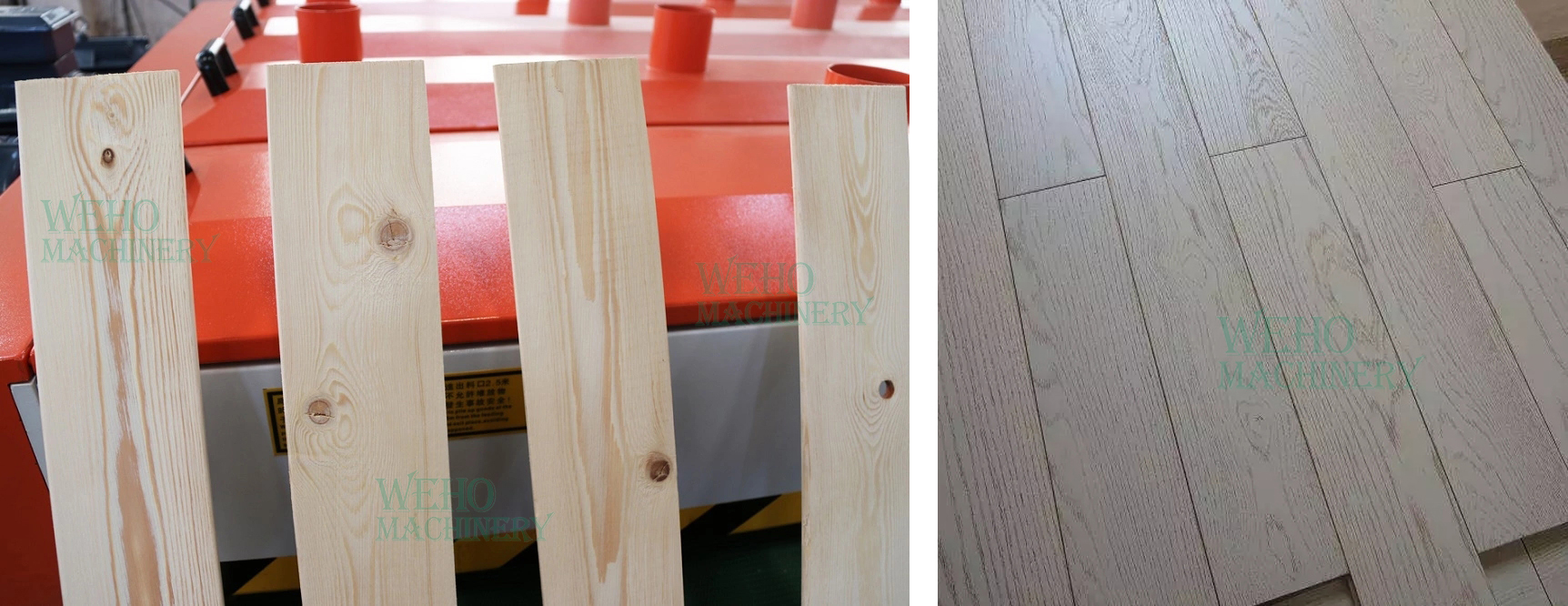

Usage: Solid wood grain highlighting, with steel and nylon wire brushes,WPC decking profile brushing, with steel and nylon wire brushes，Wood profile polishing and denibbing, with sandpapers .
|plate production thickness||2-110(160)mm|
|conveyor belt speed||invertor control|
|drawing roller diameter||200mm|
|total motor power||31kw|
|1st motor power||7.5kw,6 pole|
|2nd motor power||7.5kw,6 pole|
|3rd Motor power||7.5kw,6 pole|
|4th motor power||5.5kw,6pole|
|conveyor belt motor||2.2kw|
|Lift table motor||400W*4pcs|
|working air pressure||>0.55Mpa|
|dust collection average wind speed||>=25m/s|
This machine is specially designed and manufactured to Centralized control panel.Manufacturing wood brushing machine over 10 years , full production experience for speical requirement.

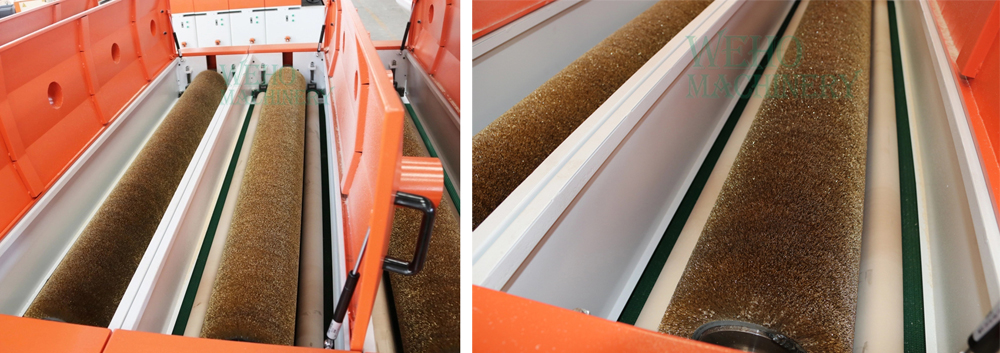

Steel wire brush or roller, nylon brush rollers, work together or separately.Fine adjustment and digital display of table openings.Hold-down rollers and feed-in table height adjustment.

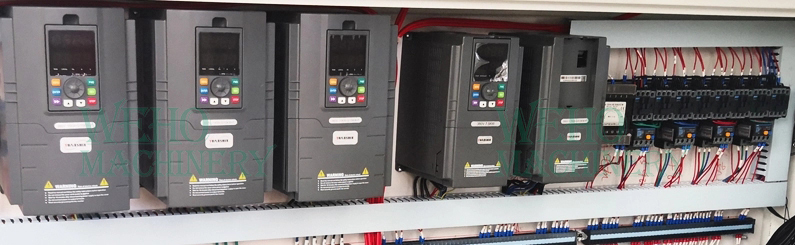

Hold-down rollers and feed-in table height adjustment Rotate speed of the brush and feed speed controlled by inverter Modular configuration Easy exchange of brushes .
Max.working width include: 600mm:800mm:1000mm:1300mm:1600mm 1800mm and so on.Working length:more than 400 mm.
Modular configuration：Variable diameters,either of rollers or steel wires, and brushing configuration optional，Easy exchange of brushes，
Max. working width include:400 600mm; 800mm;1000mm;1300mm;1600mm or others.The stainless wire brush mainly to remove the soft grain and nylon-wire brush mainly to clean the panel surface.

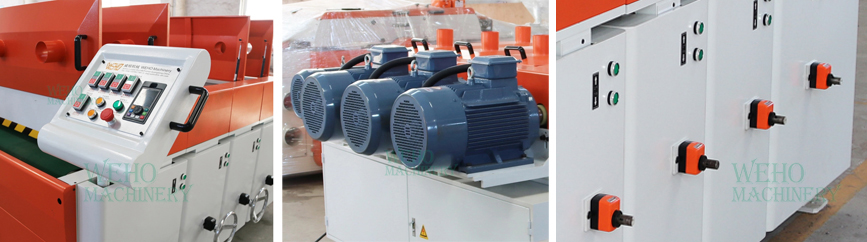

Machine features: Centralized control panel Steel wire brush or roller, nylon brush rollers or vertical wire disc, work together or separately Fine adjustment and digital display of table openings.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
