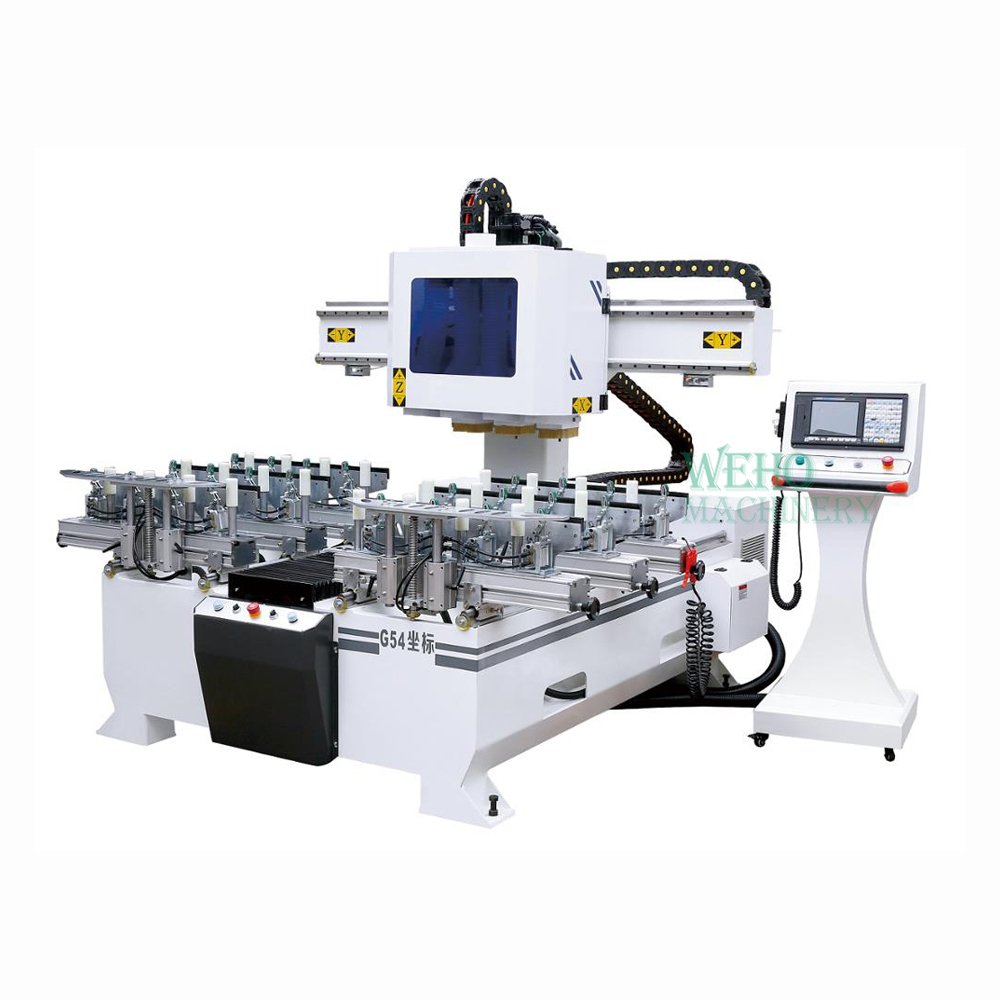

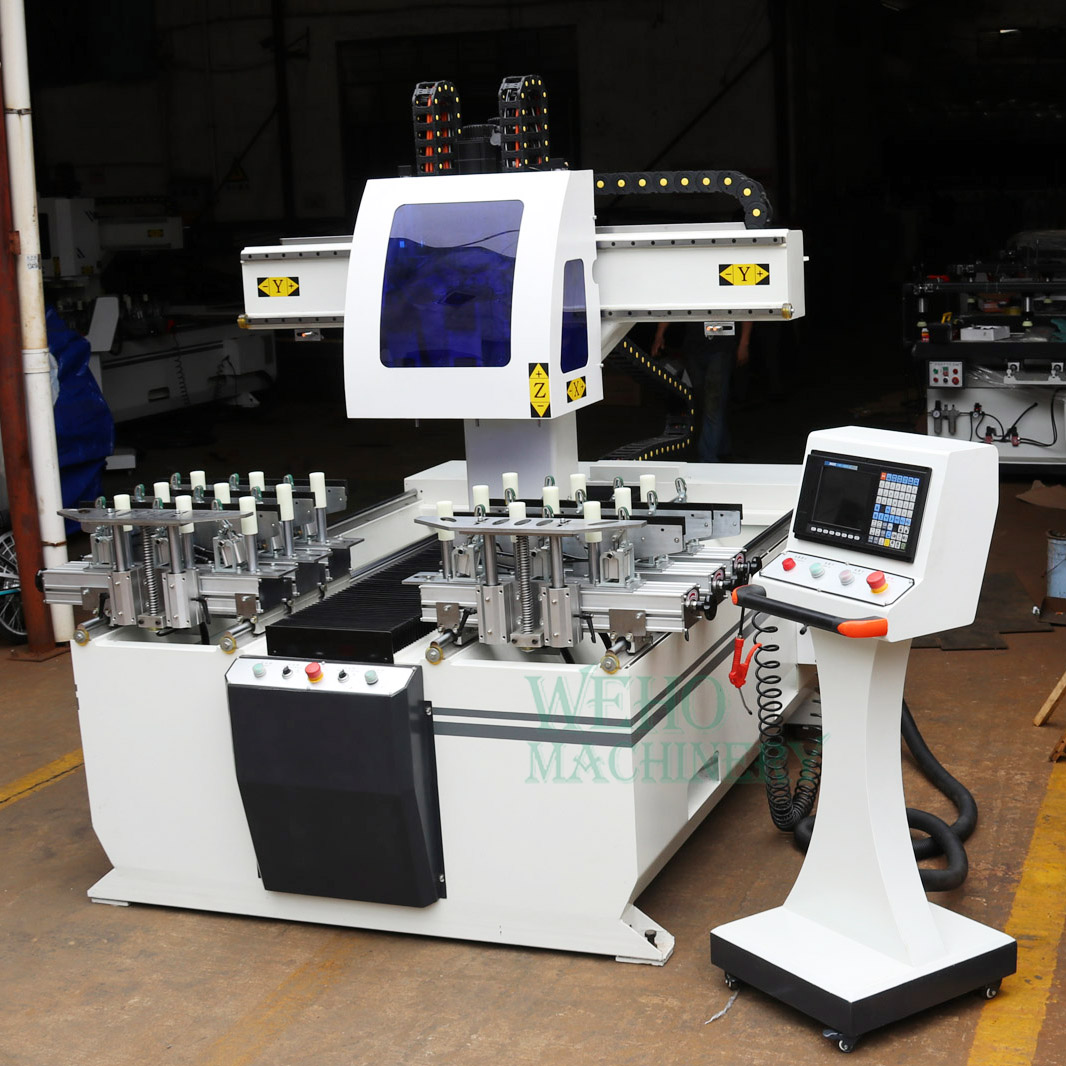

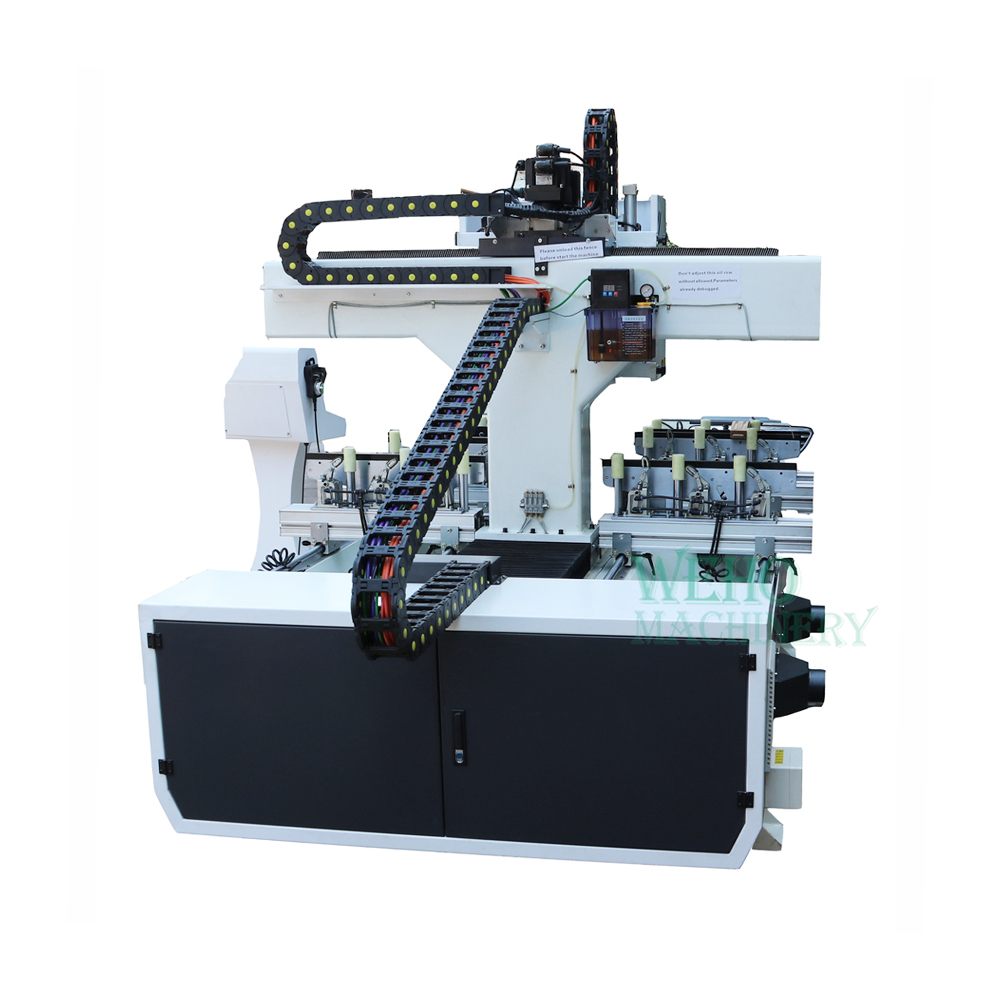

Wood CNC mortising machine 3 axis Multi-Spindle Slot Milling Machine | Wood Mortising Machine
Max.Size of workpiece:1300*1500mm
CNC Multi-Spindle Slot Milling machine is ideal for high speed slot milling on straight and curved wood.
|CNC Multi-Spindle Slot Milling machine||Max working length and width||mm||1300x1500|
|Max Mortising depth||mm||50|
|Max drilling depth||mm||100mm|
Main performance parameters
|Spindle motor||kw||3HP x3|
To meet the requirement of machining of two different slot widths, an automatic spindle head change is available. This feature may reduce secondary machining time and workpiece clamping time, resulting in a dramatic reduction of machining time and increased working efficiency.
With the changeable spindle design, no secondary machining is required. Two slot widths can be machined at a time. This not only dramatically shortens workpiece handling time by the operator, but also upgrading working efficiency and market competitiveness (optional).
Futures : Two clamping areas (A/B area) allow the operator to clamp wood during slot milling for saving wood loading time.
Pneumatically operated wood clamping for added efficiency and convenience.
Equipped with an advanced CNC controller, the machine makes slot milling operations more flexible and easy.
This machine is designed with 3 spindles, allowing for machining 3 pieces of wood simultaneously.
1) Suitable for high speed slot milling for kitchen cabinet frames, chair legs and chair legs, etc.
2) Applicable for straight and curved wood.
3) spindles are simultaneously controlled,controlled through frequency inverter.
4) Powerful CNC controller permits slot milling to be performed with ease and helps to dramatically increase throughput.
5) X,Y,Z-axis movements are driven by servo motors with high speed and high positioning accuracy.
6) X,Y,Z-axis are transmitted through ball screws.
7) X,Y,Z-axis slideways and clamping mechanism slideways are fitted with linear motion guides.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
