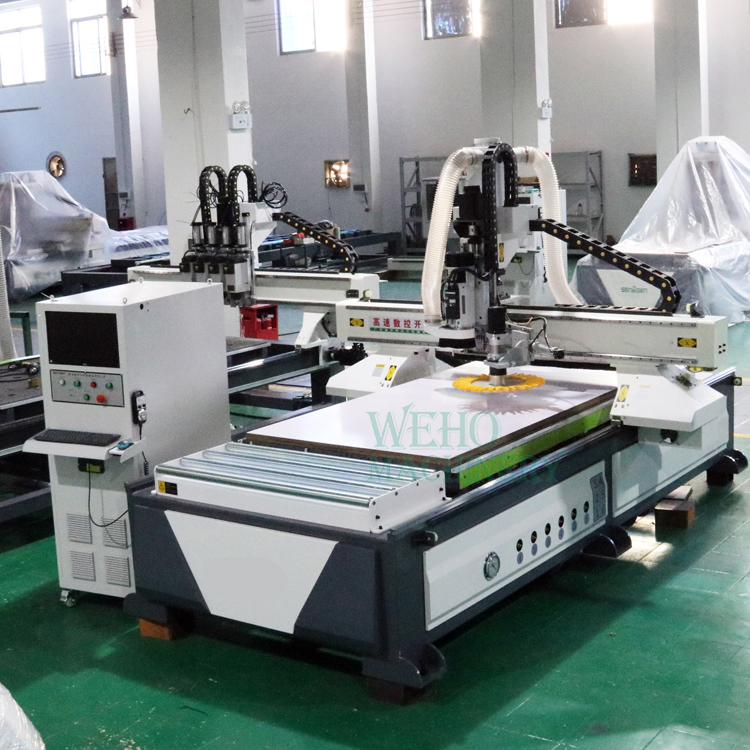

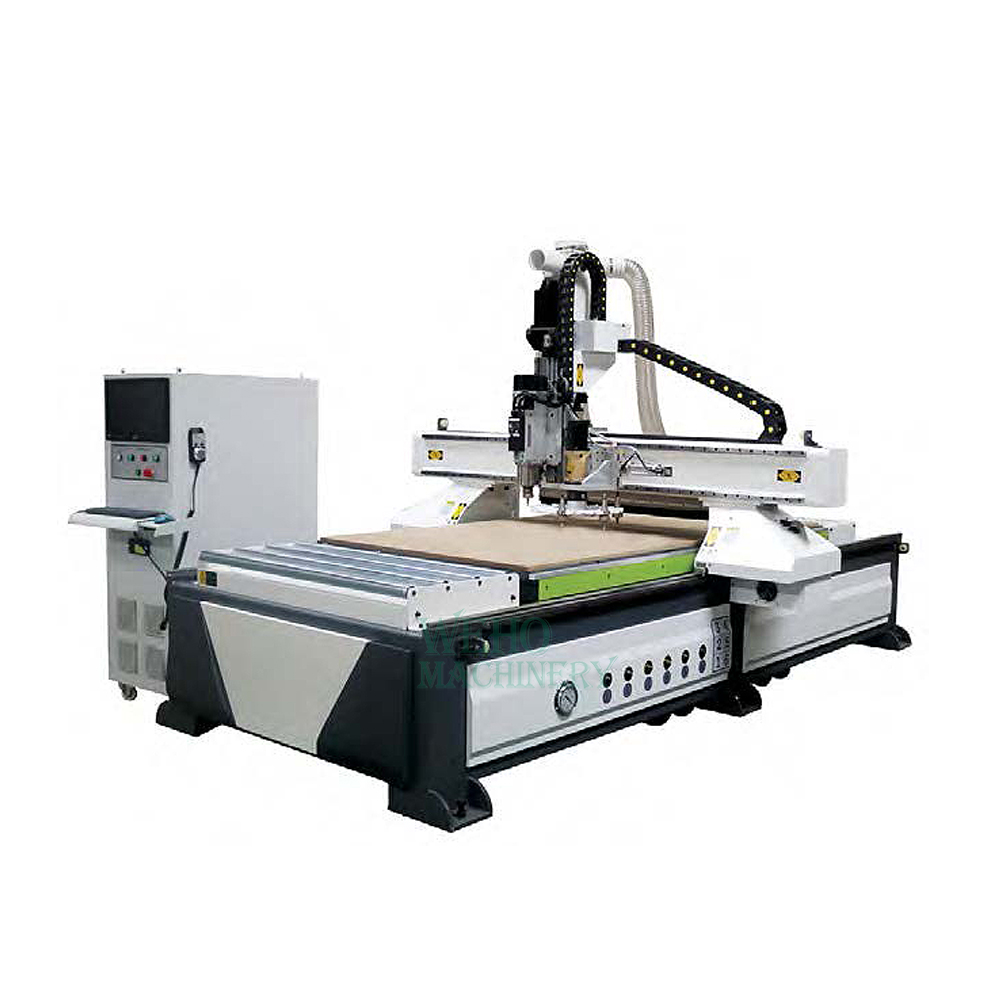

Wood door making cnc router nesting machine for frame design cutting | Cnc Nesting Machine
Wood door making cnc router nesting machine for frame design cutting | Cnc Nesting Machine

Wood door making cnc router nesting machine for frame design cutting | Cnc Nesting Machine


Model:SE-H9
Table size:1500*3000mm
Empty line speed :65-80m/min
Opertating speed:8-20m/min
Spindle power:9kw
Spindle speed:24000r/min


Details
Spare Parts
Inquiry
Designed for customized furniture, panel-type furniture, customized closet cabinet production, it has cutting, drilling, grooving and other processing functions, improves efficiency, save material and labor.
Model
SE-H9
Table size
1500x3000mm
Equipment weight
2900kg
Empty line speed
65-80m/min
Operating speed
8-20m/min
Spindle power
9kw
Spindle speed
24000r/min
Working voltage
AC380V / 3PH / 50Hz
Spindles

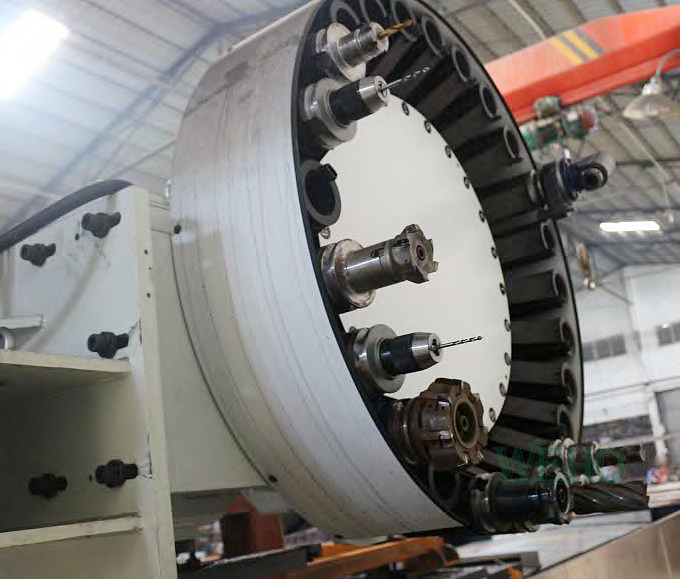

Main spindles is China 9KW with 12pcs automatic changer

Flexible cable
Adopt imported tow chain cable DE



Vacuum adsorption table
High efficiency vacuum adsorption table, six segment adsorption,more effective for small material adsorption

Control system
Taiwan SYNTEC 60W Operation system
Taiwan SYNTEC Servo motor
Controller & Motor
The SYNTEC woodworking cutting controller adopts the integrated structure of controller and driver, with SYNTEC absolute motor,high-speed feeding, and production efficiency is optimized. Complete woodworking special software function, processing form,memory management software module, MODBUS speed control module are configured to support commercial frequency converter.
Electric accessories
Schneider low voltage electric accessories.

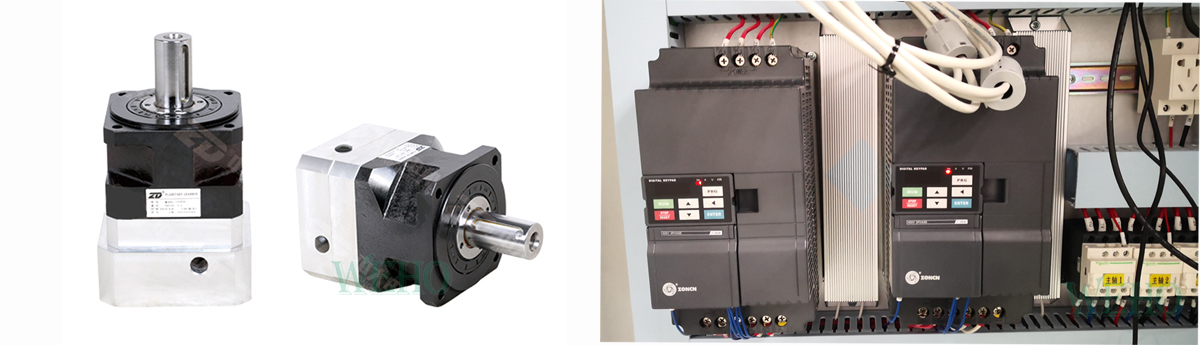

Planetary reducer & Invertor
Syntec servo motor/ Taiwan reducer
Planetary reducer and Invertor use famous Brand,like ZD and Zoncn,ensure the machine running.
Linear guide rail and Rack and pinion
Transfer part Linear guide rail and High precision Rack and pinion.
Guide rail: 30 guide rail for Y axis, Taiwan guide rail for X axis, Taiwan guide rail for Z axis.
Adopt Taiwan high precision gear, rack, guide rail

Air cylinder
Brand: Chuanqiang, made in China
Fixed shaft  & Setting instrument
Setting instrument:More accurate positioning with tool Pressing wood panel roller device
Lubrication system & Working Cable & Water Pump
Automatic lubrication system,adopt imported tow chain cable DE flexible cable
10Hp Vacuum water pump,with domestic quality water pump 7.5kw.The oil filling time is automatically controlled by the central lubrication system motor oil pump.
Operating system and interface
Taiwan SYNTEC 60W Operation system Taiwan SYNTEC Servo motor Taiwan SYNTEC Driver
Feed pusher
Automatic pneumatic telescopic pusher saves more time and improves production efficiency

Our Factory
Machine basebed
Heavy duty bed, precision welding, laser cutting, f high temperature tempering, aging treatment, remove internal stress, enhance rigidity, ensure stability of the bed.
Heavy duty bed, with stronger supporting for vacuum table, ensure the vacuum stability.

​​​WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
