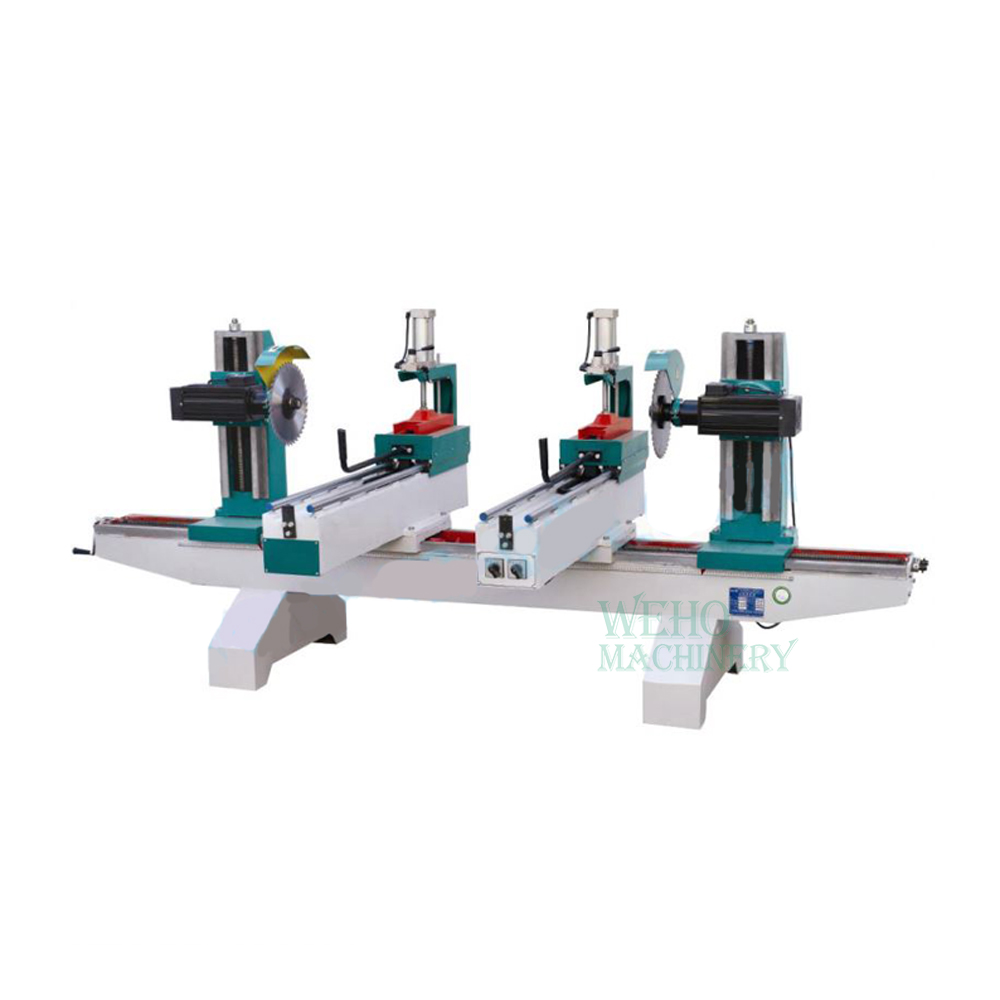

Double end sawing pressure cut machine for fixed length of wood
Double end sawing pressure cut machine for fixed length of wood

Double end sawing pressure cut machine for fixed length of wood

processing length:300-1200,300-1800,300-2400mm
Cutting speed:2840 rpm
Round saw rotate speed:5600 rpm
Power(W):10.3 kw
Dimension(L*W*H):2600 * 2200 * 1600 mm
Weight (KG):600 KG

Spare Parts

One worktable, two cutters, suitable for small wood cutting, fast and efficient, wood fixed length.
Product name Sawing machine
Working length 300-1200,300-1800,300-2400mm
Max working thickness 75mm
Max saw dia 305mm
Feeding speed Manual or Automatic
Saw blade tilting bevel 0-45 degree
Spindle rotating speed 4745r/min
Saw spindle rotating 2800r/min
Saw blade spindle dia 25.4
Saw blade motor 3HP
Vertical milling cutter spindle 30,35,40 or customized
Vertical milling cutter power 3kw or 4kw, 5.5kw
Weight 1080kg,1180kg,1280kg

It is mainly used for the double end cutting of wood to fixed length processing. It can saw the bevel angle, carry out the longitudinal processing for the short material plate, mill the double end cutting tenon.

Double end machine sawing with optional spindle shaper. Head swivel for flexible and easy operationHead adjustable for up and downSliding guide withl inear bearing for easy slidingHeavy structure for maximum stability.
Sawing machine, double end milling groove,milling shape, fixed length wood processing, the saw blade can be inclined 45 degree longitudinal cutting. wood sawing machine has solid body,good quality,wear-resistant and durable guide rail.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.

Double End Saw
