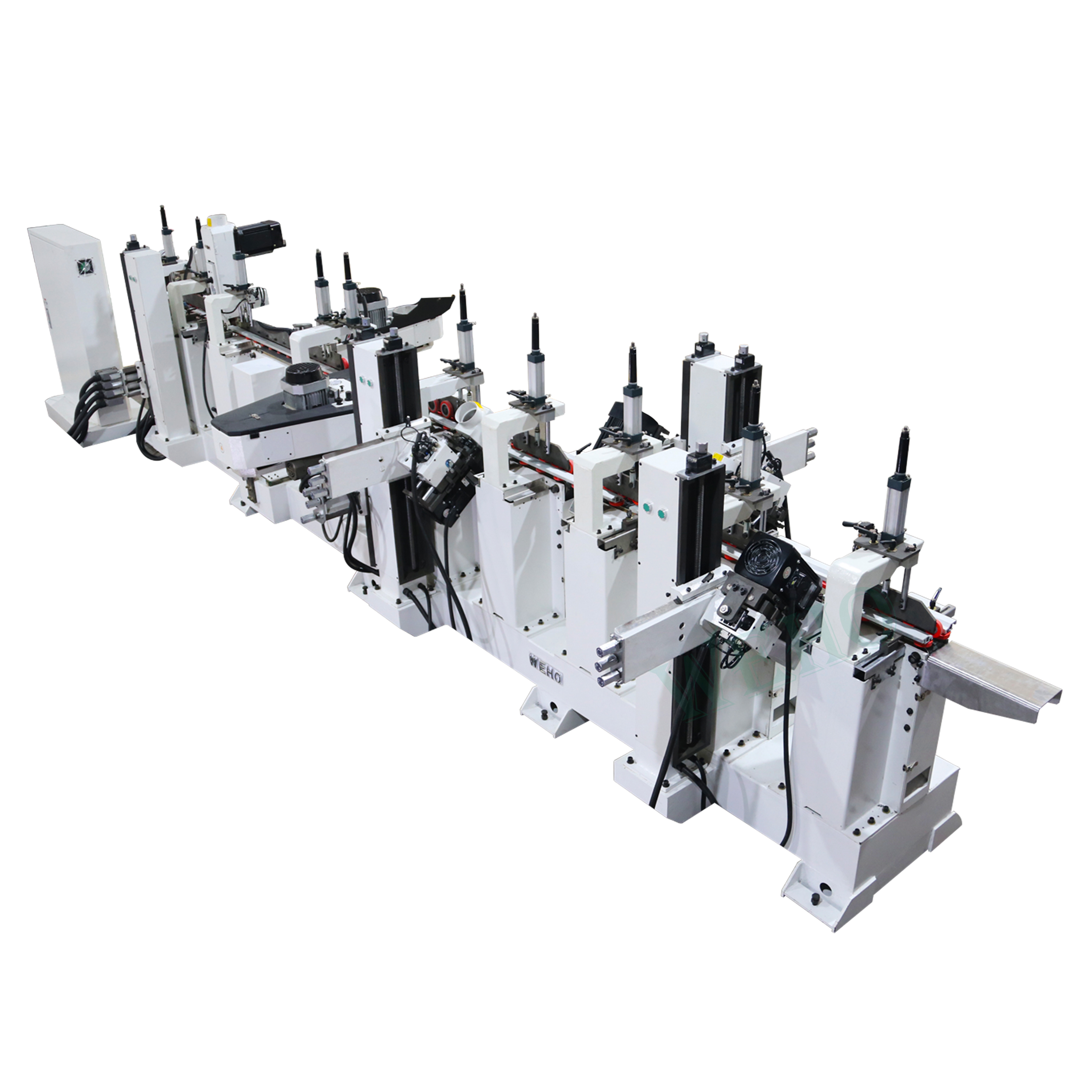

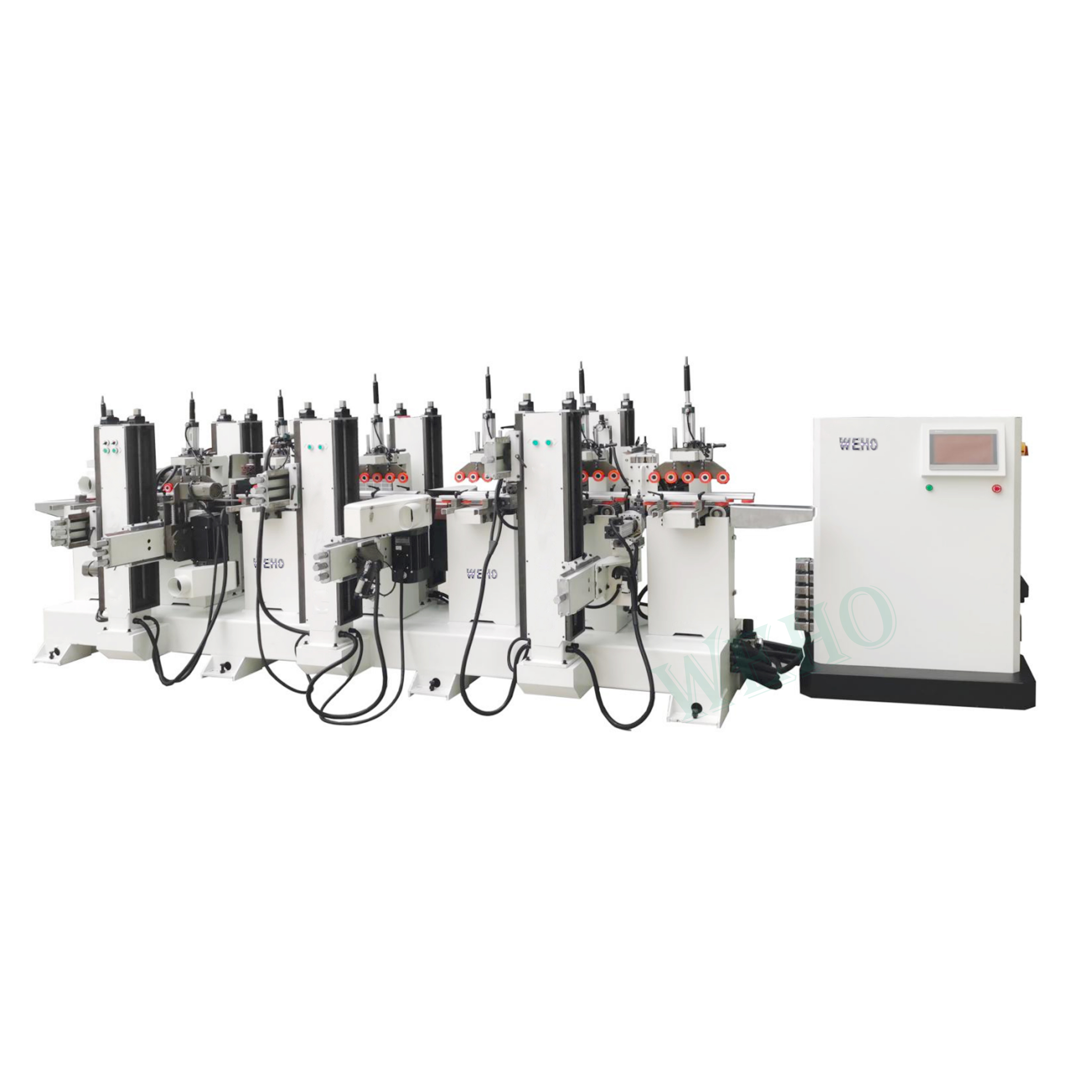

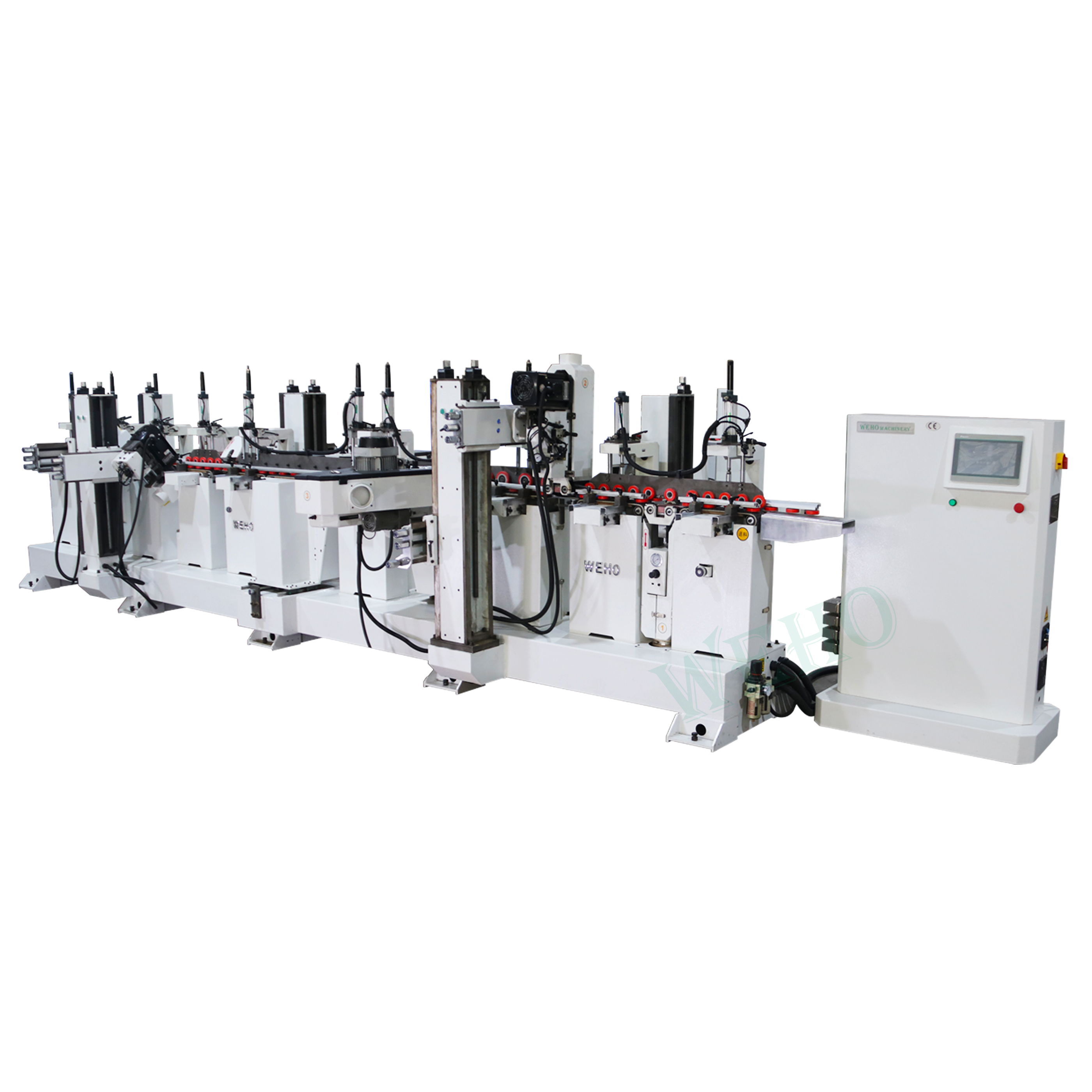

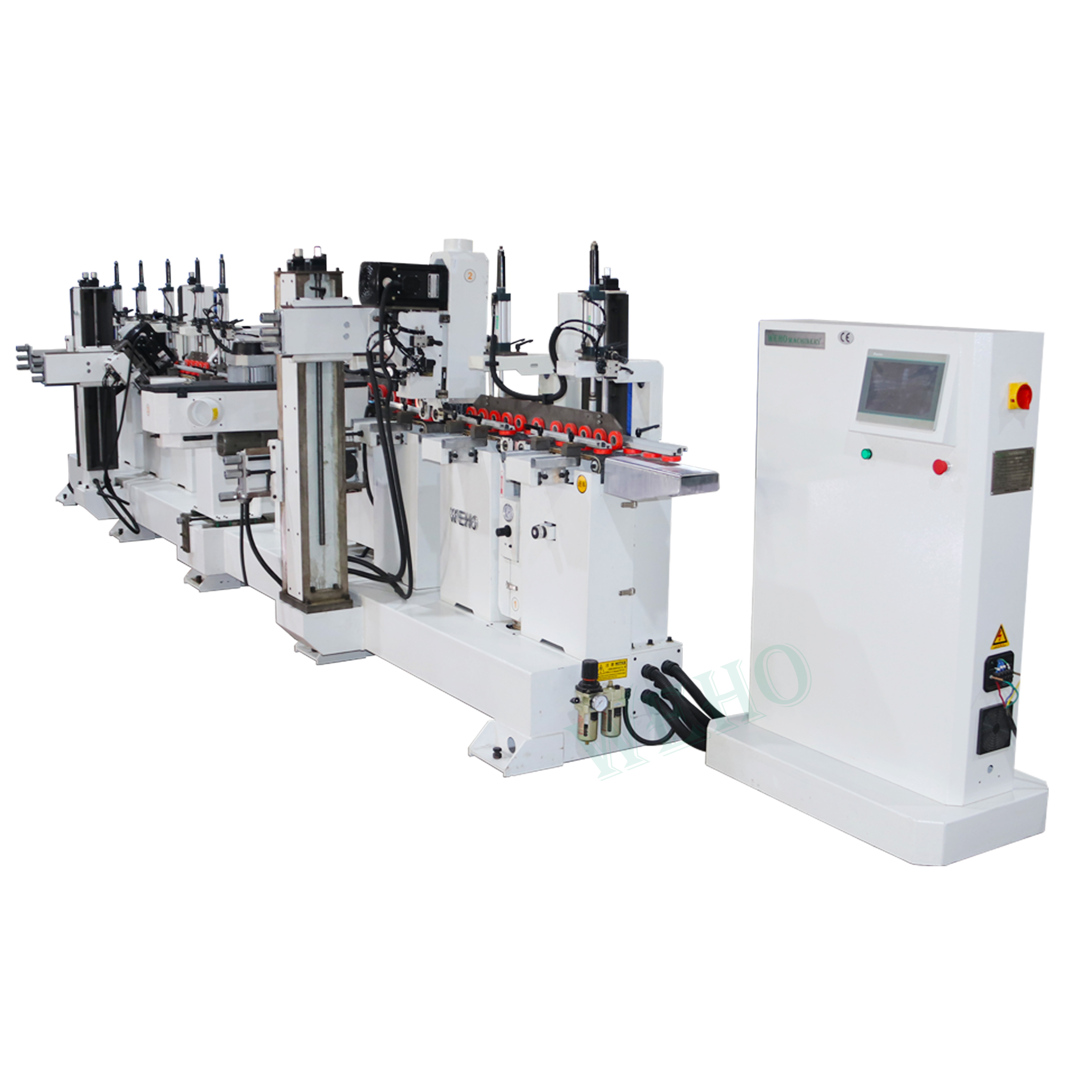

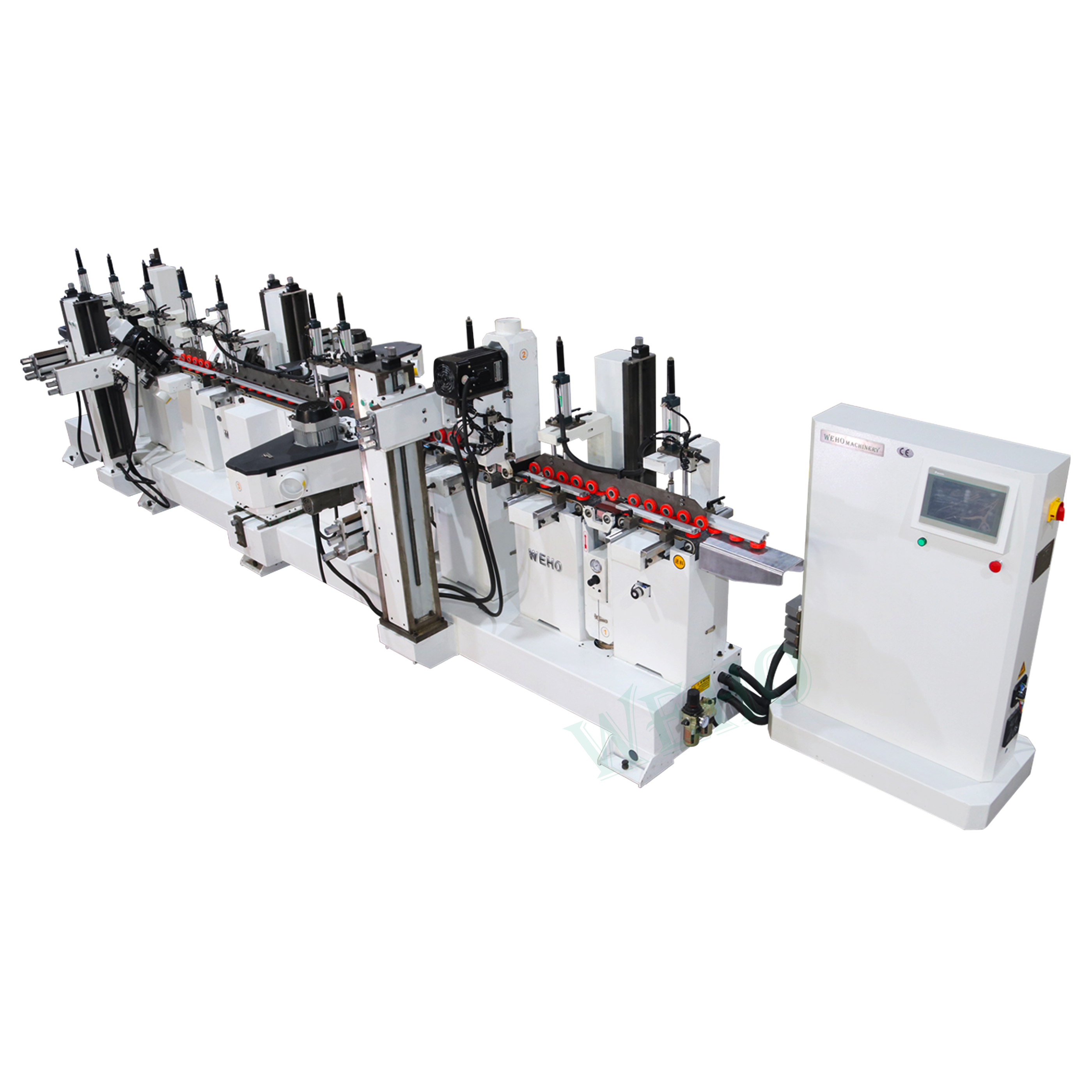

Wood edge Sanding machine Linear Profile Sander for mouldings
Wood edge Sanding machine Linear Profile Sander for mouldings

Wood edge Sanding machine Linear Profile Sander for mouldings


Machining length: 250mm
Machining width: 30-100mm
Machining thickness: 5-80mm
Mechanical dimension: 6850*1500*1500mm
Dust absorption mouth diameter: 97mm
Grinding wheel size: Outer diameter: 150mm; inner diameter: 25.4mm
Gross power: 21.55kw
Power supply: 380V; 50hz
weight: ≈3000KG
Feeding motor power: 0.55kw *g sets
Feeding speed: 3-38m/min(variable frequency speed regulation)
Grinding head: 4 sets
Grinding head motor: 1.5kw/set
Feeding motor power: 0.55kw × 9 台
Working pressure: 0.2-0.6Mpa


Details
Spare Parts
Inquiry





Model MX-LS-S4G4
Machining length 250mm
Machining width 30-100mm
Machining thickness 5-80mm
Mechanical dimension 6850*1500*1500mm
Dust absorption mouth diameter 97mm
Grinding wheel size Outer diameter: 150mm; inner diameter: 25.4mm
Gross power 21.55kw
Power supply 380V; 50hz
weight ≈3000KG
Feeding motor power 0.55kw *g sets
Feeding speed 3-38m/min(variable frequency speed regulation)
Grinding head 4 sets
1.5kw/ setGrinding head motor 1.5kw/set
Feeding motor power 0.55kw × 9 sets
Working pressure 0.2-0.6Mpa
200 type sand frame motor 2sets,  2.2KW
200 sand frame motor shaft size 25.4*100(mm)
200 sand frame sand belt specifications Circumference: 1230; Maximum width :100mm
400 type sand frame motor 2sets,2.2kw 1400r/min
400 sand frame rocking motor 2sets,0.12kw 1400r/min
400 Sand frame sand belt specifications Circumference: 2090; Maximum width: 100mm
400 sand frame grinding maximum effective width 100mm
400 sand frame sand belt line speed 8-13.58m/s(30Hz-50Hz)
400 sand frame can be tilted at an Angle -45°~+900



wood linear mouldings line profile spray painting machine
with flexispray conveyor and destacker for door frame
This equipment Can meet all sanding needs, on flat or contoured mouldings

wood linear mouldings line profile spray painting machine
with flexispray conveyor and destacker for door frame

Extreme modularity and freedom of configuration to requirements
Available with manual adjustments or in CNC version
Perfect for all types of mouldings and narrow boards

DETAILS
lineal sanders are designed and built for a wide variety of applications;
from small runs, to high volume production and everything in between.
Various head configurations which can be angled and variable speed for
profiles can be quickly setup utilizing countless abrasive grits and heads.

DETAILS
The sanding heads can be mounted on the top (T),
the bottom (B) or the sides (S)
with as many sanding heads as needed.
Standard sanders include TS, TB, SB or TSB.
Custom machines with extra sanding heads are available upon request.

All sanders are built with a heavy-duty frame for durability with heavy-duty motor




WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.



How to buy
1. Contact WEHO sales and provide your requirents to get best solutions2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.

How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.

How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.

[]
