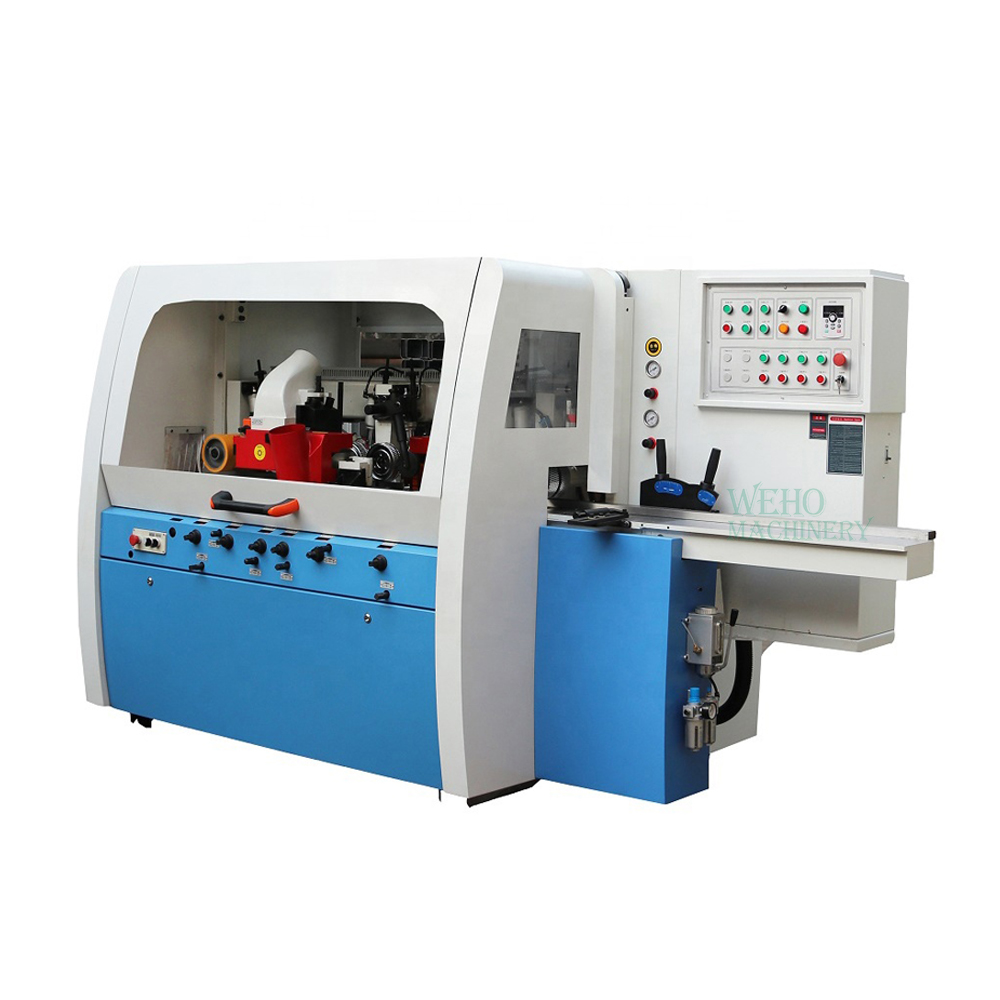

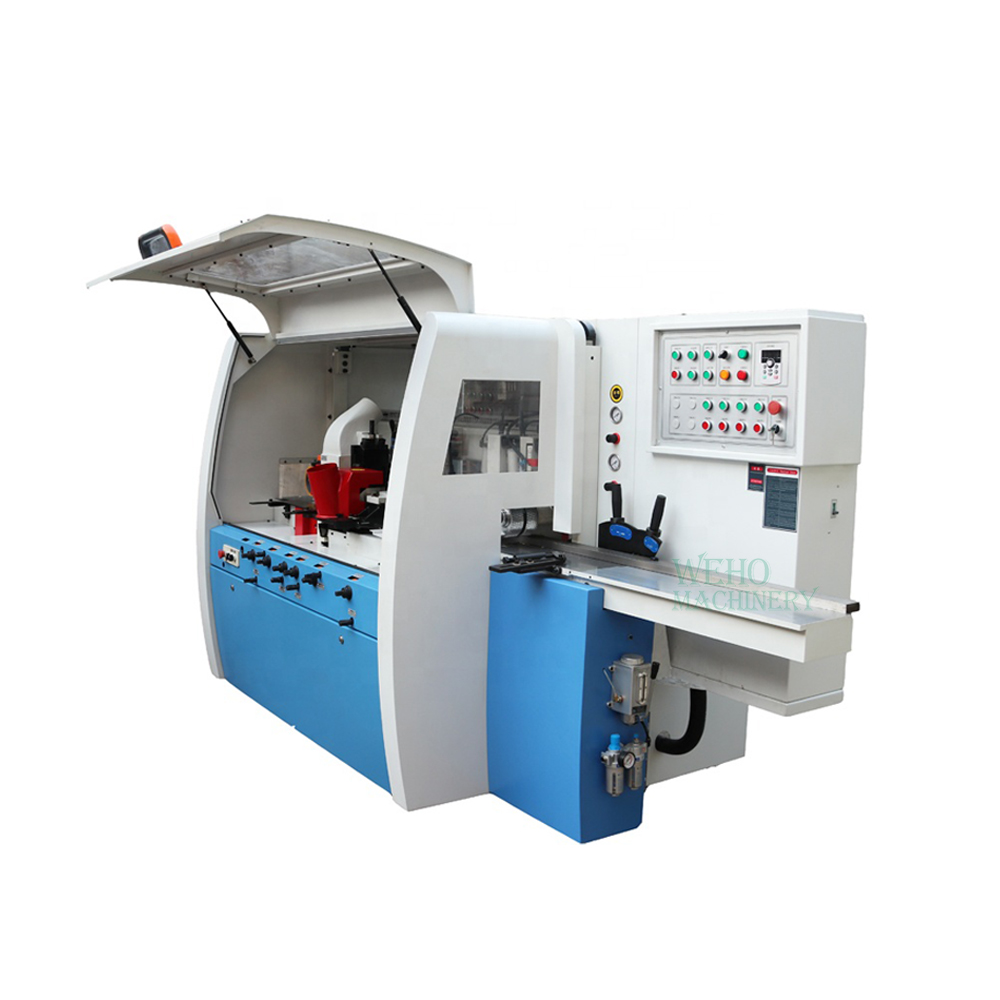

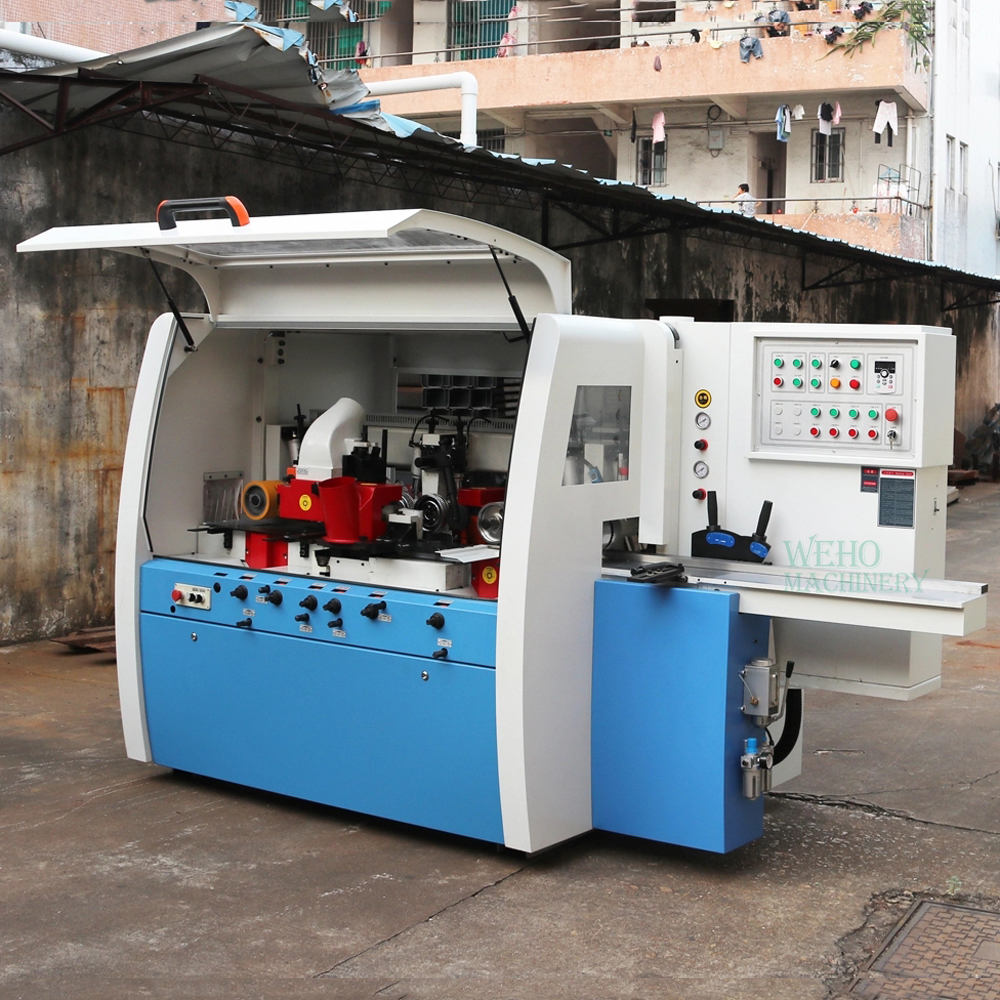

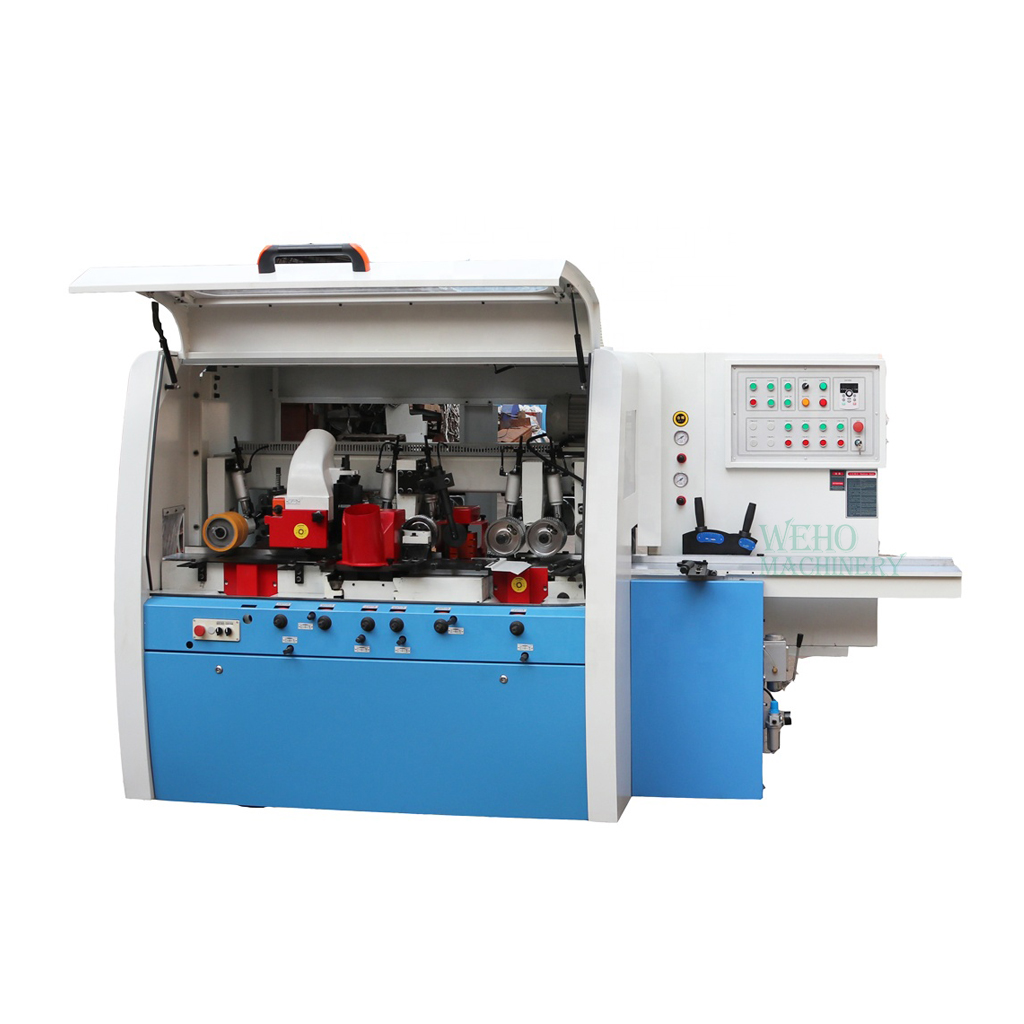

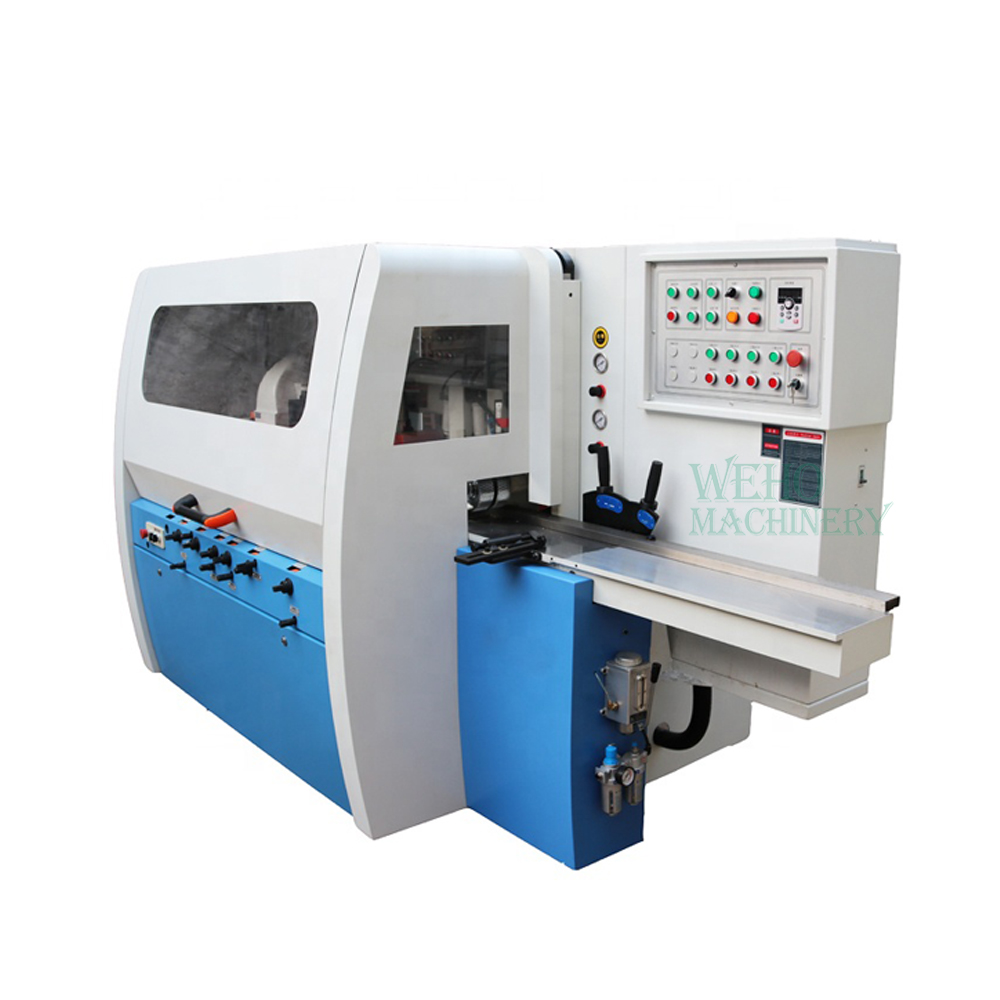

Wood face four sided molder machine spindle moulder 4 head planer | Four Sided Planer
Wood face four sided molder machine spindle moulder 4 head planer | Four Sided Planer

Wood face four sided molder machine spindle moulder 4 head planer | Four Sided Planer


Model:MB416B
Planing thickness:8-125mm
Feed speed:5-30m/min
Spindle diameter:diameter 40mm
Power:21.05kw
Weight:310kg


Details
Spare Parts
Inquiry

Four side thickness planer works give you own all the economy and efficiency of excellent performance at a reasonable price. This moulder has an exclusive differential all cast iron base construction. For extraordinary precision speed and reliability. This new series standard is your best choice.China manufacture of Woodworking 4 spindles moulding four side thickness planer in good quality and service.
Produce name
Woodworking 4 spindles moulding four side thickness planer
Model
MB416B with cover
Processing width
25-160mm
Processing thickness
8-120mm
Feed speed
5-36m/min
Spindle diameter
ø40
Spindle speed
6500r/min
Air pressure
0.6Mpa
First lower axis
4KW/4HP
The first up axis
5.5KW/7.5HP
Right vertical axis
4KW/4HP
Left vertical shaft
4KW/5.5HP
Second lower shaft
/
Second upper shaft
/
Cross beam lifting
0.37KW/1HP
Right vertical axis
ø125-160mm
Left vertical shaft
ø125-160mm
First lower axis
 ø125
The first axis
ø125-160mm
Second lower shaft
/
Second upper shaft
/
 Total power
21.05KW/28.6HP


Woodworking 4 spindles moulding four side thickness planerOptional Equipment
Increase motor horsepower available is optional
Automatic table lubrication system,CE certification requirements

4 side thickness planerFeatures:
160 mm x 125 mm moulding capacity.

Full coverage sound cover/safety enclosure is optional.
Long infeed table and fence for straightening feeding work pieces.
Precision sealed long life high speed bearing.
Industrial full power motor for maximum cutting capacity.
Electrics control are CE approved available.

Pneumatic pressure feed system for easy adjustments. Standard 40 mm spindles for this 4 spindles planer.
High speed cutter heads making wood piece more smoothing Cardan joint drive system with drive shafts and oil bath gear boxes.
Solid heat treated cast iron construction for long life and vibration free performance.
Replaceable chrome bed plates for easy maintenance. (Older or cheap four side thickness planer is single table, after long time wearing, you need to change the working table, single table need to discharge cutter spindles. Hard operation and Influence accuracy)

Cast aluminium motor, has oil Automatic lubrication system, there is display to show oil stock.



WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
