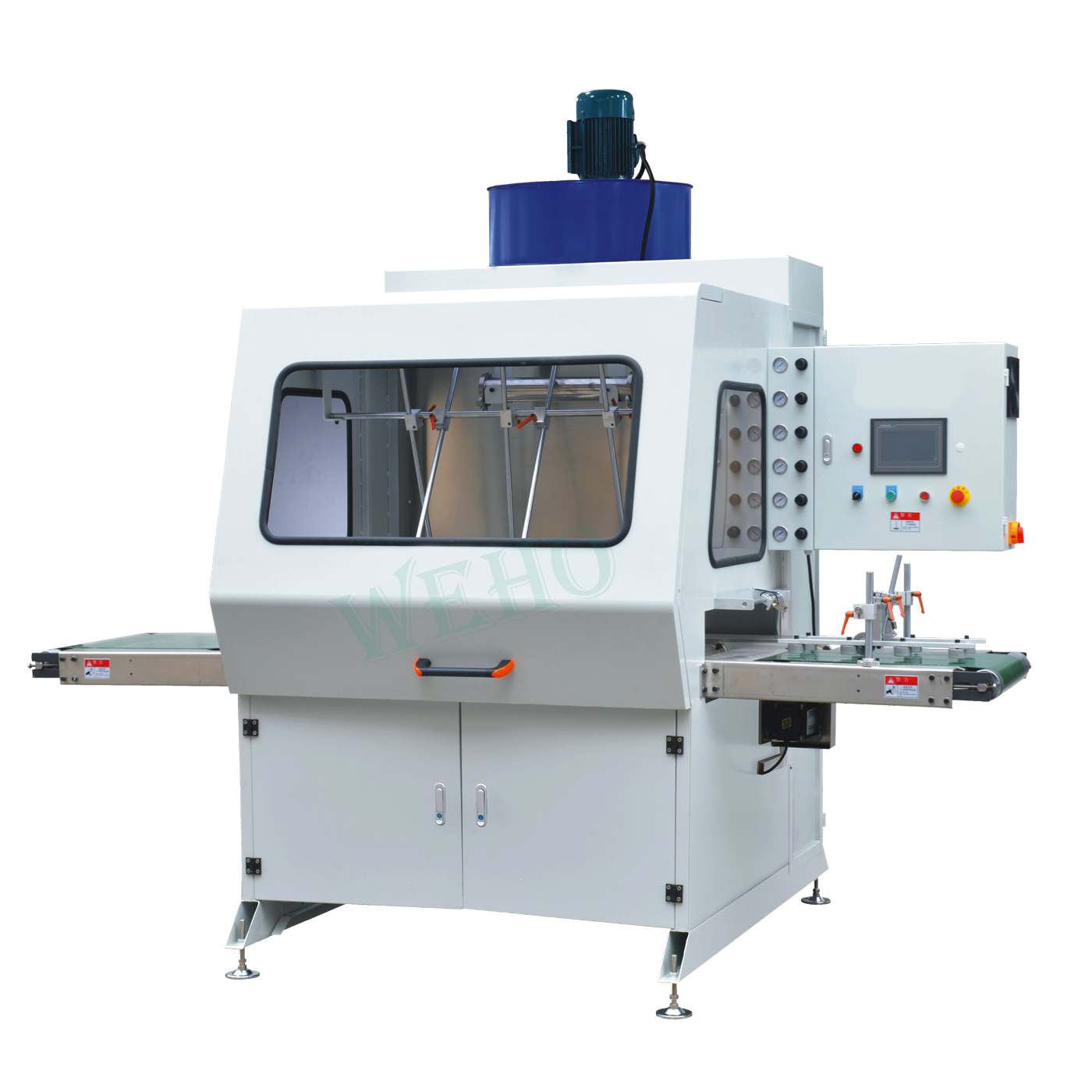

wood linear mouldings line profile spray painting machine | Profile Spraying Machine
wood linear mouldings line profile spray painting machine | Profile Spraying Machine

wood linear mouldings line profile spray painting machine | Profile Spraying Machine


Model: BM-200
Processing length: 600-1500mm
Processing width: 80-200mm
Processing thickness: 20-80mm
Conveying speed: 10-35m/min
Transmission inverter power: 0.4KW (variable frequency)
Conveying motor power: 0.4KW
Exhaust fan power: 3KW
Total power: 5.75KW
Voltage: 380V
Number of spray guns: 6 (including spray guns)
Mechanical size: 2300*2000*2300 (as per the actual)


Details
Spare Parts
Inquiry





Model HL-P300A
Processing length 600-1500mm
Processing width 80-200mm
Processing thickness 20-80mm
Conveying speed 10-35m/min
Transmission inverter power 0.4KW (variable frequency)
Conveying motor power 0.4KW
Exhaust fan power 3KW
Total power 5.75KW
Voltage 380V
Number of spray guns 6 (including spray guns)
Mechanical size 2300*2000*2300 (as per the actual)

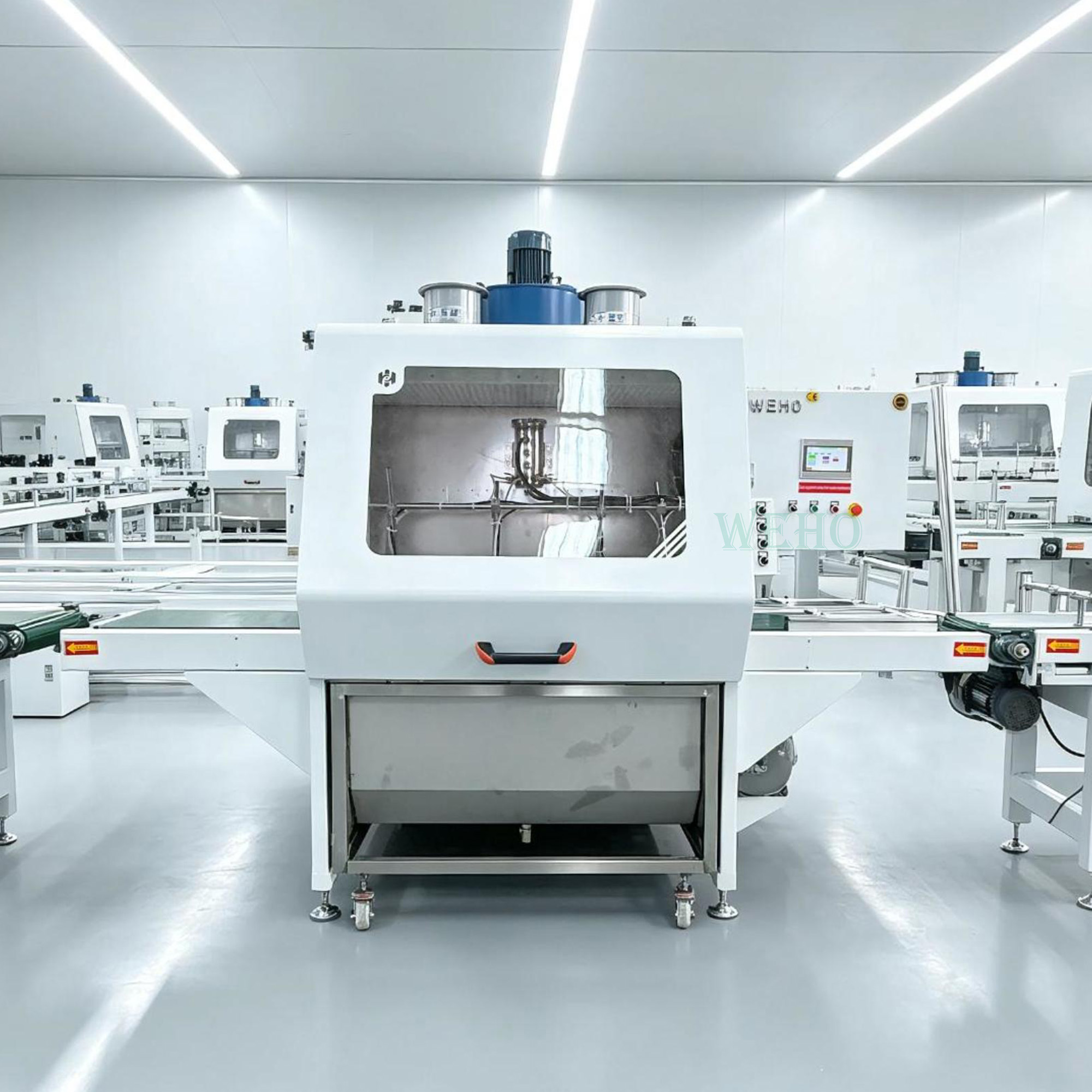

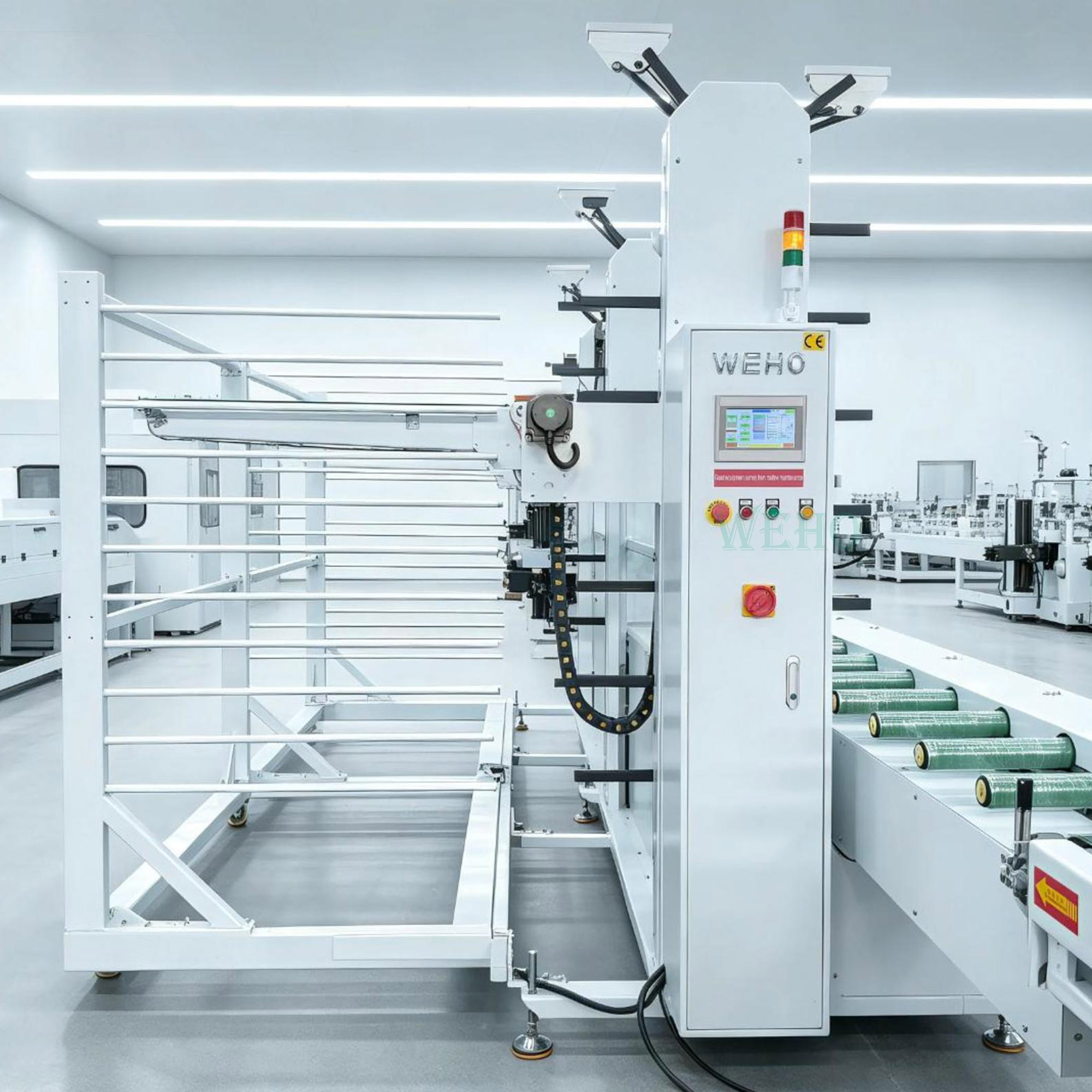

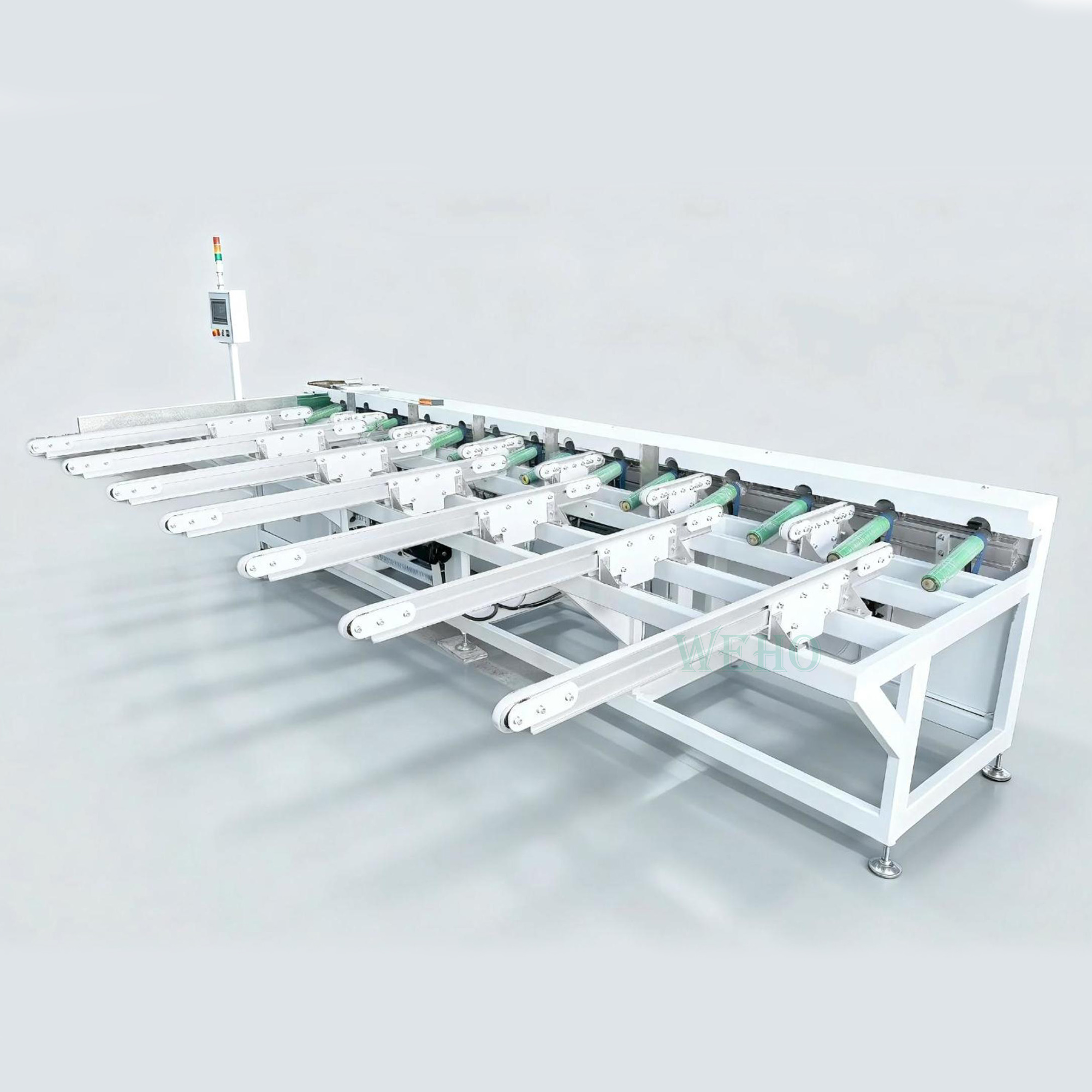

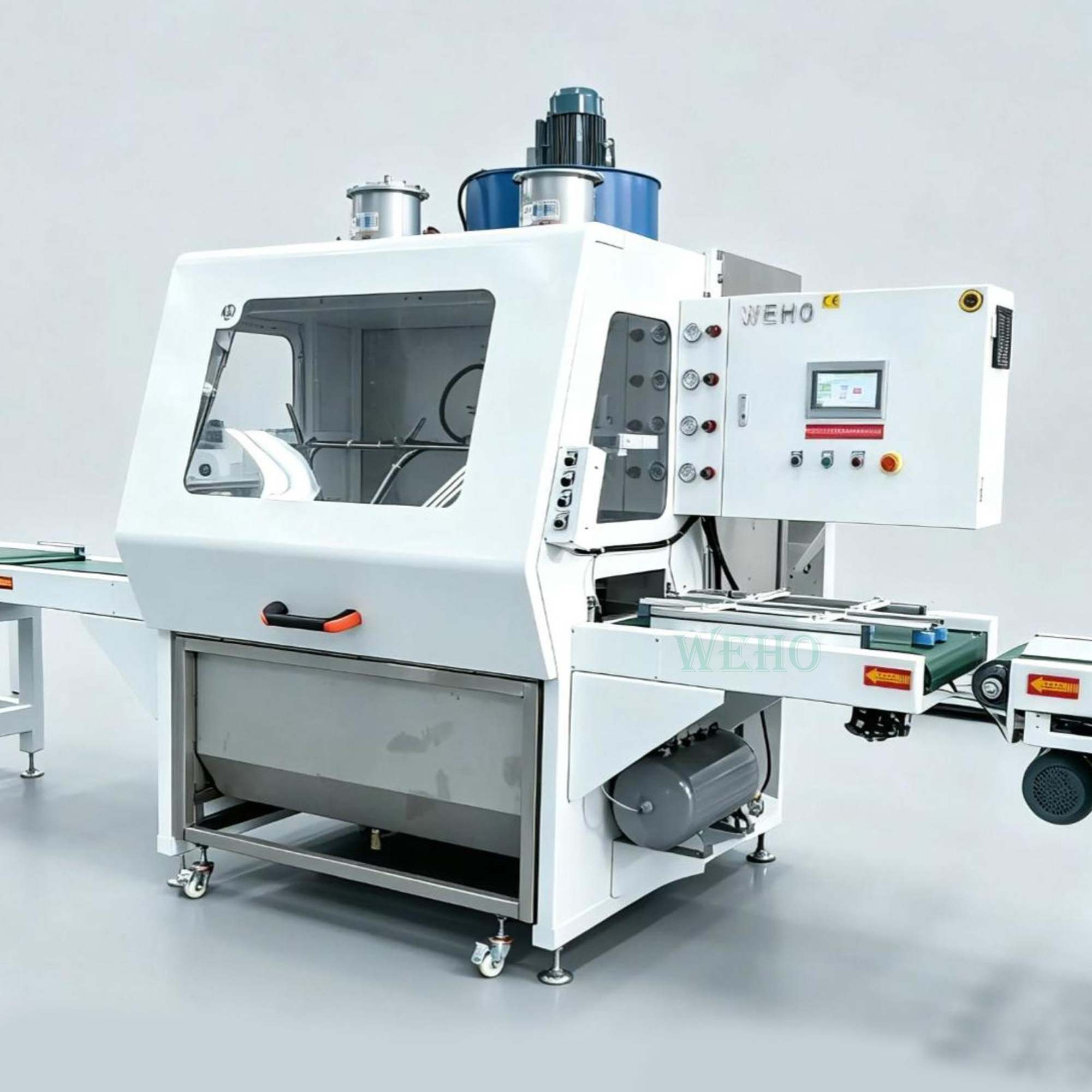

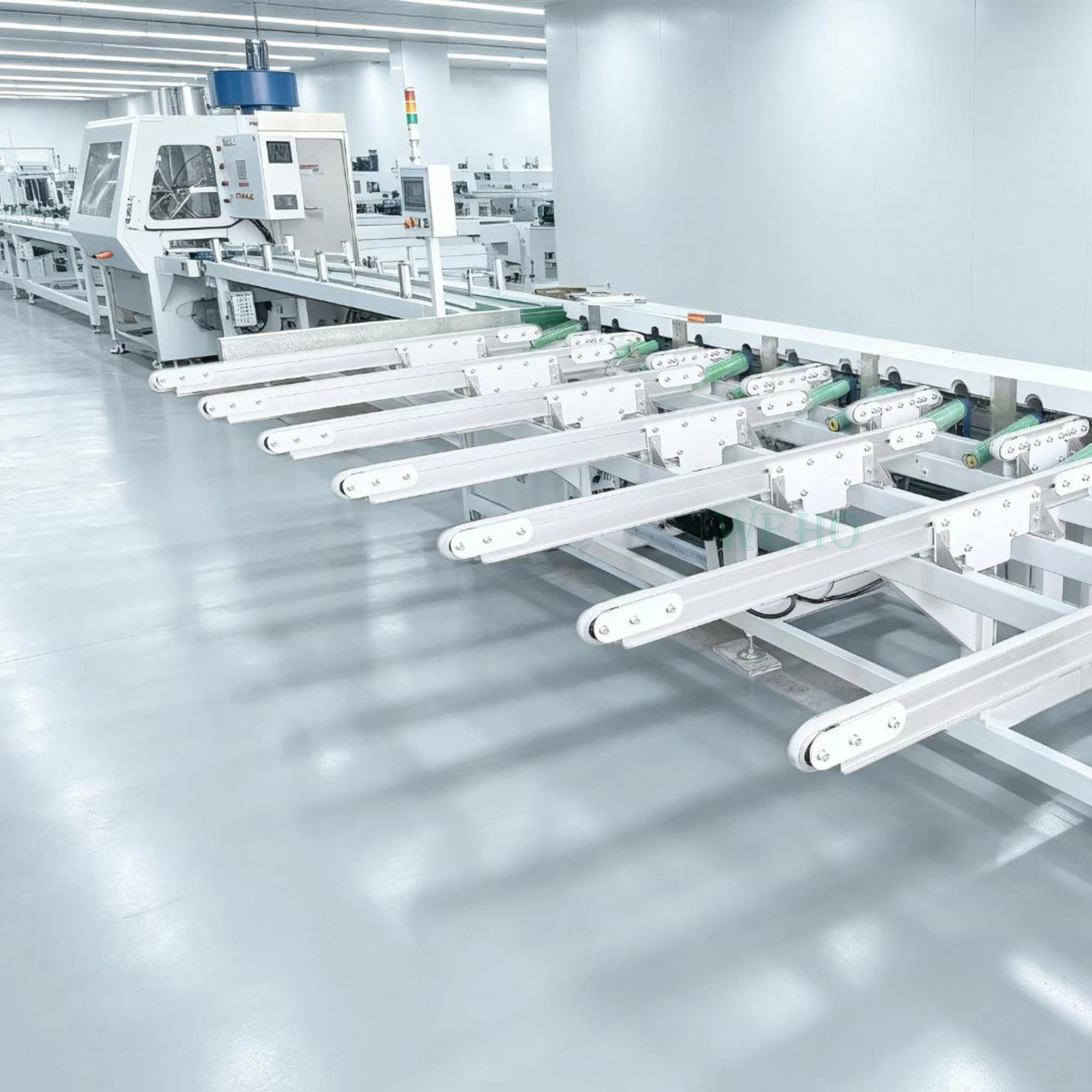

wood linear mouldings line profile spray painting machine with flexispray conveyor and destacker for door frame
Automatic painting machine to paint moldings such as door trim, door and window frame parts, narrow panels and other parts that match the dimensions: - Width 70-300 mm (opening width = 400 mm) - Height 5-80 mm - Minimum part length 600 mm.

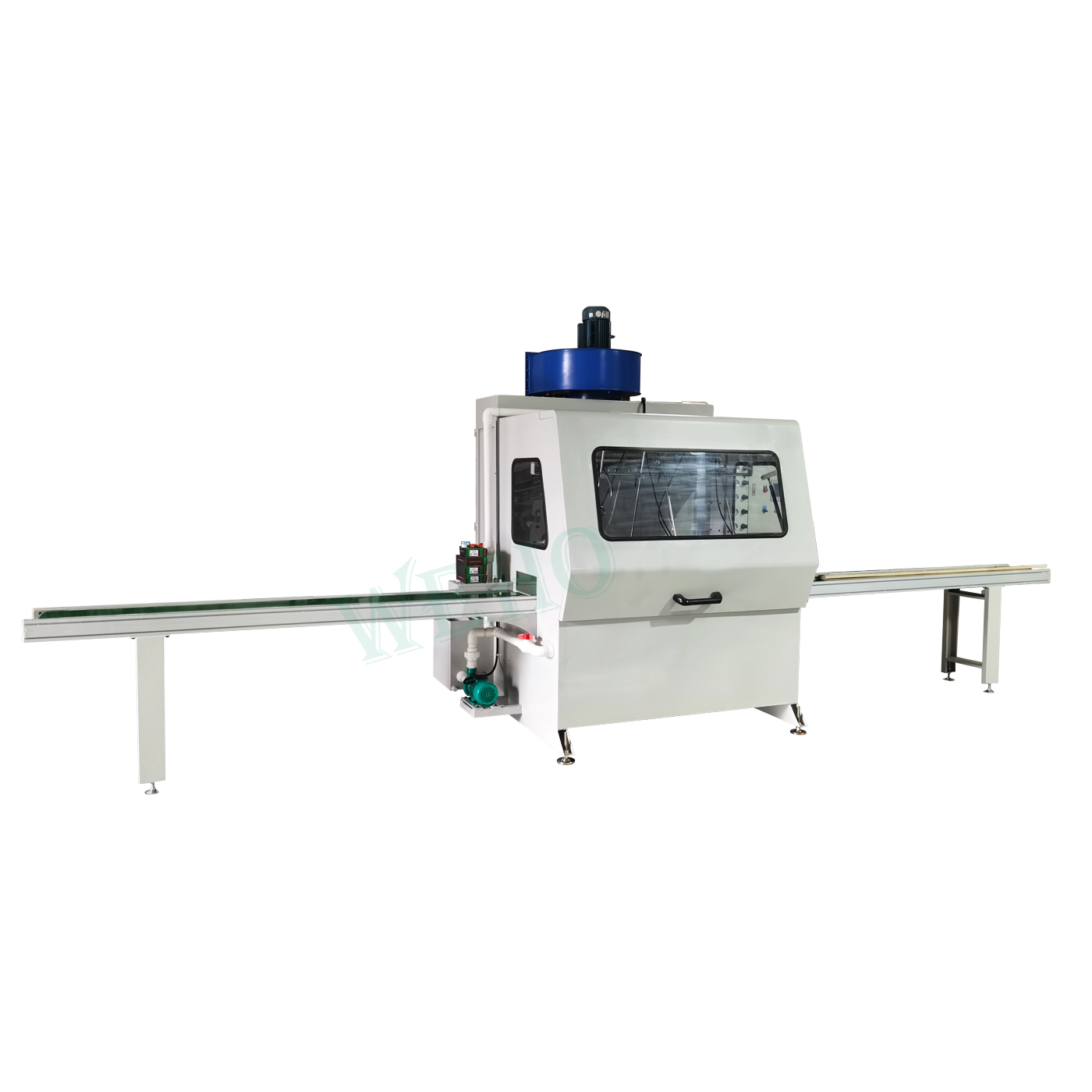

wood linear mouldings line profile spray painting machine
with flexispray conveyor and destacker for door frame
Advantages: save paint, save labor, low emission, high efficiency
Applicable paint: PU, water-based paint spraying
Length of production line: 2.3 meters Width: 2 meters
Conveying speed: 10 ~ 35m/min
Two staff members are require

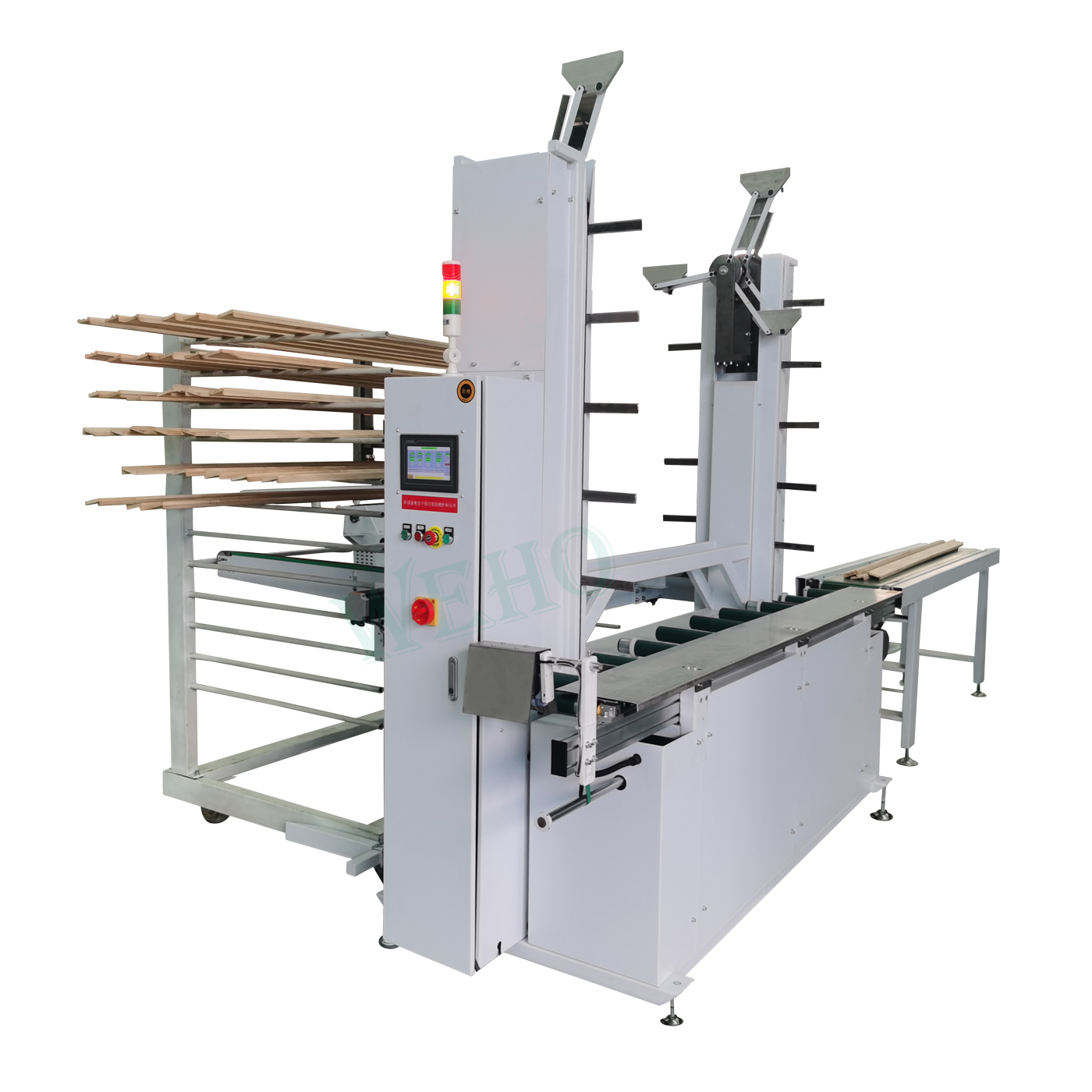

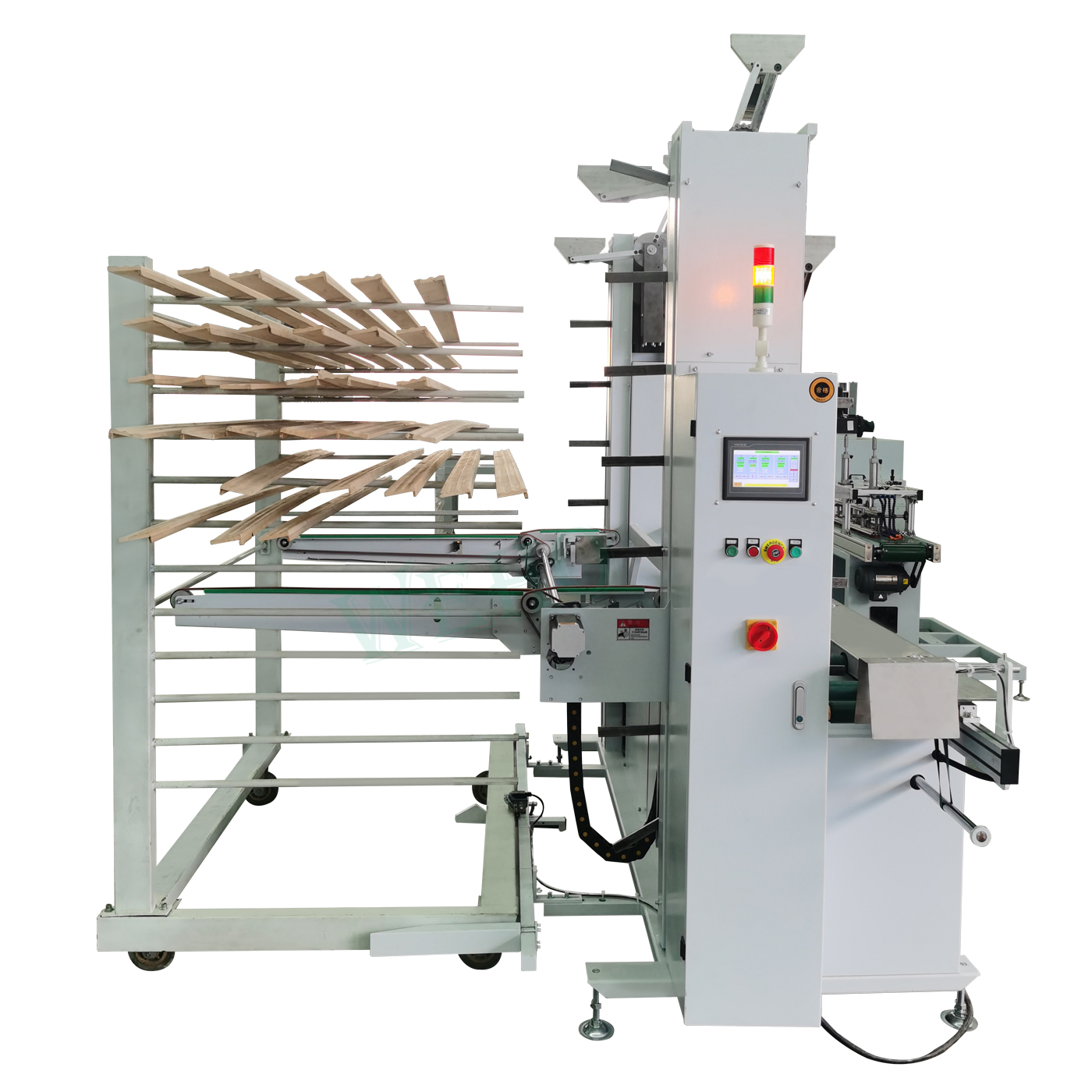

wood linear mouldings line profile spray painting machine

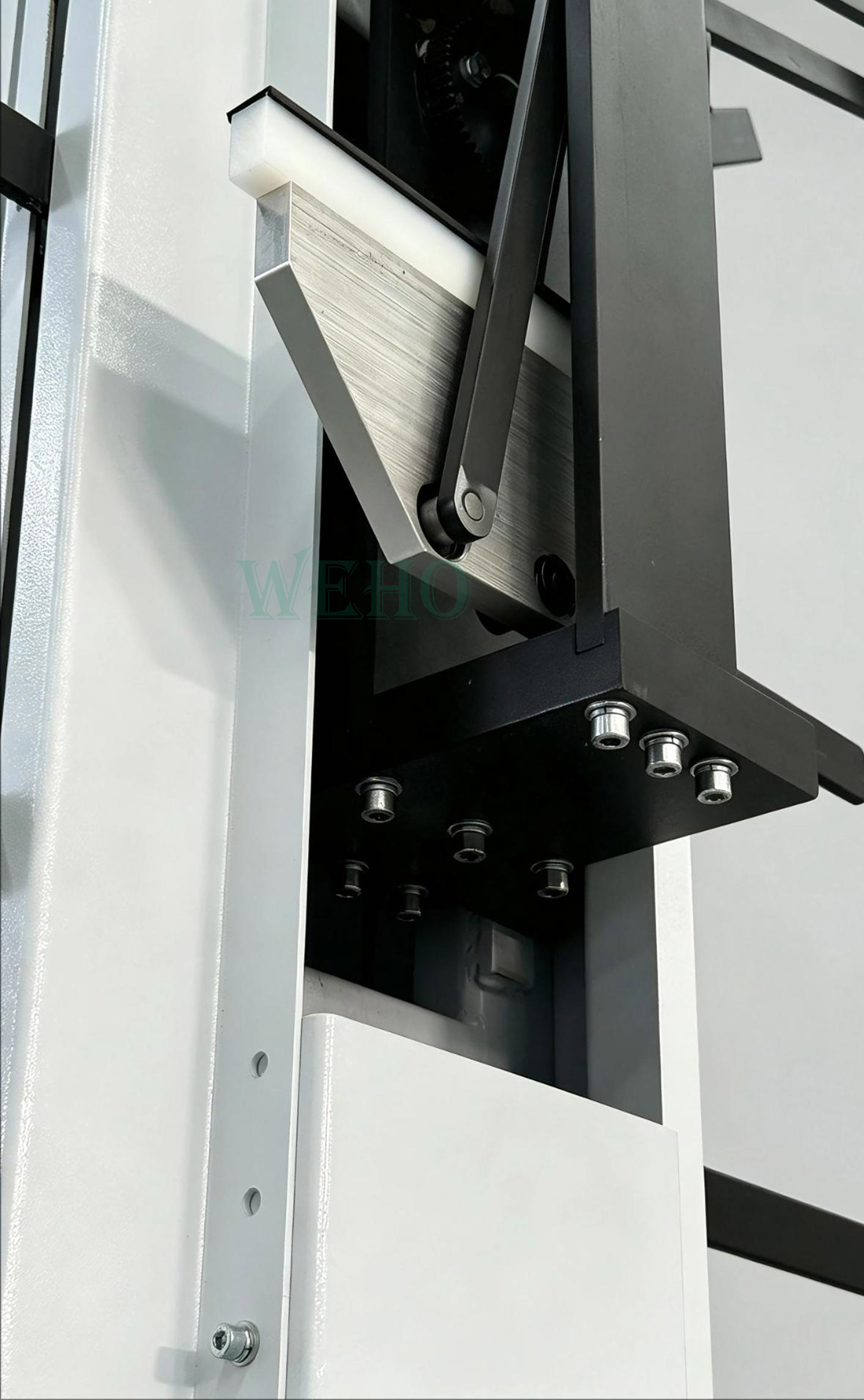

with flexispray conveyor and destacker for door frame

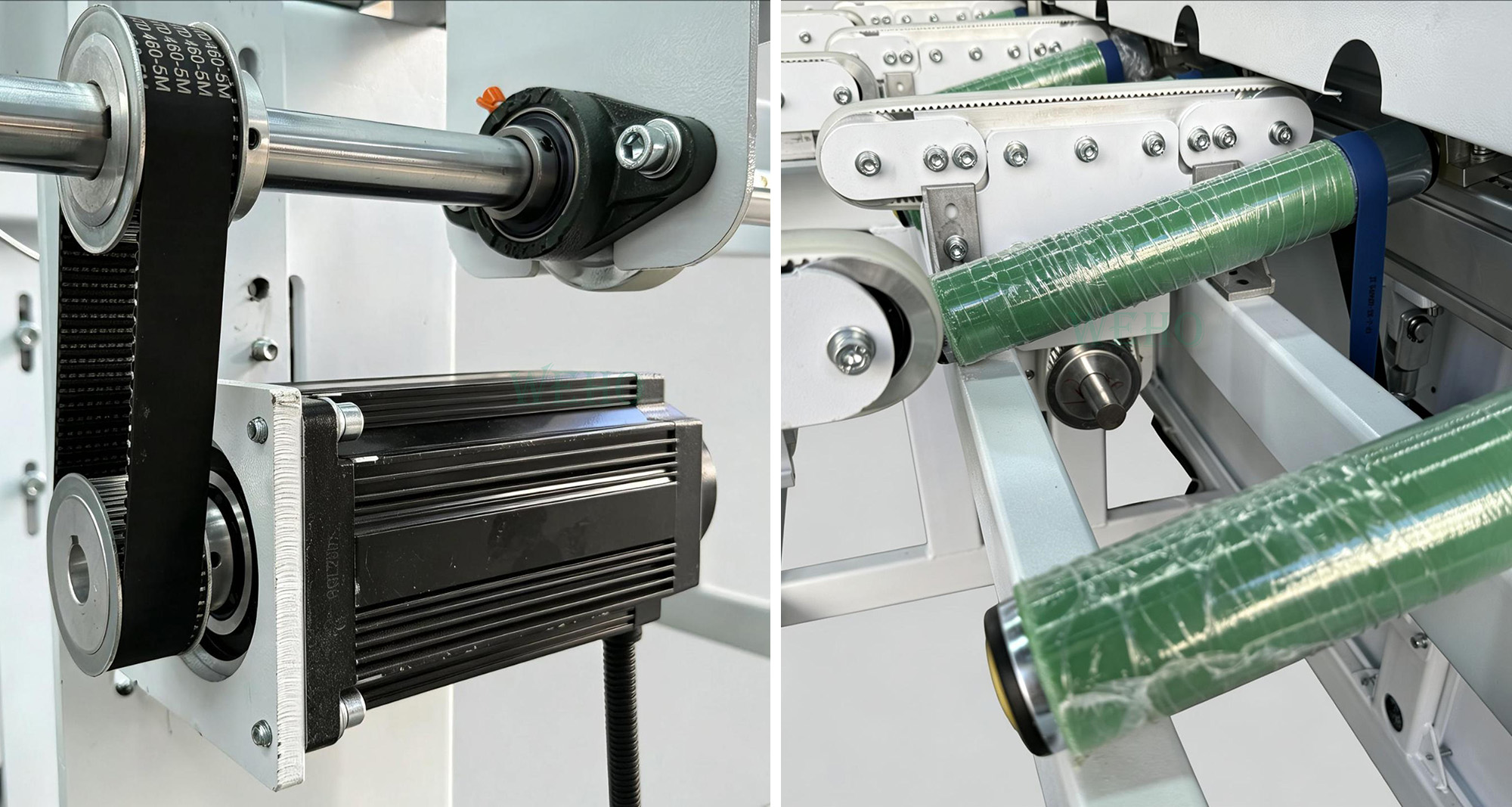

The motor is a Taiwanese brand
Frequency changer is Taiwan Shilin brand
Air blower is Jiuzhou brand
Low voltage electrical appliances is DELIXI brand
Spray gun is Taiwan Changyuan Seiko brand
The whole machine adopts PLC control

Main configuration:

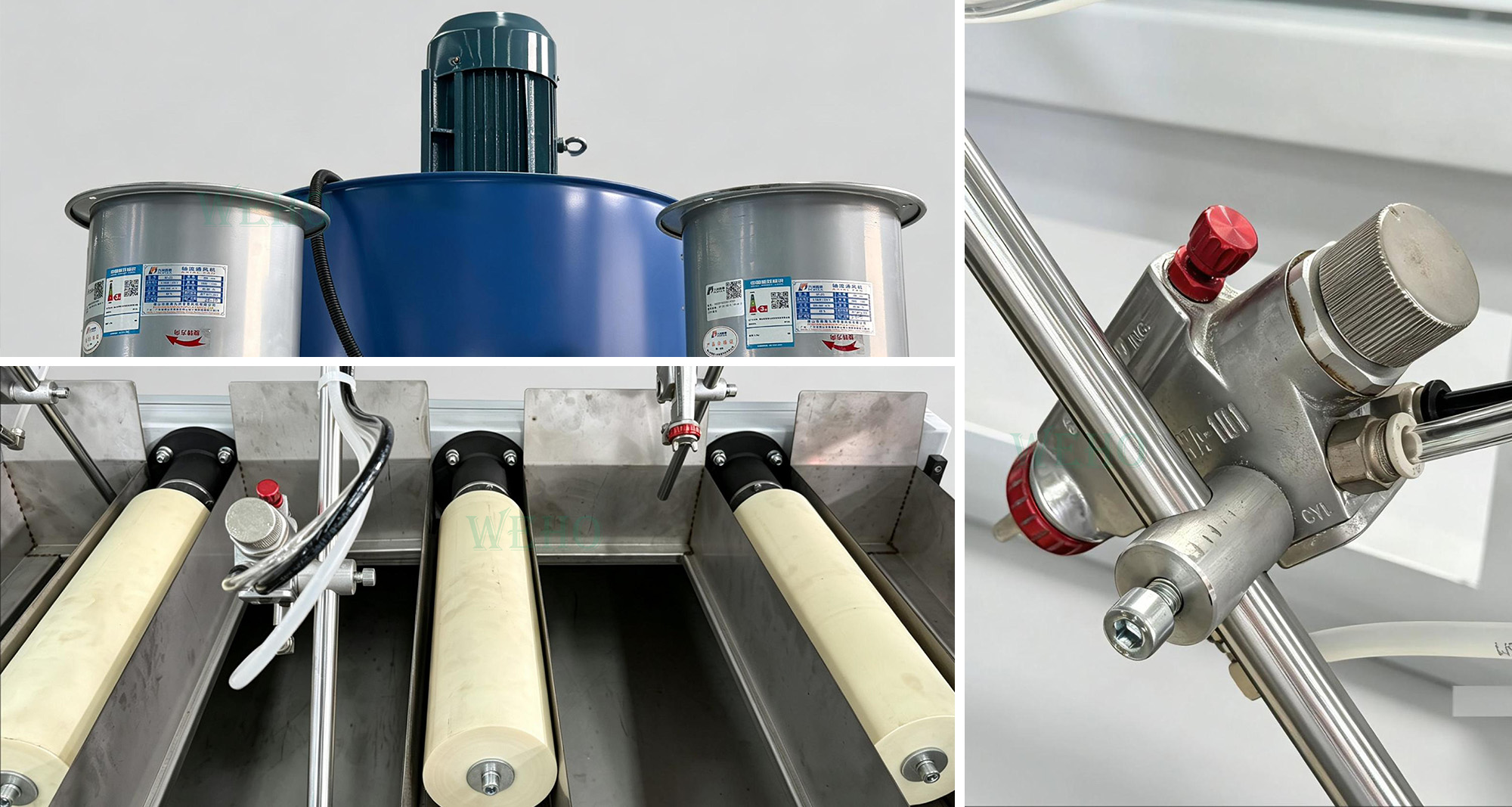

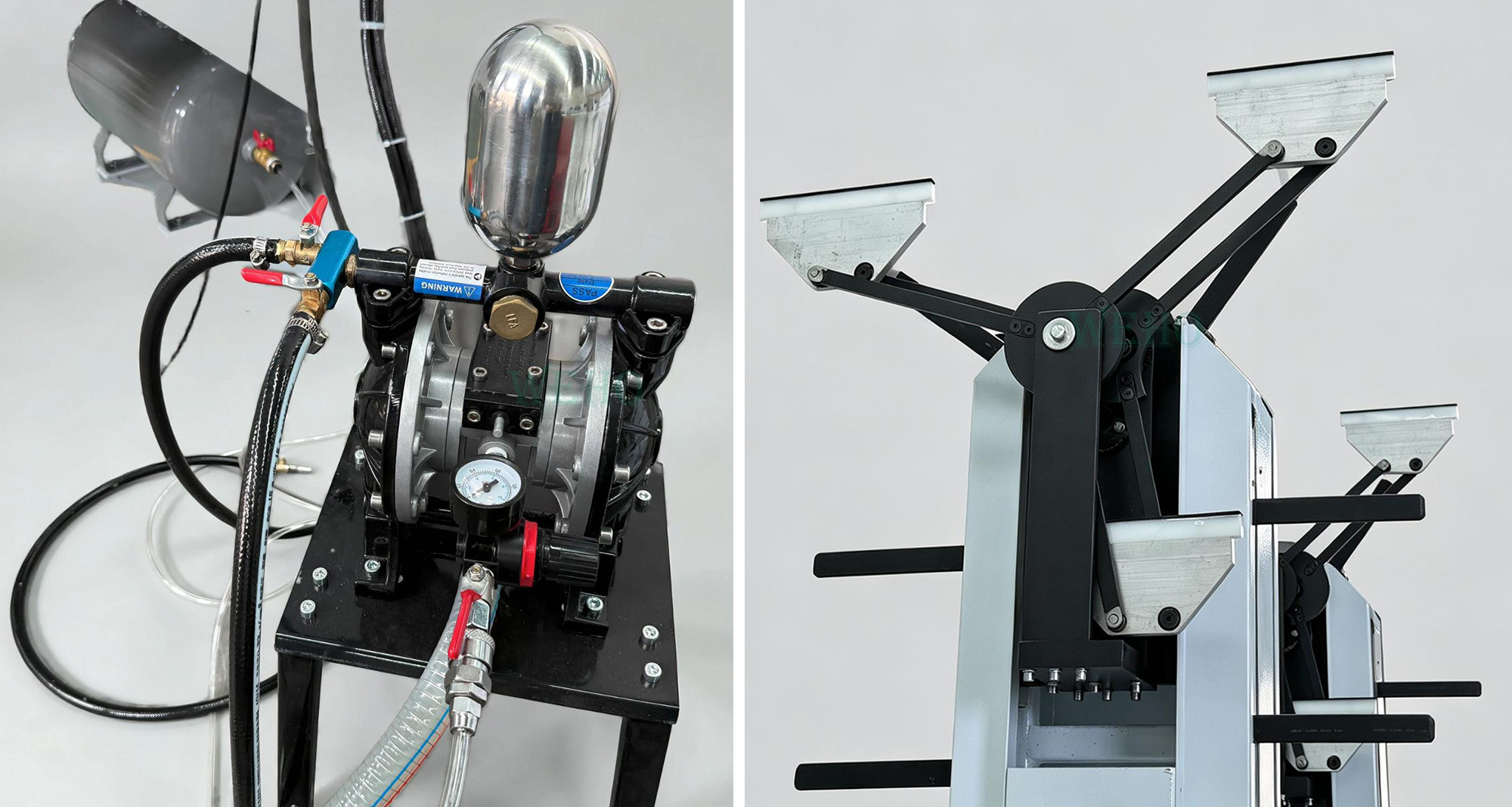

1.Taiwan original brand pressure type large flow double diaphragm pump 1 set (with pressure regulator) equipped with pressure reducing valve and flow regulating valve, for the safe feeding of paint, especially suitable for the processing of very viscous insoluble paint.
2.Taiwan Changyuan Seiko brand 1.3 caliber spray gun 4 sets.
3.1 set of pre-pressure air intake system and air intake filtration system.
4.Paint mist purification water curtain and exhaust system 1 set.

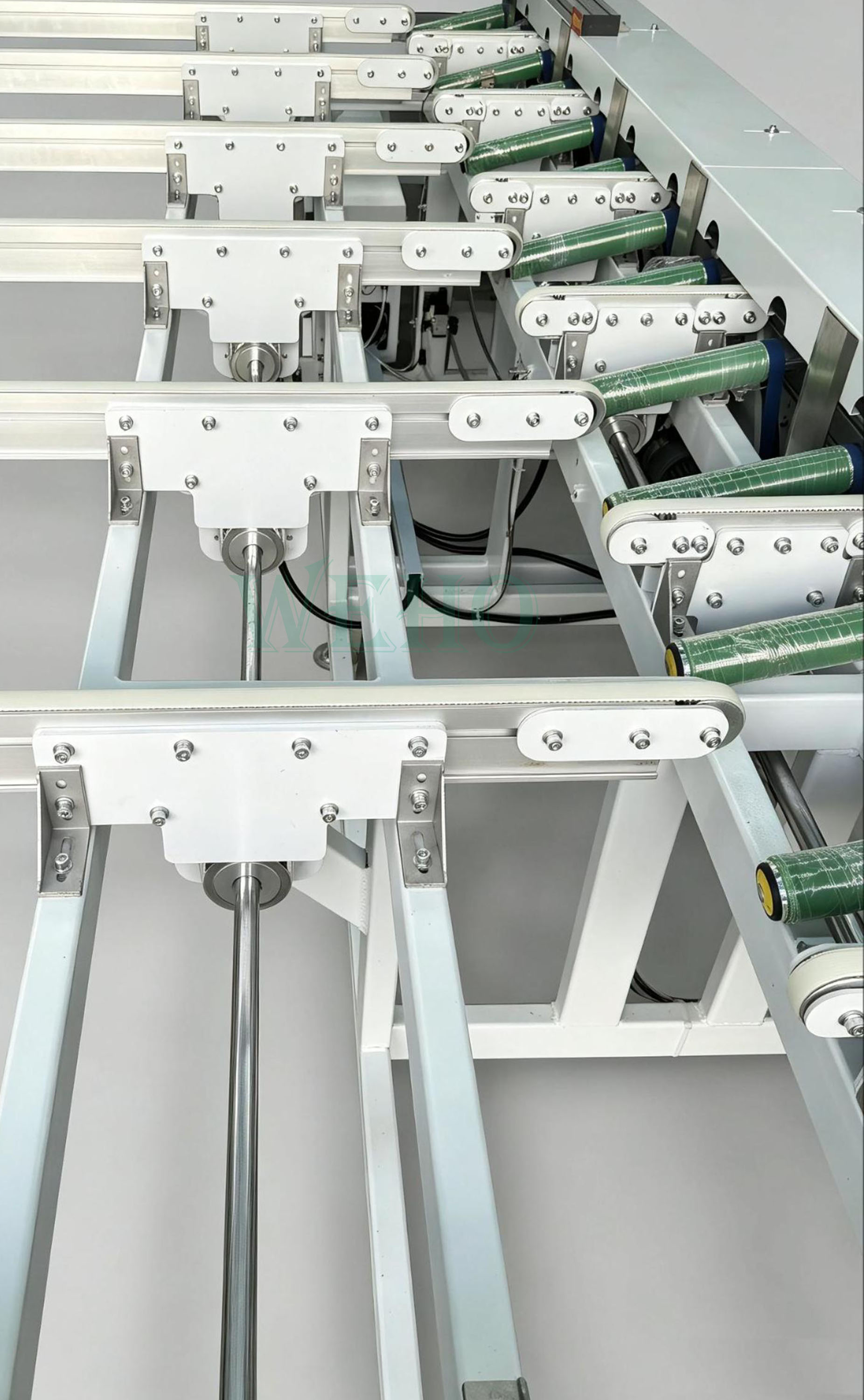

5.50MM roller feed is used for automatic painting part. The center spacing is 450MM.
6.Spray painting system adopts automatic spray gun, solenoid valve independent control, improve the spray effect of paint, so that the paint on the surface of the workpiece more uniform.

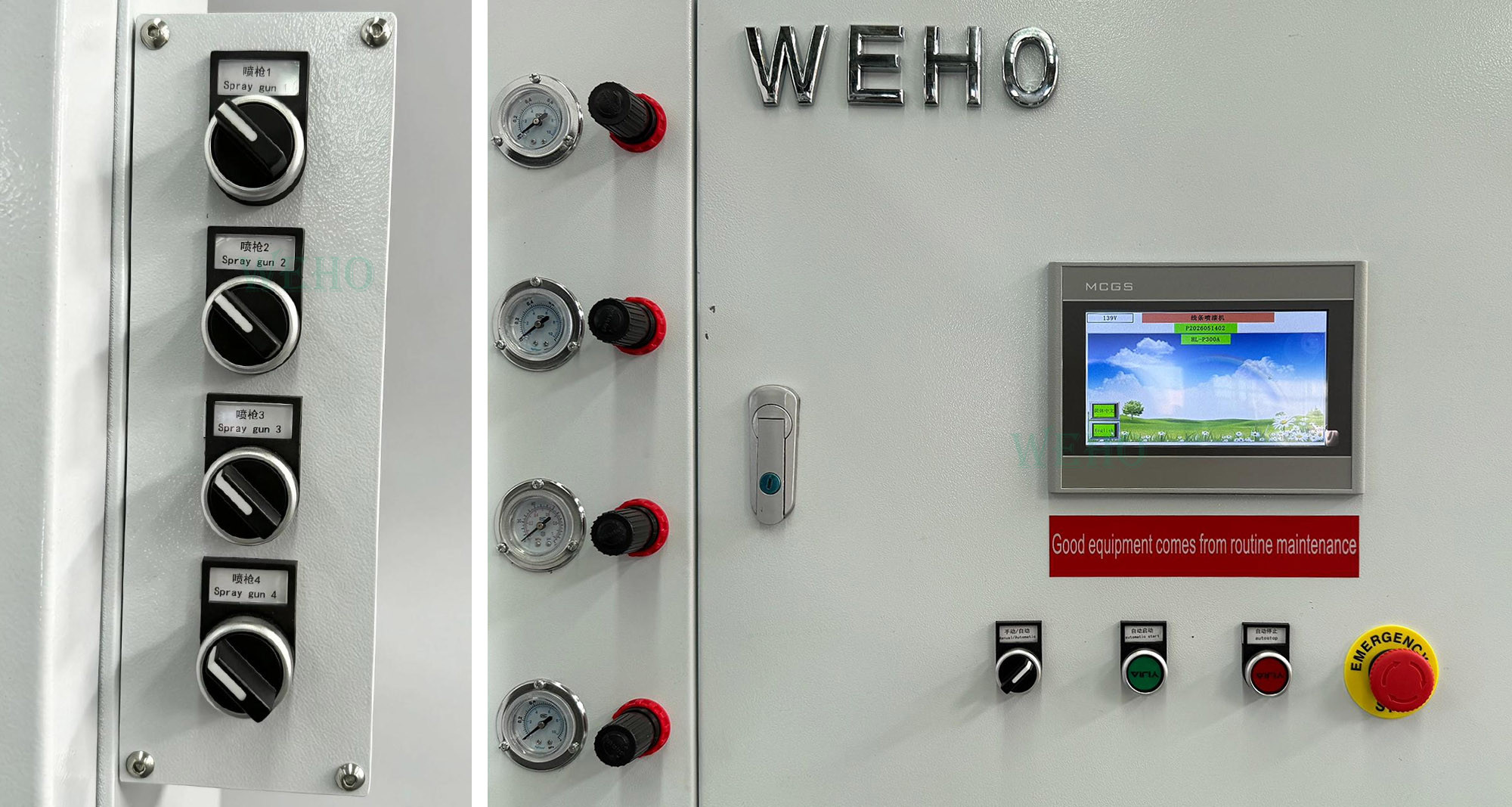

7.The Angle and width of each spray gun can be adjusted manually.

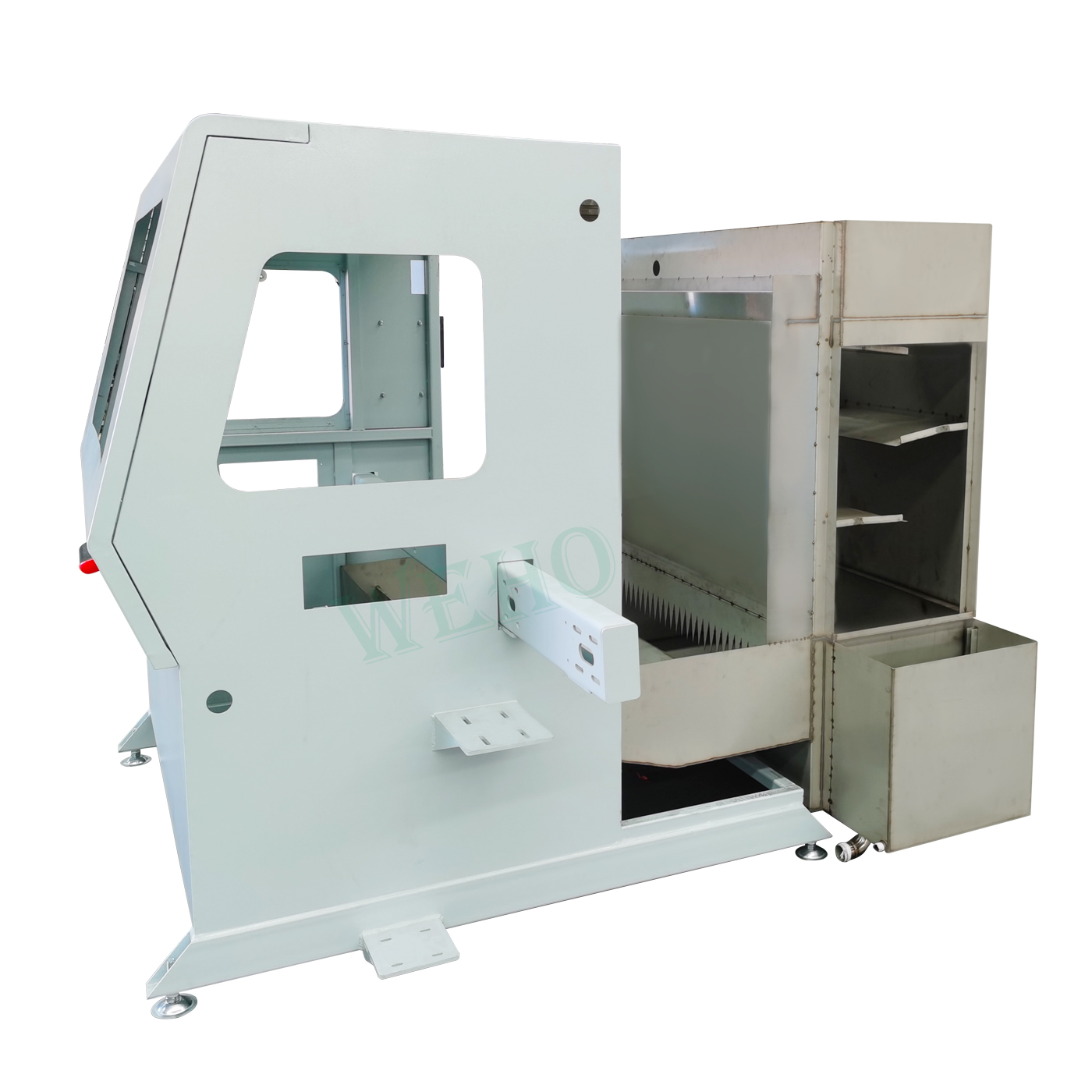

8.The external air is pre-compressed and purified to form positive and negative pressure in the closed paint room. The paint room is equipped with a stainless steel paint recovery system and a water curtain exhaust gas filtration and exhaust system.
9.Using Taiwan's correct name motor.
10.Induction mode: photoelectric and encoder reading mode.

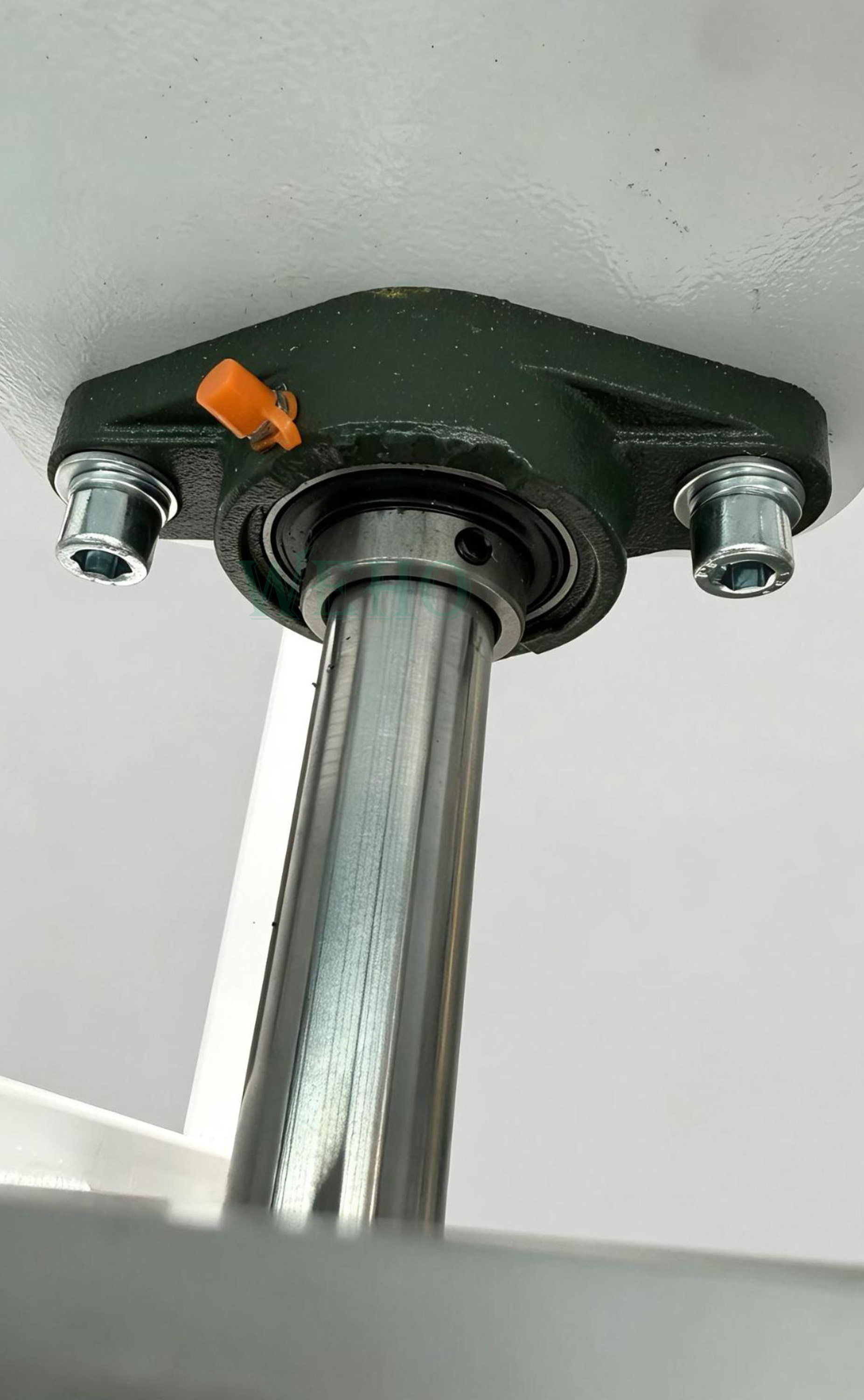

11.Japan NSK, TR bearing high quality high-speed running bearings.

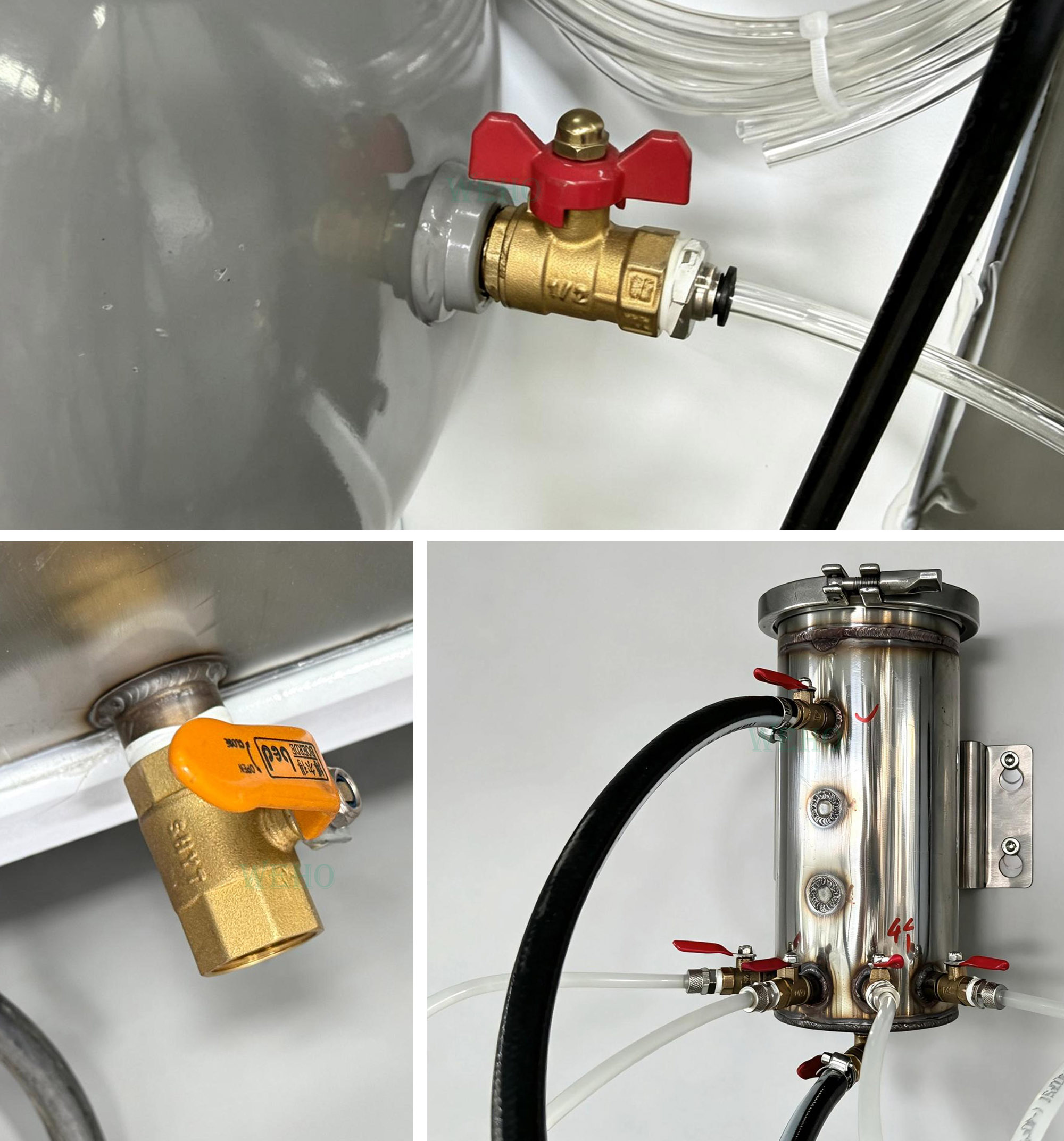

12.Stainless steel oil tank independent replacement, easy to clean.
13.After the product is sprayed, it is automatically fired.
14.The area of the spray booth should be enlarged and widened to avoid paint fog.
15.Roller with protective cover, reduce paint contamination roller.
16.Spray painting area, inlet and outlet with fog suction device to prevent paint from running to both sides.

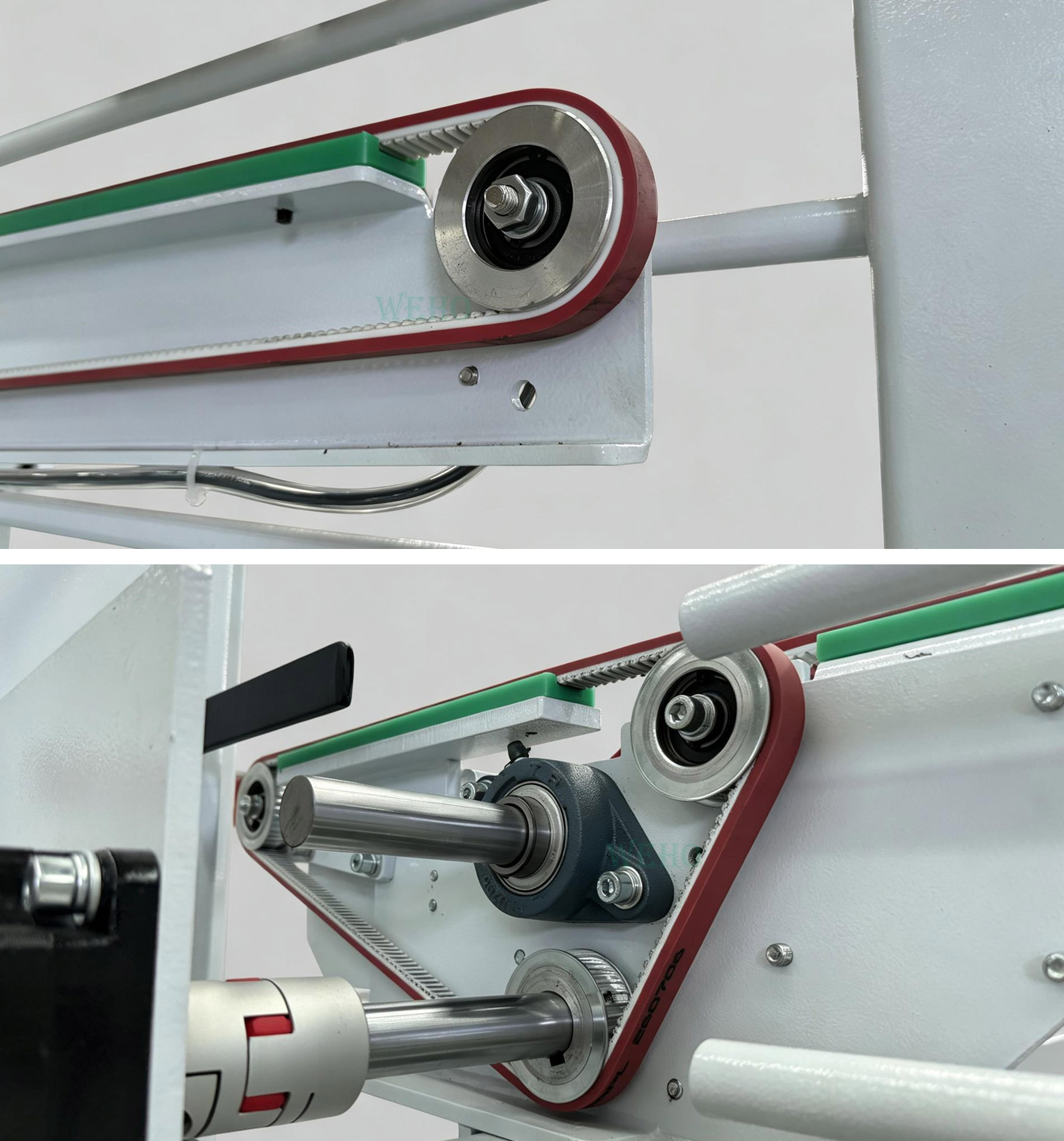

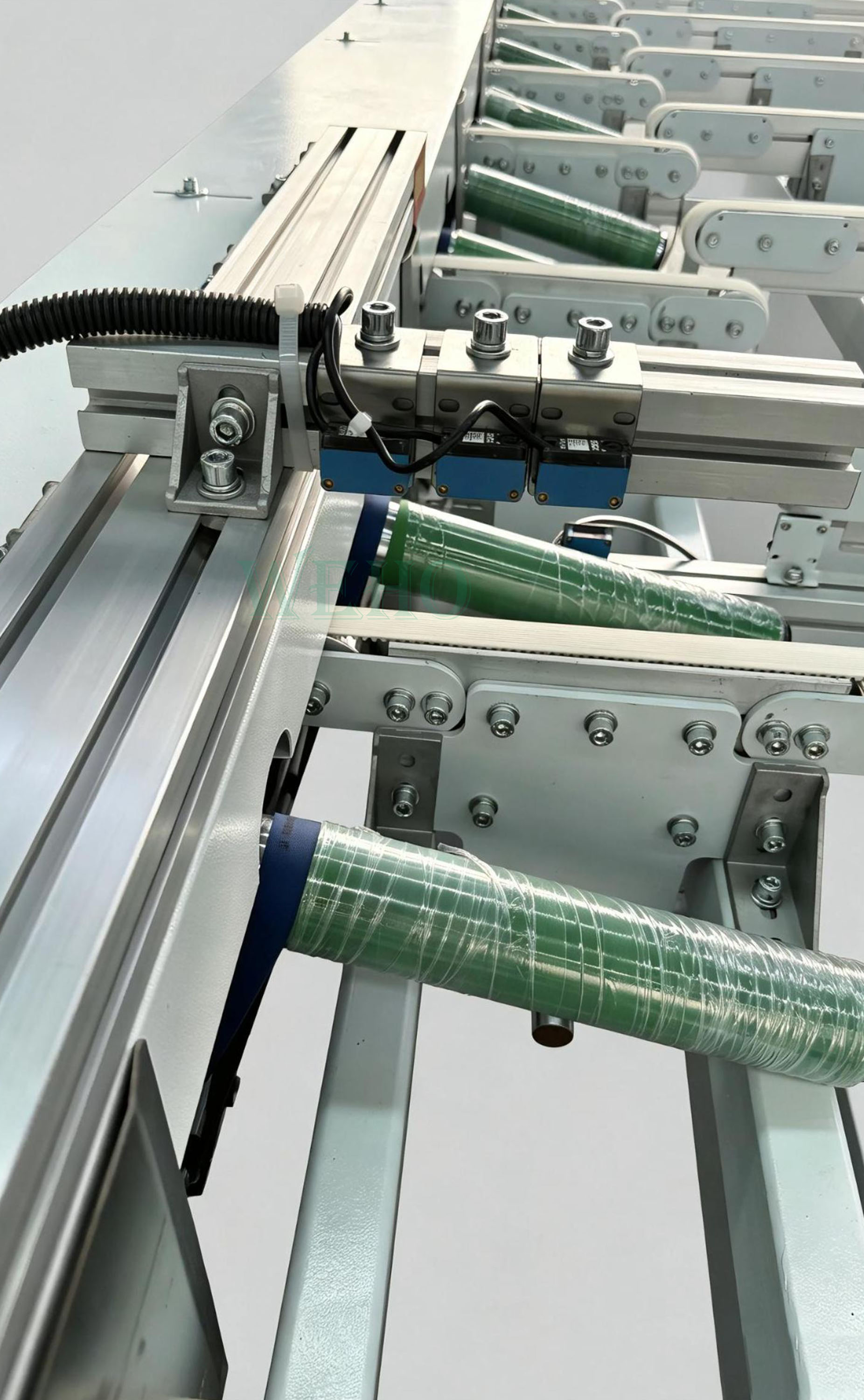

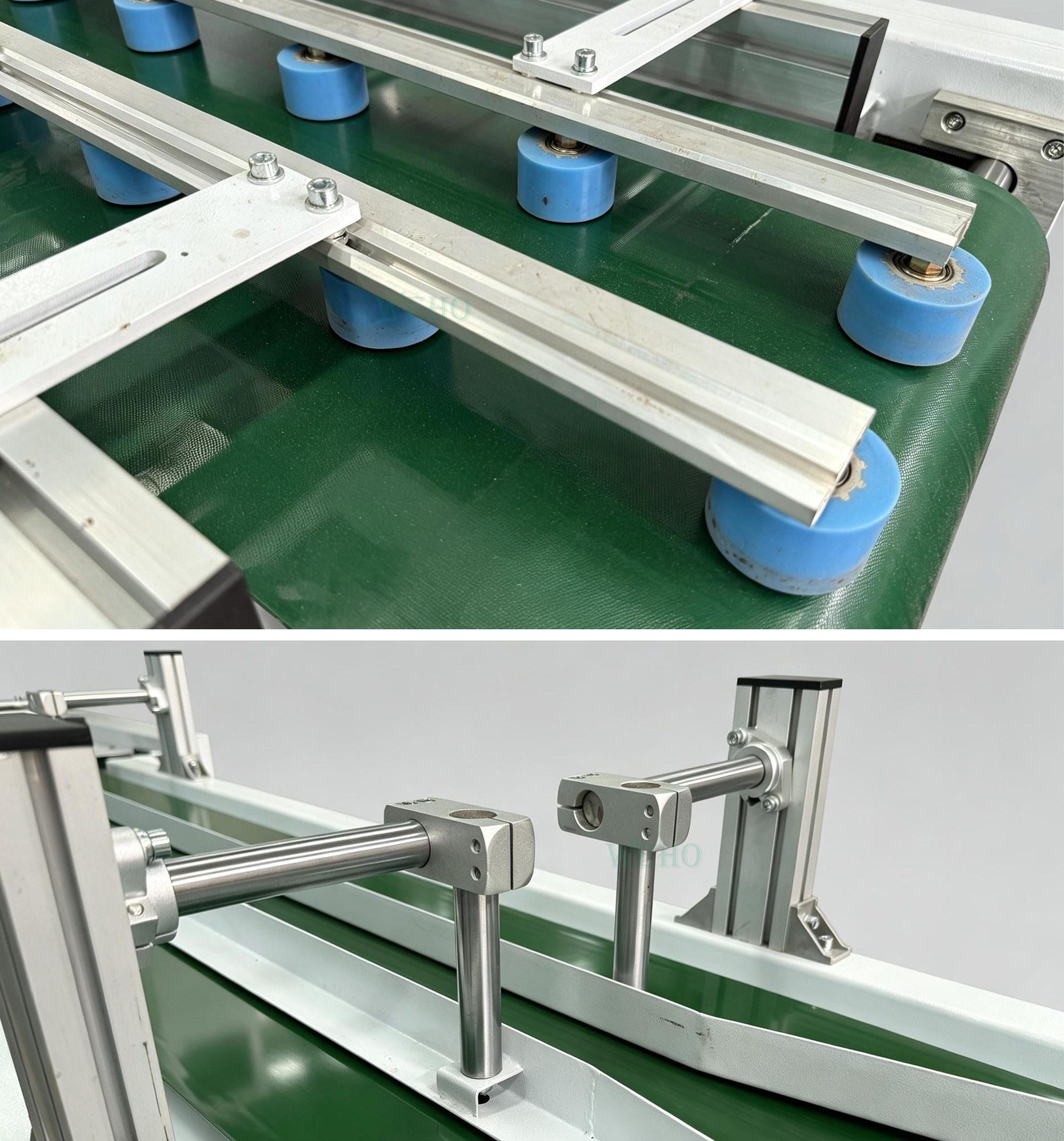

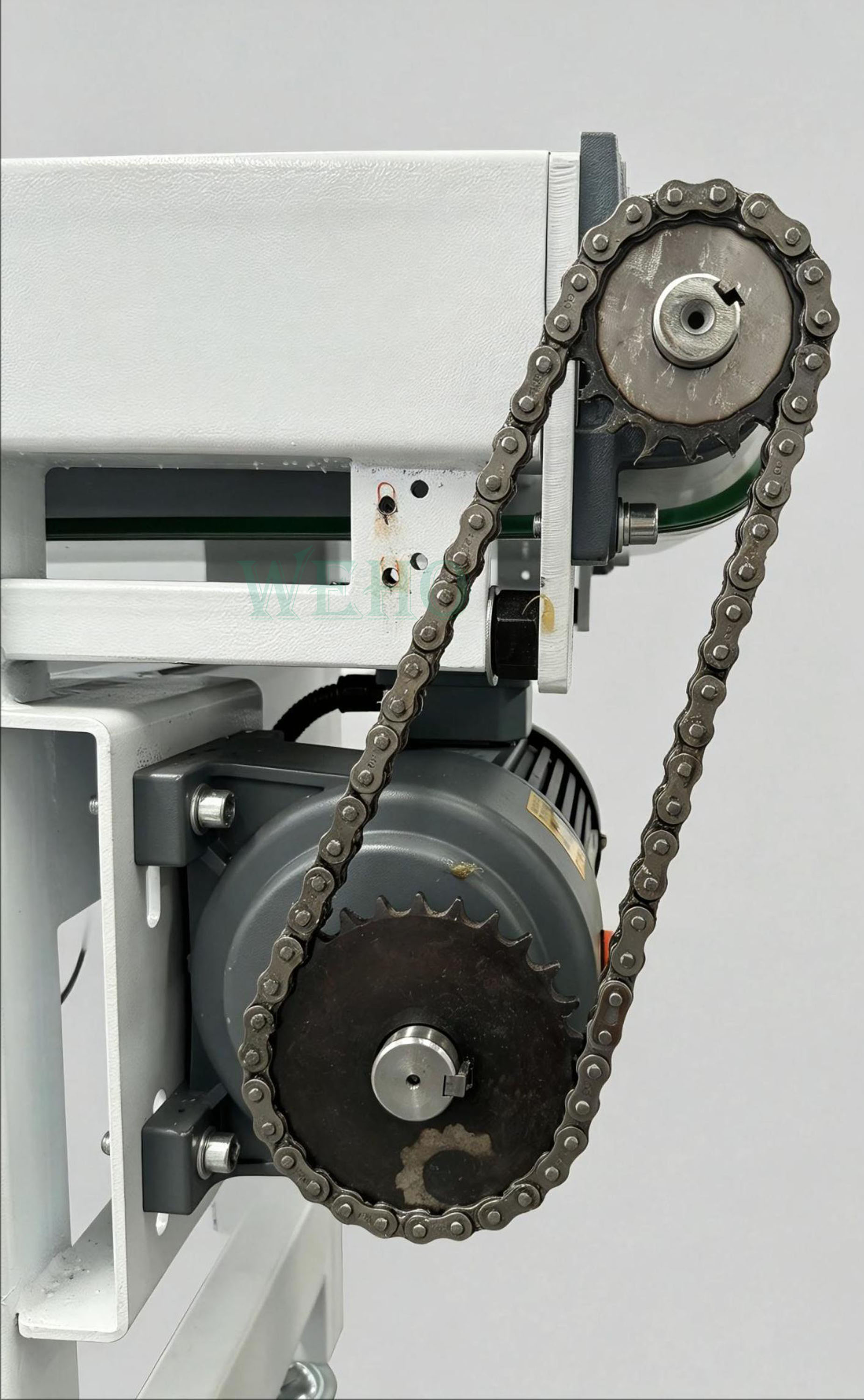

17.Structure area: belt conveying → painting area → belt conveying in three zones, anti-skid.


Production line precautions:
1. The atomizing cap needs to be cleaned after daily use.
2. The paint of oil storage tanks should be recycled after use.
3. The front and rear conveyor belts need to be cleaned for 5 minutes before leaving work every day.
4. Oil-based oil supply system can not be mixed with water-based oil supply system.
5. Electrical cabinet, dust blown every 15 days cycle.
6. Ensure that the air supply is dry.






WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.




How to buy
1. Contact WEHO sales and provide your requirents to get best solutions2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.

How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.

How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
