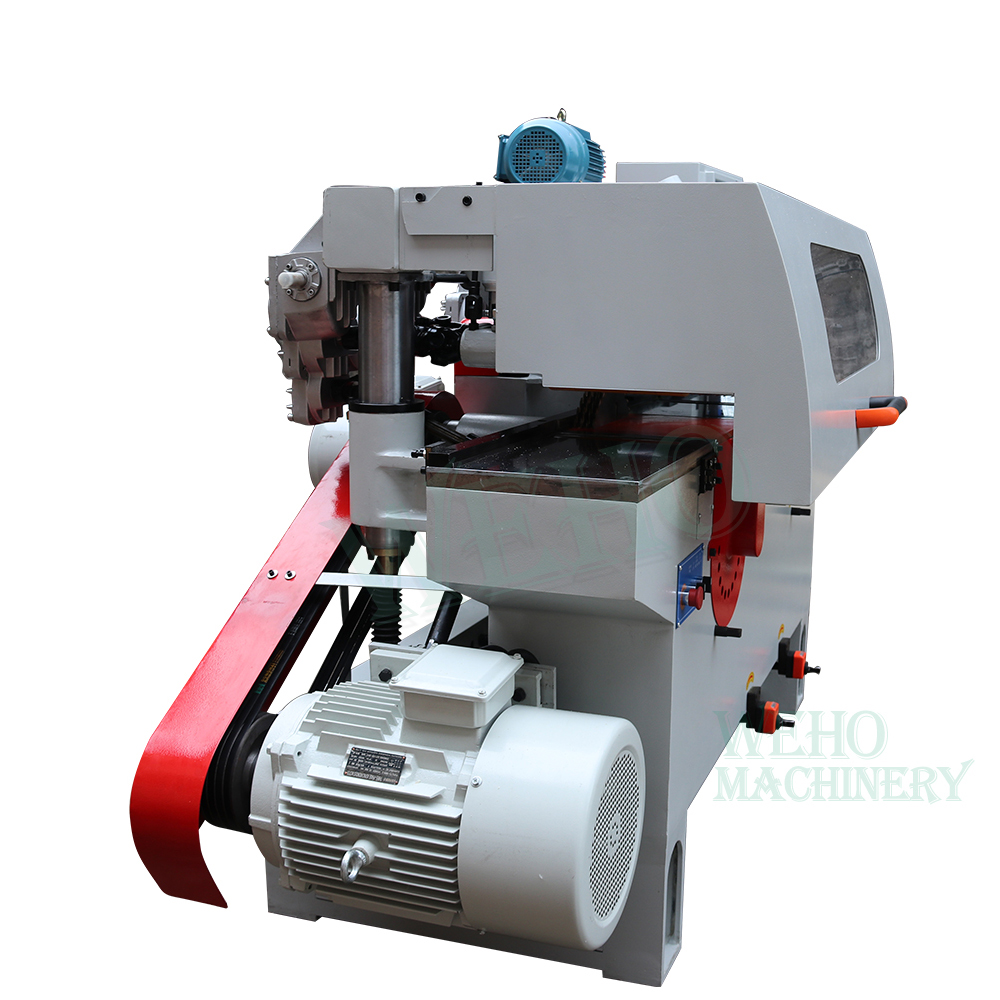

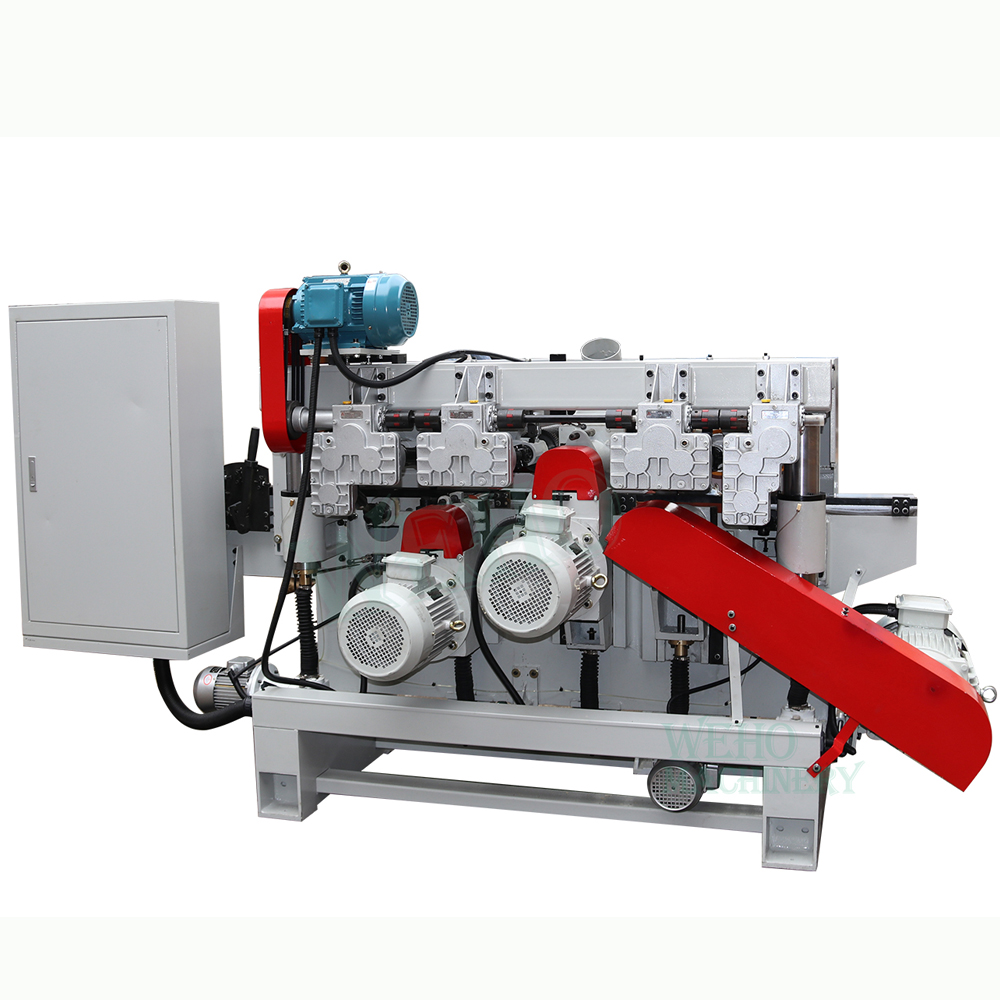

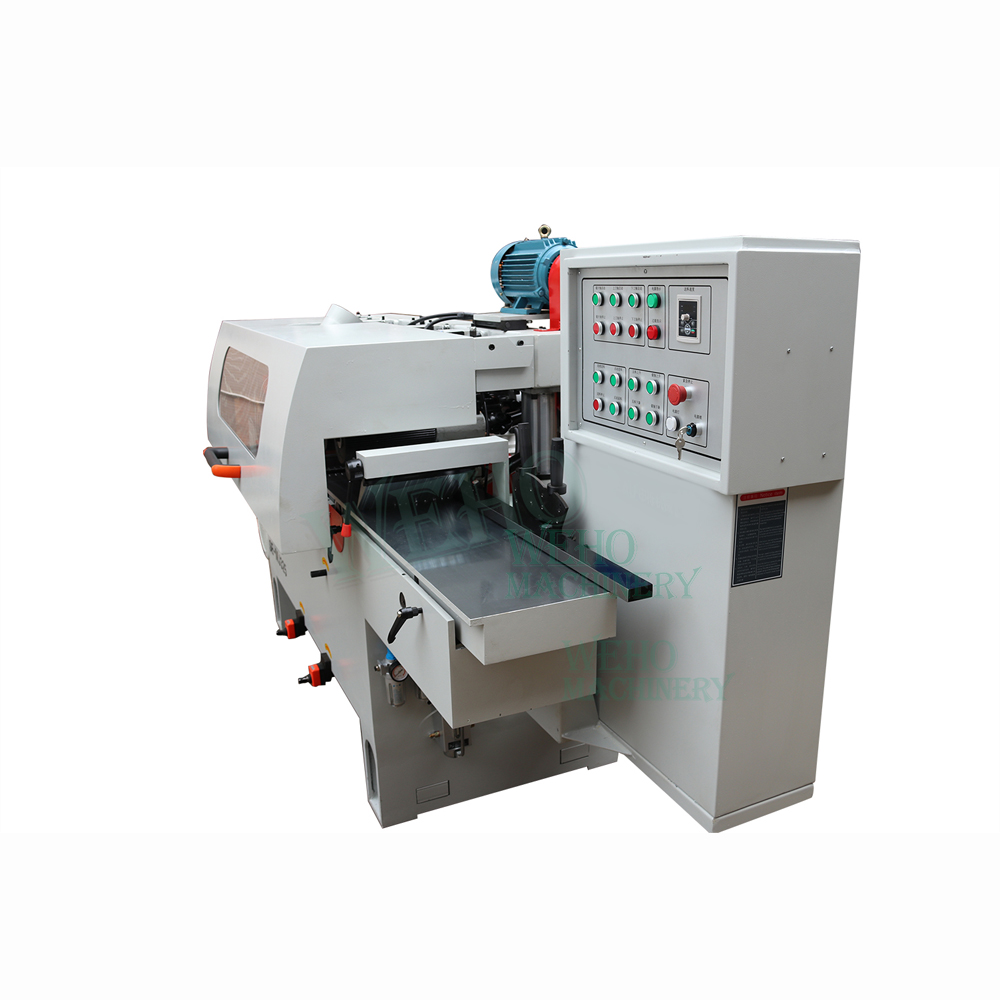

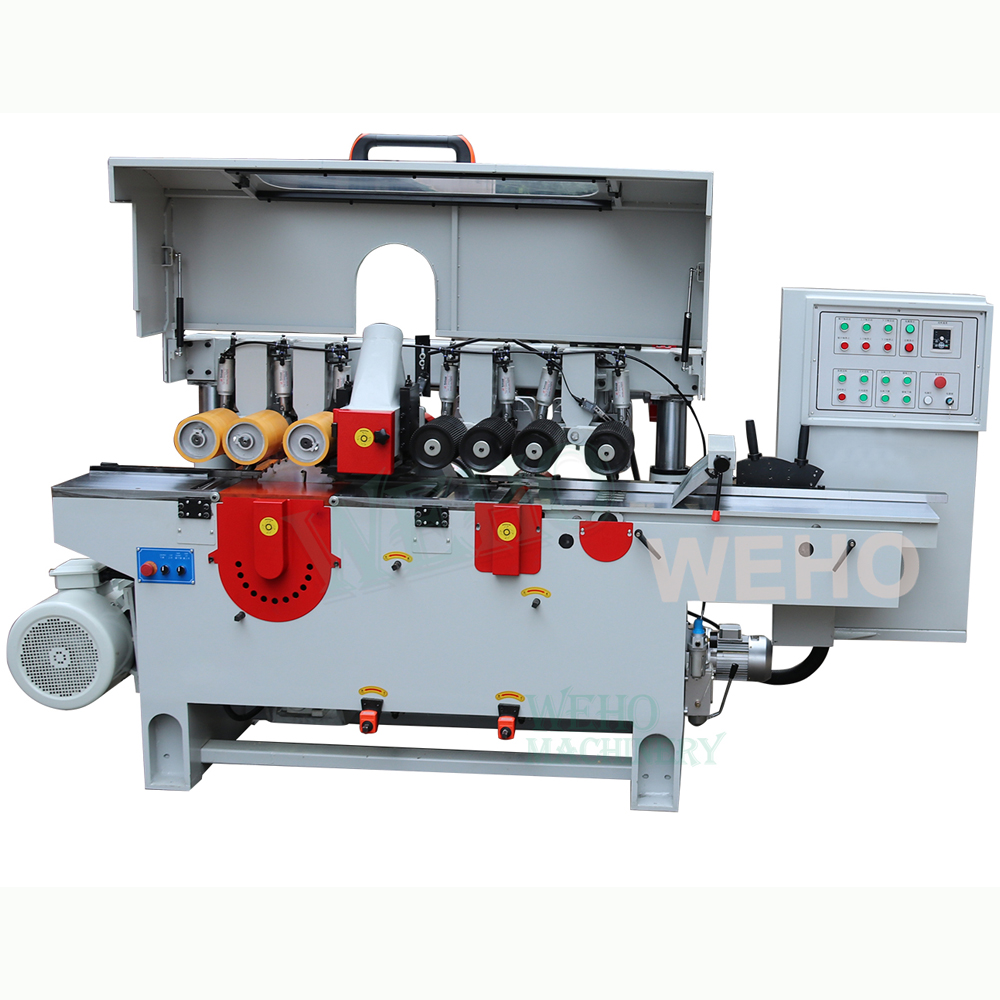

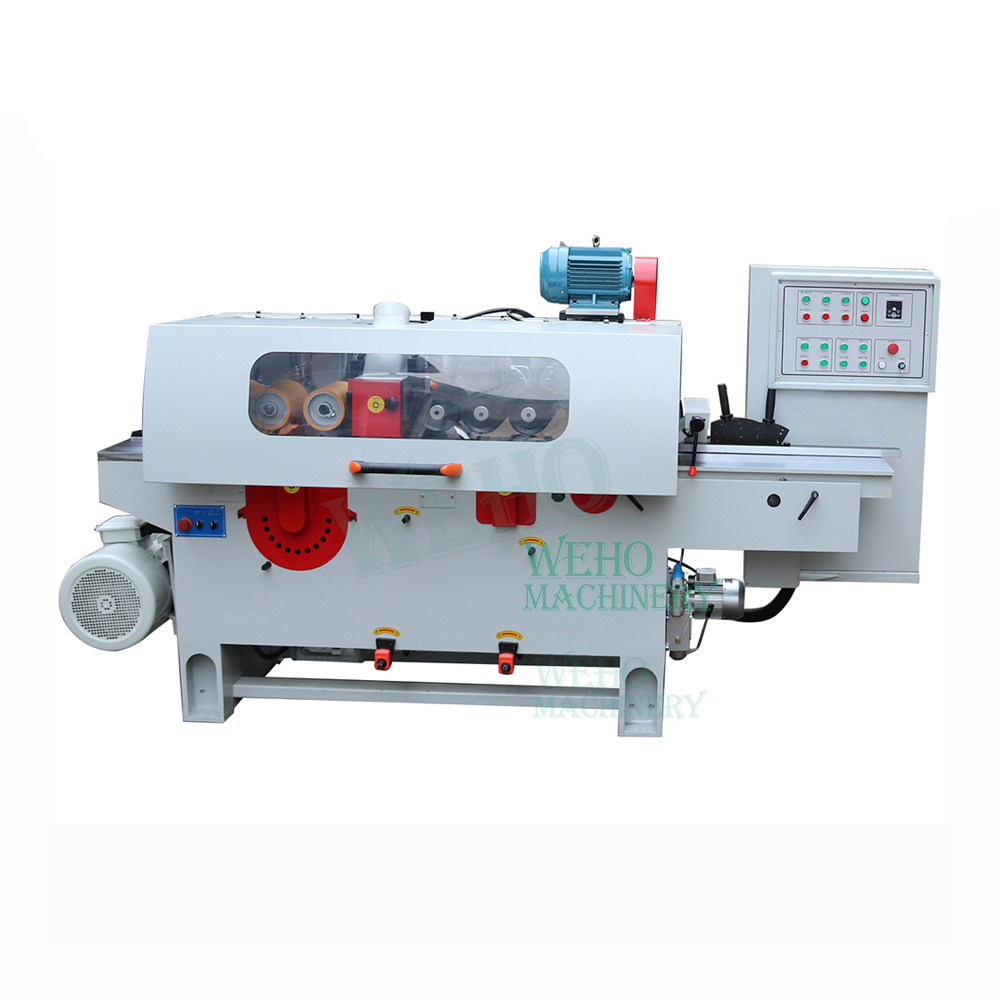

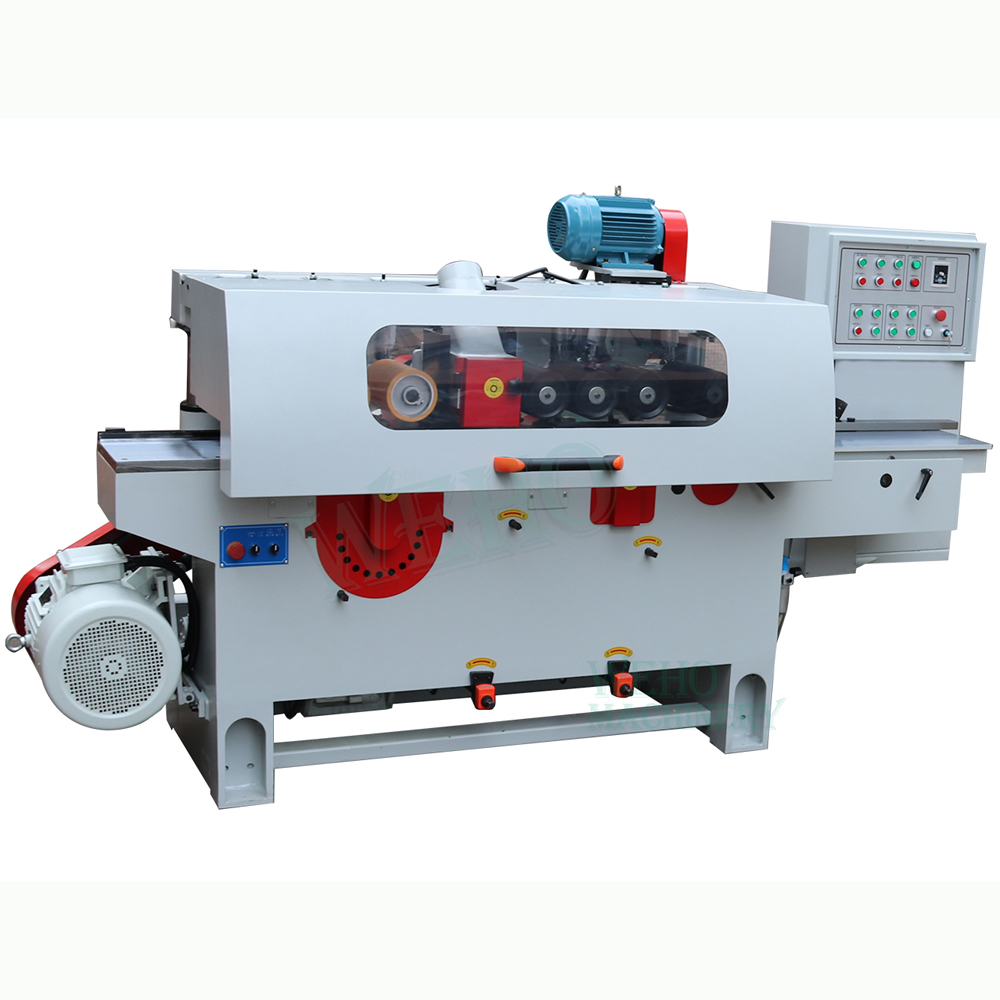

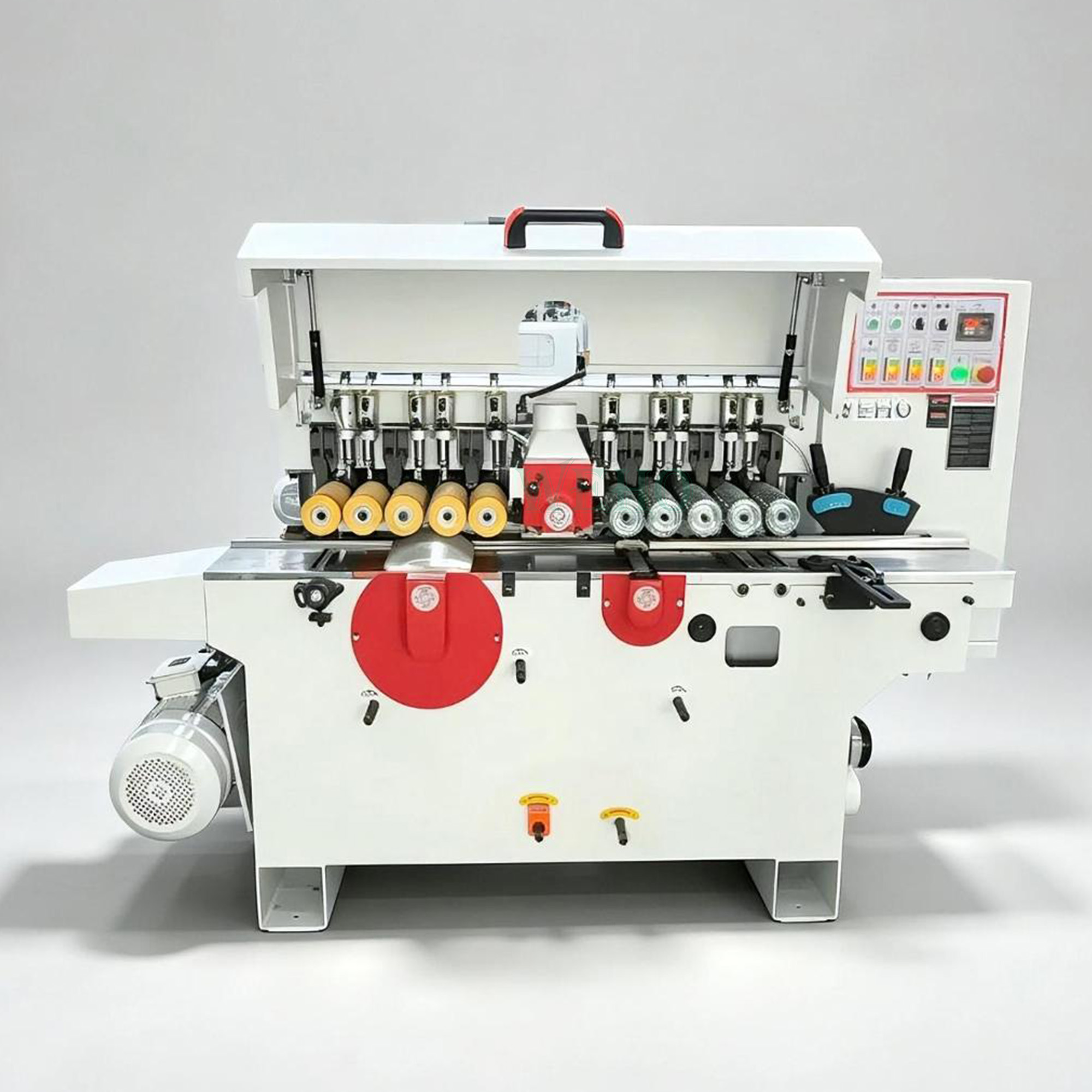

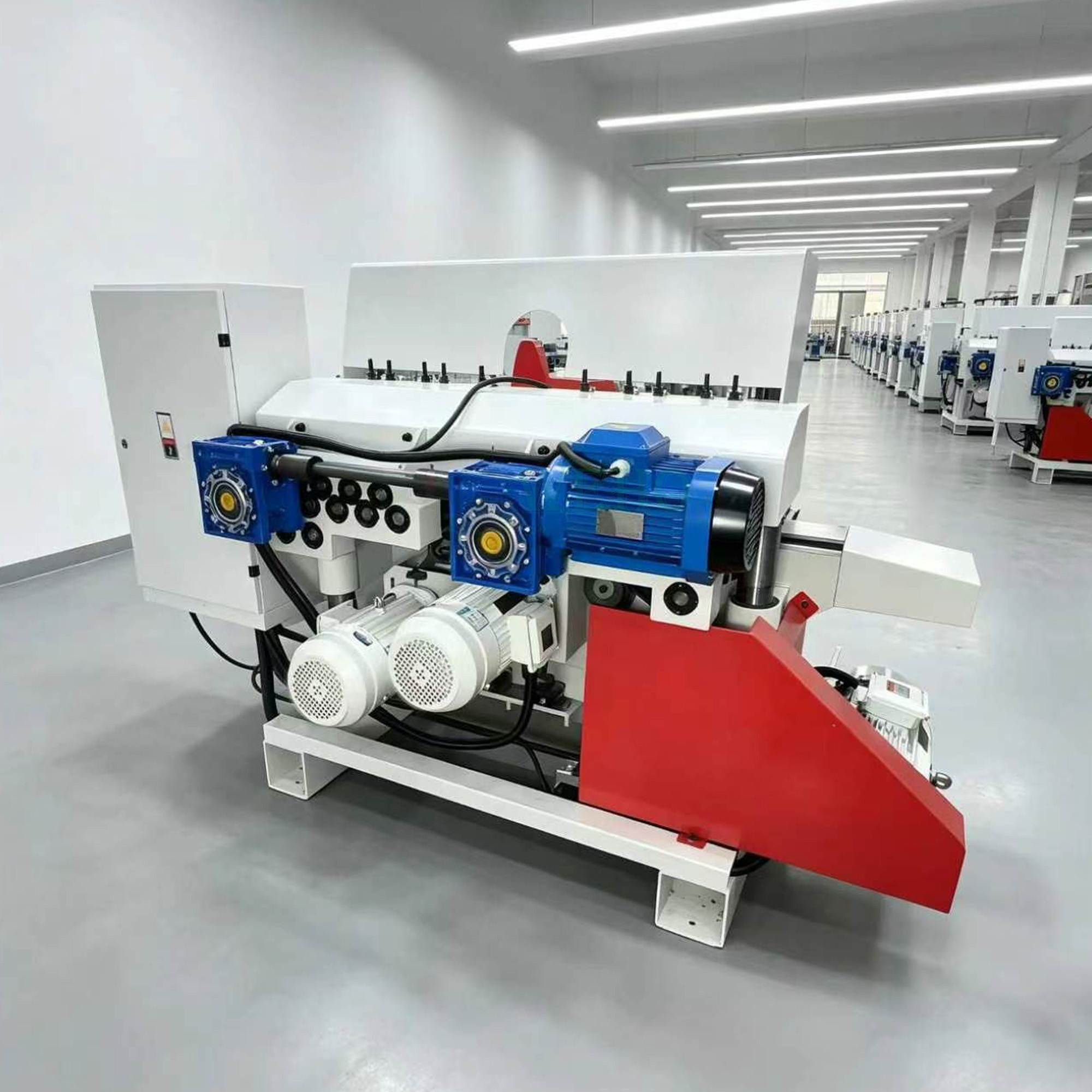

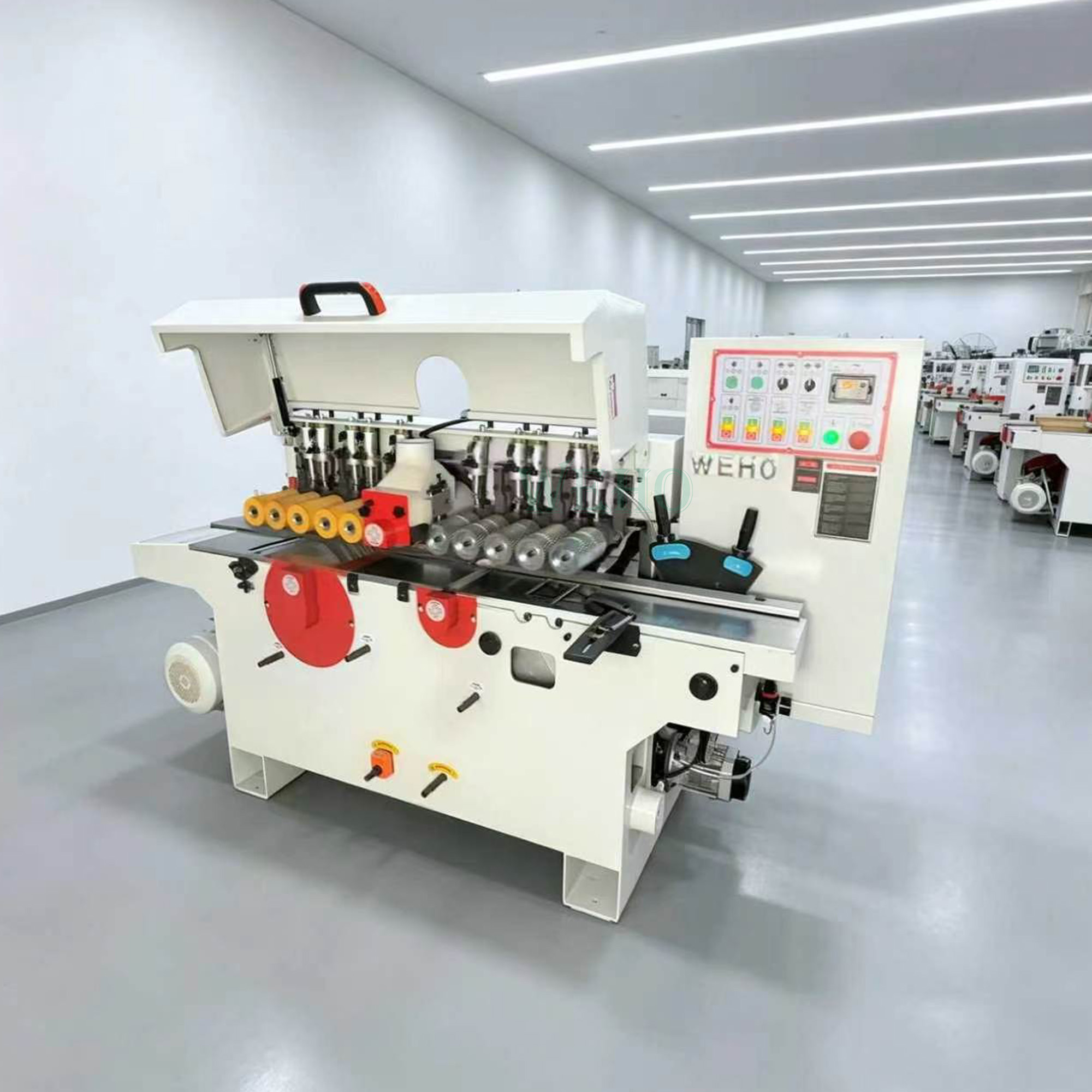

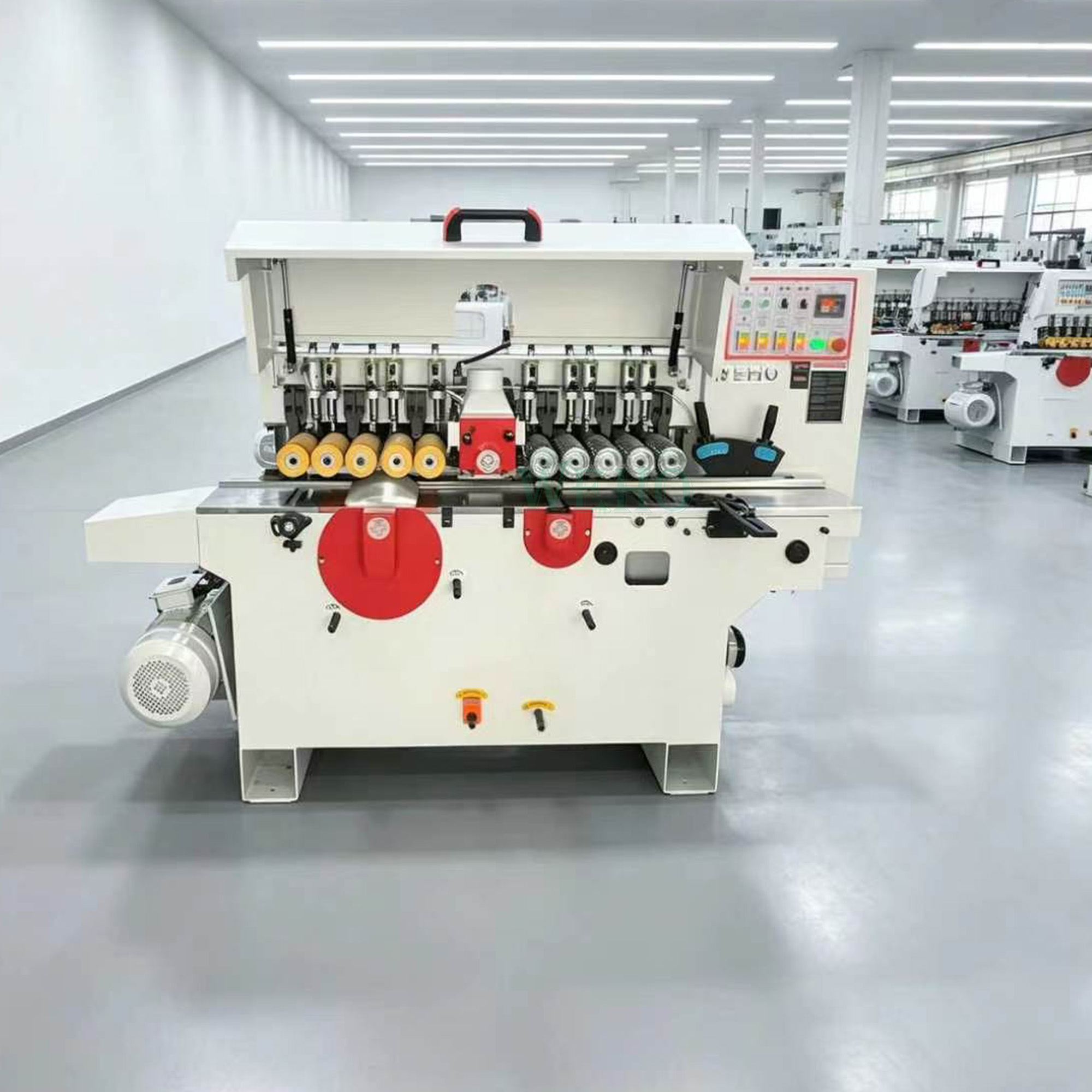

Wood multi blade circular rip saw planer machine crate strips slat cutting planing bed sheet
Wood multi blade circular rip saw planer machine crate strips slat cutting planing bed sheet

Wood multi blade circular rip saw planer machine crate strips slat cutting planing bed sheet

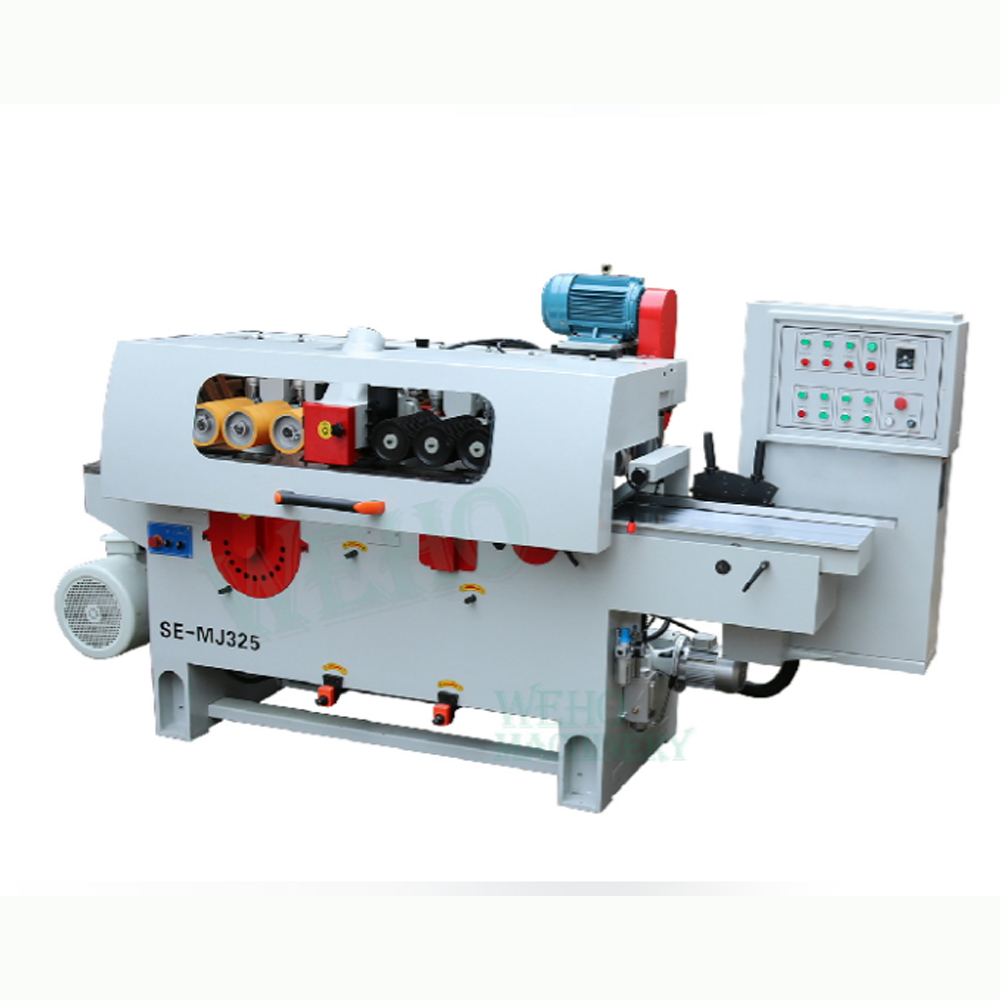

Model:MJ325
Max working width:300mm
Max working thicknes:100mm
Down planning blade:6000rpm
Up planning spindle:7.5kw
Down planning spindle:4kw


Details
Spare Parts
Inquiry

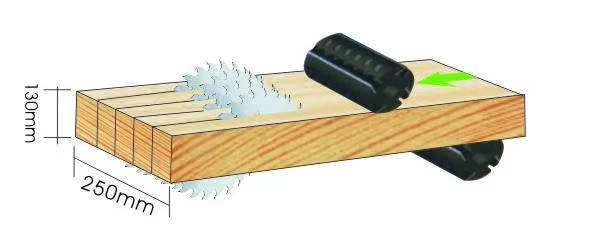

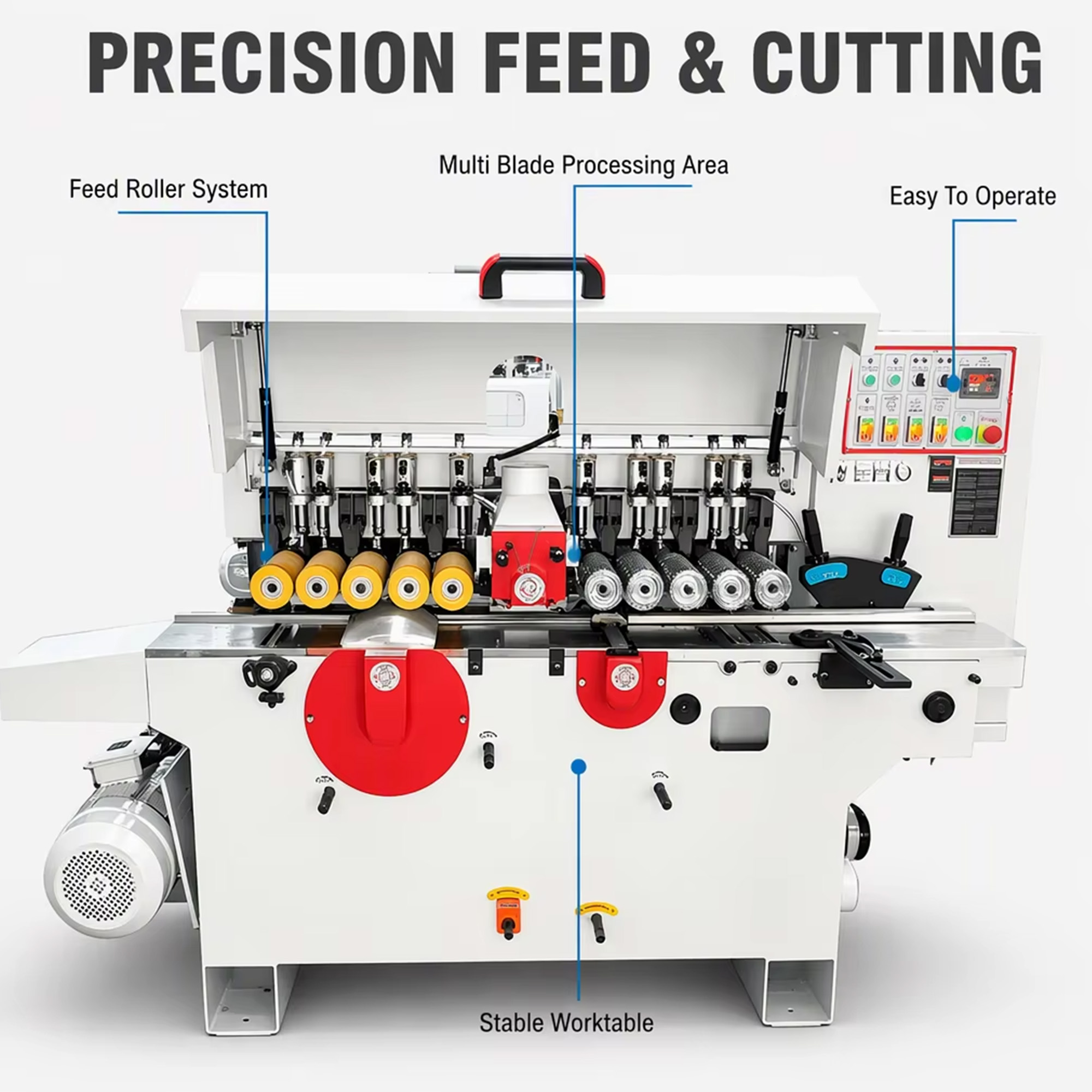

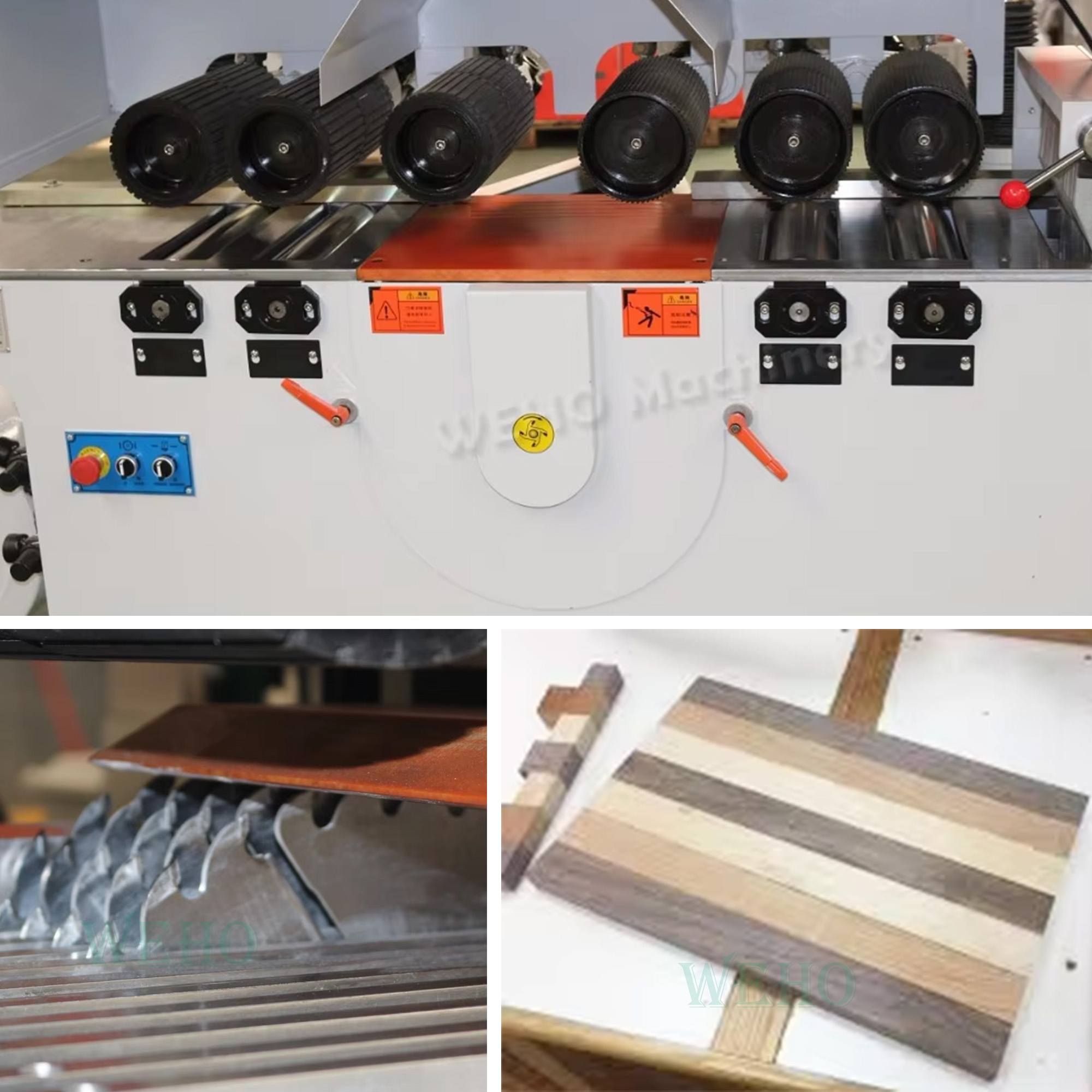

Automatic multiple rip saw machine  is used to cut strips from sheets of wood, plywood,  pressed boards, press board, fiberglass, densified wood or insulation sheets.We get multiple strips from a single pass as the Multiple Rip Saw uses multiple carbide tipped special saws to cut sheet into separate strips of required width.
Max working width 250mm
Max working thickness 80mm
Feeding speed 4-18m/min
Saw the largest diameter 300mm
Saw spindle motor power 22kw
Saw shaft speed 4500r/min
Gas source pressure 0.6mpa
Knife shaft speed 6000r/min
Knife shaft diamter 125mm
Upper and lower cutter motor power 7.5kw/5.5kw
Saw shaft diameter 50mm
Saw shaft keywa 16*5mm
Saw shaft speed 4000r/min
Lift shaft power saw 0.55kw
Motor transportation system 3kw

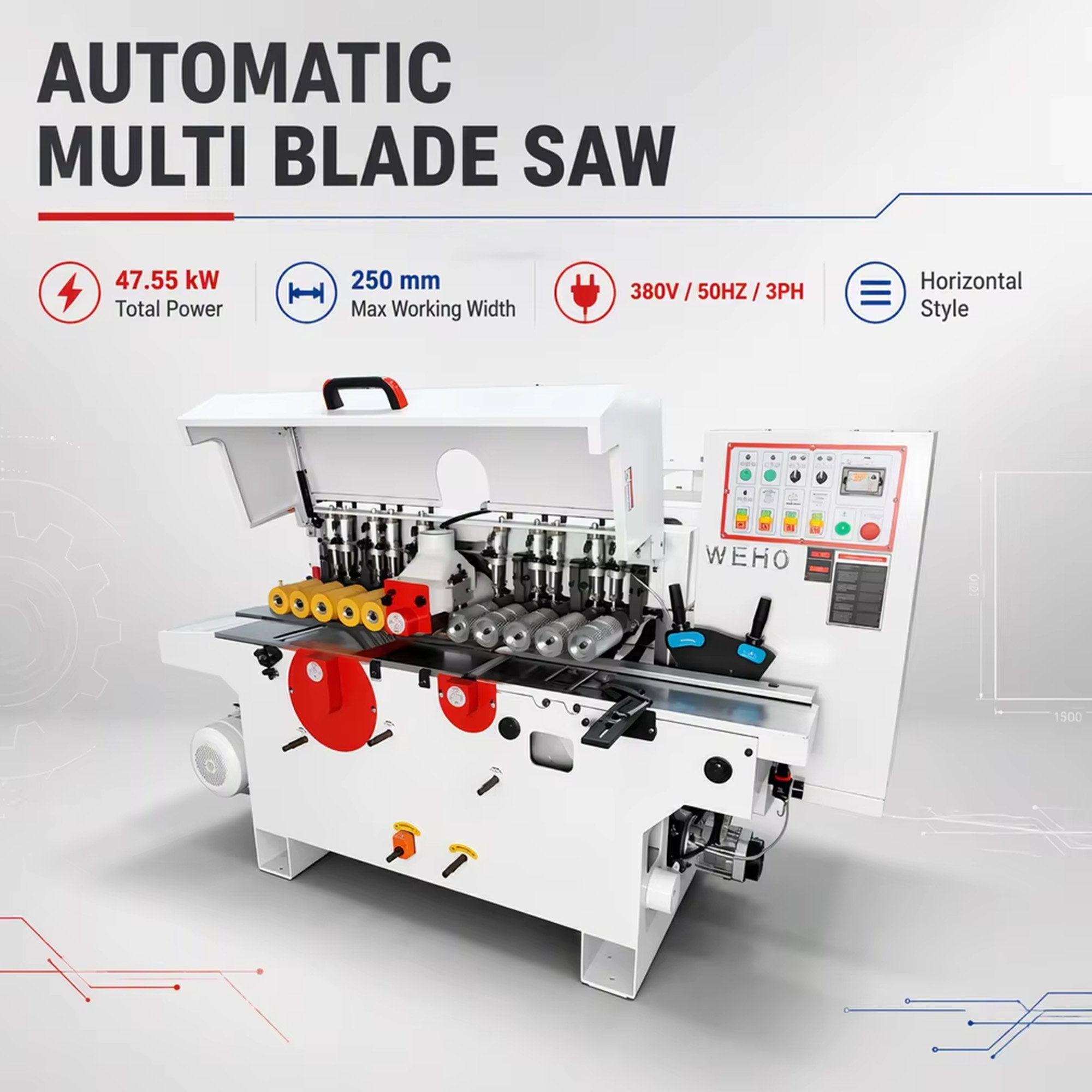

Total power 47.55kw
Overall dimensions 3350*1300*1650mm

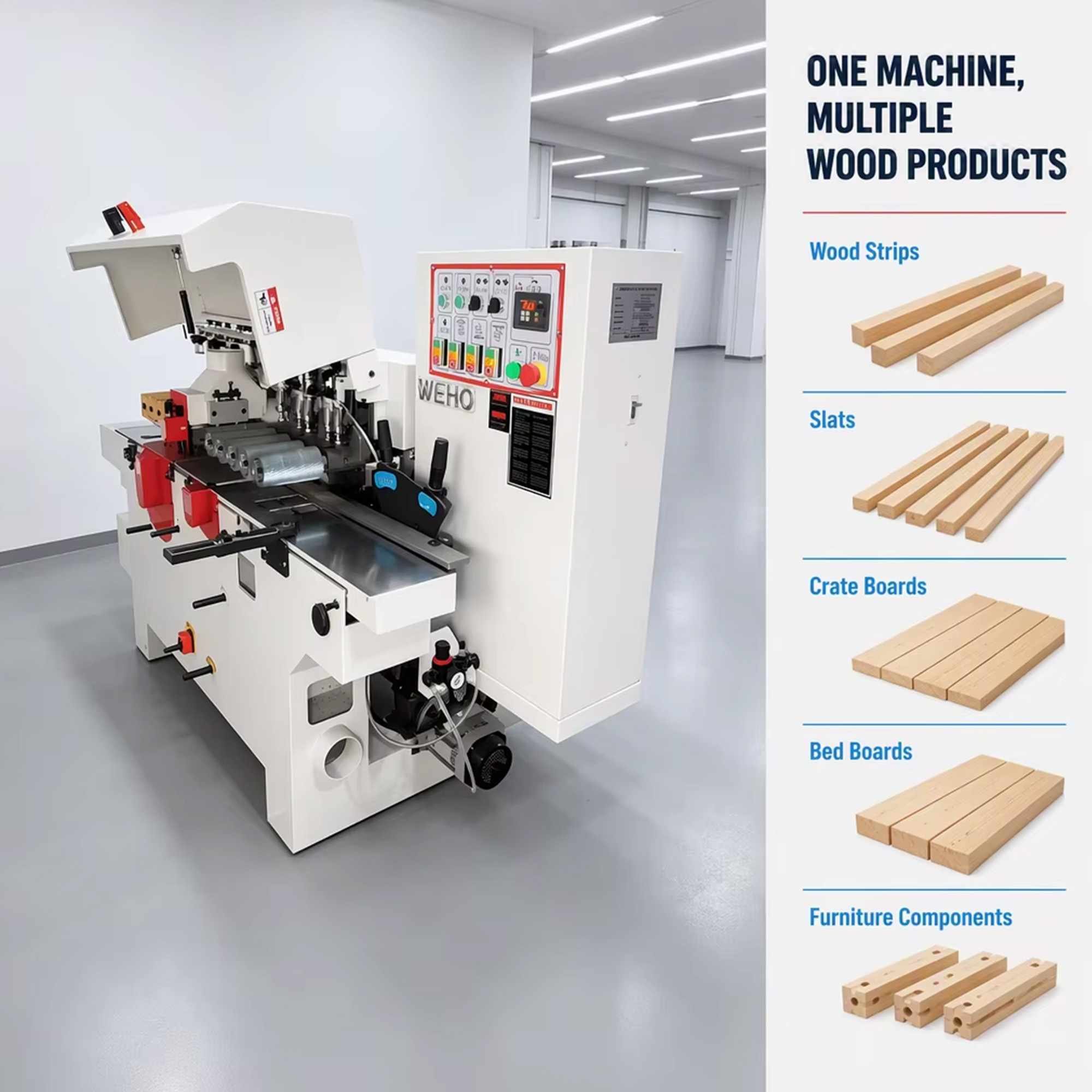

It is necessory equipment for timber cutting, national wood furniture such bed, sofa, chairs processing.

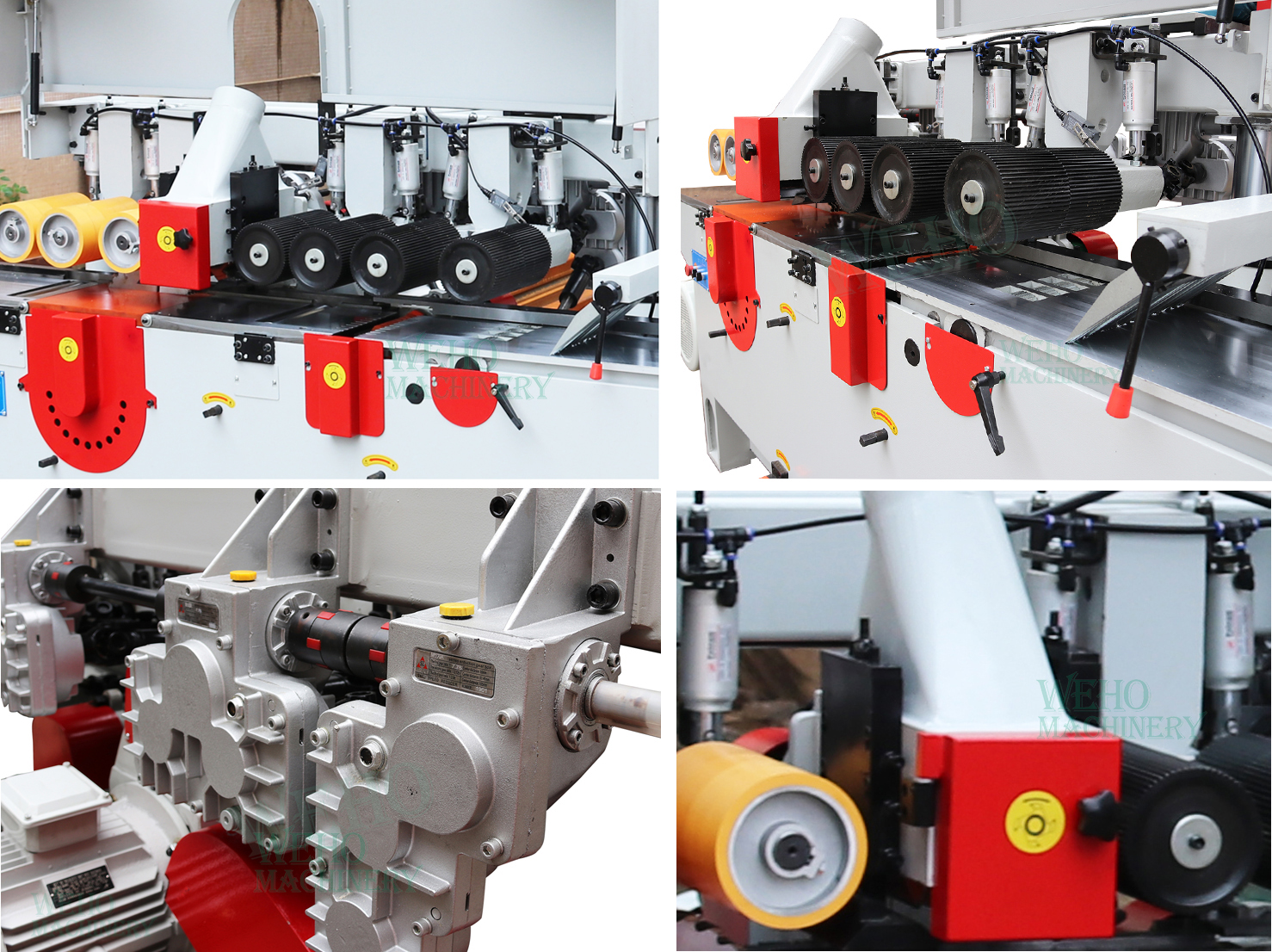

Max cutting width to 400mm, suitable for most lines timber cutting. feeding material parts designed with prevent springback.




We have up-down multiple saw blade, or all down multiple saw blade for wood strips cutting.





[]
