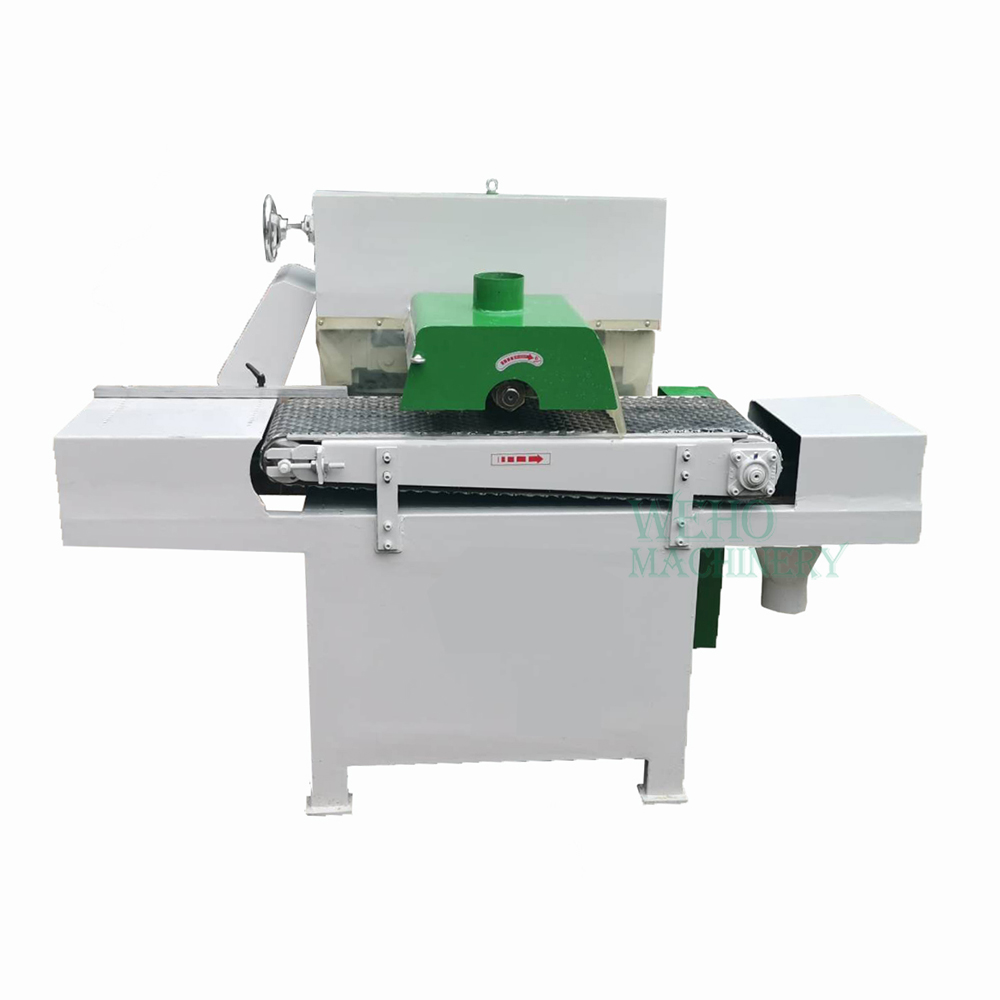

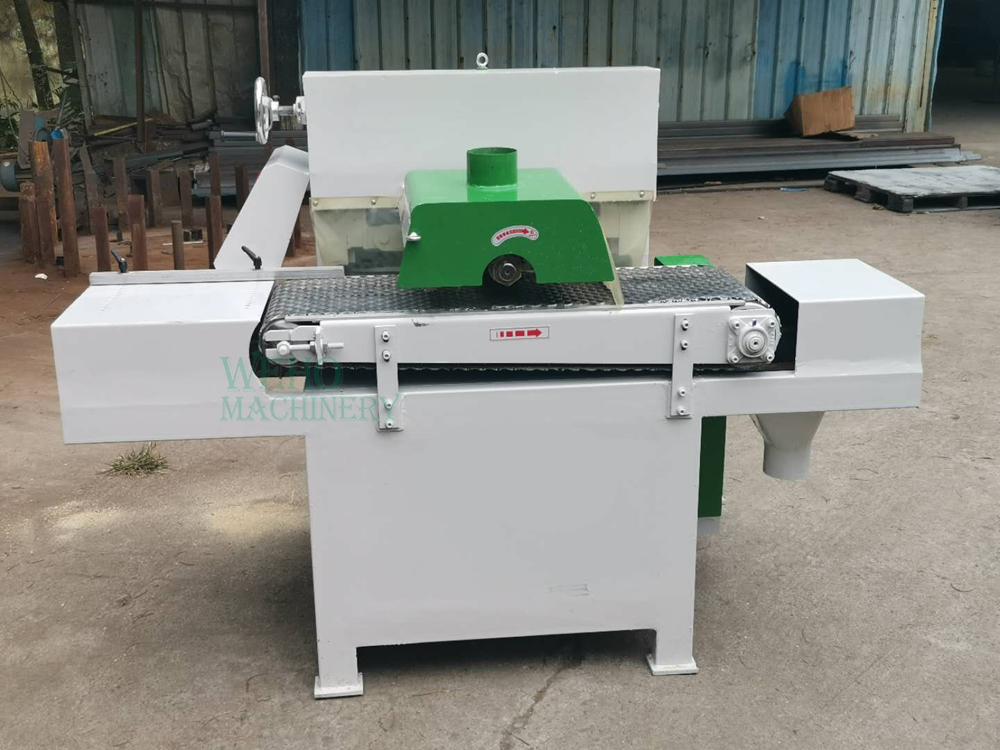

Wood multi blade rip saw machine for plywood cutting prefinished parquet walls and ceilings | Multi Blade Saw
Wood multi blade rip saw machine for plywood cutting prefinished parquet walls and ceilings | Multi Blade Saw

Wood multi blade rip saw machine for plywood cutting prefinished parquet walls and ceilings | Multi Blade Saw


Circular saw blade dia:200mm
Cutting sheet width:10-600mm
Feeding motor:0.37kw
Weight:500KG


Details
Spare Parts
Inquiry


The main function of multi-blade sawing machine is cutting wood board to sized sheet pieces.
Multi-blade rip saw safe and simple operation, saw shaft has precise machining, make the whole machine work more stable and smooth, ensure the sheet after cutting are smoothness and precise straightness.

Name Multi saw blade cutting
Raw material Wood panel honey comb board
Main spindle dia 50mm
Feeding speed 0-20m/min
circular saw blade dia 200mm
Cutting sheet width 10-600mm
Feeding motor 0.37kw
Voltage 380V or 220V
Weight 500KG

The automatic multi rip saw compose of mechanical automatic feeding, front and rear pushing material cylinder parts, height detecting parts, automatic pressing parts, saw blade adjustment parts, PLC control system and liquid crystal touch screen are optional.The process of cutting wood with automatic feeding, multi-saw cutting, continuous discharging, its production efficiency is very highmulti-blade rip saw machine.

Multi-blade rip saw Main Features:

1.Humanized design of working platform, easy and smooth feeding.

2.It can process long, broken, thin, thick and other types of plates.

3.The worktable is equipped with front and rear active feed rollers to facilitate feeding and reduce work intensity plywood multi rip saw.

4.Fast speed, stable feeding, high spindle speed, smooth saw blade, long service life.

5.Fully enclosed safety guard, safe and environmentally friendly,dust protection and environmental protection device .
