Wooden door design making wood cnc router machine
Wooden door design making wood cnc router machine

Wooden door design making wood cnc router machine


Model:MS1325-4
Spindle rptating speed:18000rpm
Power:30kw
Working size:1240*2460mm
Weight (KG):1400


Details
Spare Parts
Inquiry

1) Designed for customized furniture, panel-type furniture,  customized closet cabinet production, it has cutting, drilling, grooving and other processing functions,  improves efficiency, save material and labor.
2)-Simple operation: installed with automatic typesetting software, simply enter sheet size to automatically optimize the layout, workers can easily operating this machine after 3-5 hours training.
3) Machine frame is heat treated after welding to remove any welding stress or tension.
4) Safety light sensor system using three light beams protecting the operator standing at the front of the machine and 1800mm high safety fences at both ends and across the rear of the machine.

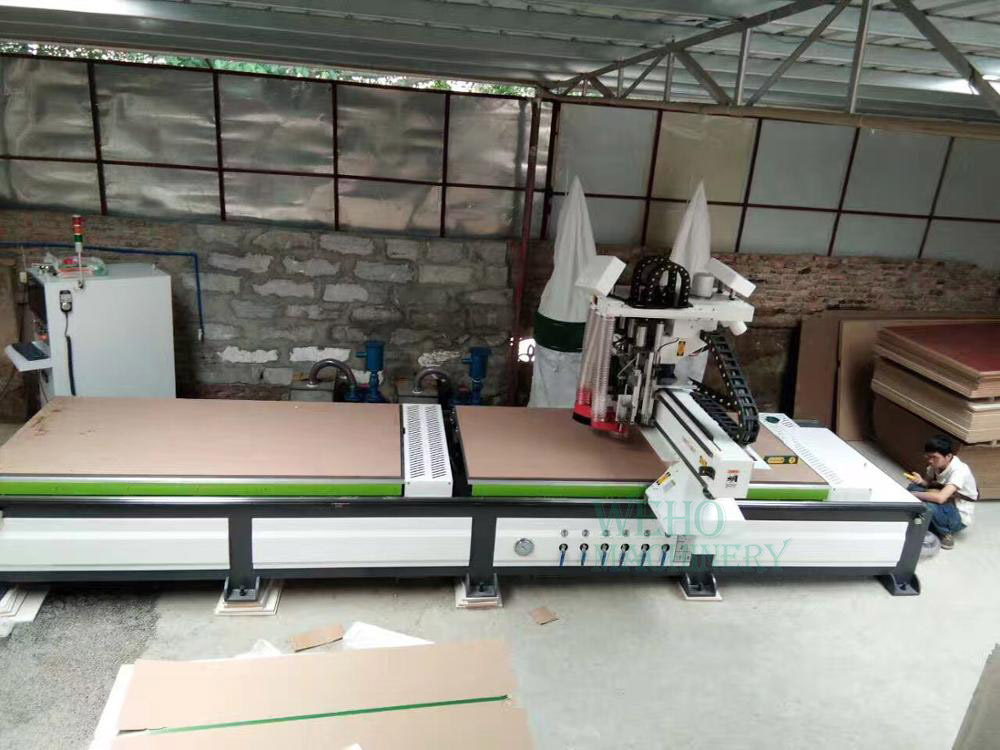

Wood cnc router machine


Engine
Motor
Kw / HP
24

SPindle rotating speed
rpm
18000

working size
mm
1240*2460

working speed
unloading traveling speed
m/min
bigger than 25

loading travelling speed
m/min
8-12

water pump box material
/
stainless steel

Machine overall
Water pump
kw
5.5

Total power
Kw
30

machine size
mm
3800x2600x2400
Heat treated and stress relieved heavy duty steel frame.Optional Syntec PC controller  with large screen controller in free standing air conditioned control cabine

High density material vacuum table with four vacuum zones.One large 7.5kw water vacuum pump rated at 250m³/h.

Precision ground 30mm imported optional Germany linear guide rails or Taiwan Guide rails attached to the side of the machine frame, with automatic lubricating  bearing blocks to guarantee smooth travel of the gantry.
SHIMPO reducer made in Japan optional,Plant reducer made in China is famous and good quality.Functions: Cut shape, design, milling or holes.

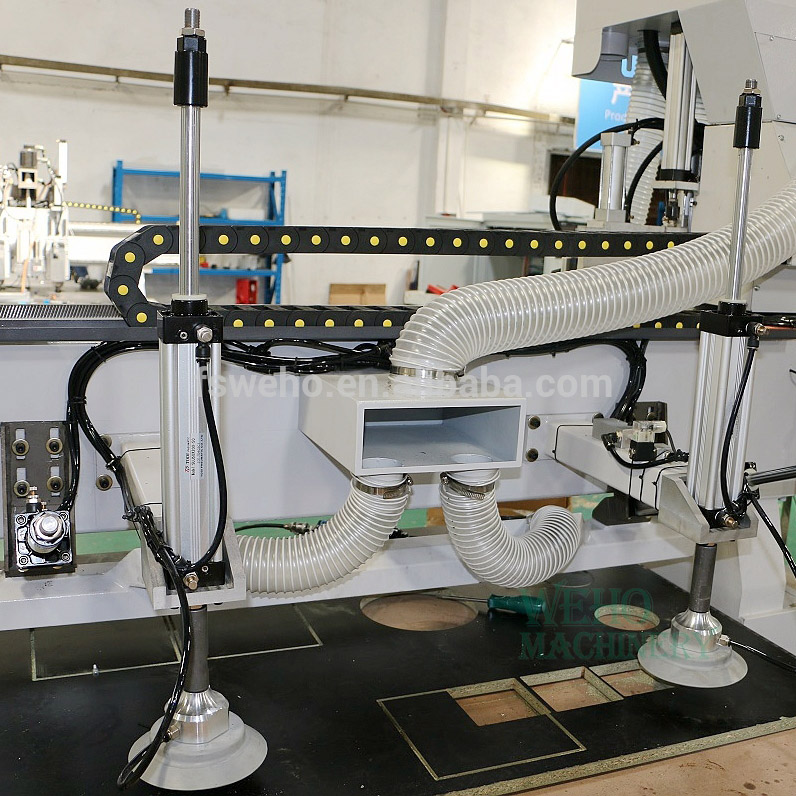

 Feeding table: Feeding table has wheels to move panel lightly.This machine connect feeding table to be automatic production line.


Wood Cnc Router
[]
