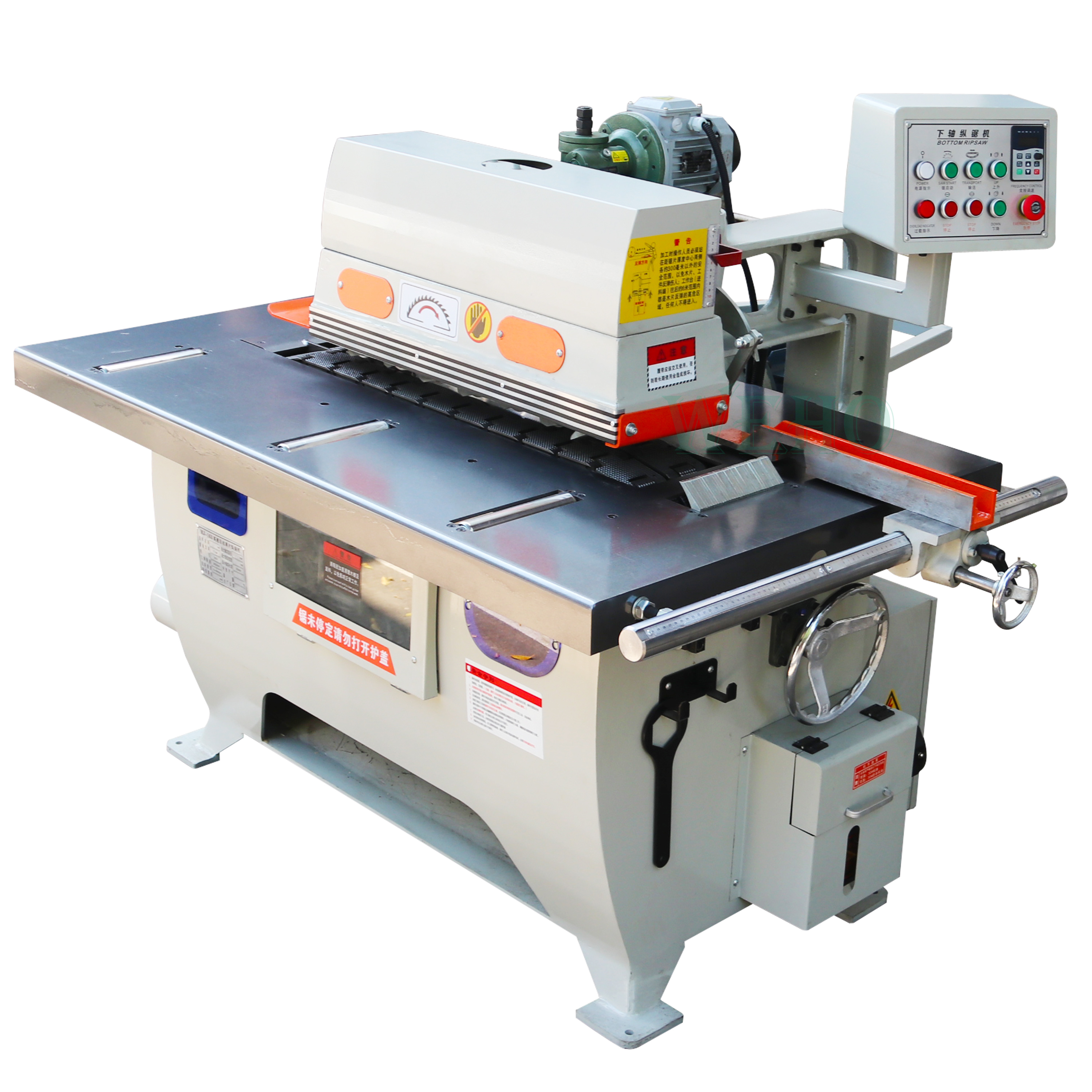

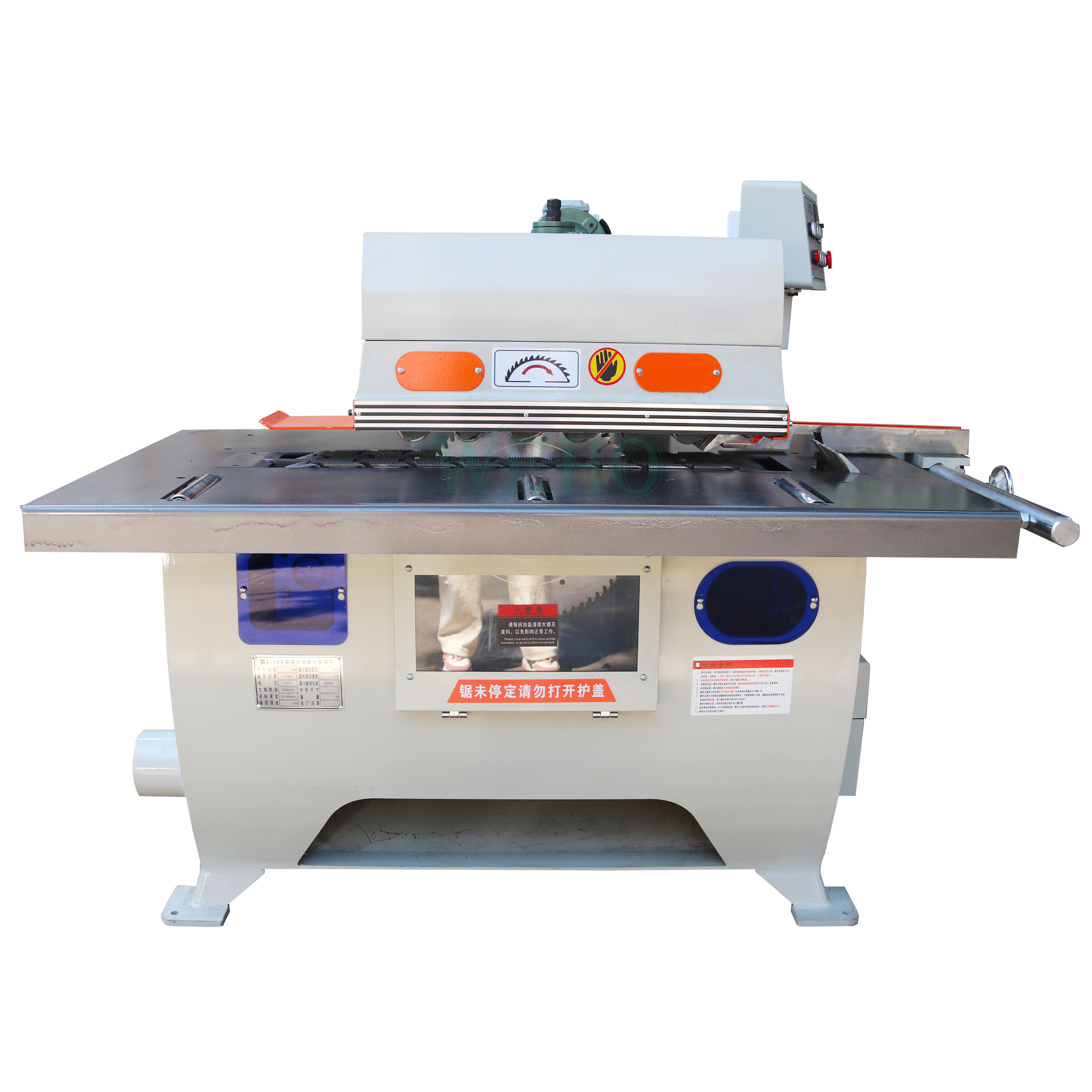

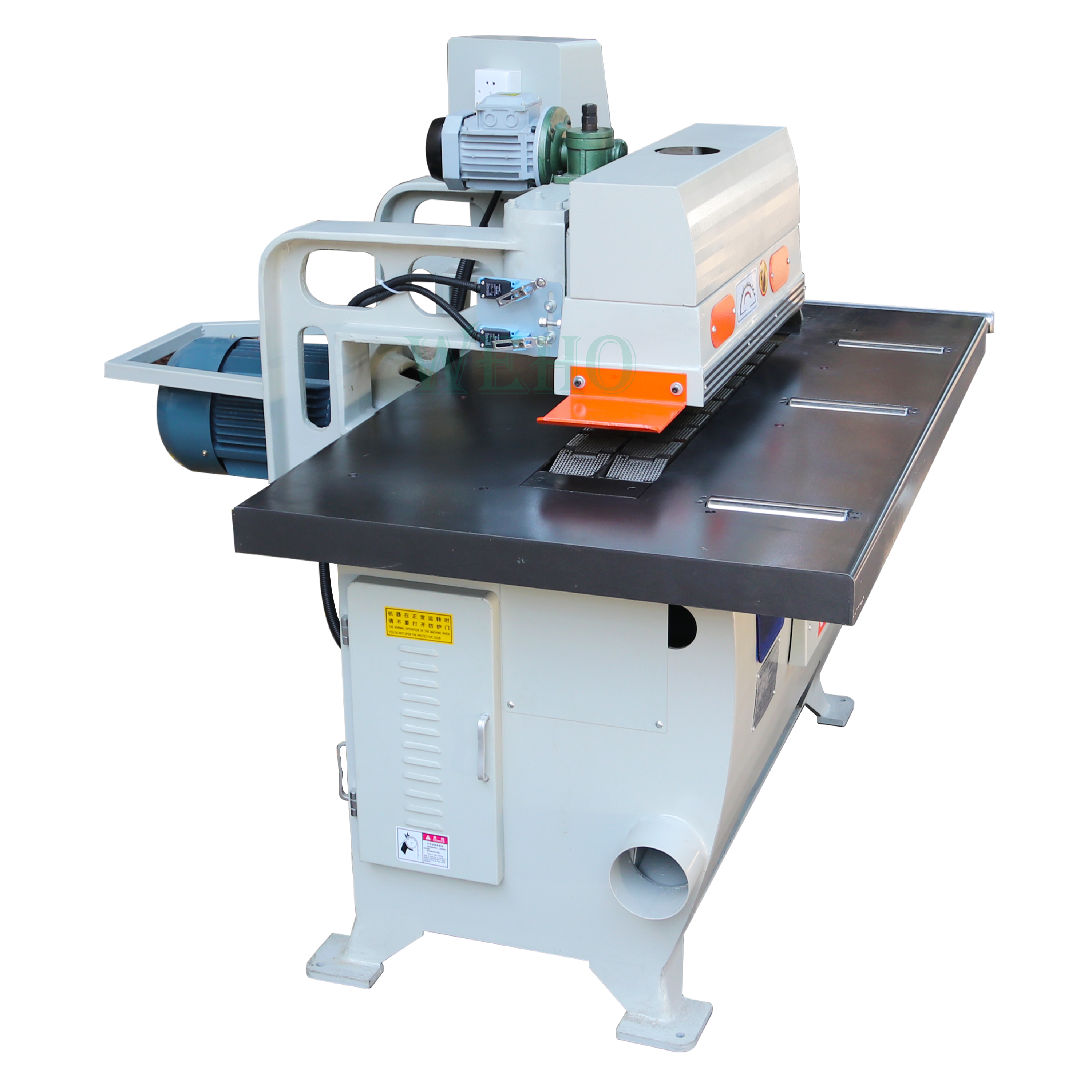

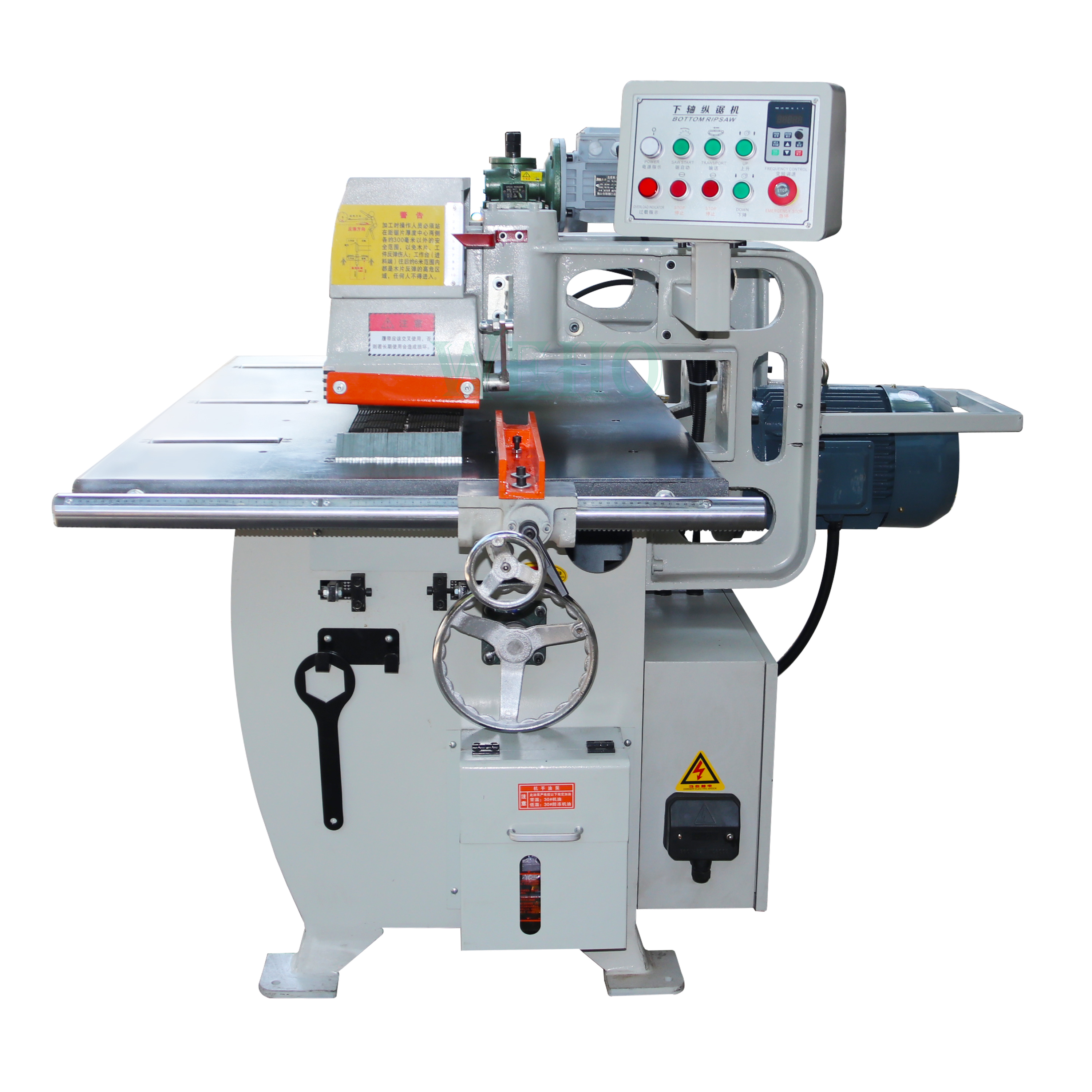

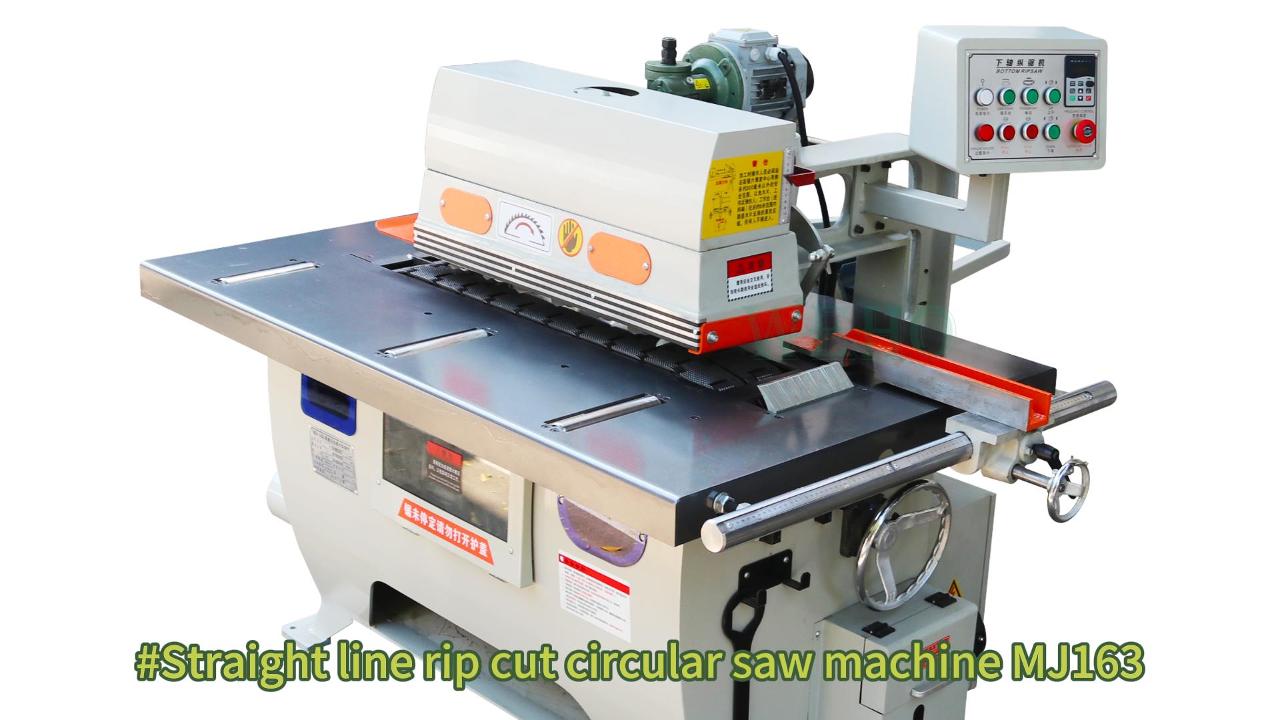

Woodworking automatic 3ripsaw straight circular single line rip saw machine for sale
Woodworking automatic 3ripsaw straight circular single line rip saw machine for sale

Woodworking automatic 3ripsaw straight circular single line rip saw machine for sale

Model:MJ163
Max.Working Width(mm):150mm
Max.Working Height(mm):105
Feeding speed:14-20-30m/min
Total power of machine tool:12.2kw
Contact Us Send Inquiry
Details
Spare Parts
Inquiry
Rip saw is a wood saw that is specially designed for making a rip cut, a cut made parallel to the direction of the wood grain.Its main use is for high-precision wood processing such as solid wood cutting, jigsaw, seaming, trimming, sawing and planning.
Name Woodworking machine automatic wood cutting single rip saw machine
Modle MJ163
Maximum sawing thickness 105mm 80mm larger than normal
Minimum sawing length 150mm 300 mm less than normal
Deep throat 470mm
Spindle speed 2880r/min
Feeding speed 14-20-30m/min Automatic and manual speed regulation coexist
Diameter of saw shaft 50.8mm
Blade size ￠405×￠50.8×5×70T(or￠350×￠50.8×3.2×70T)
Total power of machine tool 12.2kw
Main saw motor 10kw
Feeding motor 2.2kw Self developed multi speed motor
Lifting mode of pressure box Electric, manual
Lifting mode of saw blade Manually adjustable
Feed speed adjustment Automatic, manual
Treatment of sawdust on feeding track automatic
Ash hopper chip treatment With automatic crushing
Table size 1700×1000mm
Diameter of suction port φ150×1mm
Empty size in packing 1900×1400×1290mm
Machine weight 1000kg

The fuselage table is lengthened; the thickness of the table is 15mm high-quality steel plate, which is lengthened by the ruler. The track shifting mechanism adopts high-precision stepless speed change; it is highly user-friendly in circuit design. When the machine tool is not in use, the track automatically stops running, and the loading automatically resumes operation, which extends the life of the chain.

Unique guide fence of Straight line rip saw machine is able to be used at both sides, preventing the chain plate and guide rail from wearing anddamaging the precision of the machine.
Standard laser positioning device, reducing waste of woods for the straight line rip saw machine.Micro-processor pump for centralized lubrication, providing oil shortage protection and fully guaranteeing the rip saw machine operation and service life.
 Rip saw machine Frame is made of quality steel welded with special technology. Through special process and precision finishing,superior reliability and precision are achieved.The main shaft is made of high-hardness tool steel material through 8 steps of precision machining.
The spindle of rip saw machine assembly adopts special material through super finishing, precision assembling and dynamically balancing, guaranteeing superior stability and precision.
Configure triple upper and lower anti-bounce devices to ensure safer operation .All major electrical components and transmission bearings are made of international brand components with stable performance.
What is even more remarkable is that the oil pump is used to supply oil to the main shaft and then supply oil to the chain. This reduces the operating temperature of the main shaft and prolongs the life of the main shaft. Emphasis is placed on the interchangeability of the complete set of spindles, which will bring better convenience to future maintenance and replacement.
[]
