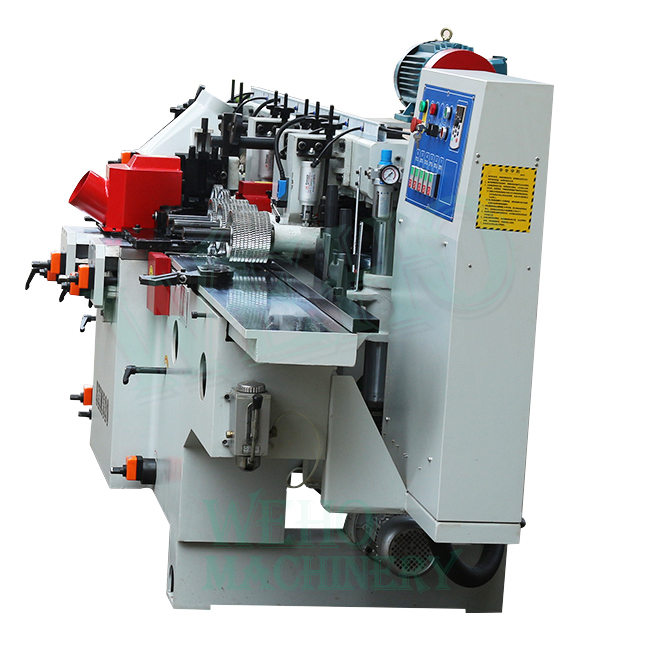

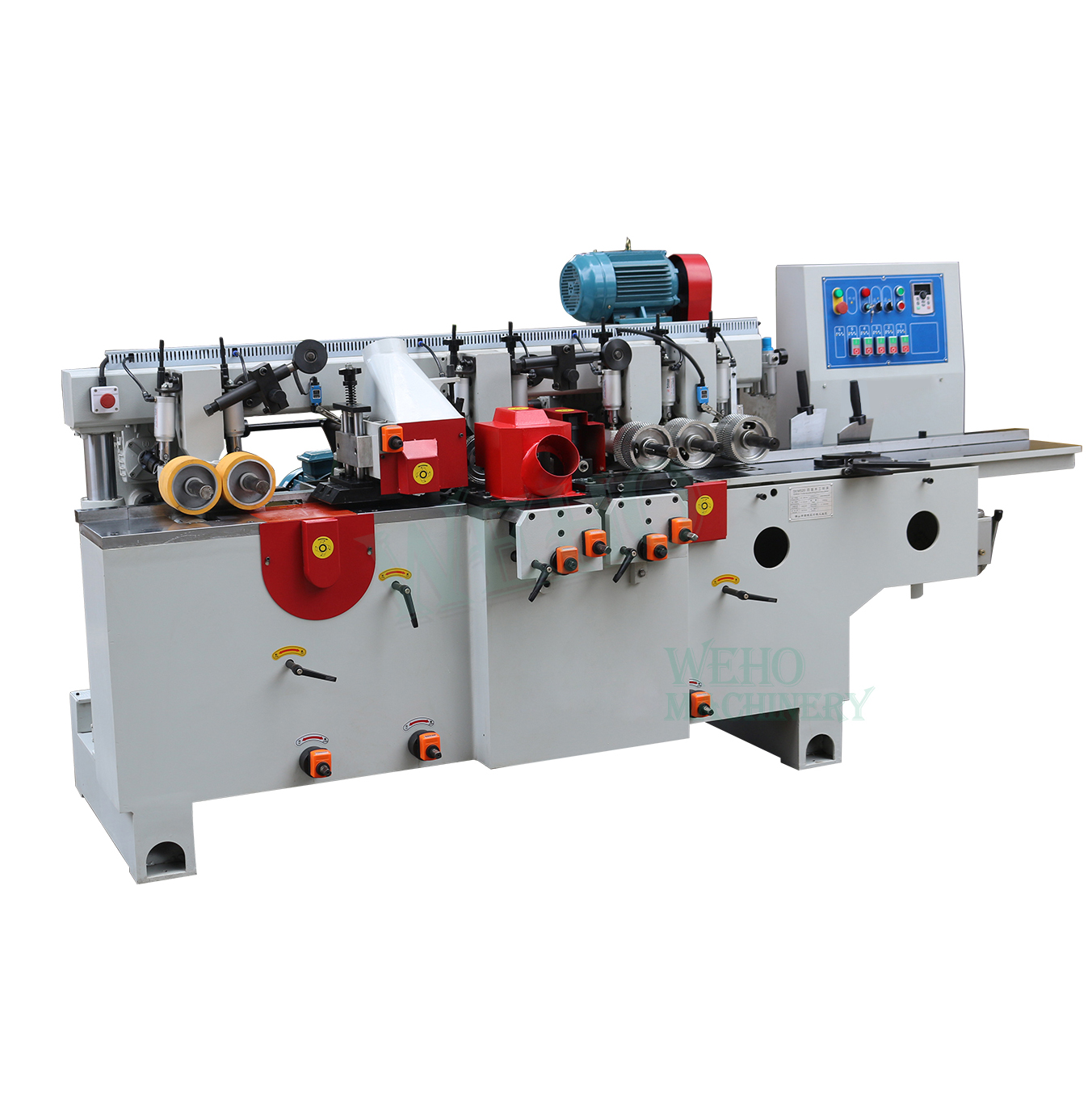

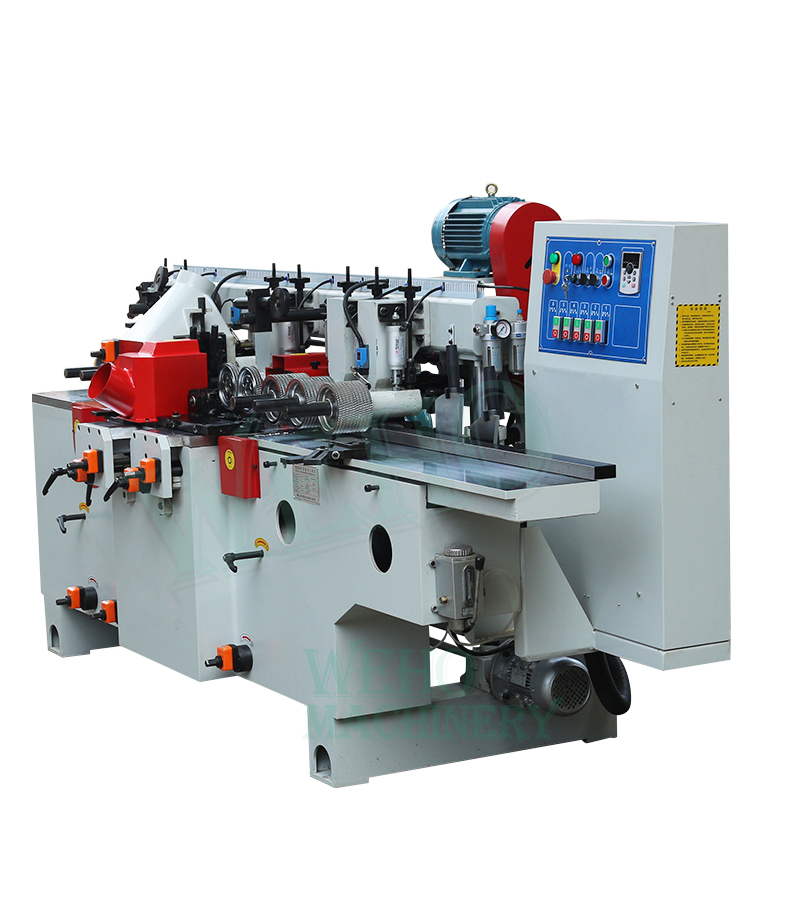

Woodworking four sided wood planing moulder machine 4 side cutting planer for sale | Four Sided Planing Machine
Model:MB520
Processing width:25-200mm
Processing thickness:8-140mm
Feed speed:6-36m/min
Spindle speed:6500r/min
Dimension(L*W*H):4500 * 900 * 1790mm
Weight (KG):310 KG
Power (kW):34.25
Processing width:25-200mm
Processing thickness:8-140mm
Feed speed:6-36m/min
Spindle speed:6500r/min
Dimension(L*W*H):4500 * 900 * 1790mm
Weight (KG):310 KG
Power (kW):34.25
Details
Spare Parts
Inquiry
Wood cutting and planing molder machine 4 side spindle moulder planer
Heavy duty 4 Side moulder for floor, door and frame processing.
Wood Planer works give you own all the economy and efficiency of excellent performance at a reasonable price.
This moulder has an exclusive differential all cast iron base construction.
For extraordinary precision speed and reliability. This wood 4 side moulder is your best choice.
Heavy duty 4 Side moulder for floor, door and frame processing.
Wood Planer works give you own all the economy and efficiency of excellent performance at a reasonable price.
This moulder has an exclusive differential all cast iron base construction.
For extraordinary precision speed and reliability. This wood 4 side moulder is your best choice.
Processing width | 25-200mm |
Processing thickness | 8-140mm |
Feed speed | 6-36m/min |
Spindle diameter | ø40 |
Spindle speed | 6500r/min |
Air pressure | 0.6Mpa |
First lower axis | 5.5KW/7.5HP |
The first up axis | 7.5KW/10HP |
Right vertical axis | 5.5KW/7.5HP |
Left vertical shaft | 5.5KW/7.5HP |
Second lower shaft | 5.5KW/7.5HP |
Second upper shaft | 5.5KW/7.5HP |
Cross beam lifting | 0.75KW/1HP |
Feeding power | 4KW/5.5HP |
Right vertical axis | ø125-180mm |
Left vertical shaft | ø125-180mm |
First lower axis | ø125mm |
The first axis | ø125-180mm |
Second lower shaft | ø125-200mm |
Total power | 34.25KW/46.51HP |
Manufacturer best industrial sides moulder 4 sided wood planer machineOptional Equipment Increase motor horsepower available is optional
Automatic table lubrication system
CE certification requirements
200mm x 125 mm moulding capacity.
Full coverage sound cover/safety enclosure is optional.
Long infeed table and fence for straightening feeding work pieces.
Cast aluminium motor, has oil Automatic lubrication system, there is display to show oil stock. Pneumatic pressure feed system for easy adjustments. Standard 40 mm spindles for this Industrial wood planer.
High speed cutter heads making wood piece more smoothing Cardan joint drive system with drive shafts and oil bath gear boxes.
Solid heat treated cast iron construction for long life and vibration free performance.
Precision sealed long life high speed bearing.
Industrial full power motor for maximum cutting capacity.
Electrics control are CE approved available.
Replaceable chrome bed plates for easy maintenance. (Older or cheap 4 Side moulder is single table, after long time wearing, you need to change the working table, single table need to discharge cutter spindles. Hard operation and Influence accuracy)
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
[]
