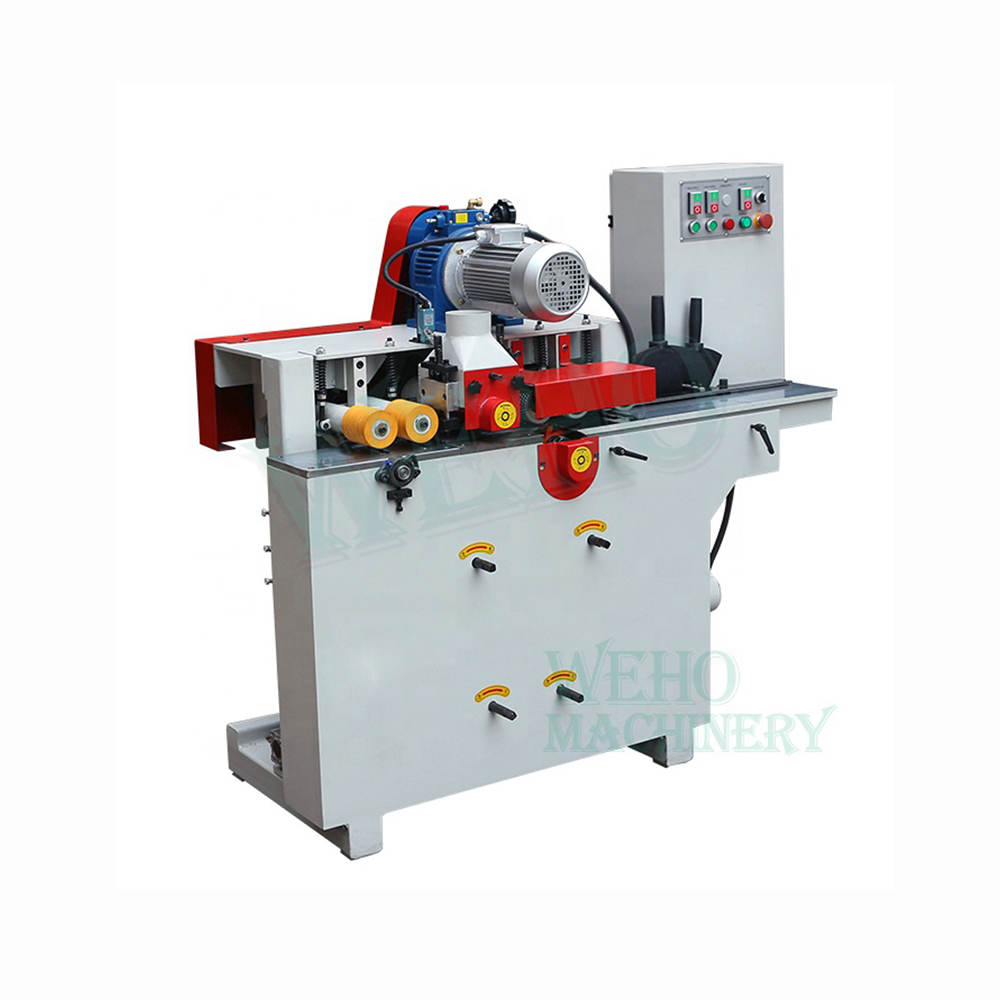

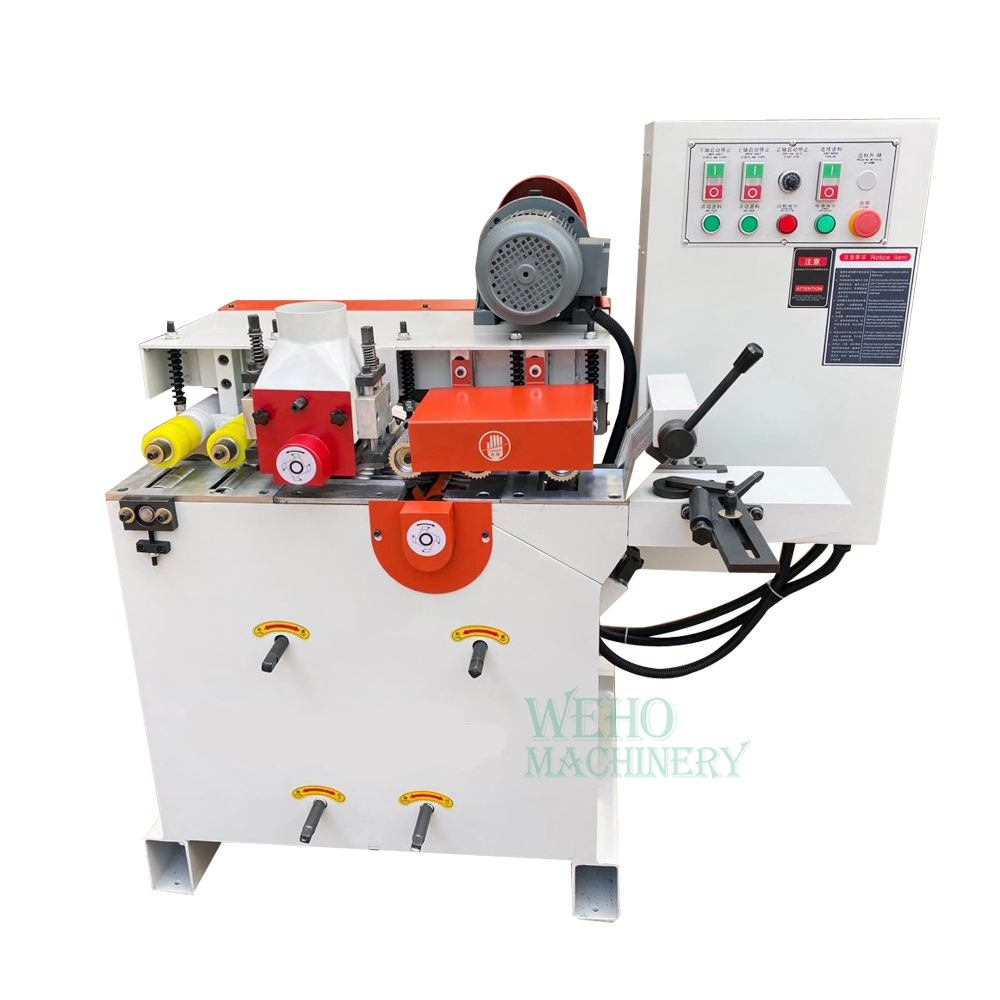

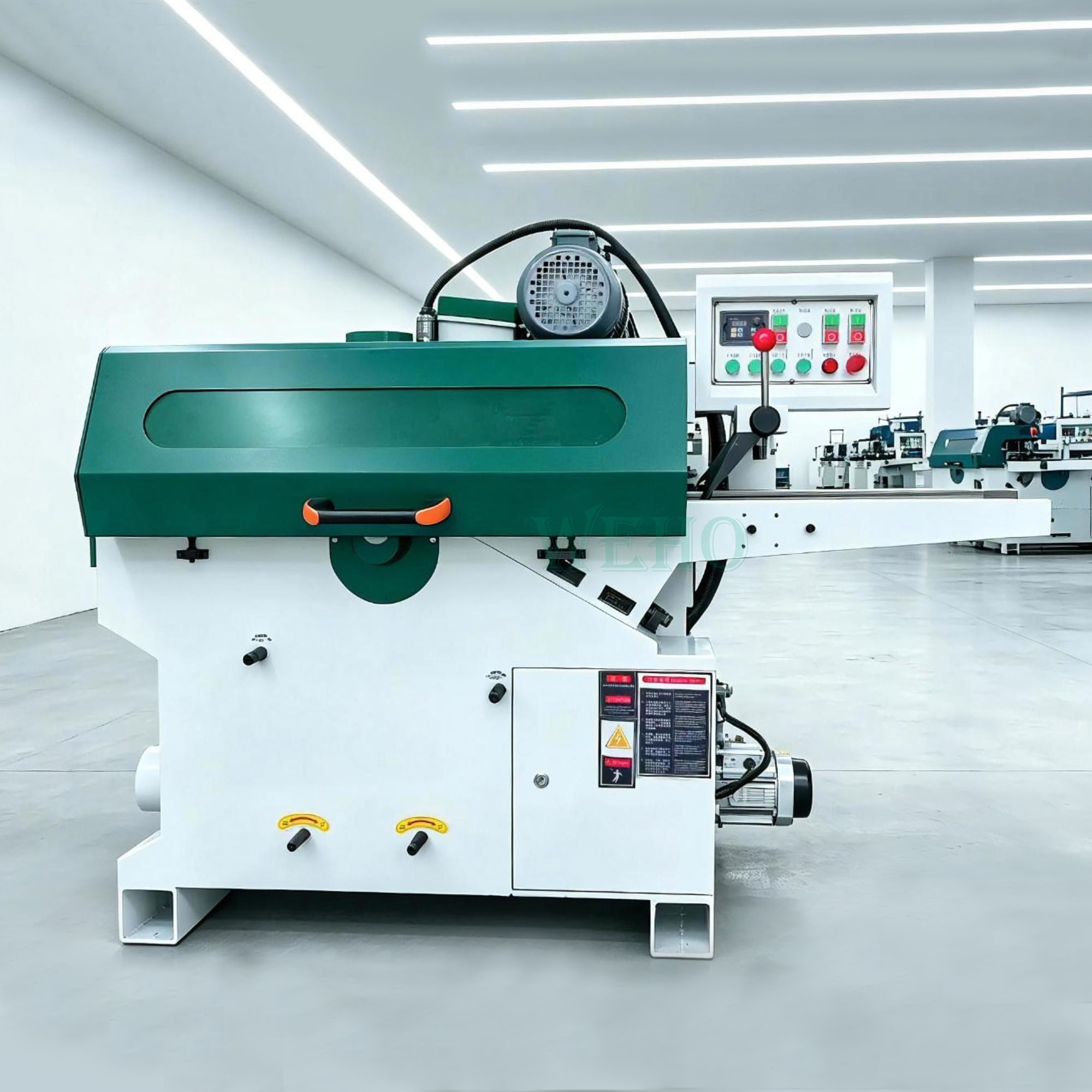

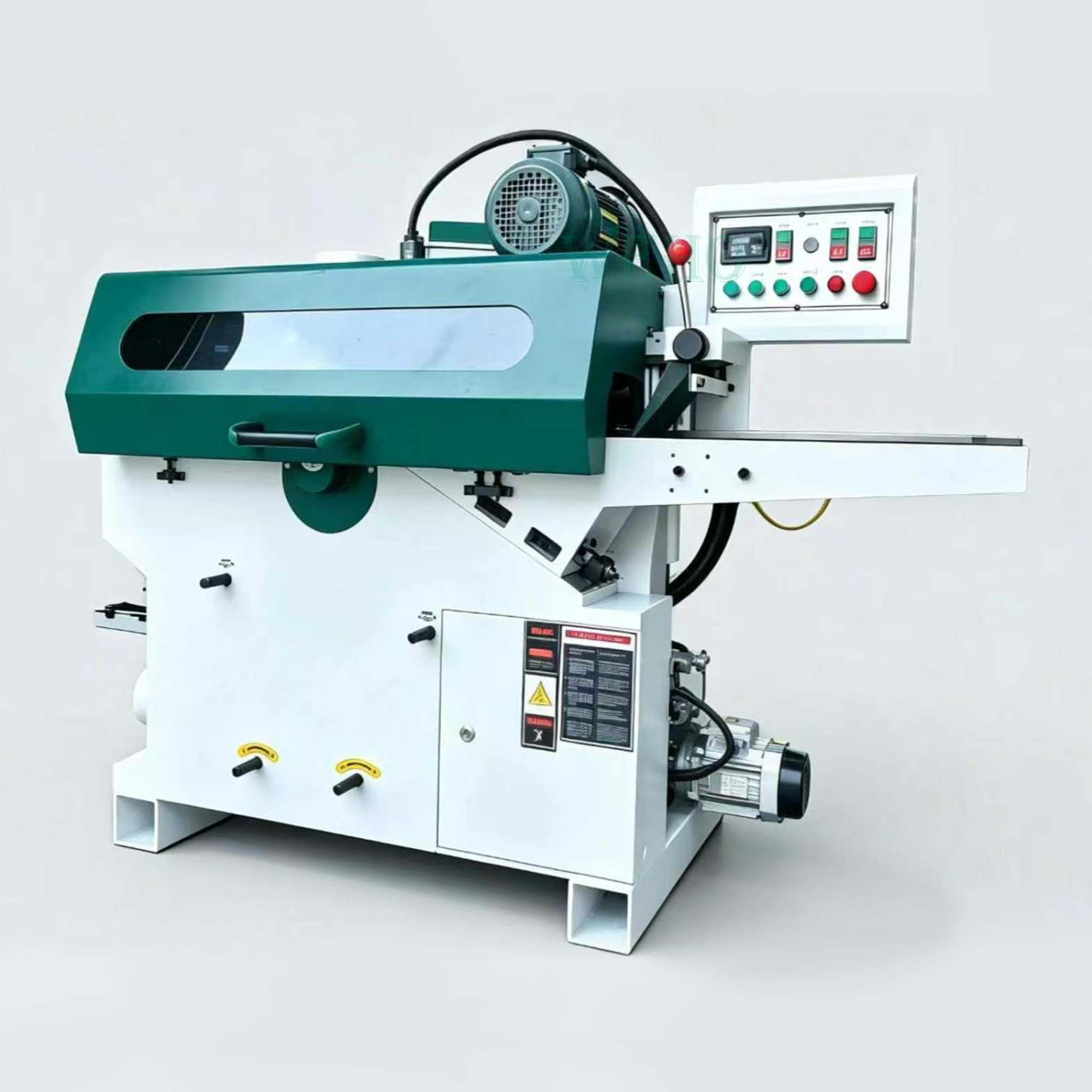

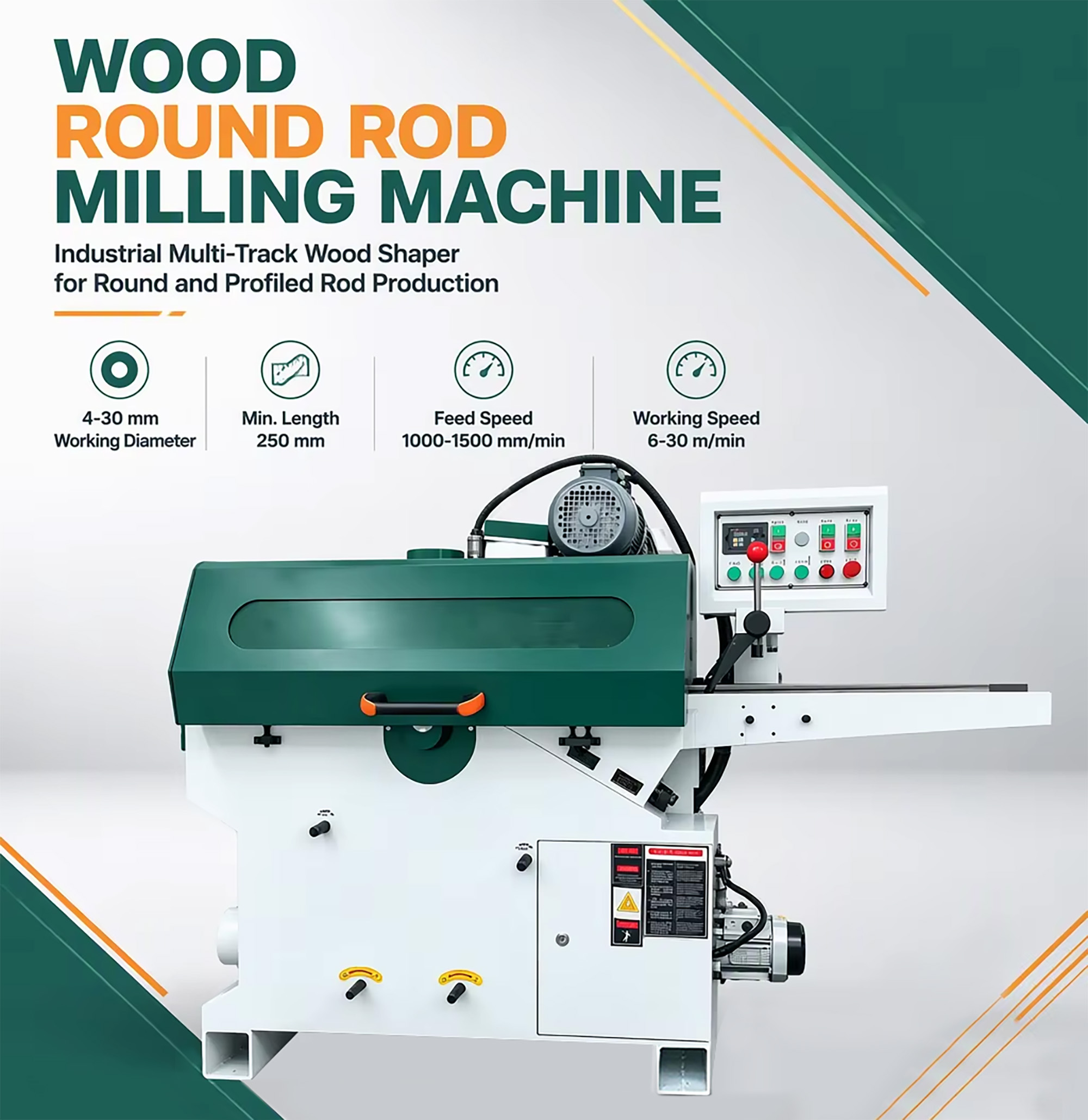

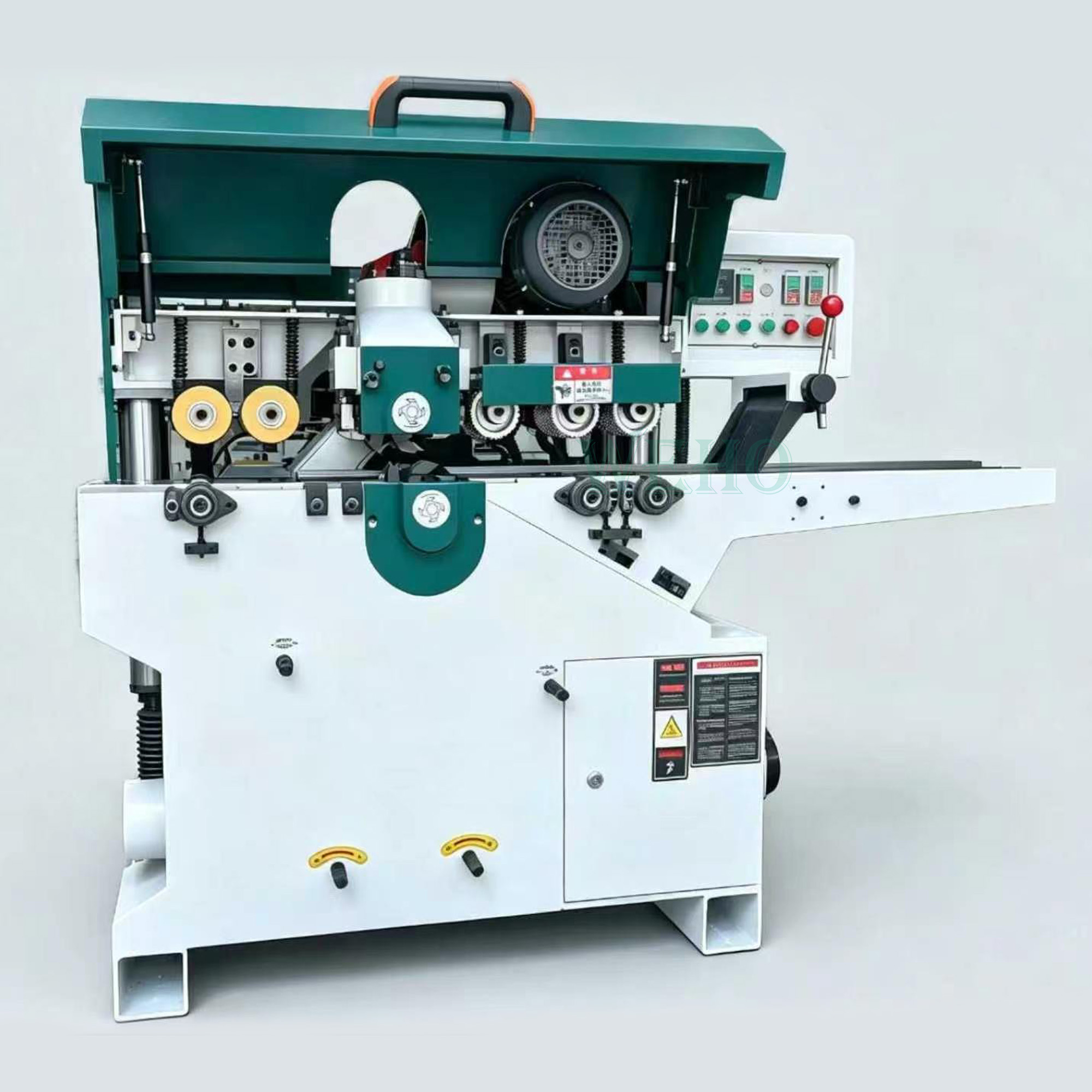

Woodworking round pole machine making mop and wood broom handle | broom handle machine
Working length:250-6000mm

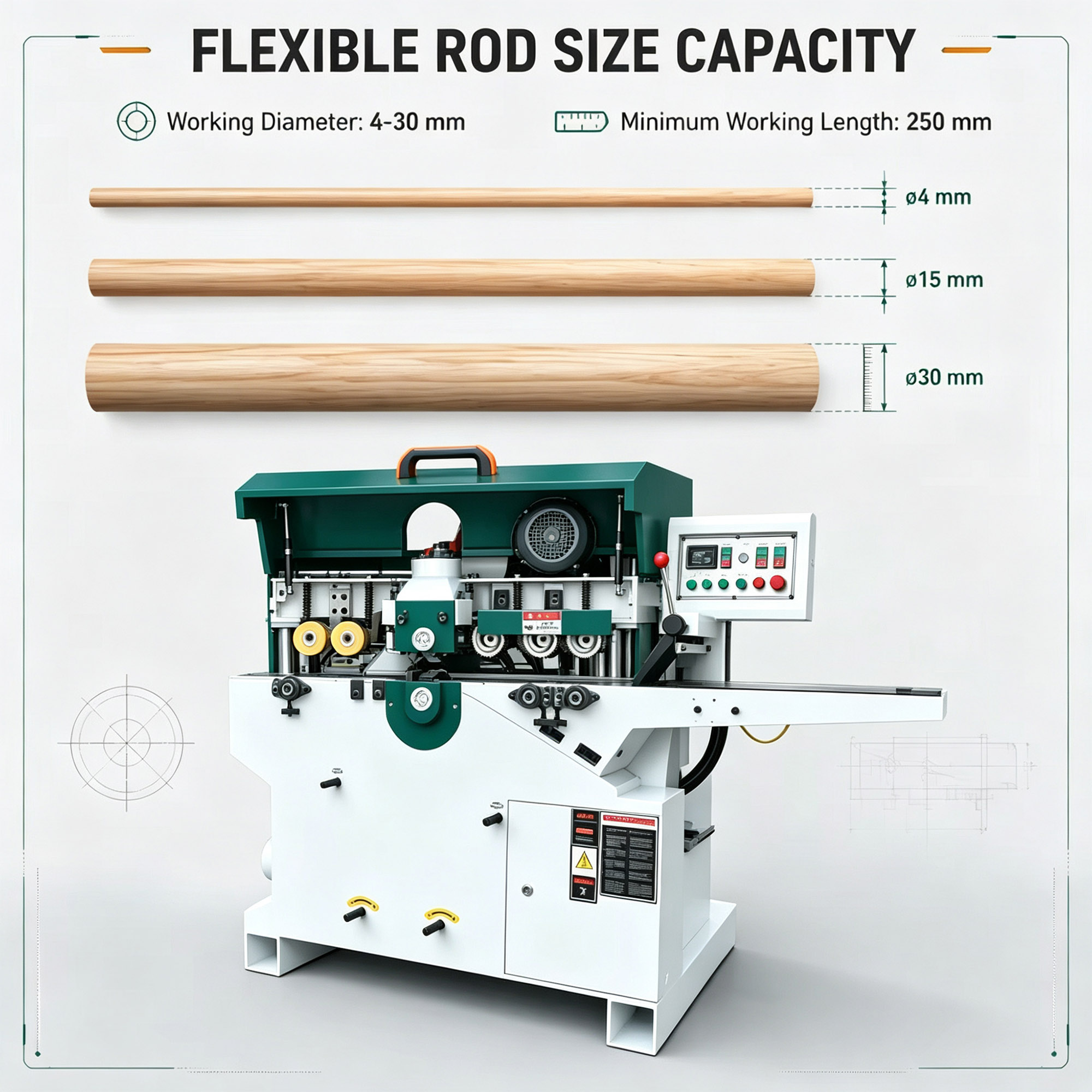

Working width:6-30mm
Main tool Dia:Φ100mm
Power:8.1kw

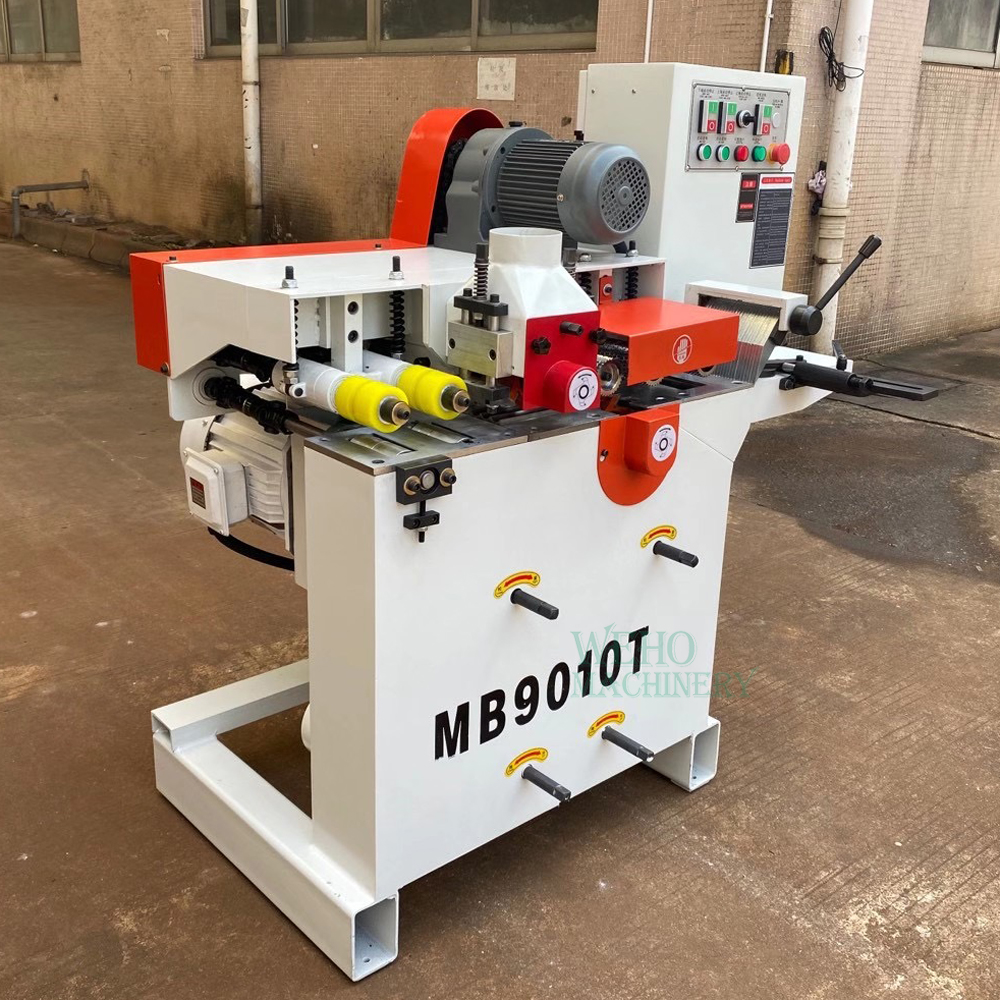

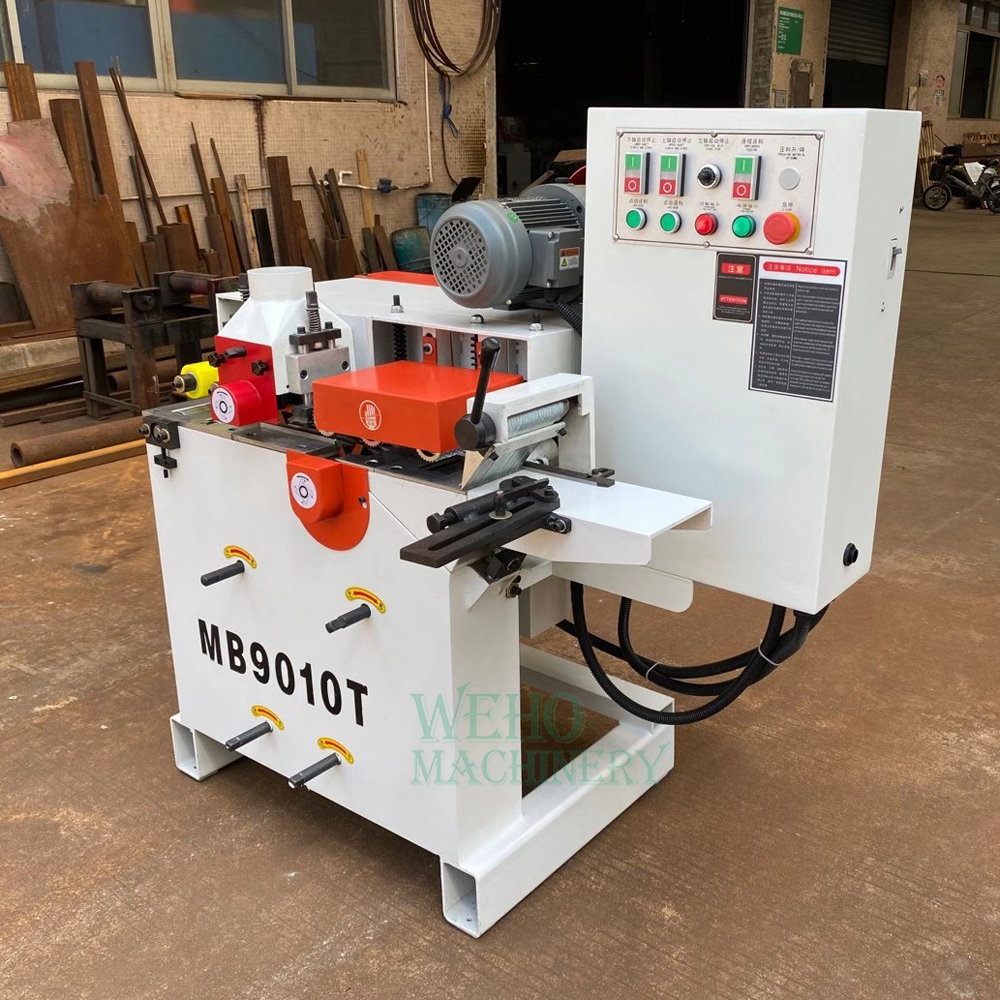

| Model | MB9010T |
| Working length | 250-6000mm |
| Rotary cutting excess stock material | 1 |
| Raw material for plate | 1-6 |
| Working diameter | 6-30mm |
| Feed motor power | 1.1kw |
| Feed speed | 6-30m/min |
| 1st axis motor power | 3kw |
| 2nd axis motor power | 4kw |
| Max tool diameter | φ100mm |
| Tool spindle speed | 8500r/min |
| Extraction outlet size | φ160mm |
| Spindle diameter | φ30mm |
| Total power | 8.1kw |
| Dimension | 1200*800*1300mm |

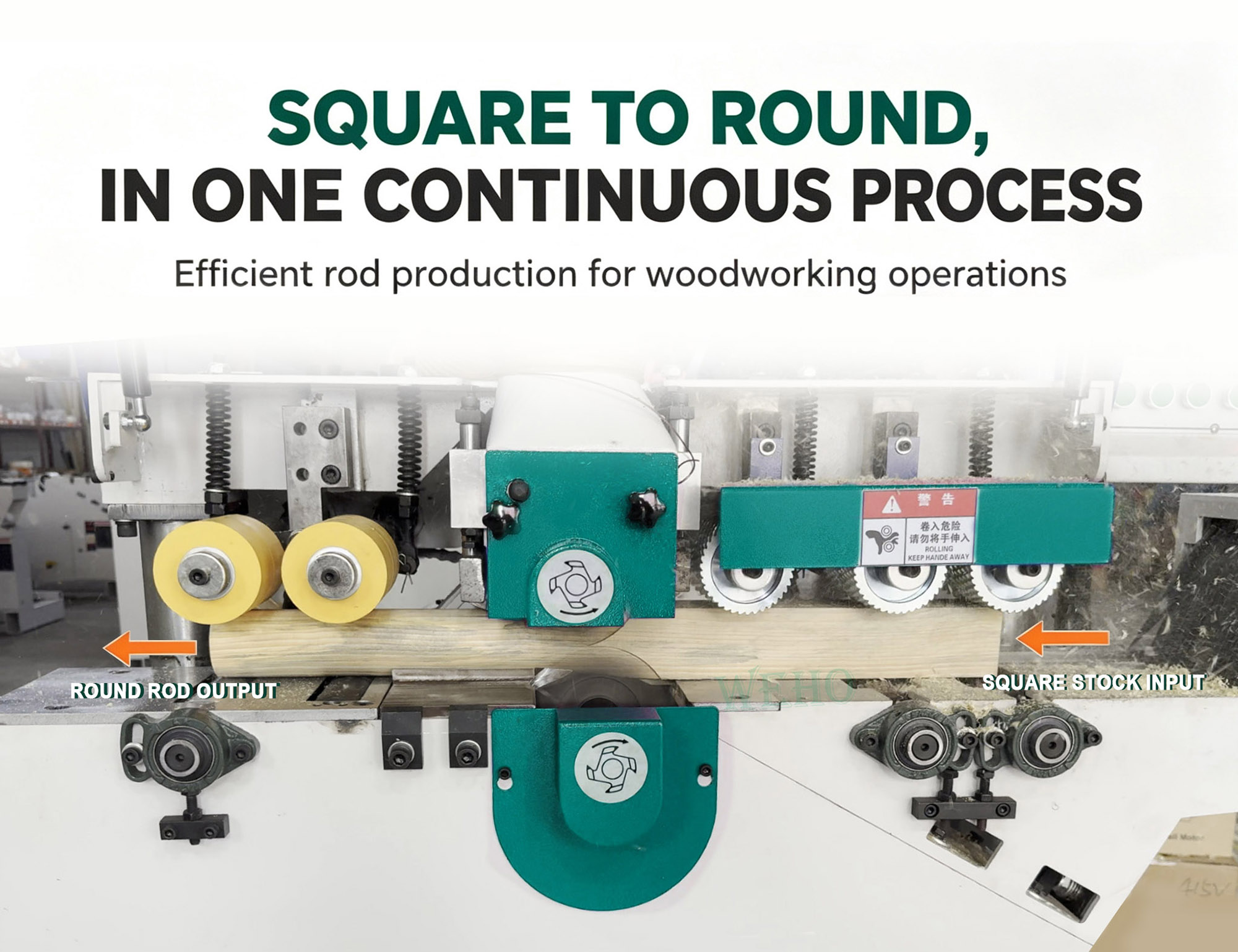

The machine is mainly used for turning wooden sticks, which use double side planer to makes the round rods many pieces one time passing.
Work table
The work table surface was precision ground and then electro chrome plated and polished to a smooth mirror finish. Durable wear resistance surface is easy to clean and maintain.
Cutting tools
The round rod machine can be used to make shaper on top and bottom side as double sides moulder. The raw materials can be square or round, and other types of round bars can be customized.(Processing 4-150mm diameter range.)The finished round rods with tapered ta[ers are esaier to insatll on tools such sa shovel and hoe.

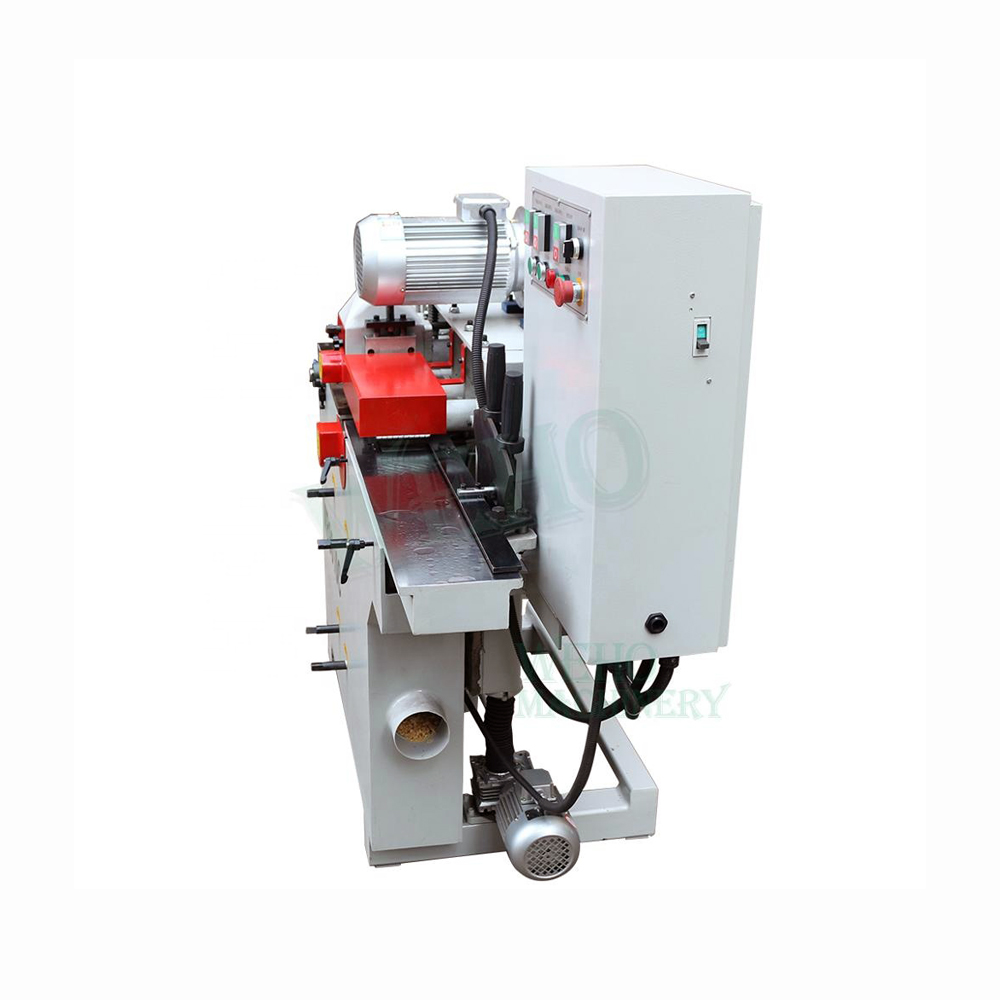

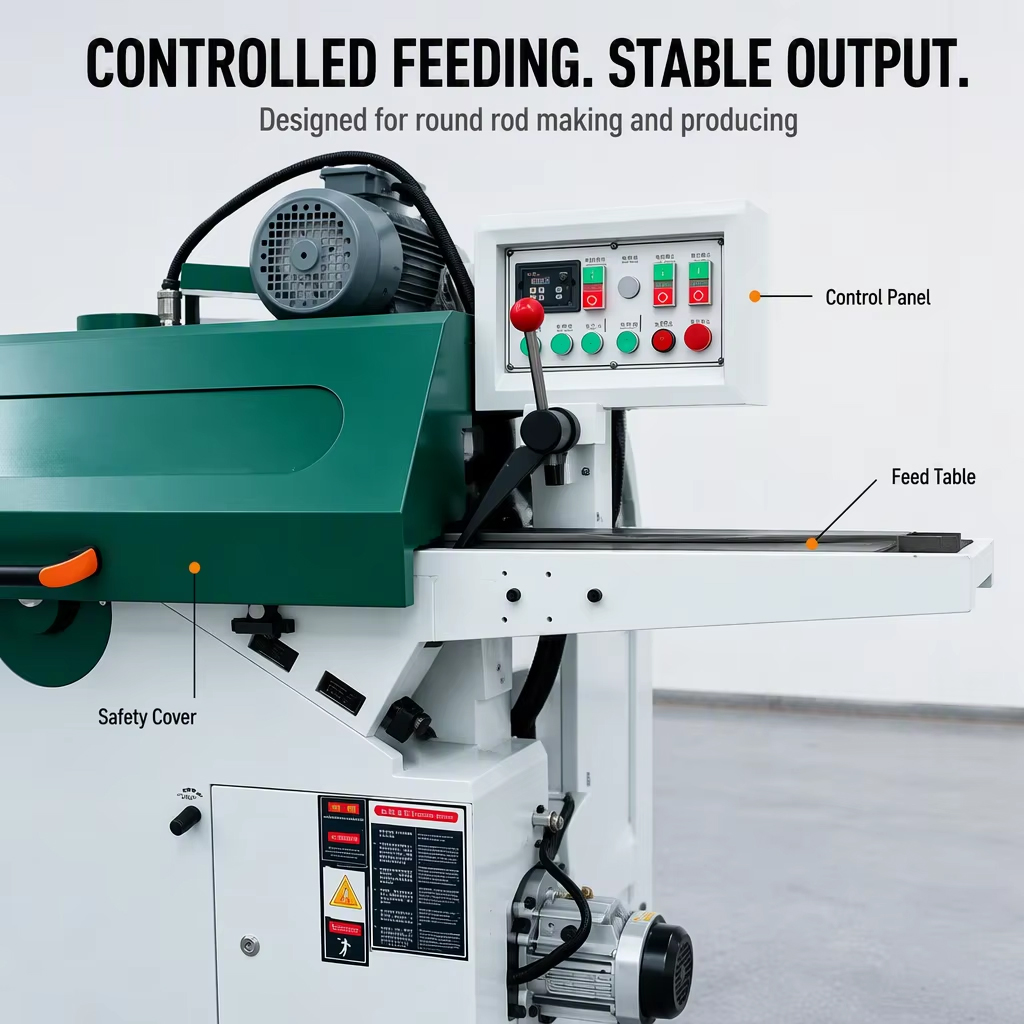

Electrical box and Control panel

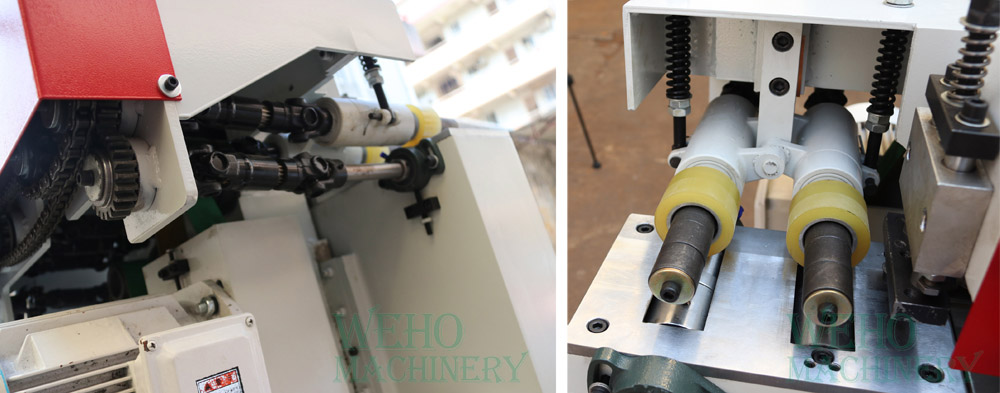

The wood dowels cutter with automatic feeding is safe and high efficient.
The round bar machine can be used for processing wooden uneven bars, martial arts bars and other sports equipment, rolling pin, mine pillars, stair railings and other round sticks.
Note: Please confirm packaging type before order, extra cost will be generated for wooden crate package.
bro
What wood materials can this round rod machine process?
It works for solid wood like pine, poplar, birch, oak and other hardwood & softwood. Raw material should be square or irregular timber blank.

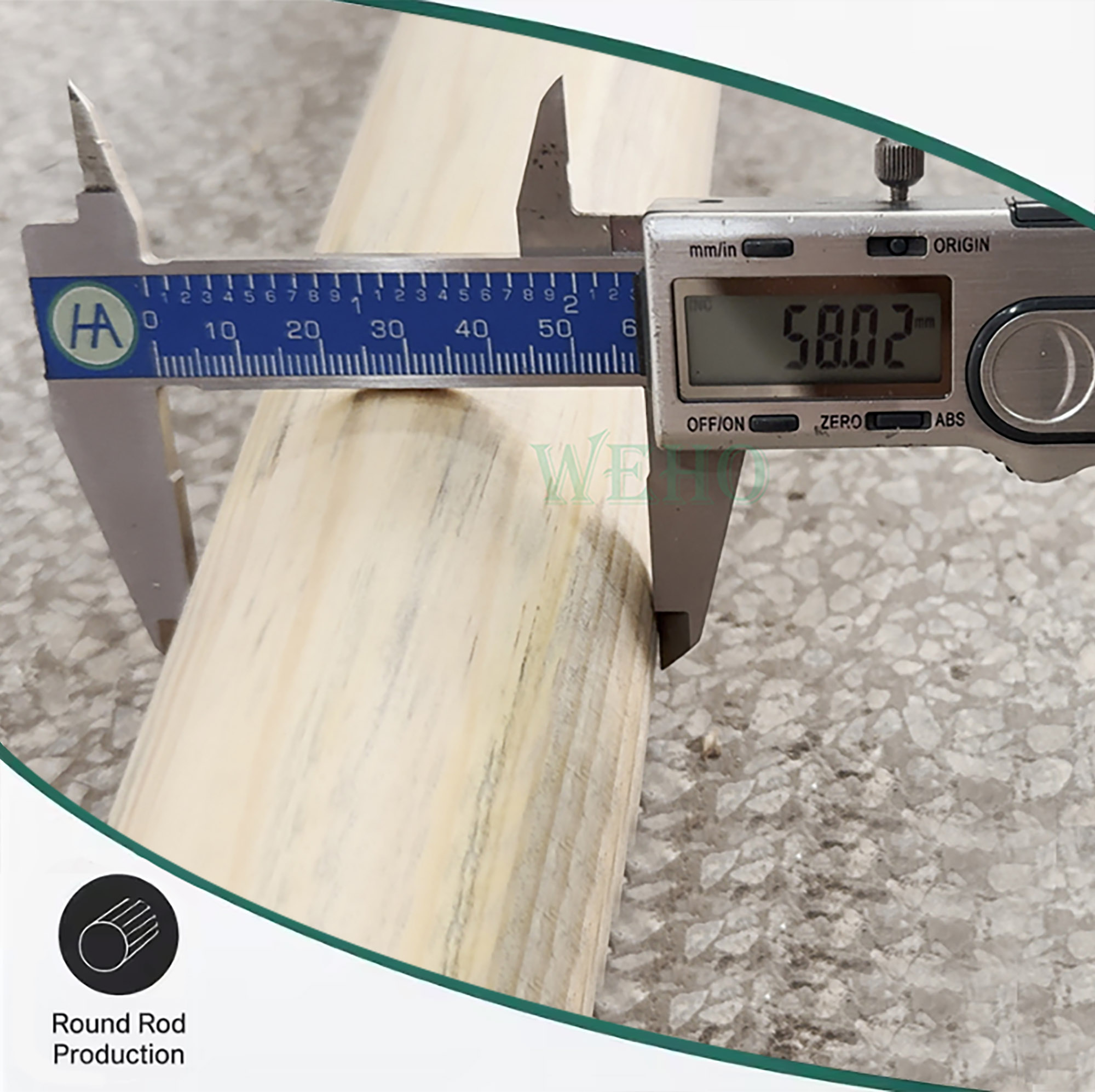

What diameter range of round sticks can it produce?
Different models cover different diameter range, common range 10‑60mm. Customized models for bigger or smaller round rods are available.
What about the working length? Do I need pre‑cut timber?
The machine continuously feeds wood. Minimum feeding length is required. Long finished round rods can be output, you can cut to your required length after processing.
Is feeding automatic or manual?
Automatic feeding system. Just put square timber into inlet, machine will auto‑feed, mill and output finished round rod. Low labor cost.

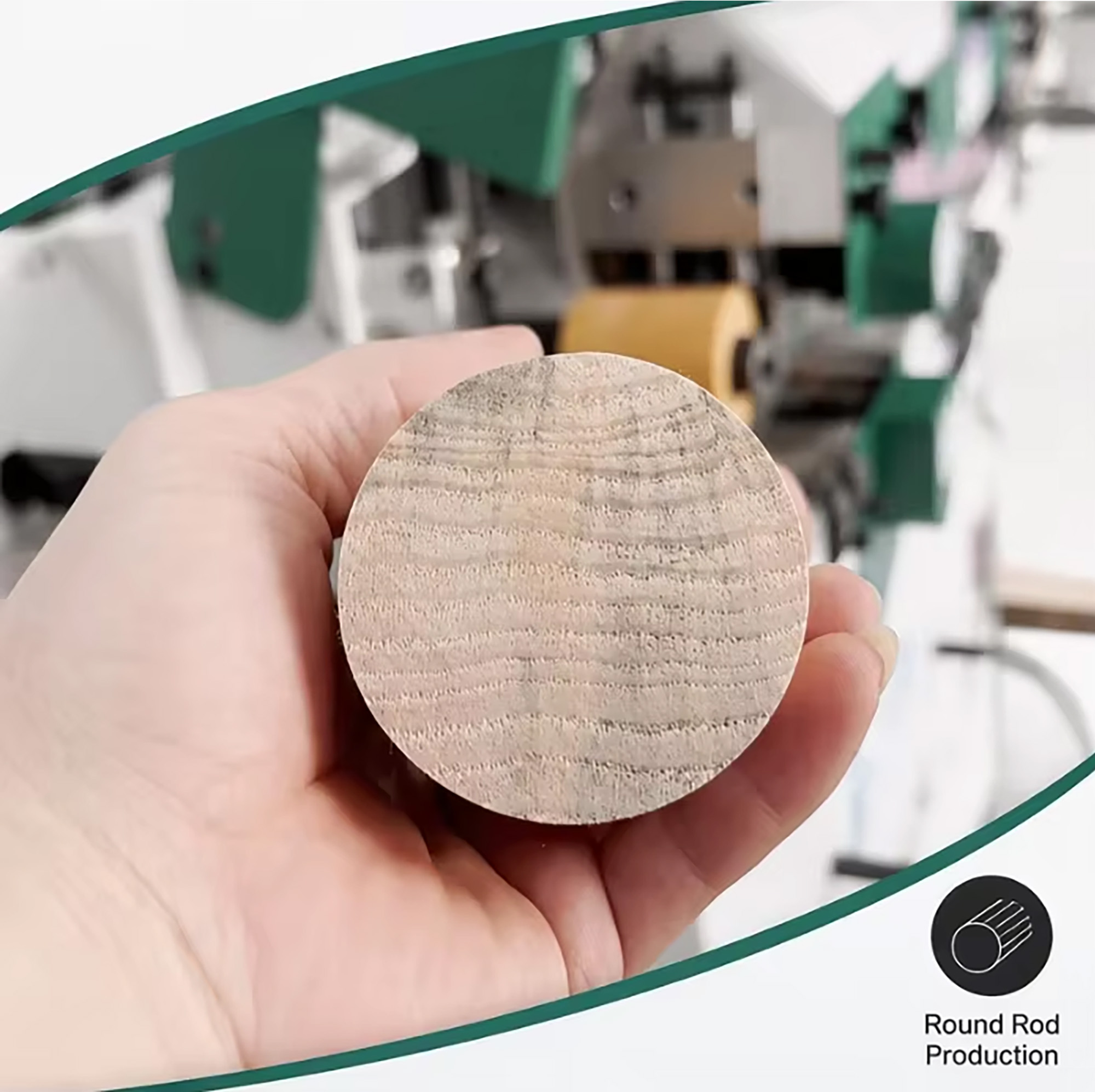

What finished surface quality can we get?
Smooth round surface, ready for sanding process. If you need ultra‑fine finish, you can match with subsequent round rod sanding machine.
What raw blank shape should I use? Must be perfect square?
Square timber blanks are preferred. Slight irregular blanks are acceptable, but too crooked timber will affect final roundness.
How to buy?
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate?
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty?
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
After buying, technical supporting contact 008613326792205
