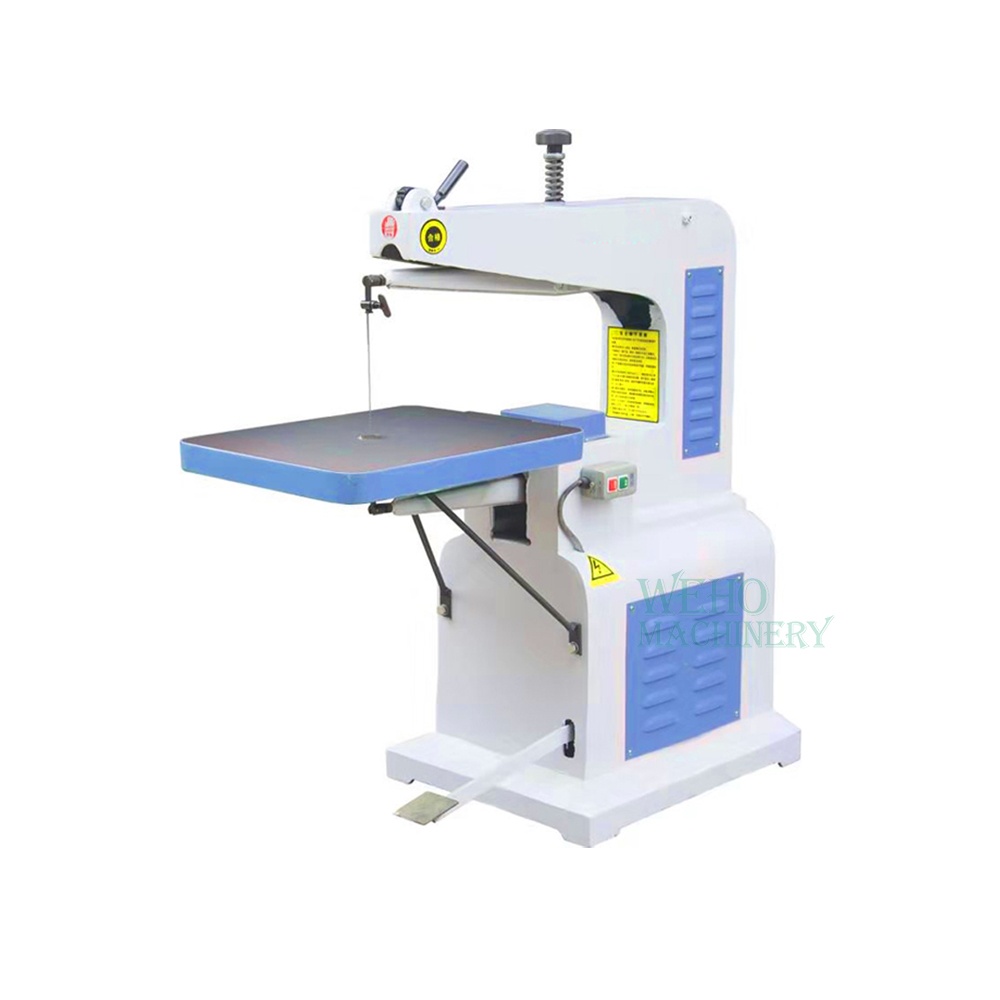

Manual vertical steel wire saw jig saw for  irregular bend wood cutting
Manual vertical steel wire saw jig saw for  irregular bend wood cutting

Manual vertical steel wire saw jig saw for irregular bend wood cutting


Modle:MWJ442
Saw blade length:310mm
Max cutting width:680mm
Cutting thickness:100mm
Install power:0.75/1.1kw


Details
Spare Parts
Inquiry
Woodworking scroll saw machine is a curve processing equipment. It is suitable for internal and external sawing, sawing, irregular bending and carving of wood, wood-based panels, glass, foam plastics and aluminum and copper materials. Widely used in furniture, toys, decoration and advertising industries, is a simple operation, easy to use.
Model MWJ442
Saw blade length 310mm
Max cutting width 680mm
Cutting thickness 100mm
Max. stroke 65mm
Maximum line speed 72m/min
Belt length A 650mm
Install power 0.75/1.1KW
Work table 525*460mm/460*360mm
Overall size 1150*540*1100mm
N/W 190kg/200kg

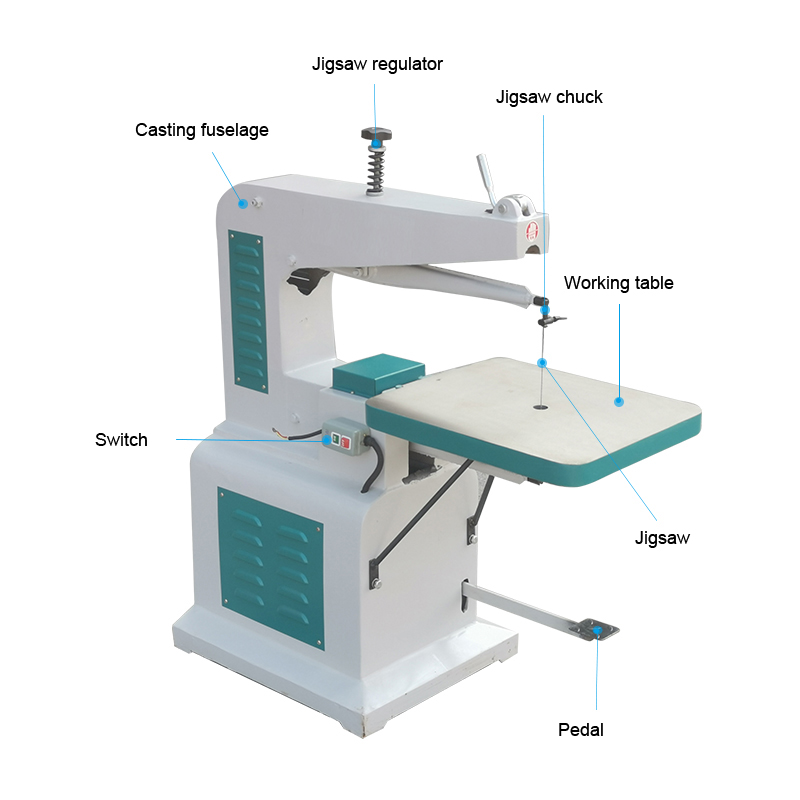

Elastic handle of saw blade: used to adjust the tightness of saw blade.
Jigsaw chuck: used to clamp saw blade.
Elastic wheel of rocker arm: used to adjust the tightness of the rocker arm.

Wire saw drive mechanism: ensure the saw blade vertical movement, reduce vibration


Working table: increase the thickness of the fine grinding table, durable, not easy to deformation
Up and low rocker arm: the upper and lower rocker arm with high strength and hardness can be adjusted back and forth to enhance cutting.

Scroll saws are comparatively safe. In particular, inadvertent contact between the blade and the operator's fingers is unlikely to result in serious injury.

Woodworking scroll saw allows a substantial amount of creativity and requires comparatively little space. In addition, many scroll saw projects require little more than the saw itself, reducing the investment in tools.
