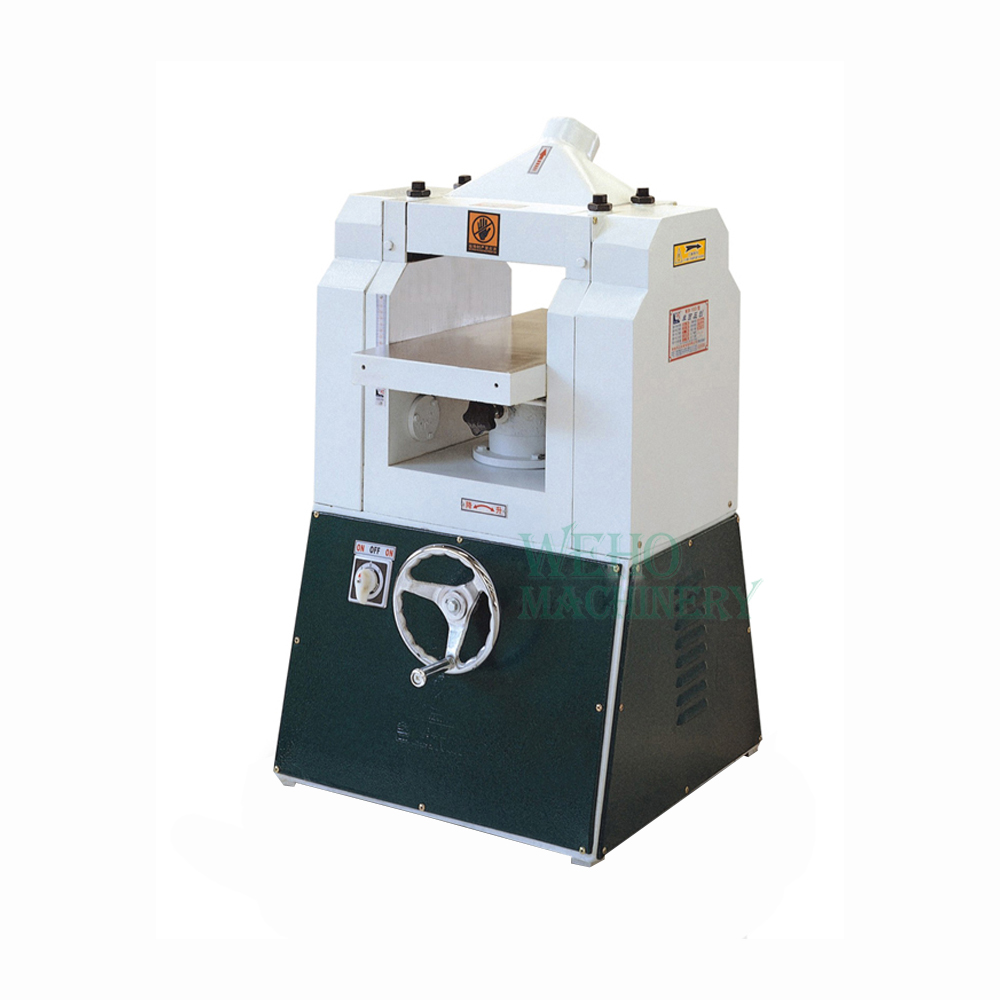

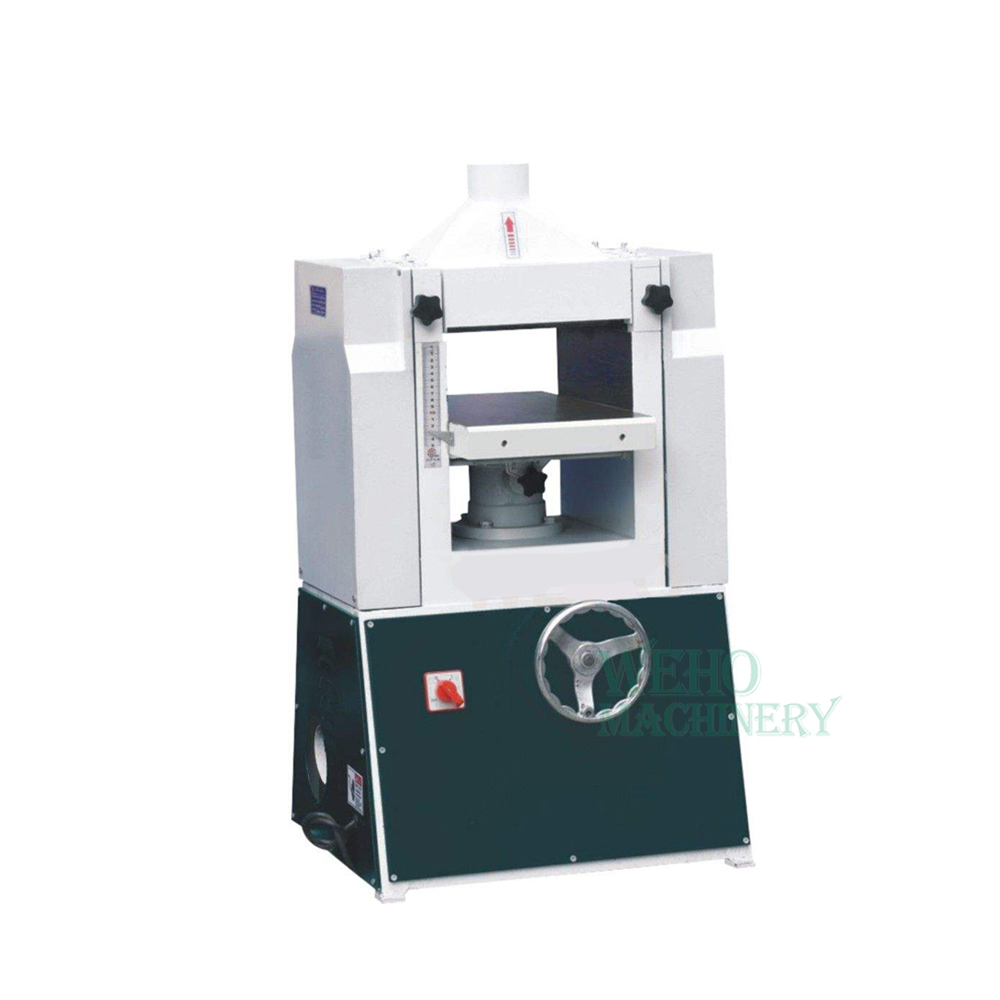

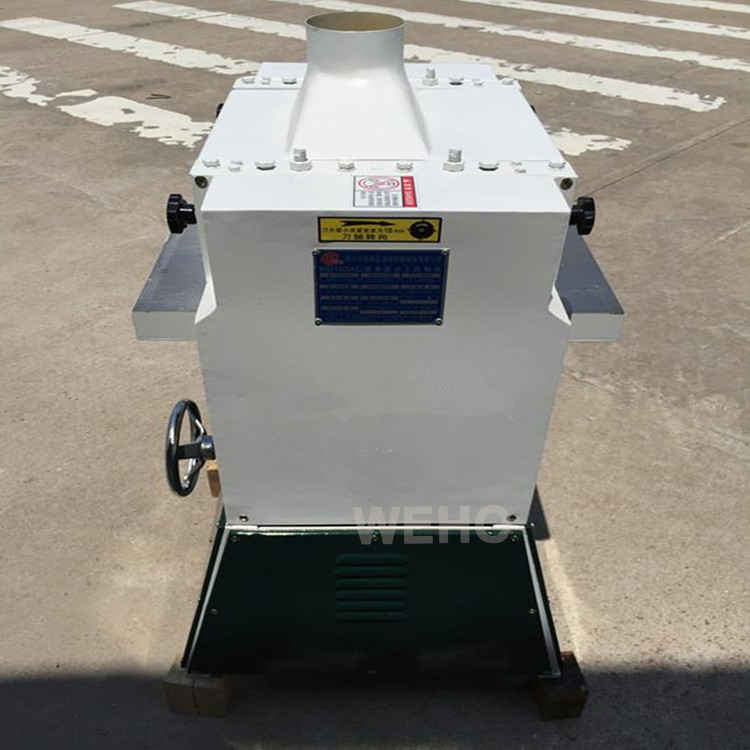

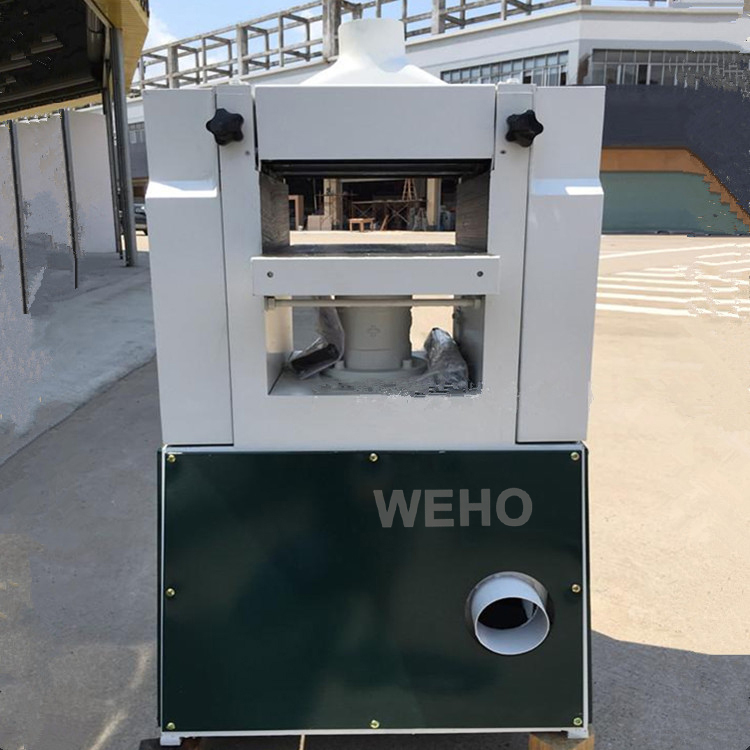

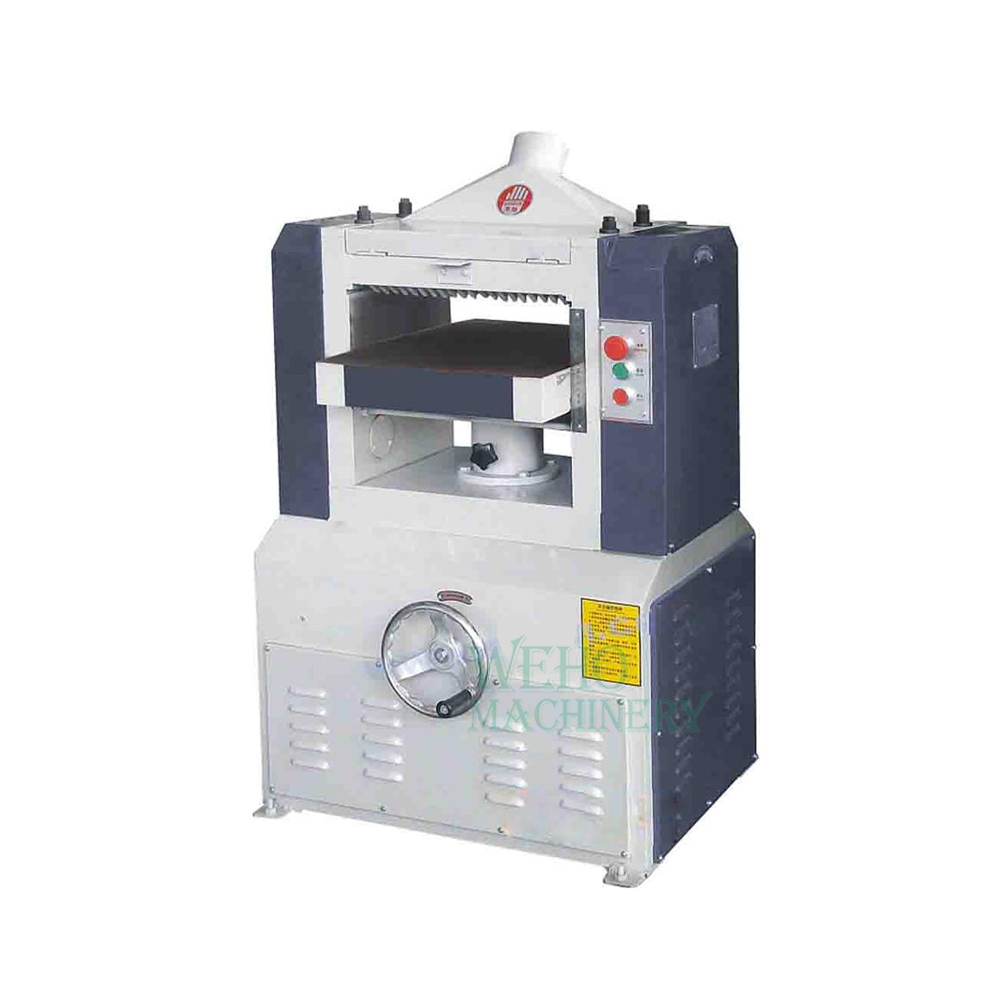

Woodworking thickness planer machine MW103B
Woodworking thickness planer machine MW103B

Woodworking thickness planer machine MW103B


Model:MW103B
Max.Planing Width(mm):300
Max.Planing Depth(mm):130 mm
Working Table Length:1950mm
Feeding Speed:7 - 10m/min
Motor Power:3kw
Dimension(L*W*H):560 * 600 * 1100mm
Weight (KG):270 KG


Details
Spare Parts
Inquiry
Thickness planer machine,high-speed refine planing.Its four precision ground columns provide extra stability when raising and lowering the table.Table of thicknesser is accurately positioned with an easy-to-use crank handle.
Product name
Thickness planer machine
Model
MW103B
Main axle rotating speed
9000rpm
Feeding speed
7-10m/min
Max working width
300mm
Working thickness
3~130mm
Max cutting output
3 mm
Working length
≥150mm
Spindle and press shaft 6-22mm
Motor power
3kw (4HP)
Machine weight
270KG
Overall dimension
560*600*1100mm


Fine workmanship, reasonable structure, advanced technology, safe and reliable.Power switch, simple and clear humanized switch design; lifting hand wheel, lifting worktable according to the thickness of wood.

Gear transmission, using gear in and out material, transmission more accurate, efficient and durable
[]
