Woodworking vertical band saw machine
Woodworking vertical band saw machine

Woodworking vertical band saw machine


Model:MW470
Max.Working Width(mm):420 mm
Max. Cutting Width:420 mm
Saw Blade Length:4700 mm
Saw wheel linear Speed:27.3 m/s
Weight (KG):900 KG
Power (kW):7.5


Details
Spare Parts
Inquiry

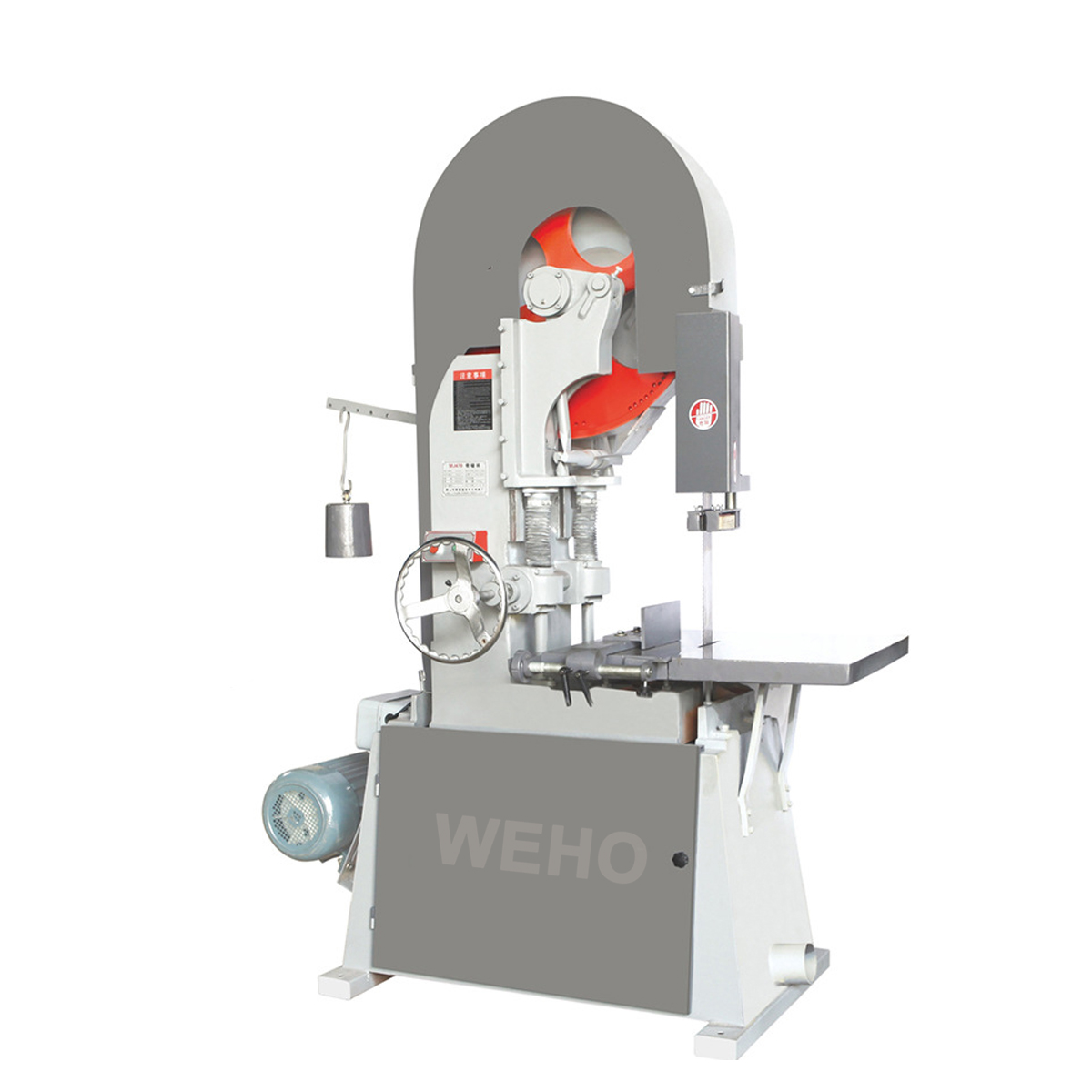

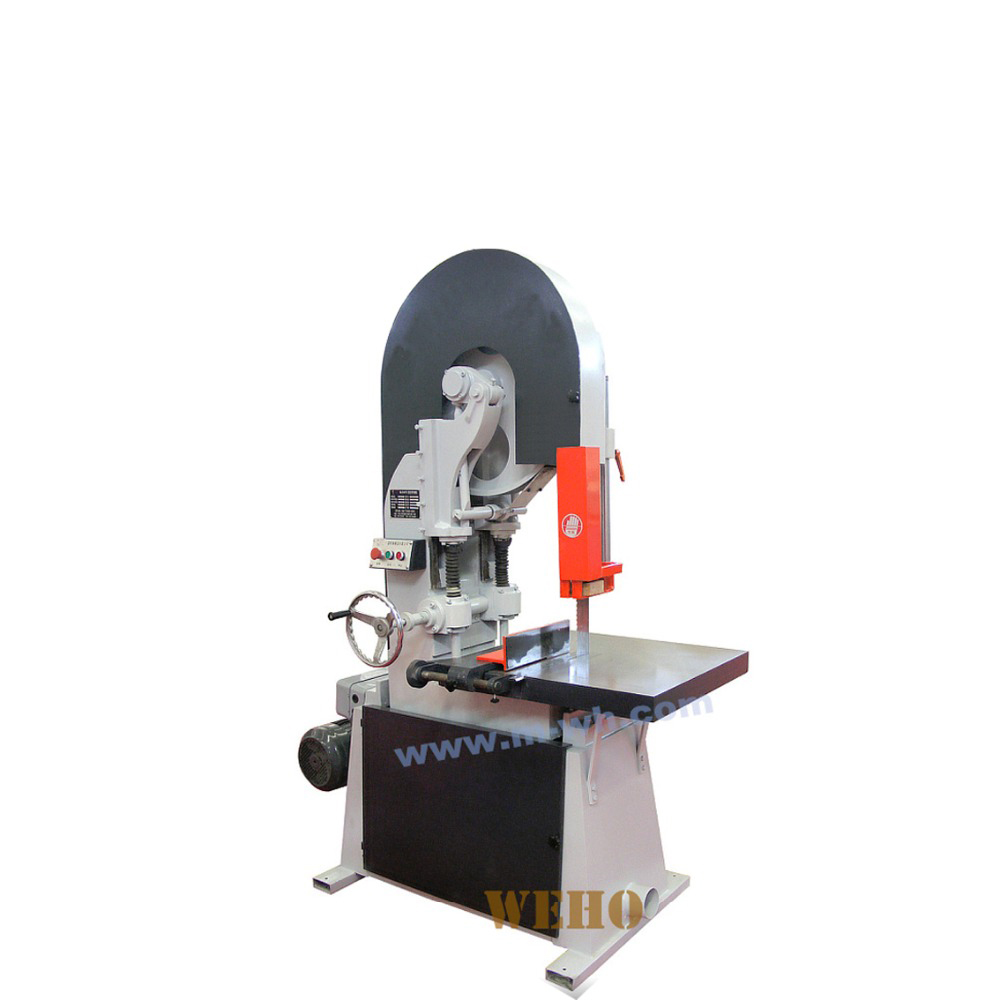

Woodworking vertical band saw machine
Woodworking vertical band saw machine is designed for smooth cutting and trouble-free operation. Blade tension can be conveniently adjusted by means of a hand-wheel.
Product Name
Woodworking vertical band saw machine
Model
MW470
Motor
7.5kw
Working table size
770*750mm
Cast iron wheel size
650mm
Max. cutting height
450mm
Max. cutting width
420mm
Saw blade length
4700mm
Saw blade width
10-70mm
Saw blade linear speed
27.3m/s
Table tilting
0~45
Overall size
1700 * 850 * 2200mm
N/W
900kg


Woodworking vertical band saw machine

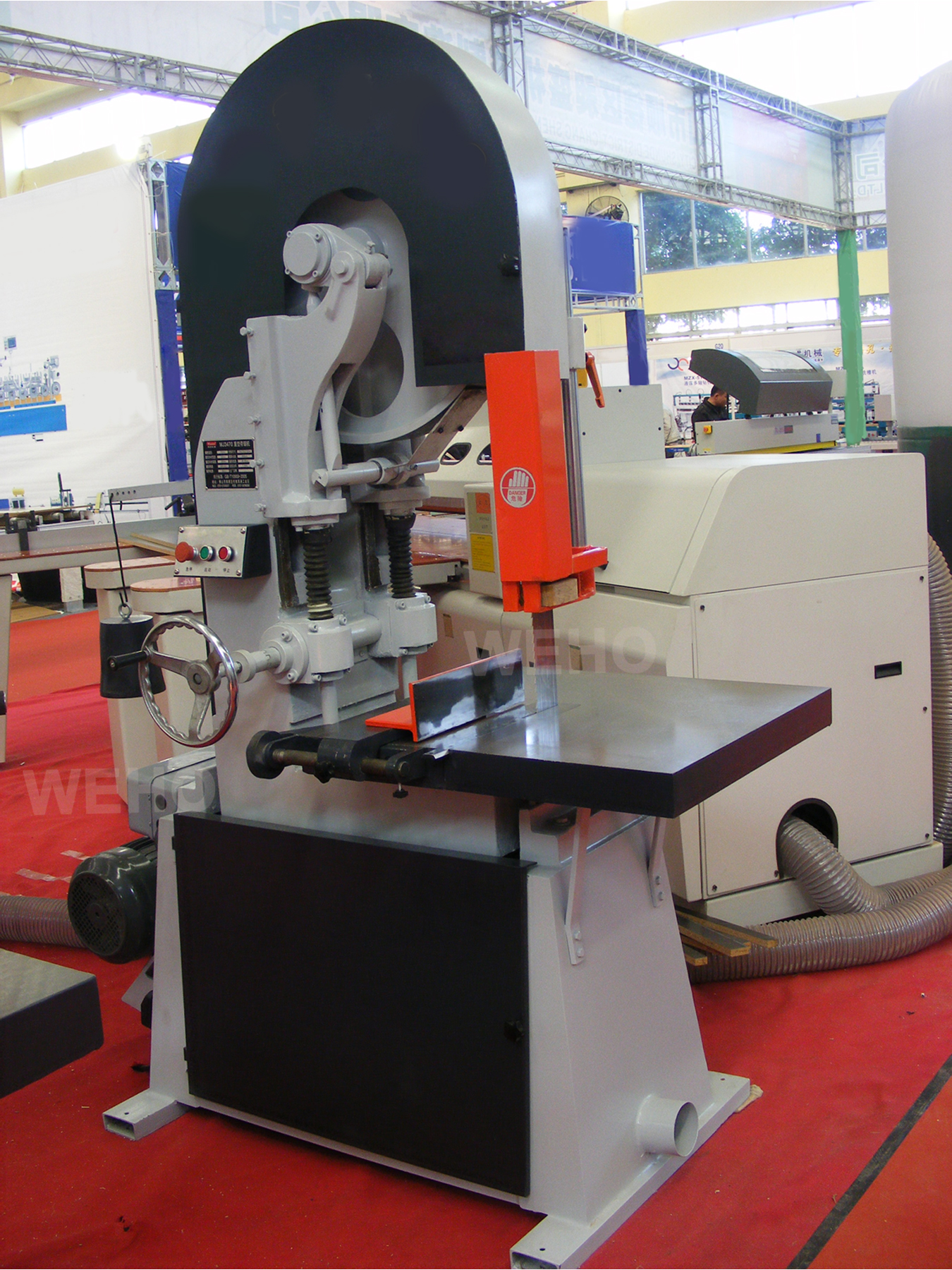

The see-through guard provides operator safety and protection. Precision computer balanced wheels eliminate vibration for accurate blade tracking.
Woodworking vertical band saw machine

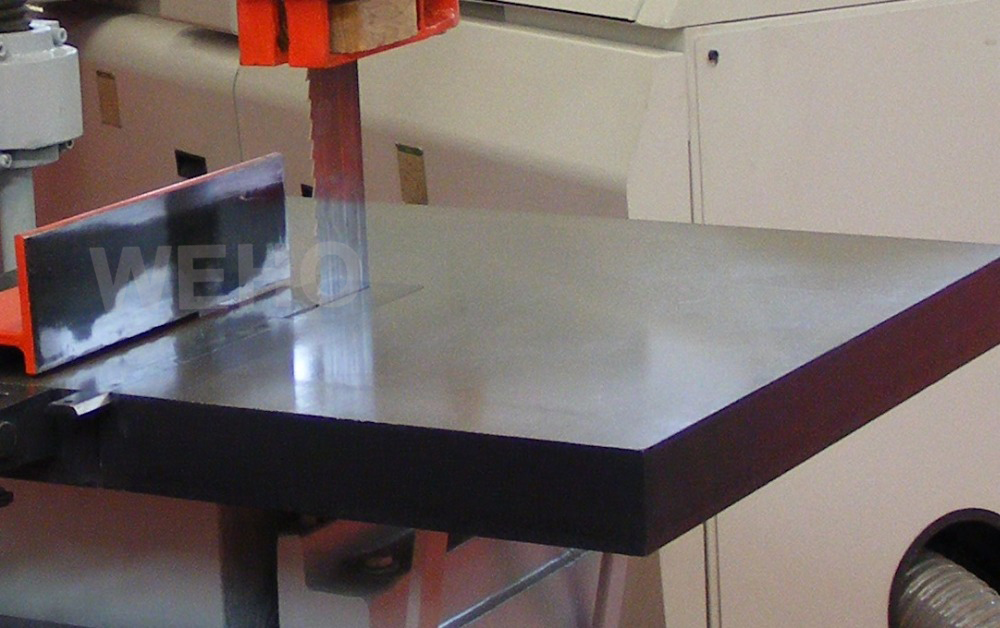

Cast iron wheels make smooth, easy blade adjustments with less effort.Adjustable angle scale keeping the cutting path smooth and precise.



[]
