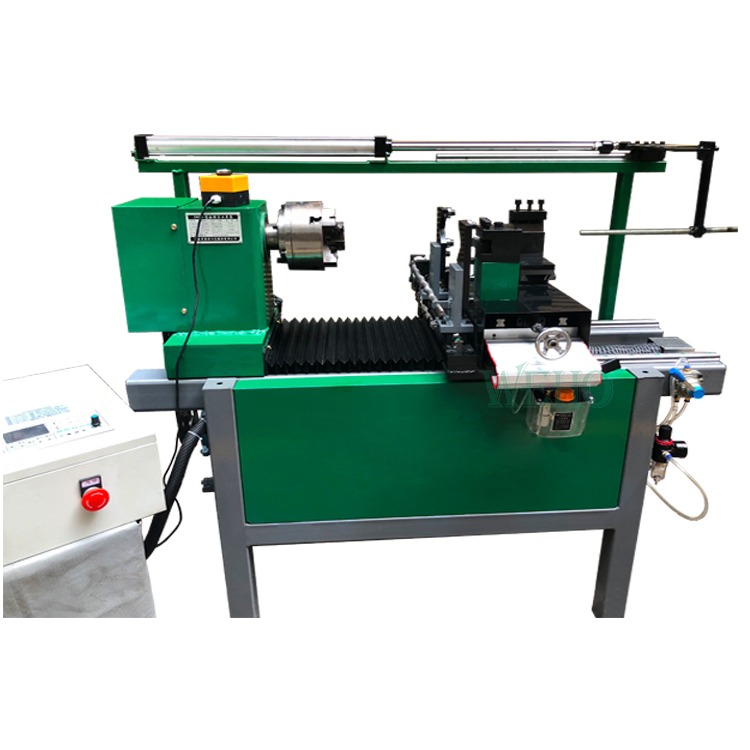

The WEHO special bamboo products making lathe machine (Model WH-5020Z) is a high-precision CNC bamboo cup making machine designed for bamboo cups, bamboo bowls, bamboo basins, bamboo baskets, and bamboo storage bottles. This guide covers the key specifications, features, and buying points you need to evaluate this CNC bamboo cup making machine.

What Is a CNC Bamboo Cup Making Machine and Who Needs It?

A CNC bamboo cup making machine is a specialized woodworking lathe that uses computer numerical control to turn and shape bamboo into hollow cylindrical products. Unlike traditional manual lathes, the CNC bamboo cup making machine automatically follows programmed paths for both the outer shape and the inner hollow.

The WEHO CNC bamboo cup making machine is ideal for:

• Factories producing bamboo cups and bamboo bowls in volume
• Workshops making custom bamboo basins and storage bottles
• Manufacturers who need high repeatability and low reject rates
• Businesses that want to upgrade from manual or semi-automatic equipment

This CNC bamboo cup making machine handles bamboo products with a maximum working diameter of 15 cm and a maximum working length of 30 cm, making it perfect for the most popular sizes of bamboo cups and related items.

Key Specifications of the WEHO CNC Bamboo Cup Making Machine (WH-5020Z)

Before buying any CNC bamboo cup making machine, check the exact technical parameters. Here are the official specifications of the WEHO model:

These specifications show that the CNC bamboo cup making machine delivers high precision while remaining compact enough for most factory floors. The 0.01 mm machining accuracy ensures every bamboo cup and bamboo bowl meets strict quality standards.

Core Features That Matter to Buyers

Dual Cutter System for Efficient Outer and Inner Processing

The CNC bamboo cup making machine is equipped with two cutters. One cutter shapes the outer profile of the bamboo cup while the second cutter processes the inner hollow. This dual-cutter design allows the machine to complete both operations in a single setup, saving time and improving consistency.

Fully Closed Dust Control and Lead Screw Design

Dust is a major concern when processing bamboo. The WEHO CNC bamboo cup making machine uses a scientific fully closed dust control design combined with a protected lead screw track. This design reduces sawdust and dust pollution, keeps the working area cleaner, and extends the service life of the ball screw by more than five times.

CNC Digital Controller – No Extra Computer Required

One of the strongest advantages of this CNC bamboo cup making machine is the upgraded CNC digital controller. The system does not need an external control computer or USB cable connection. It offers strong anti-interference performance and stable operation that is ideal for factory environments. Operators do not need a mouse or keyboard.

The intelligent code automatic generation software makes programming simple: import a shape picture, input the required size and length, select the processing method and tool, and the software automatically generates the NC lathe processing program (G-code). The program is saved directly to a TF card, and the CNC bamboo cup making machine is controlled by the controller itself.

High-Precision Components – TBI Ball Screw and TRH Linear Guide

The CNC bamboo cup making machine uses a TBI ball screw (Model SFUR16140) with ±0.01 mm accuracy for high precision, low noise, and high stability. It also features a TRH linear guide (Model TRH20B) that provides high-precision, low-drag 3D guidance. These components ensure smooth movement and long-term accuracy.

How the CNC Bamboo Cup Making Machine Works – Step-by-Step Process

Understanding the working process helps you evaluate productivity. Here is the typical workflow on the WEHO CNC bamboo cup making machine:

1. Prepare the bamboo blank to the correct length and diameter range.

2. Secure the blank using the chuck and tailstock.

3. Import the desired shape picture into the intelligent software.

4. Input the required size, length, processing method, and tool selection.

5. The software automatically generates the G-code program and saves it to the TF card.

6. Load the program into the CNC digital controller.

7. Start the machine. The dual cutters perform outer turning and inner hollowing automatically.

8. Finished bamboo cups or bamboo bowls are collected on the special material receiving rack that prevents product damage.

The fully closed dust control system works throughout the process, keeping the machine clean and protecting the precision components.

Advantages of Choosing a CNC Digital Controller Lathe

Traditional lathes require skilled operators and constant manual adjustment. A CNC bamboo cup making machine with a digital controller removes most of these limitations. Key advantages include:

• Higher consistency from piece to piece
• Reduced dependence on highly skilled labor
• Faster changeover between different bamboo cup designs
• Strong anti-interference performance suitable for industrial environments
• Simple operation without external computers, mice, or keyboards
• Longer machine life thanks to protected lead screws and dust control

These advantages make the CNC bamboo cup making machine a practical investment for both small workshops and larger production facilities.

What to Look for When Buying a CNC Bamboo Cup Making Machine

When comparing different CNC bamboo cup making machines, focus on these practical points:

• Working diameter and length that match your product range (15 cm × 30 cm is ideal for most cups and bowls)
• Dual-cutter capability for simultaneous outer and inner processing
• Fully closed dust control system
• CNC digital controller with automatic G-code generation
• High-precision ball screws and linear guides
• Stable machine frame (80 × 80 national standard square pipe with 6 mm thickness)
• Convenient material receiving rack
• Easy access to spare parts and technical support

The WEHO special bamboo products making lathe machine meets all these requirements.

Why Choose WEHO Machinery for Your CNC Bamboo Cup Making Machine

WEHO Machinery Group, established in 2003 in Foshan, China, specializes in designing and manufacturing high-performance woodworking machines. With a strong focus on dependable operation, user-friendly controls, and competitive pricing, WEHO continuously invests in research and development while maintaining strict quality control at every production stage.

The CNC bamboo cup making machine is a key part of WEHO’s wood lathe and special bamboo products equipment range. It combines precision engineering with practical factory-ready features that buyers need for consistent results.

Conclusion

The WEHO WH-5020Z CNC bamboo cup making machine offers high precision, dual-cutter efficiency, fully closed dust control, and simple CNC programming for bamboo cups, bowls, and related products. Contact WEHO Machinery today for a quotation or technical support.
