Woodworking blades require regular sharpening to maintain cutting performance and blade condition.The right sharpening machine depends on the blade type, material, size, and grinding requirements.This guide covers the main types of woodworking blade sharpening machines and how to match them with different blade applications.

What Is a Woodworking Blade Sharpening Machine?

A woodworking blade sharpening machine is used to grind and restore the cutting edge of woodworking blades and cutting tools.Different blades have different shapes and grinding requirements.Circular saw blades have multiple teeth around a round blade body. Band saw blades use a continuous blade structure. Straight knives have a long, continuous cutting edge.These differences affect the required grinding method.A suitable machine should match the blade type and its specifications.

Types of Woodworking Blade Sharpening Machines

Woodworking sharpening and grinding machines can be grouped by the blade or cutting tool being processed.

WEHO's current range includes machines for TCT circular saw blades, HSS circular saw blades, band saw blades, straight knives, and TCT woodworking tools.

The blade type should be the first consideration when selecting a machine.

Circular Saw Blade Sharpening Machines

Circular saw blades are used for many wood cutting applications.

The blade has multiple teeth. Each tooth needs to maintain the required cutting geometry.

Important blade specifications can include:

• Blade diameter
• Bore diameter
• Blade thickness
• Tooth type
• Tooth geometry
• Grinding requirements

WEHO provides different machines for TCT and HSS circular saw blades.

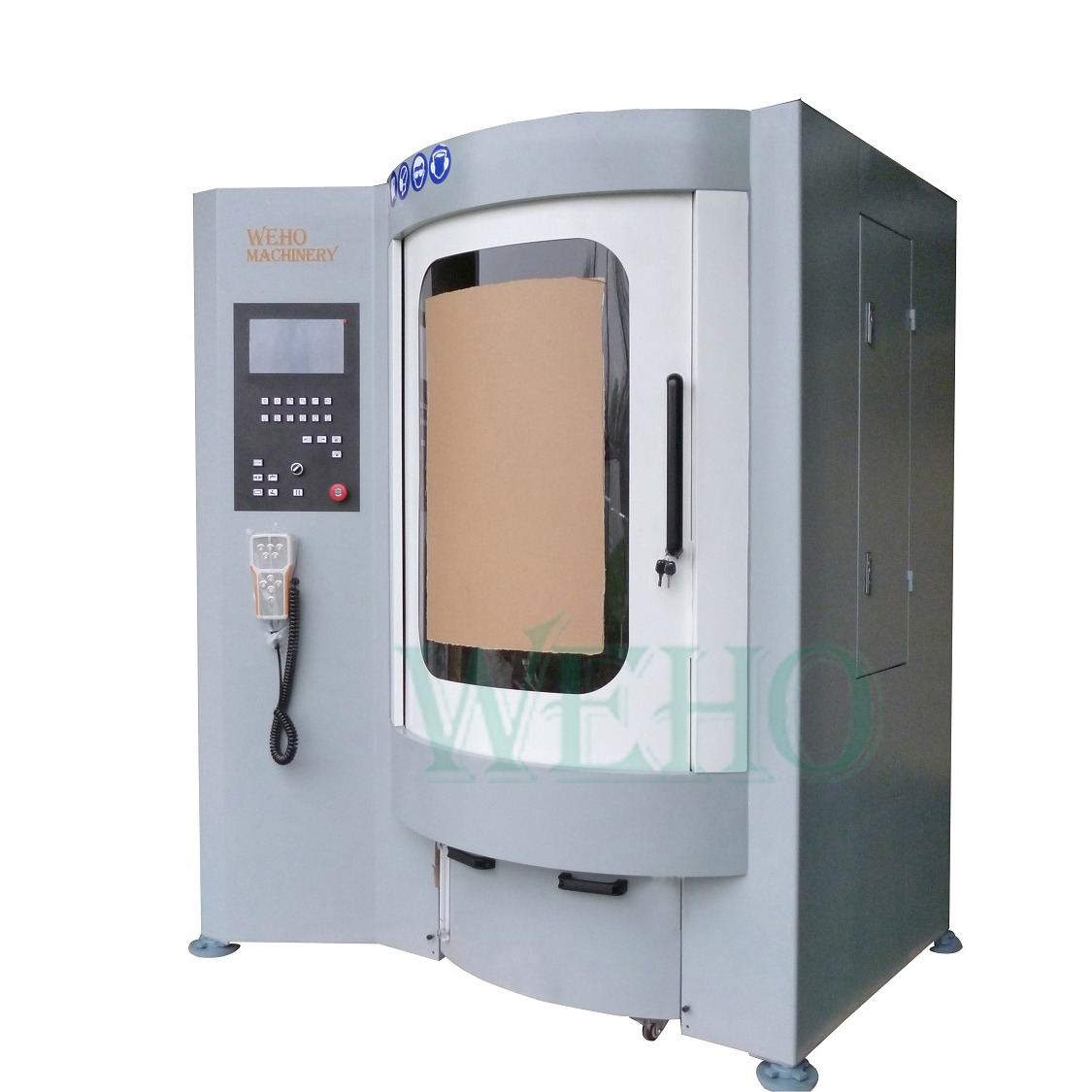

TCT Circular Saw Blade Sharpening

TCT stands for Tungsten Carbide Tipped.TCT circular saw blades use carbide-tipped teeth. They require equipment designed for carbide saw blade grinding.

The CH800 is designed for carbide TCT circular saw blades. WEHO lists applications including wood cutting saw blades, aluminum cutting saw blades, forest saw blades, and table saw blades.

Its listed specifications include:

For the complete specifications, see the CH800 TCT Circular Saw Blade Sharpening Machine.

HSS Circular Saw Blade Grinding

HSS stands for High-Speed Steel.

HSS circular saw blades require a different grinding setup from TCT blades.

The HSS500-3A is designed for HSS circular saw blade sharpening and grinding. It uses CBN grinding wheels and supports triangular, arc, high-low, and variable-pitch tooth types.

The machine uses three axes:

• X axis
• Y axis
• Z axis

Its listed grinding precision is:

See the HSS Circular Saw Blade Sharpening Machine for detailed machine information.

For a deeper comparison, read our 【TCT vs HSS, Circular vs Straight: Which Blade Sharpening Machine Do You Need?】 guide.

Band Saw Blade Sharpening Machines

Band saw blades have a continuous blade structure.

Their sharpening requirements differ from circular saw blades.

Key specifications can include:

• Blade width
• Blade thickness
• Grinding length
• Tooth configuration
• Grinding requirements

WEHO offers automatic band saw blade grinding machines for sawmill applications.

MF-05 Automatic Band Saw Blade Grinder

The MF-05 is an automatic band saw blade grinder.

WEHO lists it for sharpening band saw blades used for log sawing. It can grind the rake angle of carbide saw blades and the rake angle of band saw carbide tips.

See the MF-05 Automatic Band Saw Blade Grinder for more details.

MF600 Automatic Band Saw Blade Sharpening Machine

The MF600 is designed for larger sawmill applications.

WEHO states that it can grind different types of band saw blades, including:

• Carbide-tipped band saw blades
• HSS band saw blades
• BI dual band saw blades
• Frame saw blades

Its listed specifications include:

See the MF600 Automatic Band Saw Blade Sharpening Machine for the complete specifications.

Straight Blade Grinding Machines

Straight knives have a continuous cutting edge.

Their grinding process differs from toothed circular or band saw blades.

Important factors include:

• Knife length
• Blade thickness
• Grinding angle
• Grinding precision
• Grinding wheel configuration

WEHO's Straight Blade Grinding Machine range includes MF2530AB and MF2530AC. The product category also includes other straight knife and blade grinding equipment.

MF2530AB Straight Knife Grinding Machine

The MF2530AB has a maximum grinding length of 3100 mm.

WEHO lists a grinding precision of 0.01–0.02 mm.

WEHO states that grinding lengths from 1500 mm to 3100 mm are available. Longer grinding lengths are also available for special grinding purposes.

See the MF2530AB Straight Knife Grinding Machine for more information.

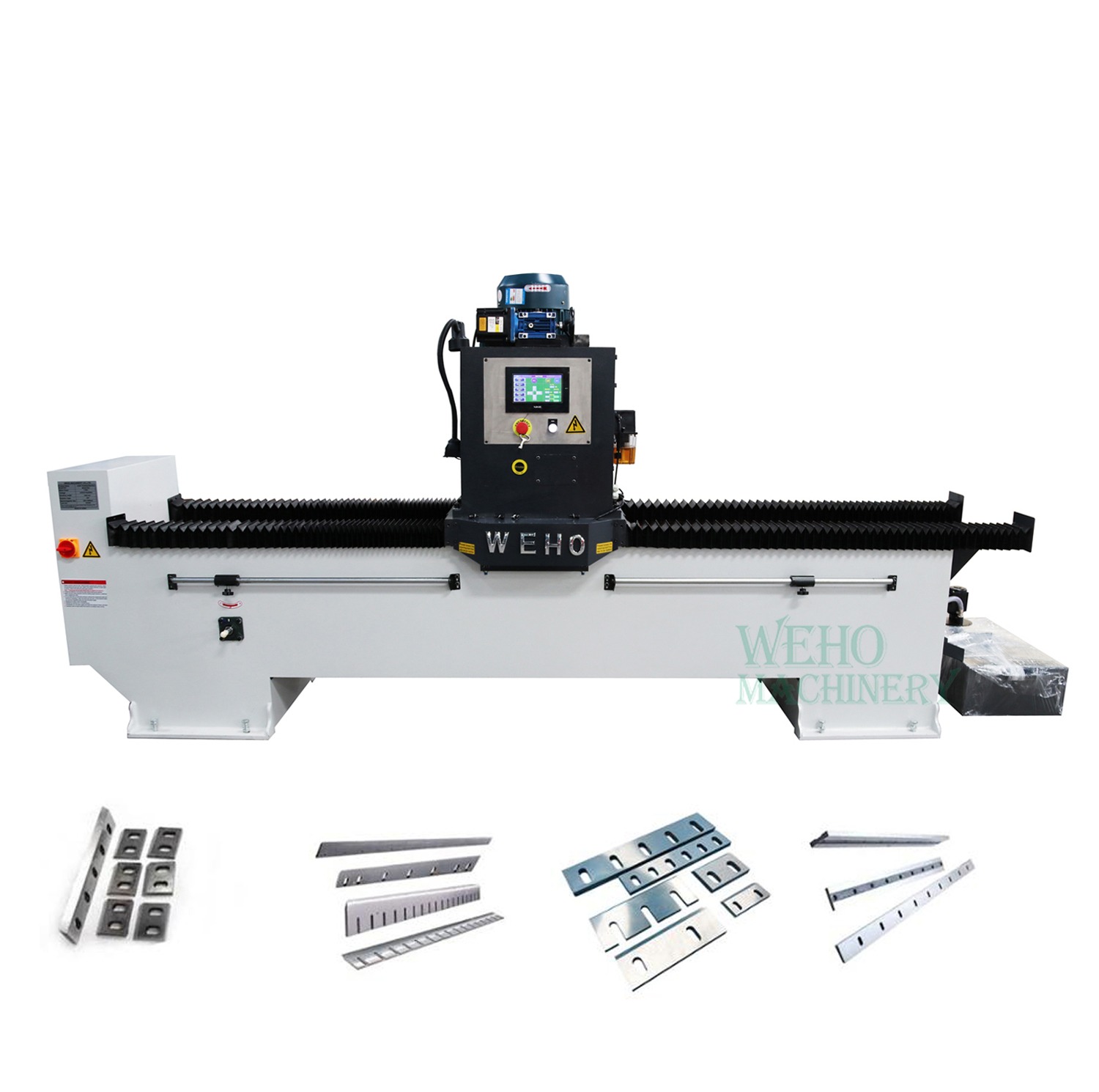

MF2530AC Automatic Knife Grinding Machine

The MF2530AC also has a maximum grinding length of 3100 mm.

It provides programmable work cycles for:

• Roughing
• Finishing
• Spark-out

It also includes a separate coolant collection tank with a 90 W motor pump.

See the  MF2530AC Automatic Knife Grinding Machine for the complete machine specifications.

For a detailed comparison of blade types, read 【Circular Saw Blade vs Straight Knife Grinding】.

TCT vs HSS: What Is the Difference?

TCT and HSS circular saw blades use different cutting materials.

This affects the required grinding equipment.

The CH800 is designed for carbide TCT circular saw blades. The HSS500-3A is designed for HSS circular saw blade sharpening and grinding.

The machine should therefore be selected according to the blade material and grinding requirements.

Read TCT vs HSS, Circular vs Straight: Which Blade Sharpening Machine Do You Need? for a detailed comparison.

Circular Saw Blades vs Straight Knives

Circular saw blades and straight knives have different geometries.

This affects the grinding process and machine configuration.

A machine should match the geometry of the blade being processed.

For more detail, read Circular Saw Blade vs Straight Knife Grinding.

How to Choose a Woodworking Blade Sharpening Machine

Choosing a sharpening machine should start with the blade.

1. Identify the Blade Type

First determine the blade or tool type.

Common applications include:

• Circular saw blades
• Band saw blades
• Straight knives
• TCT woodworking tools

This helps narrow the suitable machine category.

2. Check the Blade Material

Identify the cutting material.

For example:

• TCT
• HSS
• Other cutting tool materials

The material affects the grinding method.

3. Check Blade Dimensions

Check the actual blade specifications.

Important dimensions can include:

• Diameter
• Bore diameter
• Thickness
• Width
• Length

The machine's working range must cover the blade specifications.

4. Check Grinding Requirements

Consider:

• Tooth type
• Tooth geometry
• Grinding angle
• Grinding length
• Required precision

These factors can affect machine selection.

5. Consider Production Requirements

Also consider:

• Sharpening frequency
• Blade quantity
• Production volume
• Operator involvement
• Required repeatability

For a detailed selection guide, read How to Choose a Woodworking Blade Sharpening Machine.

Manual, Automatic and CNC Sharpening Machines

Automation is another factor to consider.

The correct level depends on the machine application and production requirements.

Manual Sharpening

Manual machines require more direct operator involvement.

They can be suitable for operations that require manual adjustment and control.

WEHO's current product range includes both automatic and CNC-controlled sharpening equipment.

Automatic Sharpening

Automatic machines can handle repeated sharpening operations with less manual intervention.

WEHO's range includes:

• MF-05
• MF600
• MF2530AC

CNC and Servo Control

The HSS500-3A uses three axes:

• X
• Y
• Z

It is designed for HSS circular saw blade sharpening and grinding.

The required automation level should be determined after confirming the blade type and production requirements.

For a deeper comparison, read Manual vs Automatic vs CNC Blade Sharpening Machines.

Universal Tool Grinding for Woodworking Tools

Woodworking operations may also use TCT tools beyond circular saw blades.

These can include:

• Grooving cutters
• Moulding cutters
• Router bits
• Carbide saws
• Planer knives

The MF2720 is a universal tool grinding machine designed for grinding TCT tools.

Its listed grinding capacity includes:

See the  MF2720 Universal Tool Grinding Machine for complete specifications.

WEHO Woodworking Blade Sharpening Machine Range

WEHO's Sharpening & Grinding Machines cover several woodworking blade and tool applications.

The right machine depends on the blade or tool.

It also depends on the required grinding range and production requirements.

Explore the complete WEHO Sharpening & Grinding Machines range for more machine options.

Basic Maintenance of a Blade Sharpening Machine

Regular maintenance helps keep the grinding process stable.

Grinding Wheel

Check the grinding wheel condition before operation.

Follow the machine's operating and maintenance requirements for inspection and replacement.

Blade Positioning

Check that the blade is correctly positioned and secured.

Proper positioning is important for consistent grinding.

Cooling System

Some WEHO machines use a cooling system.

For example, the MF2530AC includes a separate coolant collection tank with a 90 W motor pump.

Check the coolant system according to the machine's operating requirements.

Machine Components

Regularly inspect:

• Grinding components
• Moving components
• Electrical systems
• Lubrication points
• Working areas

For a detailed maintenance checklist, read How to Maintain a Woodworking Blade Sharpening Machine.

How to Match Your Blade With a WEHO Machine

A simple starting point is to match the blade type with the corresponding machine.

This table is a starting point.Before purchasing a machine, confirm the complete blade specifications and grinding requirements.For a more accurate machine selection, provide the blade type, material, dimensions, tooth configuration, and production requirements.

Conclusion

Choosing the right sharpening machine starts with the blade type, material, size, and grinding requirements.WEHO offers sharpening and grinding machines for TCT and HSS circular saw blades, band saw blades, straight knives, and TCT woodworking tools.Explore WEHO Sharpening & Grinding Machines to find a machine for your application.

Frequently Asked Questions

What is a woodworking blade sharpening machine?

It is a grinding machine used to sharpen or regrind woodworking blades and cutting tools.The machine should match the blade type and grinding requirements.

What machine is used for TCT circular saw blades?

WEHO's CH800 is designed for carbide TCT circular saw blades.Its listed carbide saw outside diameter range is 120–810 mm.

What machine is used for HSS circular saw blades?

WEHO's HSS500-3A is designed for HSS circular saw blade sharpening and grinding.It uses CBN grinding wheels and three-axis X, Y, and Z control.

Can one sharpening machine handle all woodworking blades?

Not necessarily.Blade material, geometry, dimensions, and grinding requirements can differ.The machine should be selected according to the specific blade application.

How do I choose a woodworking blade sharpening machine?

Start with the blade type and material.Then check the blade dimensions, tooth configuration, grinding requirements, production volume, and required automation level.Read How to Choose a Woodworking Blade Sharpening Machine for a detailed selection process.

Does WEHO offer straight knife grinding machines?

Yes.WEHO offers straight blade grinding machines including MF2530AB and MF2530AC.Both models have a listed maximum grinding length of 3100 mm.
